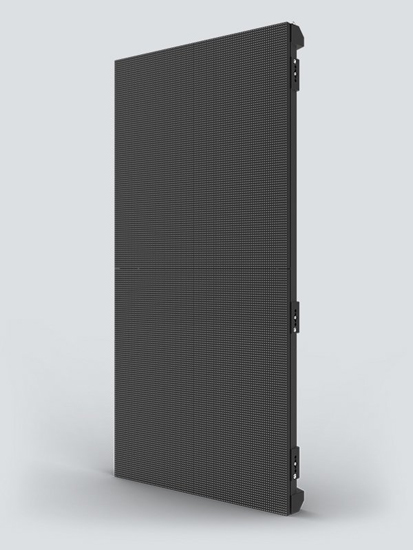

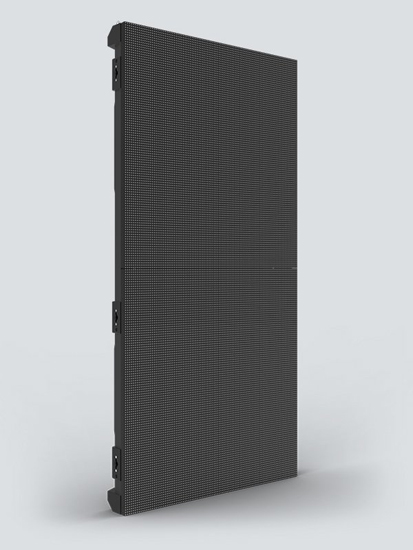

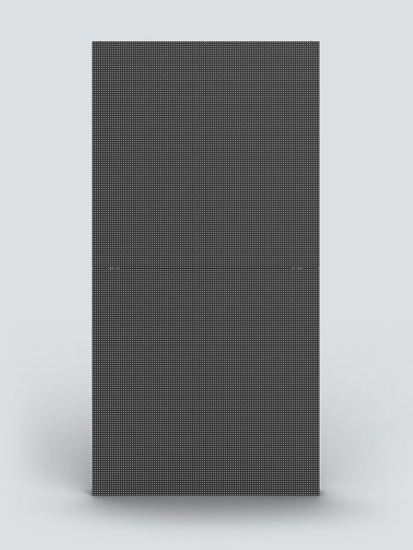

Chauvet DJ Vivid 4

Technical Highlights

• Modular video panel vividly displays content without the need of bulky media servers
• Multiple magnets and positioning pins effortlessly allow a tool free, one-man setup
• Elongated size with multiple Speego connectors sets up 2x faster than other panels
• Creates a perfect DJ façade and seamlessly integrates with Serato for displaying music videos
• Panels can be suspended vertically or horizontally offering different aspect ratio options
• Dual power supplies improve reliability and ensure downstream panels don’t lose signal
• Black body LEDs accurately reproduce high-contrast videos
• Intelligent modules with dedicated memory improve the image quality and simplify maintenance
• Extremely lightweight due to the magnesium die-cast housing

Specifications:

• Light Source: 21,632 SMD 2828 LEDs (tri-color RGB) 0.3 W, (60 mA), 50,000 hours life expectancy
• Power Linking: 7 units @ 120 V; 13 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 280 W, 2.3 A @ 120 V, 60 Hz 280 W, 1.2 A @ 230 V, 50 Hz
• Weight: 27.6 lb (12.5 kg)
• Size: 19.7 x 1.9 x 39.4 in (500 x 65 x 1000 mm)
• Approvals: CE, MET
• Wavelength: 620 to 625 nm red, 516 to 530 nm green, 460 to 475 nm blue
• Viewing Angle: 120°
• Maximum Illuminance: 1,200 NITS
• Calibrated Illuminance: 1,000 NITS
• Contrast Ratio: 4,300:1
• Refresh Rate: 1,920 Hz
• Pixel Density: 43,264 m2 (104 x 208)Pixel Pitch: 4.8 mm
• Minimum Viewing Distance: 12 ft (4 m)
• Maximum Vertical Hang: 23 panels
• Maximum Horizontal Hang: 17 panels
• Required Controllers: Vivid Drive 23N

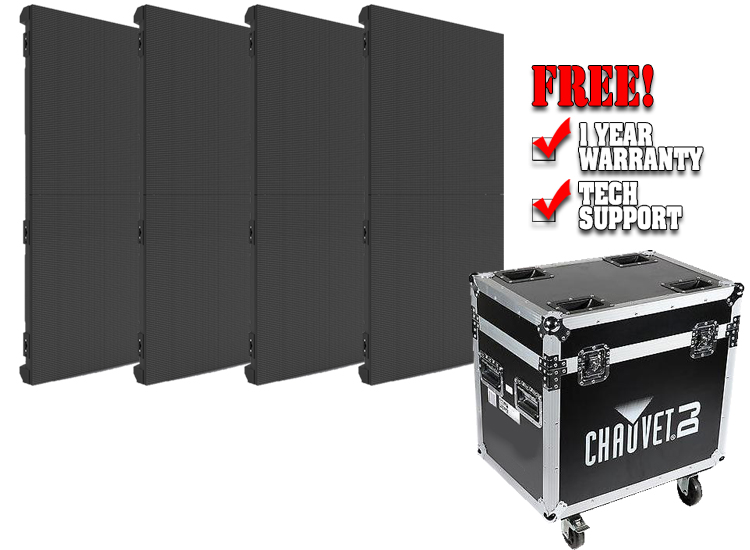

WHAT'S INCLUDED

• (x4) Vivid 4
• (x1) Flight case
• (x1) Seetronic Powerkon power cord
• (x4) Seetronic Powerkon power linking cords
• (x4) Seetronic EtherCon signal linking cords
• (x1) RS232 to 9-pin serial cableWarranty cardUser Manual
