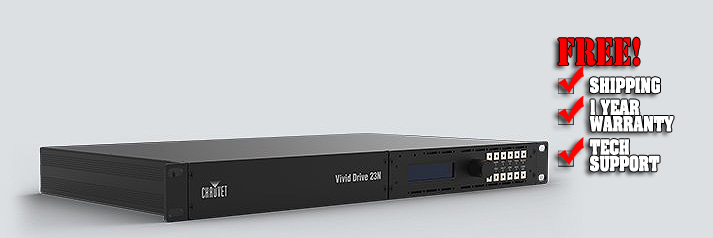

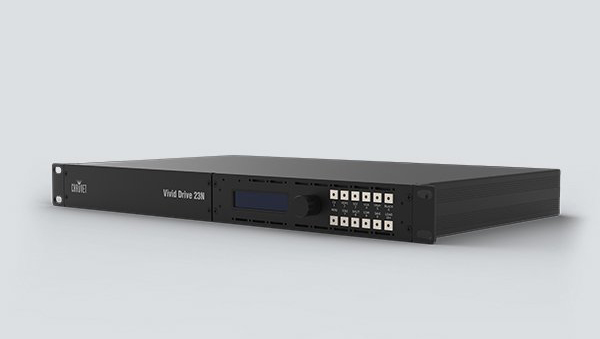

Chauvet DJ Vivid Drive 23N

Highlights

• Video driver with numerous input/output options for any Novastar video panel
• Built-in video scaler allows for quick resizing of all video content
• HDMI loop out to expand system and connect to additional drivers or monitors
• Convenient rackmount holds up to 2 drivers or can be removed for tabletop use

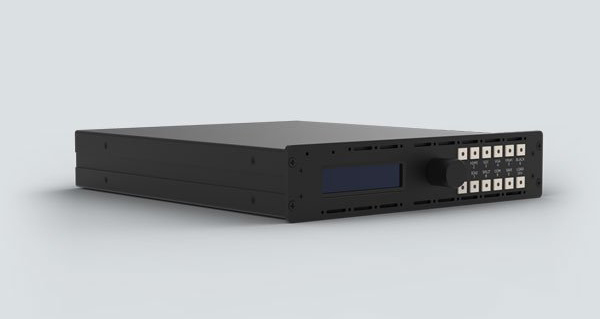

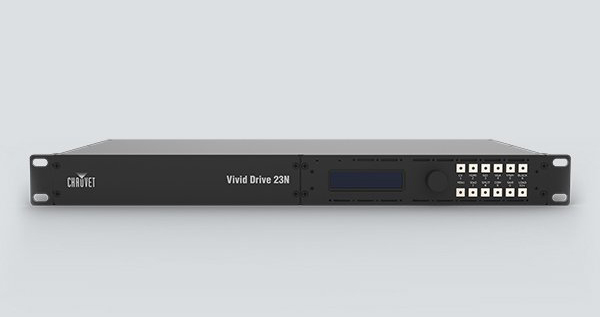

• On-board digital display easily sets all settings including transitions, content, scale, aspect ratio, PiP, etc
• Seamlessly transition between different inputs with multiple transition effects



Specifications

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 40 W, 0.4 A @ 120 V, 60 Hz 40 W, 0.2 A @ 230 V, 50 Hz
• Weight: 3.1 lb (1.4 kg)
• Size: (w/o rackmount) 8.6 x 9.8 x 1.8 in (219 x 250 x 45 mm)
• Approvals: CE
• Control Protocol: Novastar
• Control Input Connectors: RS-232, USB

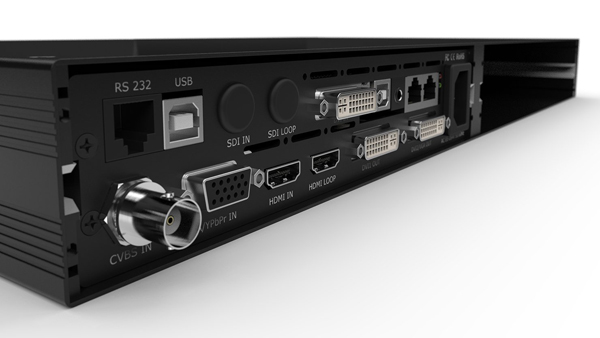

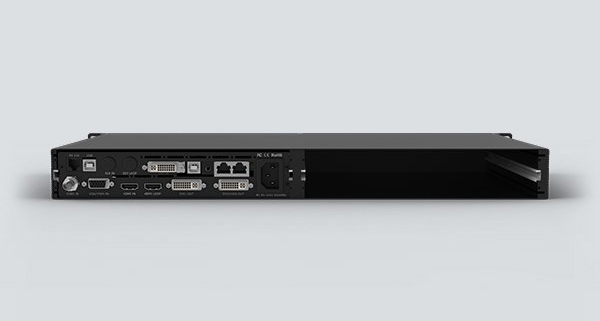

• Video Input Connectors: BNC, VGA, HDMI (w/ loop out)
• Video Output Connector: HDMI, DVI, RJ45 (x2)
• Max. Supported LEDs: 1,310,720
• Max. Supported Panels (Vivid 4): 30 per RJ45
• Included Rackmount: 1U



WHAT'S INCLUDED

• (x4) Vivid 4
• (x1) Flight case
• (x1) Seetronic Powerkon power cord
• (x4) Seetronic Powerkon power linking cords
• (x4) Seetronic EtherCon signal linking cords
• (x1) RS232 to 9-pin serial cable
• Warranty card
• User Manual
