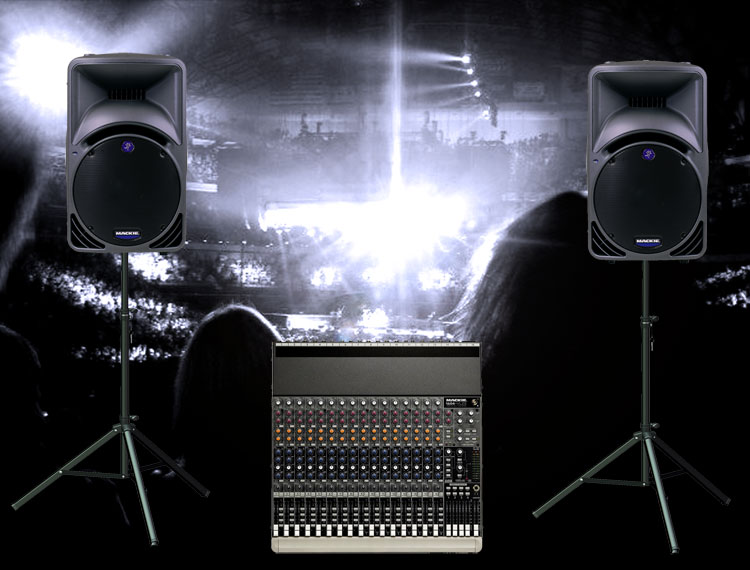

| Mackie Pro PA Pack |
 |
Regular Price $2999.99
Sale Price $2449.99
|
- Mackie 1604 VLZ3 Mixer
- 16 studio-grade XDR2 Extended Dynamic Range mic preamps with:
- Ultra-wide 60dB gain range
- 130dB dynamic range
- +22dBu line input handling
- Extended low frequency response
- Distortion under 0.0007% (20Hz-20kHz)
- Phantom power for studio condenser mics
- 16 high-headroom line inputs
- 16 channel inserts
- Advanced DC pulse transformer RF rejection
- 60mm long-wearing logarithmic-taper faders
- 4 Aux sends, level, pan, -20dB/Solo and Overload/Mute_LEDs on each channel
- 4 stereo Aux returns, 8 Direct outs, 4 Group/Bus outputs
- 3-band Active EQ with sweepable midrange
- 18dB/oct. 75Hz Lo-Cut filter
- Control Room/Phones multi-input source matrix
- Balanced 1/4" inputs and outputs (except inserts)
- Rack-mountable design with three physical configurations via rotating I/O pod
- Sealed rotary controls to resist dust and grime
- New Multi-Voltage power supply for worldwide use
- Rugged steel chassis
- Two Mackie SRM450V2 Powered Speakers
- 2-way bi-amplified, optimized Active loudspeaker system
- High-output precision titanium compression driver
- Neodymium long-throw low frequency transducer with 3-inch voice coil
- Servo Feedback controlled woofer for tight low-end punch
- 300W class-D, Fast Recovery LF amp / 100W HF amp
- Ultra-wide, smooth dispersion via multi-cell horn aperture and HF waveguide
- Built-in phase-accurate 24dB Linkwitz-Riley electronic crossover
- Mackie Active Electronic time alignment, phase correction and EQ for studio quality sound
- Mic/line input and pass-thru connector
- Lightweight for ultimate portability (40 lbs)
- Flyable, Pole Mountable, Floor Wedge-able
System Specs
- Frequency Response (–3 dB): 55 Hz – 18 kHz
- Frequency Range (–10 dB): 4 5 Hz – 20 kHz
- Directivity Factor; Q (DI): 9 .95 (9.98), averaged 2 kHz to 10 kHz
- Maximum SPL Long-term @ 1m: 124 dB
- Maximum SPL Peak @ 1m: 127 dB
- Crossover: Linkwitz-Riley, 24 dB/octave @ 1600 Hz
Audio
- Input Type: Balanced Differential
- Input Impedance: 20kOhms
- Input Protection: RFI and level protected
- Sensitivity:
- Line: +4 dBu (center detent)
- Mic: –36 dBu
- Maximum Input Level: +22 dBu
- Low-Cut Frequency: 75 Hz, Second-order filter
- Acoustic Contour Equalization: Peaking:
- +3 dB @ 100 Hz
- +3 dB @ 12 kHz
- Operating Temperature Range: –10ºC to 45ºC (14ºF to 113ºF)
Power Amplifiers
- Low-Frequency Power Amplifier:
- Rated Power: 300 watts*
- Rated THD: < 0.1%
- Cooling: Convection Extrusion
- Design: Class D, Parametric Servo Feedback
- High-Frequency Power Amplifier:
- Rated Power: 100 watts*
- Rated THD: < 0.1%
- Cooling: Convection Extrusion
- Design: Conventional Class AB
- Rated power is continuous RMS wattage into transducer’s rated impedance @ 5 kHz for the HF amplifier and @ 500 Hz for the LF amplifier.
Transducers
- Low-Frequency Transducer:
- Diameter: 12 in (300 mm)
- Voice Coil Diameter: 3.0 in (75 mm)
- Sensitivity (1W@1m): 98 dB
- Nominal Impedance: 8 ohms
- Power Handling: 600 Watts, program
- Frequency Range: 45 Hz – 3 kHz
- High-Frequency Transducer:
- Diaphragm Diameter: 1.75 in (44.5 mm)
- Diaphragm Material: Heat treated titanium
- Sensitivity (1W@1m): 106 dB
- Nominal Impedance: 8 ohms
- Power Handling: 100 watts, program
- Frequency Range: 1 kHz – 20 kHz
- Horn Design:
- Type: Conical and Exponential
- Mouth Size: 12 in (304.8 mm) (W) x 7 in (177.8 mm) (H)
- Throat Diameter: 1 in (25.4 mm)
- Horizontal Coverage: 90º (1 kHz–20 kHz)
- Vertical Coverage: 45º (2.8 kHz–20 kHz)
Line Input Power
- US: 120 VAC, 60Hz
- Recommended Amperage Service: 2.5 amps
Control System Function
- Electronic Crossover
- Phase Alignment
- Equalization
- Parametric Equalization
- Two Speaker Stands
- ALL CABLES INCLUDED
|
