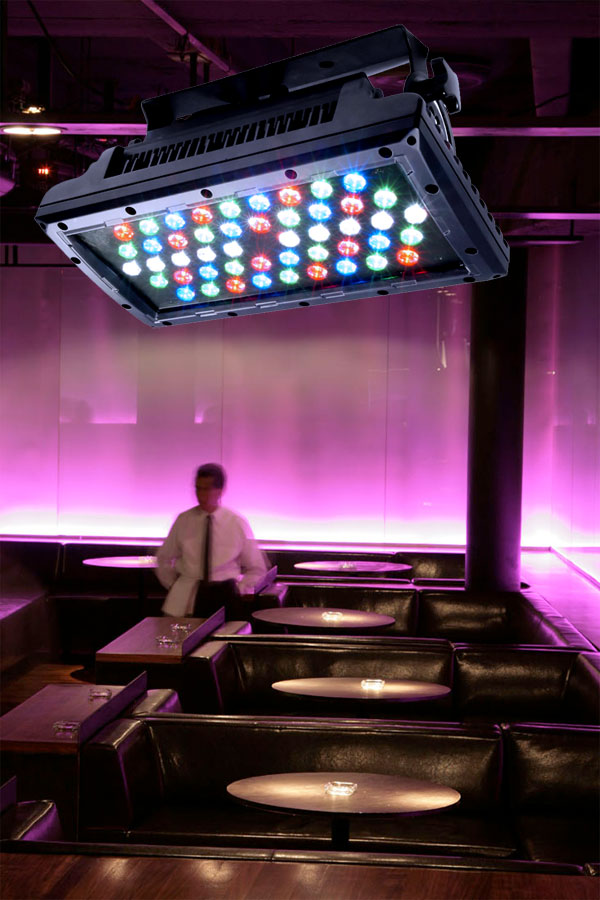

COLORado Panel
ide Coverage Area - Perfect for Indoor and Outdoor use! |
|
Regular Price
$3999.99
Our Price $2199.99
|
- PDF Manual
CONTROL FEATURES
- 3, 4 or 9-channel DMX-512 LED bank system (with ID addressing)
- Operating modes
3 channel mode: RGB control
3 channel mode: HSV control (hue, saturation and value)
4 channel mode: RGBW control
9 channel mode: RGBW, ID, dimmer, strobe, macro, auto, custom, balance, Hyper Color™
- RGB color mixing with or without DMX controller
- Color temperature presets (3,200ºK - 10,000ºK) or create your own
- Built-in automated programs via master/slave or DMX
- Program and recall custom programs via master/slave or DMX
ADDITIONAL FEATURES
- Extremely bright 2W LEDs
- Available in white or black
- Hyper Color™ allows the LEDs to be driven at higher current for increased output
- 15° lenses installed
30° lenses optional
- Durable and weather resistant IP66 rated
- Additional power output for daisy chaining units together (max 15 units @ 120V)
- LCD display with lock-out feature
- Black UV-resistant plastic cover
- Low power consumption
SPECIFICATIONS
- Beam angle: 13° x 9°
- Field angle: 25° x 22°
- Footcandles (normal): 2,140
- Lux (normal): 23,026
- Light source: 48 (12 red, 14 green, 12 blue, 10 white) 2W LEDs 50,000hrs
- Current draw (normal): (peak 145W @ 120V) (inrush 76W @ 120V)
- Power: Autoswitching 90V – 250V 50/60Hz
- Weight: 18lbs (8.2kgs)
- Size: 15in x 7.5in x 7.5in
381mm x 191mm x 191mm
- 2-year limited warranty
|
|
|
