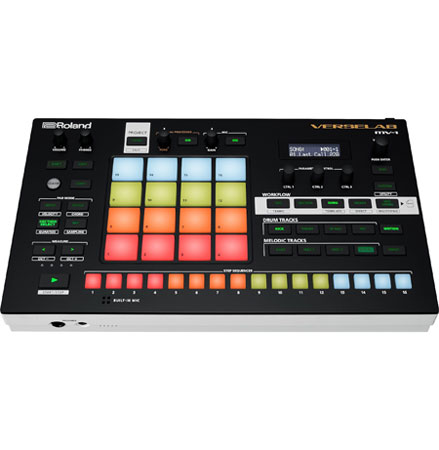

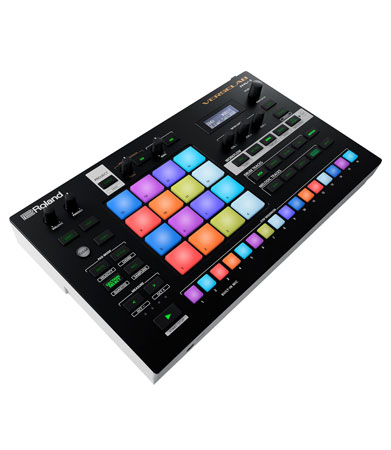

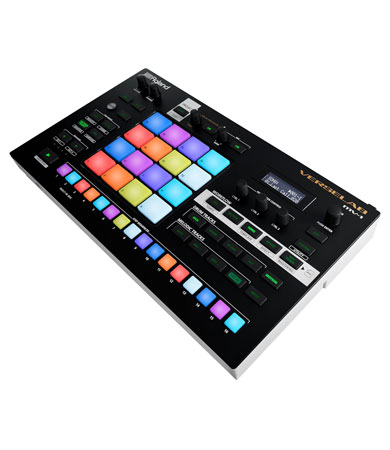

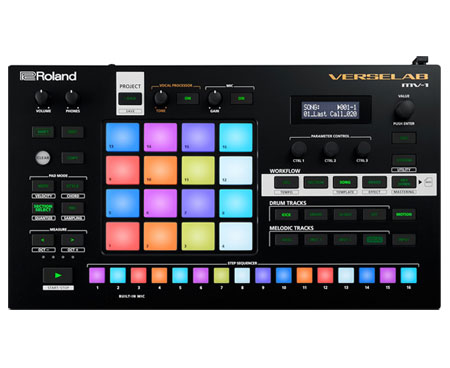

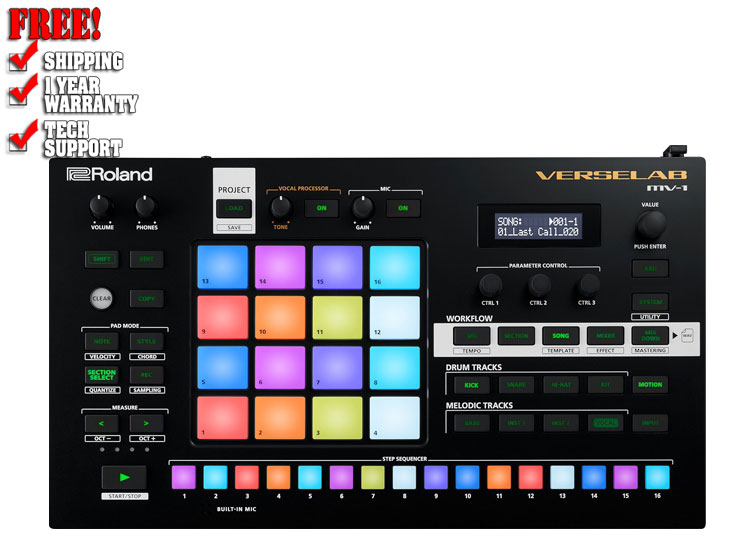

Roland MV-1 Verselab Music Production Workstation

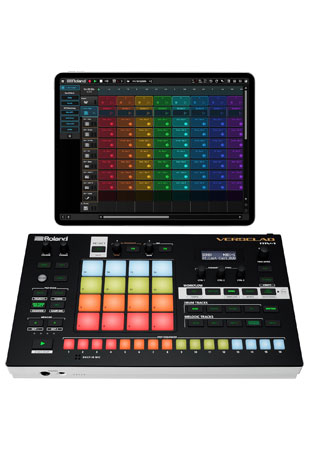

When inspiration strikes, Roland's MV-1 VERSELAB helps you capture, refine, and finish your ideas. The fluid, hands-on workflow simplifies music making with modern vocal recording, pattern generators, thousands of ZEN-Core sounds, mastering effects, and more. Plug-and-play integration with Roland's Zenbeats app expands your production capabilities using your computer or mobile device.

Specification:

• MV-1 : VERSELAB - PRODUCT SPECS
• Sound Generator: ZEN-Core (Tone, Drum Kit)
• Track Type: Tone, Drum Kit, Looper (Audio Loop)
• Maximum Polyphony:
• ZEN-Core: 128 voices (varies according to the sound generator load)
• Looper: 8 (varies according to the available number of Looper track)
• Vocal Take: 16 (varies according to the vocal take size)
• Tracks: 7 tracks and 1 vocal track
• Sections: 16 sections
• Vocal Take: 16 takes

Tones:

• Preset Tone: 3,000 or greater
• Preset Drum Kit: 80 or greater
• User Sample (as a Tone or Drum Kit): available by importing from SD card
• Looper Sample (as a clip of Looper track): available by importing from SD card, recording via EXT IN/Tracks
• Available total time for User Sample and Vocal take: 12 minutes in mono, 6 minutes in stereo (44.1 kHz)
• Available format of User Sample: WAV 32--96 kHz/16-bit, 24-bit (mono, stereo)
• Available total time for Looper Sample: Approx. 60 sec (44.1 kHz)
• Available format of Looper Sample: WAV 44.1 kHz/16-bit, 24-bit, 32-bit, 32-bit float (mono, stereo)

Effects:

• Track Multi-Effects: 90 types
• Track EQ
• Chorus/Delay: 9 types
• Reverb: 7 types
• Master Effects: 90 types
• Master Compressor
• Master EQ

• Step Sequencer: Maximum Step: 128 steps
• *Available on a Tone or Drum Kit Track

• Looper: Time Stretch, Pitch Shift
• *Available on a Looper Track

• Display: 16 characters, 2 lines LCD (with backlit)
• External Storage: SD card (SDHC supported) for saving Project Data and Audio Data

Connectors:

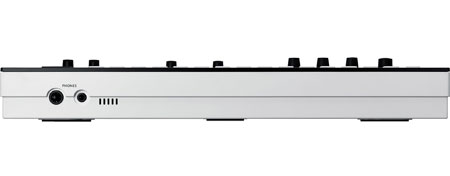

• PHONES jacks: Stereo 1/4-inch phone type, Stereo miniature phone type
• MIX OUT (L/MONO, R) jacks: 1/4-inch phone type
• EXT IN (L/MONO/MIC, R) jacks: 1/4-inch phone type
• MIC IN: XLR type (phantom power: +48 V, 10 mA Max.)
• MIDI (IN, OUT1) connectors
• USB port: USB B type (Audio, MIDI)
• DC IN jack

Power Supply:

• AC adaptor
• Obtained via USB port (USB bus power)

Current Draw:

• 2,000 mA (AC adaptor)
• 500 mA (USB bus power)

Dimensions:

• 354 (W) x 208 (D) x 60 (H) mm
• 13-15/16 (W) x 8-3/16 (D) x 2-3/8 (H) inches

• Weights (excluding AC adaptor): 1.165 kg / 2 lbs 10 oz

Accessories:

• Leaflet "Read Me First"
• AC adaptor
• SD card (installed in the product when shipped from the factory)
• SD card protector

Dimensions and Weight in Packaging - Base Item

• Shipping Weight: 6.5 lbs
• Shipping Dimensions: 21 x 11 x 5 in
• Manufacturer Part Number (MPN): MV-1
