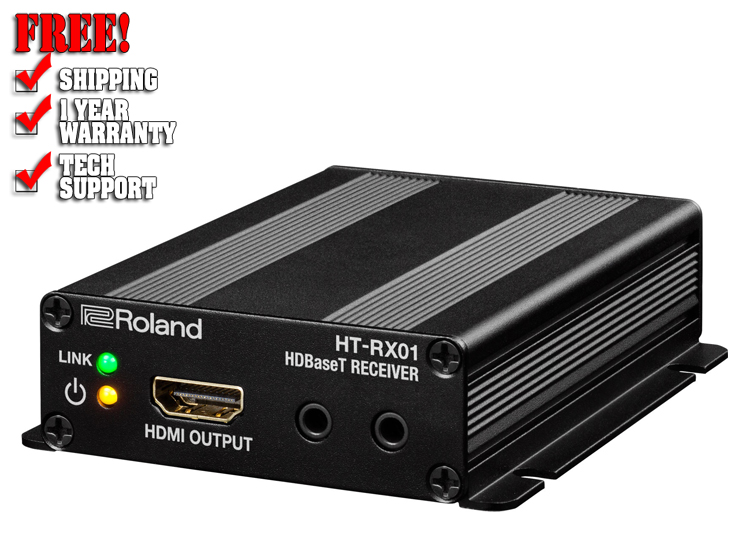

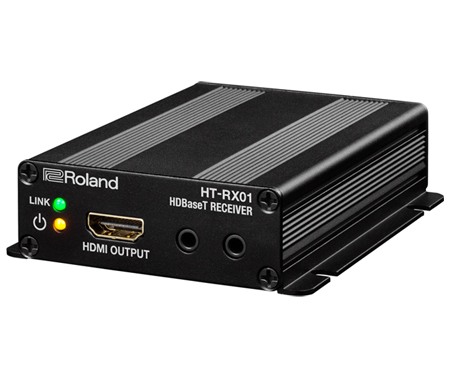

Roland HT-RX01 HDBaseT Receiver

Description

The HT-RX01 HDBaseT Receiver from Roland receives an HDMI signal from an HT-RX01 receiver (sold separately) from up to 328 ft over a shielded CAT5e or higher Ethernet cable. This makes it possible to connect video cameras, Blu-ray decks, switchers, and other source equipment to LCD monitors, projectors, and other display devices. When used as a receiver for the HDBaseT output of an XS Series multi-format matrix switcher, RS-232C control signals can be extended along with video and audio signals. This can achieve audio/video transmission in school auditoriums, company conference halls, and other large spaces.

Features:

• Receive HDMI signals to a compatible receiver from up to 328 ft over an Ethernet cable
• Re-convert HDBaseT signals to HDMI
• Up to 1080 / 60p and WUXGA support for HDMI
• HDCP compliant
• Supports RS-232C

Specification:

• Input Formats 480 / 59.94i, 576/50i, 480/59.94p, 576 / 50p , 720 / 59.94p, 720 / 50p, 1080 / 59.94i, 1080 / 50i, 1080 / 59.94p, 1080 / 50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200

  RGB Formats: Conforms to VESA DMT version 1.0 revision 11
  The maximum refresh rate of RGB is 75 Hz (excluding 1600 x 1200 and 1920 x 1200; the refresh rate of these 2 is 60 Hz)
  1920 x 1200 / 60 Hz : Reduced blanking
• Audio Formats Maximum: PCM 8 channels, Dolby Digital, True HD DTS-HD Master Audio

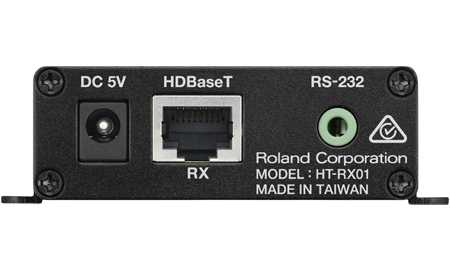

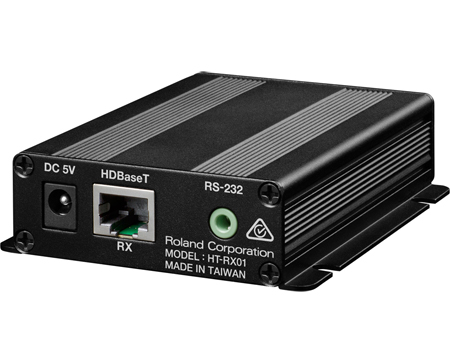

• Connectors 1 x RJ45 input

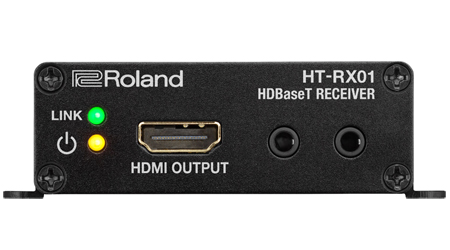

  1 x HDMI output
  1 x 9 pin D-sub RS-232
• Transmission Range 328' (100 m)
• Operating Temperature Range 32 to 104°F (0 to 40°C)
• Operating Humidity Range 10 to 85 % (no condensation)
• Storage Temperature Range -4 to 140°F (-20 to 60°C)
• Power Supply AC Adapter
• Current Draw 2 A
• Dimensions 3.2 x 3.7 x 1.0" (8.1 x 9.3 x 2.4 cm)
• Weight 0.7 lb (0.3 kg)

Packaging Info:

• Package Weight 1.4 lb
• Box Dimensions (LxWxH) 7.795 x 7.402 x 2.756"
