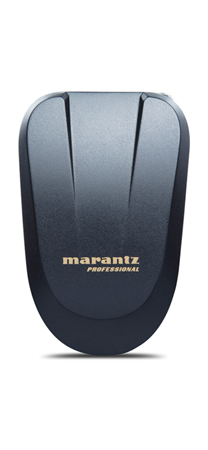

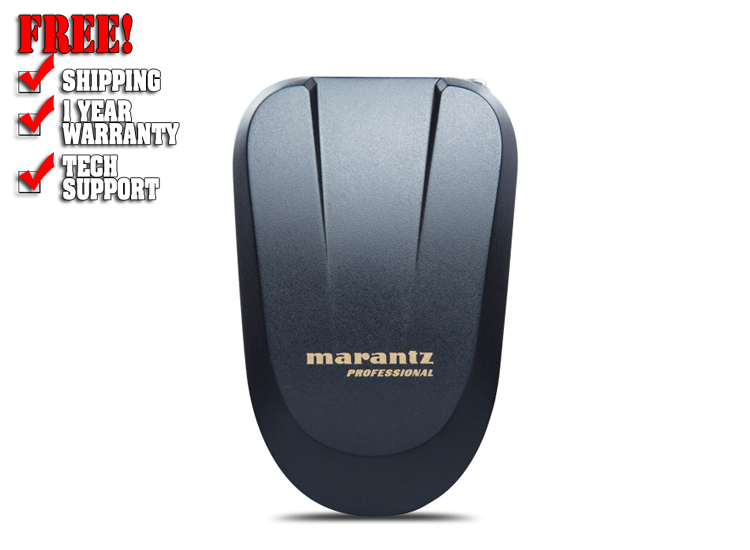

Marantz PMD-750T

Beltpack Transmitter for PMD-750 Wireless Camera Mount System

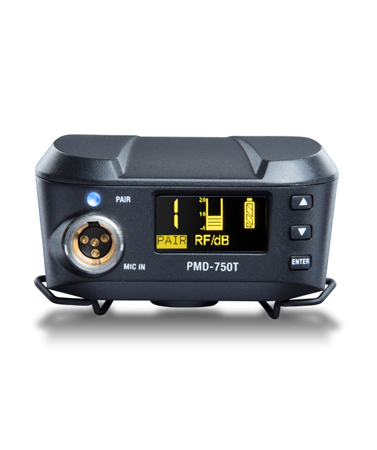

The PMD-750T beltpack transmitter - available as a separate item - expands the PMD-750's versatility. When added to the PMD-750 Wireless Camera Mount System, the system will then utilize two beltpack transmitters. The system with two transmitters can be operated in stereo (for two separate audio tracks) or mono (both transmitter outputs are combined). The professional, lightweight build and easily-readable OLED screen make the transmitter simple to operate-even for a novice. Includes an omnidirectional lavalier microphone for use right out of the box.

Features

• 2.4GHz FHSS (frequency-hopping spread spectrum) operation
• Expands the PMD-750 Wireless Camera Mount System to two-channel operation
• Automatic pairing and channel selection
• Locking 4-pin mini-XLR input
• Includes omnidirectional lavalier microphone
• Foam and synthetic fur windscreens

Specifications

Audio Performance

• Frequency Spectrum: 2.401 - 2.483 GHz
• Dynamic Range: > 100 dB
• THD: < 0.2 %, typical
• Latency: 4.5 m
• Operating Range: Up to 100' (31m)

Beltpack Transmitter

• Frequency Response: 50 Hz - 18 kHz
• Maximum Input Level: -20 dB
• Bias Voltage: 5V (for condenser mics)
• Input Impedance: 10 kΩ
• Power: (2) AA alkaline batteries
• Current Consumption: 126 mA
• Dimensions (width x depth x height): 2.6" x 4.0" x 1.6" (65 x 102 x 40mm)
• Weight: 82g

Receiver

• Frequency Response: 50 Hz - 18 kHz
• Pairing Bands: 16 channels
• Modulation: GFSK
• Audio Quality: Uncompressed 96 kHz/24-bit
• Signal-to-Noise Ratio: = 100 dB (A equivalent - whole system)
• T.H.D.: 0.2% (typical) @ 1 kHz
• Dynamic Range: = 100 dB (A - whole system)
• Audio Sampling: 96 kHz / 24-Bit
• Current Consumption: 150 mA (one channel) 170 mA (two channels)
• Operating Temperature: 14°to 131° F (-10° to 55° C)
• Operating Distance: > 30m (in open space)
• Maximum Output Level: -12 dB
• Output Impedance: 300 O

Lavalier Microphone

• Frequency Response: 20 Hz - 20 kHz
• Output Impedance: 3 kΩ
• Pattern: Omnidirectional
• : Electret Condenser
• Sensitivity: -38 dB, ± 3 dB
• Equivalent Noise: 25 dBA
• Maximum SPL Level: 130 dB
