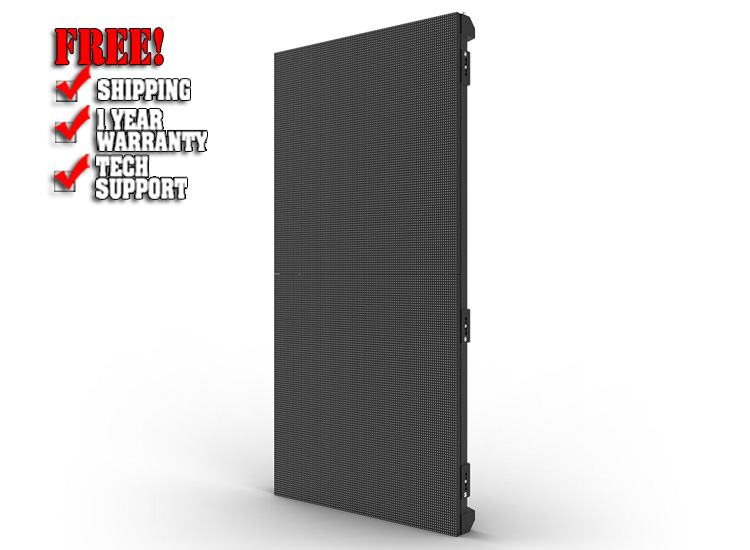

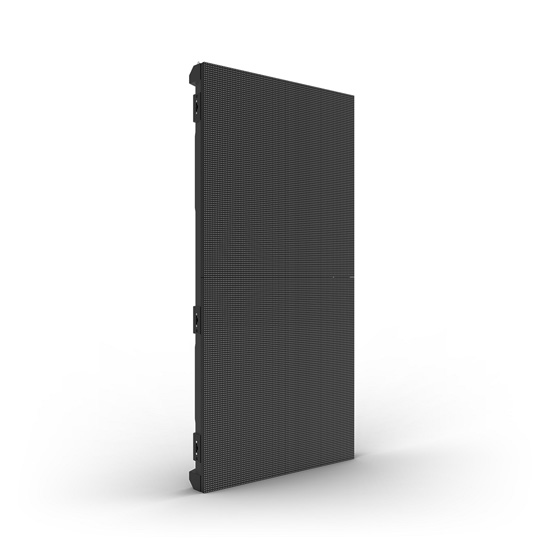

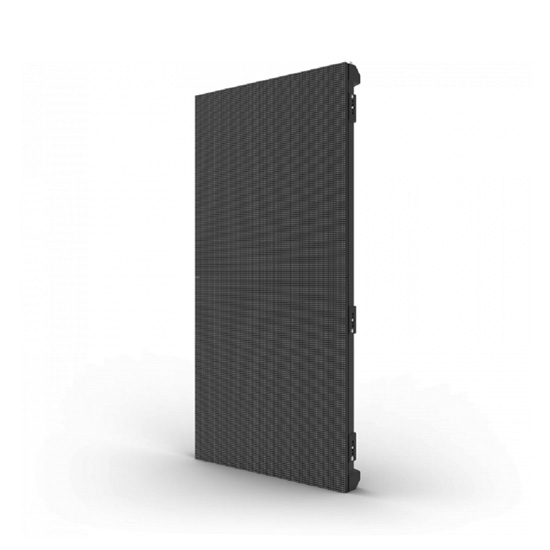

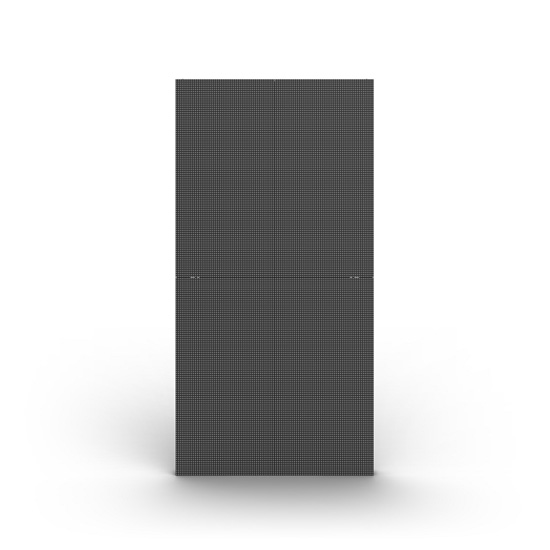

CHAUVET PROFESSIONAL F2-2.9 MM Pixel LED Video Panel (4-Pack)

Features:

• 2.9 mm pitch, high-resolution, indoor rated video panel in convenient 1000 mm (tall) by 500 mm (wide) form factor.
• Easily configure and drive content with the VIP Drive 43Nova 2 or the VIP Drive 83R Nova, powered by the Novastar control protocol
• High-quality black body LEDs accurately reproduce video at 16-bit grayscale, operating on the A5s receiver card from Novastar (18-bit available)
• High-performance digital LED drivers deliver a 3840 Hz refresh rate and a clear, vibrant image
• Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance.
• Intelligent, high-speed magnetic LED modules with dedicated memory stores factory calibration, ensuring optimal image quality, color uniformity, and simplifies maintenance by making service fast and easy
• 1,000 x 500 x 82.5 mm, 30 lb (13.6 kg) magnesium die-cast housing (500 x 500 mm available) makes this product among the lightest and slimmest in its class without compromising strength-capable of hanging up to 23 panels vertically safely

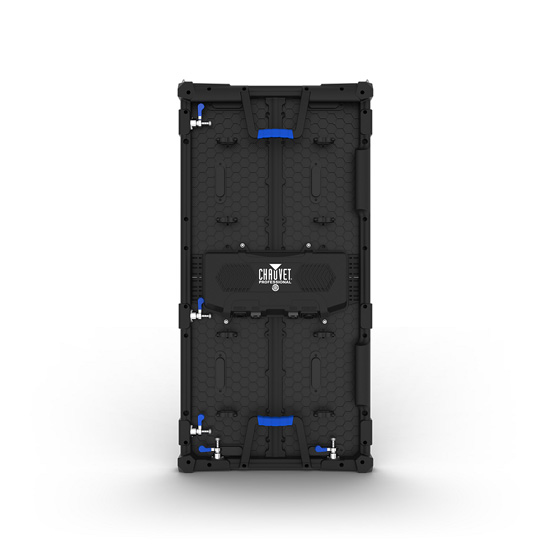

• Specialized frame design allows for overhead hanging, ground stacking, and wall mounting maximizing installation flexibility and aftermarket front and rear service; simply push out modules from the rear using the handles.
• Front LED surface protective design features prevent damage when handling: 4x stainless steel standing feet to keep the LEDs from touching the floor, specialized LED board design to improve impact resistance up to 3x that of other panels, and resilient led mask design to optimize image viewing angle and uniformity without exposing the LEDs to front or side impacts
• Strong, magnetic assisted hanging makes setting up the panels fast and easy with a minimal crew
• Optimized heat dissipation ensures an even color across the F2
• Dual power supplies increase the stability of the system
• Cable management solutions include angled connectors on panels for easy operation, long cables that can connector horizontally or vertically, and handles on the bottoms of each panel to organize cables and keep them neat
• Ground support system and concave curving hardware available

Optical:

• Light Source: 56,448 LEDs (tri-color RGB) SMD 2121, 50,000 hours life expectancy
• Color Wavelength: red (620 to 625 nm), green (512 to 532 nm), blue (460 to 475 nm)
• Viewing Angle (H/V): 160°/155°
• Calibrated Illuminance: 1,200 NITS
• Maximum Illuminance: >1,500 NITS
• Contrast Ratio: 8,500:1
• Grayscale: 16-bit
• Receiver Card: A5s
• Drive Type: 1/21
• Pixels: 168 x 336
• Pixel Pitch: 2.9mm
• Minimum Viewing Distance: 7.5 ft (2.3 m)
• Pixel Density: 112,896/m²
• Display Refresh Rate: 3,840Hz (S-PWM)

Construction/Physical:

• Dimensions: 19.69 x 3.25 x 39.37 in (500 x 82.5 x 1000 mm)
• Weight: 30 lb (13.6 kg)
• Threaded Bolt: M12
• Exterior Color: Black
• Housing Material: Magnesium die-cast
• Maximum vertical hang: 23 panels
• Maximum horizontal hang: 17 panels

Connections:

• Power
  • Connection: Edison (local) plug to Seetronic® powerKON®
  • Input: Seetronic® powerKON®
  • Output: Seetronic® powerKON®
• Data Connectors: Seetronic® etherKON®
• Cable Length
  • (signal extension): 4 ft (1.2 m)
  • (power): 6 ft (1.8 m)
  • (power extension): 4 ft (1.2 m)

Control:

• Control Protocol:
  • Novastar
• Maximum Panels/VIP Drive 43Nova2:
  • 11/port, up to 44/Drive (4 ports) (varies depending to video input/source refresh rate)
• Maximum Panels/VIP Drive 83R Nova:
  • 11/port, up to 88/Drive (8 ports) (varies depending on video input/source refresh rate)
• Maximum Panels Tall/ VIP Drive 43 Nova 2 (adjust input/source resolution as needed):
  • 3 @ 1920 x 1080 @ 30/50/59.94/60 Hz
  • 4 @ 1920 x 1344 @ 30/50 Hz
  • 5 @ 1920 x 1680 @ 30 Hz
• Maximum Panels Tall/ VIP Drive 83R Nova:
  • 3 @ 1920 x 1080 @ 30/50/59.94/60 Hz
  • 4 @ 1920 x 1344 @ 30/50 Hz
  • 5 @ 1920 x 1680 @ 30 Hz
• Maximum Panels Wide/VIP Drive 43 Nova 2 (adjust input/source resolution as needed):
  • 11 @ 1920 wide resolution
• Maximum Panels Wide/VIP Drive 83R Nova:
  • 22 @ 3840 wide resolution

Electrical:

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 120 V; 13 units @ 208 V; 13 units @ 230 V
• Power and Current:
  • 333 W, 3.34 A @ 100 V, 60 Hz
  • 326 W, 2.75 A @ 120 V, 60 Hz
  • 317 W, 1.41 A @ 208 V, 60 Hz
  • 316 W, 1.40 A @ 230 V, 50 Hz
  • 316 W, 1.36 A @ 240 V, 50 Hz
• Power and Current (resting):
  • 26 W, 0.262 A @ 120 V, 60 Hz
  • 27 W, 0.237 A @ 208 V, 60 Hz
  • 28 W, 0.264 A @ 230 V, 50 Hz

Certifications/Qualifications:

• CE, MET, FCC, ROHS
• IP Rating: IP31, dry location
• Operating Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
• Thermal Dissipation
  • @120V: 650 BTU per hour
  • @ 208V: 750 BTU per hour
  • @ 230V: 750 BTU per hour
• Temperature (Ambient): -4 °F to 140 °F (-20 °C to 60 °C)
• MET Listing Number: E113093-1110, E113093-1125
• US Safety: UL 60950-1
• Canadian Safety: CSA C22.2 No. 60950-1

Specifications:

• Weight : 150 lbs
• Dimensions : 80 X 12 X 120 in

This Package Includes:

• (4) CHAUVET PROFESSIONAL F2
• (1) Flight case
• (4) powerCON Linking Cables (2.46ft)
• (4) etherCON Linking Cables (2.46ft)
