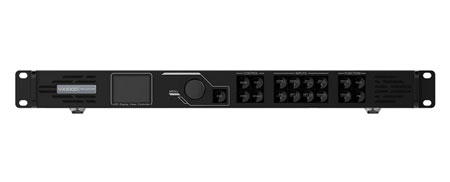

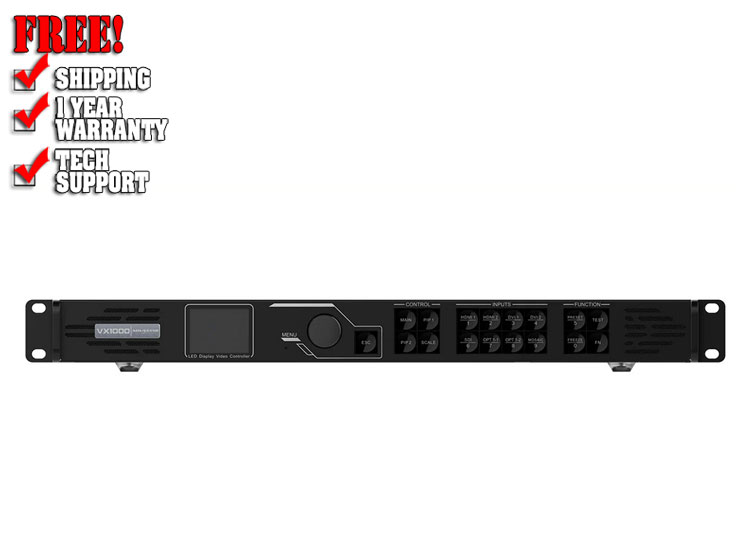

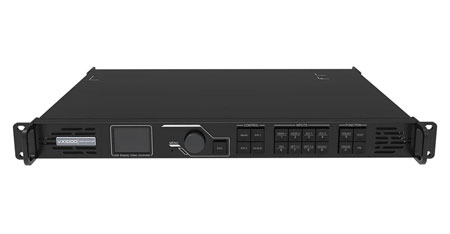

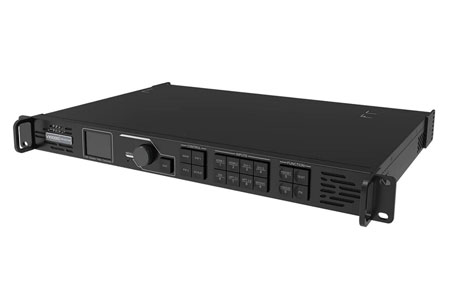

Blizzard NovaStar VX1000

Upgrade your current video wall or build a new one around the NovaStar VX1000 all-in-one single RU processor and controller. Ideal for high-end rental, stage control systems, and fine-pitch video walls, the VX1000 features 10 Ethernet output ports with 6.5 million pixels of loading capacity. The unit supports 4K x 1K@60Hz high-resolution input and output to each display (point to point) with a stunningly low single frame of latency.

The main layer and two additional layers provide dual picture-in-picture configurations, with each layer retaining control over individual scaling, ensuring the entire wall presents exactly as intended.

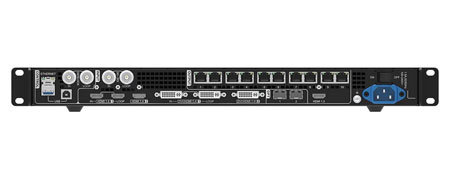

Content input is available via rear-panel HDMI, SDI, and DVI ports with an additional HDMI output for local monitoring. The VX100 also features an optical fiber output port for use with an optional fiber converter (sold separately).

Take complete control of your video wall today with the VX1000.

Blizzard NovaStar VX1000 Applications

• High-end rental
• Stage control systems
• Fine-pitch video walls

Blizzard NOVASTAR-VX1000 Includes:

• 1 x Power cord
• 1 x HDMI to DVI cable
• 1 x USB cable
• 1 x Ethernet cable
• 1 x HDMI cable
• 1 x Quick Start Guide
• 1 x Certificate of Approval
• 1 x Safety Manual
• 1 x Customer Letter

Blizzard NOVASTAR-VX1000 Features:

• Integrates video processing and video control into one box
• 4K x 1K@60Hz high resolution input ultra-low 1-frame latency
• 10 Ethernet ports with 6.5 million pixels of loading capacity
• Maximum output of 10,240(W) x 8,192(H) pixels per unit
• Supports up to three layers, main layer with two picture in picture
• Free scaling for each layer
• Free switching between video control, ByPass, and fiber converter modes

Blizzard NovaStar VX1000 Specifications:

• Electrical Parameters
• Power connector: 100-240V~, 1.5A, 50/60Hz
• Rated power consumption: 28 W
• Operating Environment
• Temperature: 0°C to 45°C
• Humidity: 20% RH to 90% RH, non-condensing
• Storage Environment
• Temperature: -20°C to +70°C
• Humidity: 10% RH to 95% RH, non-condensing
• Physical Specifications
• Dimensions: 483.6 mm × 351.2 mm × 50.1 mm
• Net weight: 4 kg
• Packing Information
• Packing size: 521.0 mm ×102.0 mm ×517.0 mm 565.0 mm ×175.0 mm ×450.0 mm
• Gross weight: 10.4 kg 6.8 kg
• Noise Level ( typical at 25°C/77°F) 45 dB (A)
• Input Connectors
• HDMI 1.4 Input Resolution: 3840×1080@60Hz (Standard), 4092×113, 6@60Hz (Custom), 4096×1080@60Hz (Forced)
• DVI (HDMI 1.4) Input Resolution: 3840×1080@60Hz (Standard), 4092×113, 6@60Hz (Custom), 4096×1080@60Hz (Forced)
• OPT 1 Input Resolution: 3840×1080@60Hz (Standard), 4092×113, 6@60Hz (Custom), 4096×1080@60Hz (Forced)
• 3G-SDI Max. input resolution: 1920×1080@60Hz
