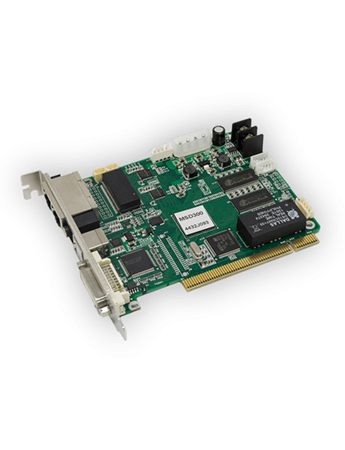

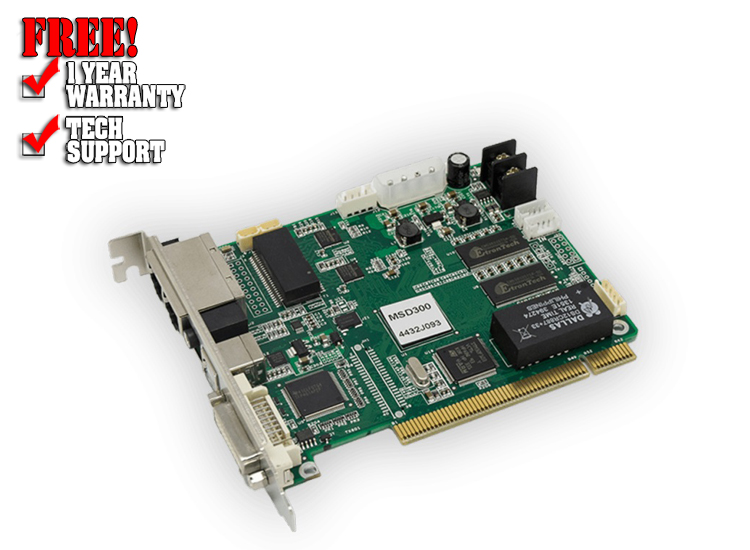

Blizzard NovaStar MSD300

The MSD300, an advanced sending card crafted by NovaStar. Designed to elevate your display experience, it offers remarkable features including 1x DVI input, 1x audio input, and 2x Ethernet outputs. With its impressive capabilities, a single MSD300 can effortlessly handle input resolutions up to 1920×1200@60Hz, ensuring stunning visual output.

Effortless communication is at the core of the MSD300, as it seamlessly connects to your PC through the type-B USB port. Furthermore, the MSD300 allows for easy scalability, as multiple units can be cascaded via the UART port, enabling a seamless and synchronized display.

Experience the power and versatility of the MSD300, the perfect solution for enhancing your visual presentations, whether it's in live events, control rooms, or other professional environments.

1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1970×712@69Hz, 2048×668@60Hz.

Blizzard NovaStar MSD300 Applications:

• Rental
• Fixed installation applications
• Concerts
• Live events
• Security monitoring centers
• Olympic Games
• Sports center

Blizzard NovaStar MSD300 Features:

• DVI video input
• Audio transmission
• Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup.
• USB port control, for cascading and control of multiple units.
• (1) DVI video input and 1 × audio input
• (2) Gigabit Ethernet output
• (1) light sensor connector
• Supports the new generation of pixel level calibration technology from NovaStar to provide a fast and efficient calibration process.
• Supports a variety of video formats.

Blizzard NovaStar MSD300 Specifications:

• Indicator:
• Red Device operating indicator. Working status:
• On: The power supply is normal.
• Off: The power is not supplied or the power supply is abnormal.
• Green Device status indicator. Working status:
• Slow flashing: Video input unavailable
• Normal flashing: Video input available
• Fast flashing: The screen is displaying the startup image.
• Breathing: The Ethernet port redundancy has taken effect.
• Input:
• DVI×1:
• Single-link DVI input connector
• Supported maximum resolution: 1920×1200@60Hz, downward compatible
• Resolution customizable:
• Maximum width: 3840 pixels
• Maximum height: 1920 pixels
• AUDIO: Audio input connector
• Output:
• (2) RJ45:
• 2 Gigabit Ethernet ports
• Maximum loading capacity of a single port: 650,000 pixels
• Supports redundancy between Ethernet ports.
• Control:
• USB (Type-B): Connects to the PC.
• UART IN/OUT: Input/Output connector for cascading devices
• Function Connector:
• LIGHT SENSOR: Connects to a light sensor to monitor ambient brightness, allowing for automatic brightness adjustment of LED display.
• Power Supply:
• DC 3.3V~5.5V: DC power connector
