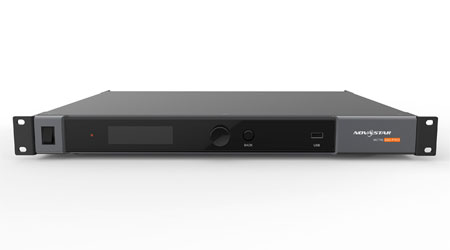

Blizzard MCTRL660-PRO

From Blizzard Lighting and developed by NovaStar, the MCTRL660 Pro is a professional, low-latency controller for ultra-large screen pixel displays. With independent gamma adjustment for RGB and auto LED screen configuration, this unit can handle a loading capacity of up to 1920×1200@60Hz. Customize resolutions to configure video pixel level brightness and chroma calibration with easy-use features such as web control, one-click backup, and quick recovery.

Features:

• Cascading Supported
• Independent gamma adjustment of RGB
• A low latency of less than 1 frame (= 10 lines)
• One-click backup and quick recovery
• Image flip/mirroring stage effects
• Auto LED screen configuration and Web control
• Pixel level brightness and chroma calibration

Specifications:

• Product Type: Video Controller
• Input Resolution: 1920×1200 @60Hz
• Capacity: 2.3 Million Pixels
• Control Method: USB, ETHERNET, GENLOCK
• Video Interface: HDMI/DVI/3G-SDI
• Video Format: RGB444/YCbCr444/YCbCr422/YCbCr420
• Audio Interface: HDMI/3.5mm audio connector

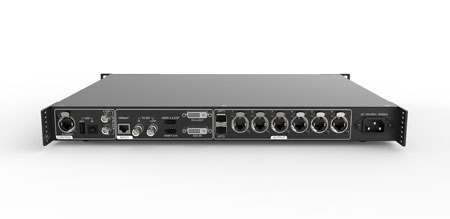

• Output: 6× Gigabit Ethernet ports, 2× 10G optical ports
• Bit Depth Of Video Resource: 8/10/12-bit
• Input Resolution: 1920×1200 @60Hz
• Dual working modes: sending card and fiber converter
• Power & Current: 100-240VAC, 50/60Hz
• Power consumption: 20W
• Certification: CE, ROHS, FCC, UL, EAC
• Operating temperature: -4°F to 140°F (-20°C to 60°C)
• Working humidity: 0% to 90%
• Dimensions: 19 x 13.8 x 2" (482.6 x 349 x 50.7mm)
• Weight: 10.2 lbs. (4.6 kg)
