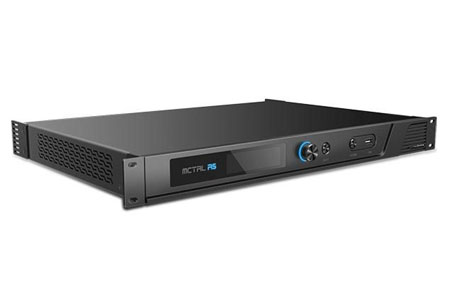

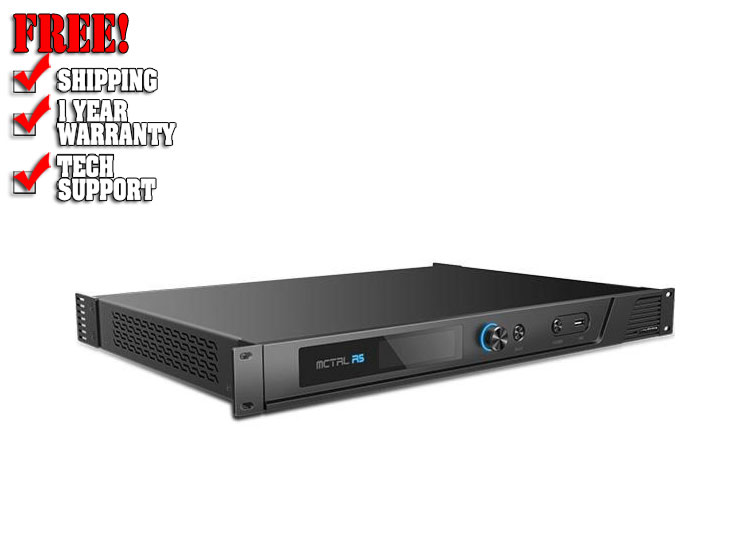

Blizzard MCTRL-R5

MCTRL R5 is the first independent controller that supports rotation function. With up to 3840 × 1080 @60Hz loading capacity, it supports any custom resolution within this range as needed, to meet the on-site configuration requirements of extra-long or extra-large displays. Working with the A8s or A10s, the MCTRL R5 supports free screen configuration on SmartLCT, presenting full rotation of the display screen at any angle, adding diversity to images, and bringing different visual experience to users.

Features

• 6G-SDI, Dual-Link DVI, and HDMI 1.4 Input Interfaces
• 8 Gigabit Ethernet Ports
• 2 Fiber Optical Outputs
• LED Screen Rotation Support at Any Angle
• NovaStar G4 Engine for Perfect Image Display with No Flickering
• Pixel Level Calibration Technology with White Balance and Color Gamut Mapping
• Screen Configuration without a PC
• Easy and Fast Manual Brightness Adjustment
• Easy Hardware Upgrade via Front Panel USB Port
• Multiple Controller Cascading for Uniform Control

Specifications

• INPUTS
• 6G-SDI, Dual-Link DVI, and HDMI 1.4
• Max Supported Resolution: 3840×1080 @60Hz

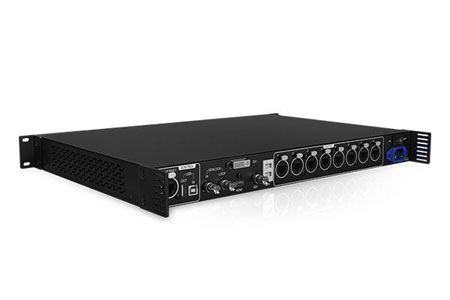

• OUTPUTS
• (8) RJ45 Neutrik (NE8FBH) Gigabit Ethernet Outputs
• (2) Optical Fiber Outputs
• OPT1 corresponds to Ethernet ports 1-8
• OPT2 serves as the backup for OPT1
• ETHERNET: for PC connection
• USB IN: Input port for cascading devices or PC connection
• USB OUT: Output port for cascading devices
• Length: 19.0" (482.6mm)
• Depth: 13.17" (334.6mm)
• Height: 1.77" (52mm)
• Weight 9.47 lbs. (4.3kg)
