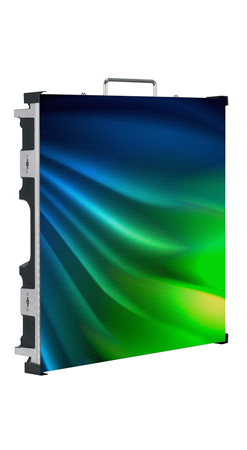

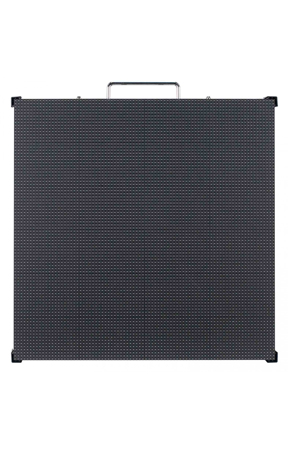

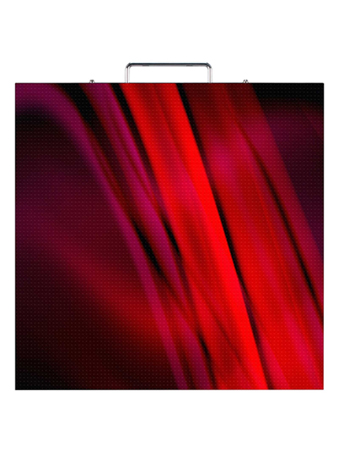

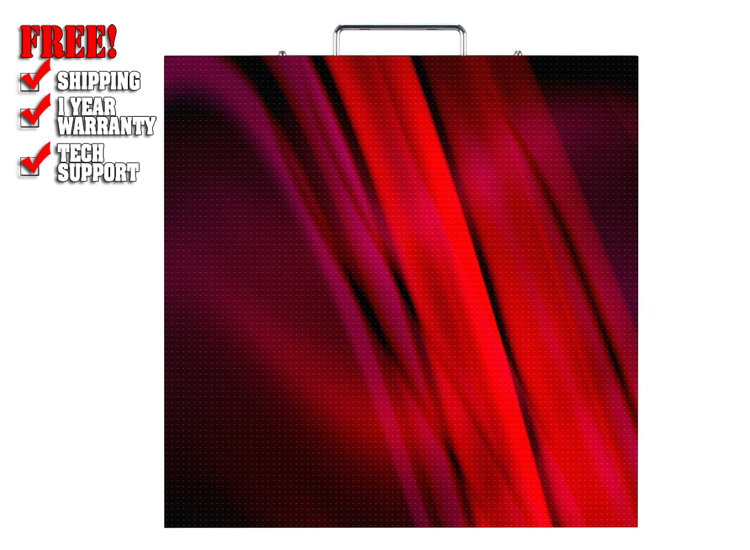

ADJ VS5 5.9mm 3-in-1 RGB LED Vision Series 168x168 Video Wall Panel

ADJ's Vision Series video panels offer the highest quality LED binning and bright, clear output. All models are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models are built on the same frame allowing panels with different resolutions to be used together. The Vision Series panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together, let go of the panels, then securely latch them on the rear. This allows for a single user to install a full wall of panels.

The VS5 is a high-resolution video panel with a pixel pitch of 5.95mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS5 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS5 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar.

American DJ VS5 5.9mm 3-in-1 RGB LED Vision Series 168x168 Video Wall Panel Features:

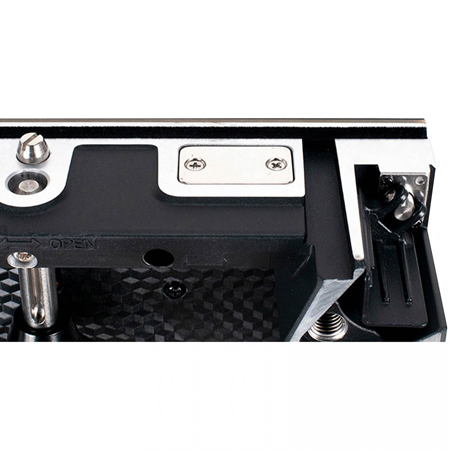

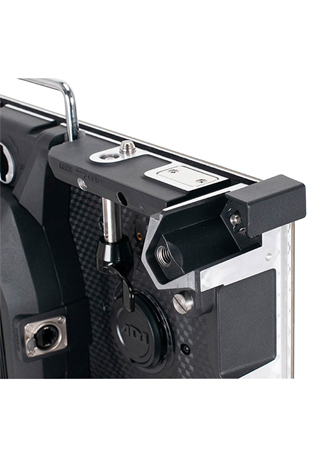

  • Corner Protectors to protect the corners of the VS5 during transport, set-up and teardown.

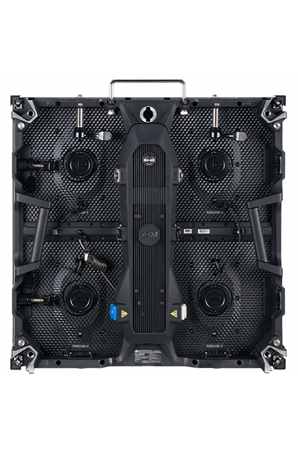

  • Front and rear serviceable.

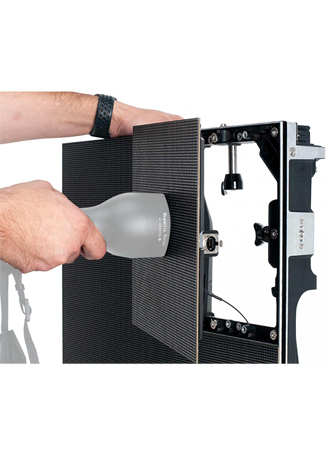

  • 4 easy to replace video modules on each panel.

American DJ VS5 Product Specifications:

  • Pixel Pitch: 5.95mm (0.23")
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 84x84; 28224 per square meter
  • Size: 19.68" x 19.68" x 2.75" / 500 x 500 x 69.6mm
  • Module Quantity: 4
  • Weight: 17 lbs. / 7.7kg.


Mechanical Ratings:

  • Surface Flatness: Gaps< 0.5mm

Optical Ratings:

  • Brightness: 1000 NITS
  • View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
  • Gray Scale: =14-bit
  • Display Color: 256
  • Brightness Adjustment: 0~100% 100 Levels
  • Contrast ratio: 5000:1
  • Processing: 14-bit

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 170W/per panel
  • Ave. Power Consumption: 68W/per panel
  • Connections Power/Data: PowerLock In/Out; DataLock In/Out

Control System:

  • Control Mode: Nova Star Synchronous System with Control via DVI
  • Frame Update Frequency: 50-75Hz
  • Scan Mode: 1/16
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Control Distance: Ethernet Cable <120m or Fiber Optic>120m
  • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
  • Operating Life / MTBF: 50,000 Hours / 5,000 Hours
  • Protection Level: IP20 (Front and Back)
  • Out of Control Rate: < 0.02%
  • Listings: cETLus (Pending)

What's in the Box

Each ADJ VS5 Retail Box Includes:

  • (1) American DJ VS5 5.9mm 3-in-1 RGB LED Vision Series 168x168 Video Wall Panel
