ADJ VS2 5X3 Video Panel System
Regular Price $57599.99
Our Price $28799.99
WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $197.5 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details
Regular Price $799.99
Full Protection Only $395.00Regular Price $57599.99
Our Price $28799.99
TWO YEAR FULL WARRANTY. ONLY $197.5 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details
Regular Price $799.99
Full Protection Only $395.00
ADJ VS2 5X3 Video Panel System

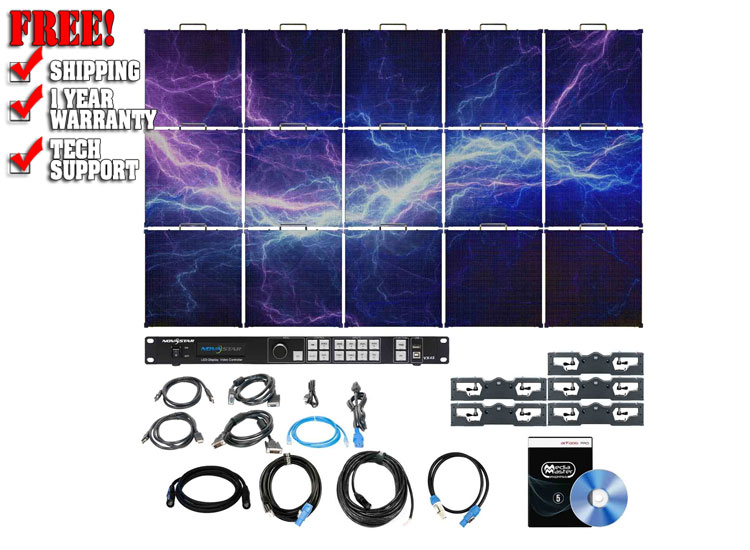

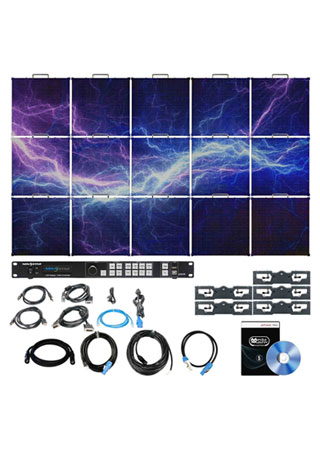

ADJ Video Panel System featuring 15 ADJ VS2, 2.97mm pixel pitch video panels, power cables, data cables, rigging bars, video processor and software.
ADJ's Vision Series video panels offer the highest quality LED binning and bright, clear output. All models are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models are built on the same frame allowing panels with different resolutions to be used together. The Vision Series panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together, let go of the panels, then securely latch them on the rear. This allows for a single user to install a full wall of panels.

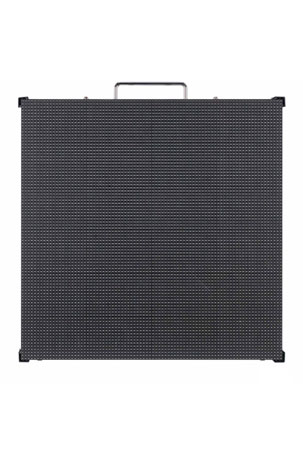

The VS2 is a high-resolution video panel with a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS2 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS2 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar.
American DJ VS2 168x168 Video Wall Panel Features:
- Corner Protectors to protect the corners of the VS2 during transport, set-up and teardown.
- Front and rear serviceable.
- 4 easy to replace video modules on each panel.
American DJ VS2 Product Specifications:
- Pixel Pitch: 2.97mm (0.12")
- LED Configuration: 3-in-1 SMD2121 LED
- Pixel Density: 168x168; 112896 per square meter
- Size: 19.68" x 19.68" x 2.75" / 500 x 500 x 69.6mm
- Module Quantity: 4
- Weight: 17 lbs. / 7.7kg.
Mechanical Ratings:
- Surface Flatness: Gaps< 0.5mm
Optical Ratings:
- Brightness: 1000 NITS
- View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
- Gray Scale: =14-bit
- Display Color: 256
- Brightness Adjustment: 0~100% 100 Levels
- Contrast ratio: 5000:1
- Processing: 14-bit
Power Supply:
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 170W/per panel
- Ave. Power Consumption: 68W/per panel
- Connections Power/Data: PowerLock In/Out; DataLock In/Out
Control System:
- Control Mode: Nova Star Synchronous System with Control via DVI
- Frame Update Frequency: 50-75Hz
- Scan Mode: 1/21
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Control Distance: Ethernet Cable < 120m or Fiber Optic>120m
- Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
- Brightness Correction: Pixel, Module, Cabinet
Environmental:
- Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
- Operating Life / MTBF: 50,000 Hours / 5,000 Hours
- Protection Level: IP20 (Front and Back)
- Out of Control Rate: < 0.02%
- Listings: cETLus (Pending)
What's in the Box:
Each VS2 5X3 Retail Box Includes:
- (15) VS2 2.97mm Pixel Pitch Video Panels (VS2001)

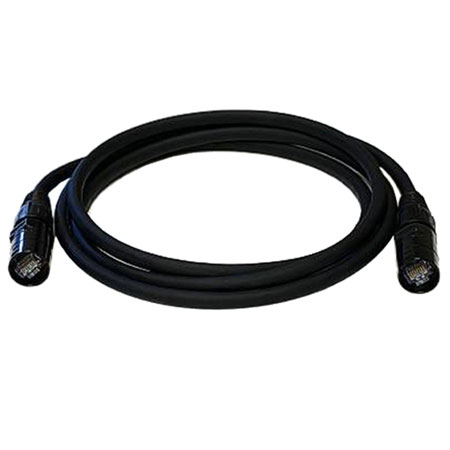

- (14) 3-foot Panel to Panel Data Cables (CAT303)

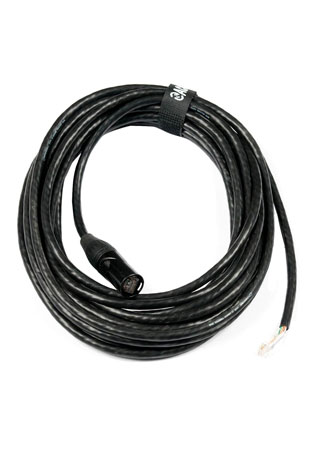

- (1) 25-foot First Data Cable (CAT451)

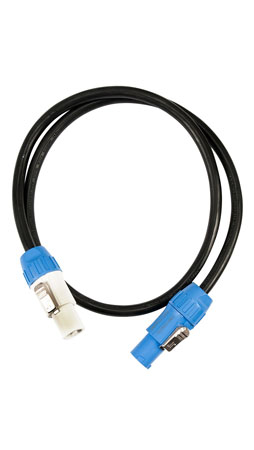

- (13) 3-foot Locking In/Out Power Cables (SPL013)

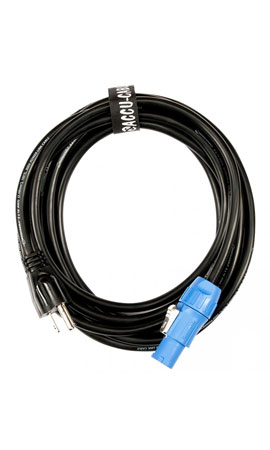

- (2) 15-foot Locking In/Out Main Cables (SMP027)

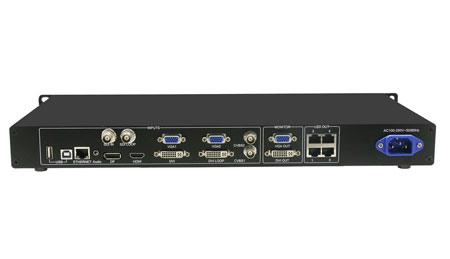

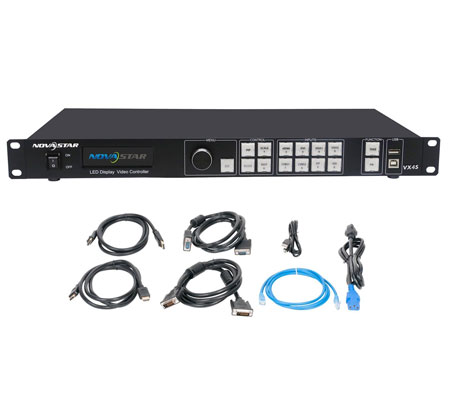

- (1) Novastar VX4S Video Processor (VX40001)

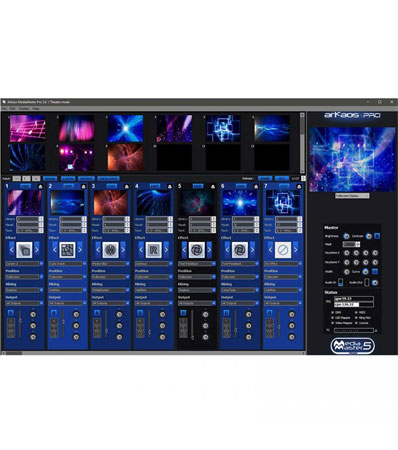

- (1) ArKaos Media Master Express Software

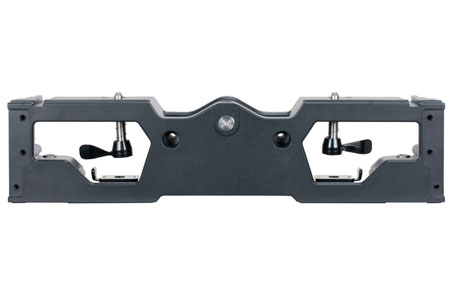

- (5) VSRB1 Vision Series Rigging Bars (VS1100)
