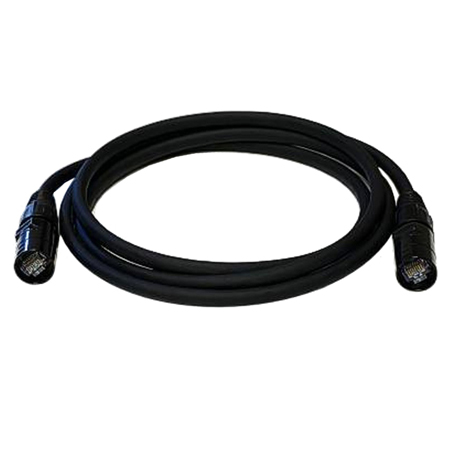

American DJ AV6 3FT Cabinet-to-Cabinet Standard Connector Data Link Cable [CAT303]

AV6 System 3' standard connector data cable, cabinet to cabinet, horizontal and vertical.

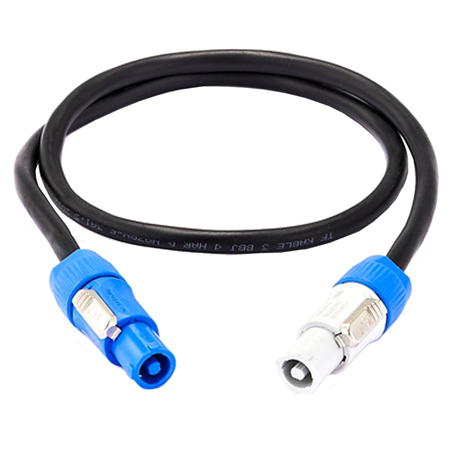

American DJ AV6 3FT Power Link Cable [PLC3]

AV6 System 3' power link cable, cabinet to cabinet, horizontal and vertical

American DJ AV6 50FT Processor to Cabinet First Standard Connector Data Cable [CAT461]

AV6 System 50' 1st data cable, processor to first cabinet.

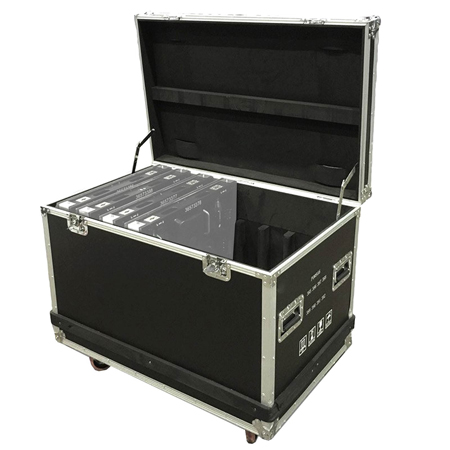

American DJ AV6 /AV6X Video Wall Flight Case [AV6FC]

If you are serious about your equipment, its imperative to keep it safe from damage.

ADJ's AV6 Video Wall Flight Case is a heavy duty road-case with wheels. It is designed to protect and safely transport 8 ADJ AV6 Video Wall panels.

Made with the professional who is always "on the go" in mind. The AV6F can withstand the lumps and bumps that other cases just can't take. The outer shell is made with sturdy metal and plastic to provide a strong yet stylish exterior.

American DJ AV6 15FT Powercon to Edison main power cable [MPC15]

AV6 System 15' Powercon to Edison main power cable.

American DJ MCTRL-300 Novastar Video Processor for ADJ AV6 video panels

The MCTRL-300 is a controller for ADJ's AV6 LED video panels. It features one DVI signal source input and two RJ45 pixel-data outputs.

The controller is easily configured via USB and it will drive up to 1.3 million pixels supporting the following resolutions: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668.

The MCTRL-300 is an essential component for operation of ADJ AV6 video panels.

American DJ MediaMaster Express 4 Software Package

ArKaos has designed MediaMaster Express to help quickly setup a show that includes video. If you have basic needs of DMX or MIDI synchronization but still want to benefit from the powerful media management and efficient media playback of MediaMaster, the Express edition is your best choice. Drag and drop your visuals on the interface and assign them to DMX or MIDI triggers in a similar way to what made the ArKaos VJ DMX Simple Mode so popular. Simply put, it's the easiest media server software that ever existed.

Media Master Express 4 Features

• Control video layers with just a few DMX dimmers or MIDI notes.

• Work on a single DMX universe or MIDI channel.

• Drag & Drop visuals directly on the main interface.

• Organize your shows with up to 64 patches of 64 cells.

• Control up to 3 parameters per cell via DMX or MIDI.

• Optional fade time on trigger.

* Please note: Media Master Express 4 requires a computer (sold separately).

American DJ AV6X Specifications

• Pixel Pitch: 6.0mm (0.25")
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 96x96; 27,777 per square meter
• Size: 22.75" x 22.75" x 3" / 576 x 576 x 75mm
• Weight: 23lbs. / 8.15Kg

Mechanical Ratings:

• Surface Flatness: Gaps<0.5mm

Optical Ratings:

• Brightness: 1200 NITS
• View Angle: Horizontal 140°/Vertical 140°
• Distance: 20ft. (6m)
• Gray Scale / Display Color: 14Bit
• Brightness Adjustment: 0~100% 100 Levels
• Processing: 14-bit

Power Supply:

• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 300W/per panel
• Ave. Power Consumption: 120W/per panel
• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

Control System:

• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/12 Duty
• Refresh Rate: 1200Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable 120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet

Environmental:

• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
• Operating Life / MTBF: 100,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
• Listings: CE, FCC Class A

American DJ AV6FC Specifications

• Fits 8 AV6 video panels

• 9mm Plywood

• Butterfly Latches

• Swivel Castors

• Steel Ball Corners

• Foam Inlay

• Outer dimensions (LxWxH): 39.8" x 26" x 32.3" (1.01 x 0.66 x 0.82m)

American DJ MCTRL-300 Specifications

• Control Mode: Synchronous Display with Control PC by DVI.

• Frame Update Frequency: 50-60Hz.

• Scan Mode: 1/12 Duty.

• Refresh Rate: 1200Hz.

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI.

• Control Distance: Ethernet Cable 120m.

• Support VGA Mode: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668.

• Brightness Correction: Pixel, Module, Cabinet.

American DJ MediaMaster Express Specifications

Control interface
Computer keyboard
Any MIDI controller compatible with your system
Simple DMX lighting desk

System requirements (PC)
OS: Windows XP, Vista or 7
Processor: Pentium IV 2Ghz recommended
RAM: 512MB, 1GB recommended
Media Player: QuickTime 6.5.x (and up), Adobe FlashPlayer 9.0 (and up), DirectX 9.0c (and up)
System requirements (Mac)
OS: Mac OS X 10.4 (and up)
Processor: Any Intel Mac, G4/1Ghz (and up)
RAM: 512MB, 1GB recommended
Media Player: QuickTime 6.5.x (and up), Adobe FlashPlayer 9.0 (and up) The AVX3X2 Package Includes:
(6) American DJ AV6X 6mm LED Video Panels

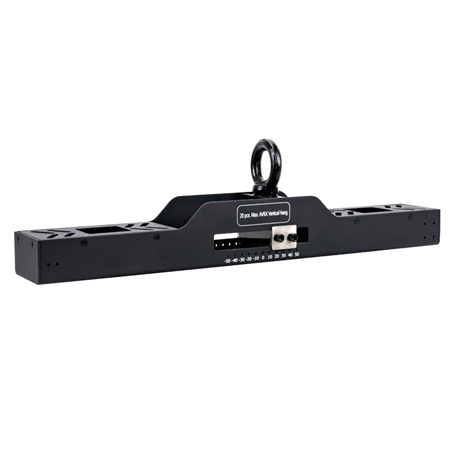

(3) American DJ AV6RB2 Single Panel Rigging Bar for AV6 & AV6X Video Panels
(5) American DJ AV6 3FT Cabinet-to-Cabinet Standard Connector Data Link Cables [CAT303]
(5) American DJ AV6 3FT Power Link Cables [PLC3]
(1) American DJ AV6 50FT Processor to Cabinet First Standard Connector Data Cable [CAT461]
(1) American DJ AV6 15FT Powercon to Edison main power cable [MPC15]
(1) American DJ MCTRL-300 Novastar Video Processor for ADJ AV6 video panels
(1) American DJ AV6 /AV6X Video Wall Flight Case [AV6FC]
(1) American DJ MediaMaster Express 4 Software Package

Each AV6X Box Includes:

(1) American DJ AV6X 6mm LED Video Panel

Each AV6RB2 Box Includes:

(1) American DJ AV6RB2 Single Panel Rigging Bar for AV6 & AV6X Video Panels

Each CAT303 Box Includes:

(1) ADJ AV6 3FT Cabinet-to-Cabinet Standard Connector Data Link Cable [CAT303]

Each PLC3 Box Includes:

(1) ADJ AV6 3FT Power Link Cable [PLC3]

The CAT461 Box Includes:

(1) ADJ AV6 50FT Processor to Cabinet First Standard Connector Data Cable [CAT461]

The MPC15 Box Includes:

(1) ADJ AV6 15FT Powercon to Edison main power cable [MPC15]

The MCTRL-300 Box Includes:

(1) ADJ MCTRL-300 Novastar Video Processor for ADJ AV6 video panels

The AV6FC Box Includes:

(1) ADJ AV6 Video Wall Flight Case [AV6FC]

The MediaMaster Express 4 Box Includes:

(1) MediaMaster Installation CD-ROM
