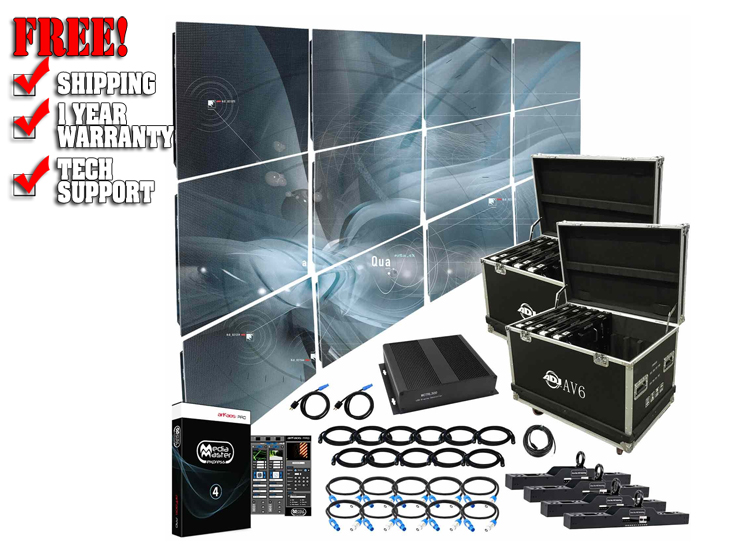

ADJ AV6X 6mm LED Video Wall 4x3 Complete System Package with Rigging Bars and Cases

The ADJ AV6X system is an affordable 6mm LED Video Wall suitable for: nightclubs; bars; bands; mobile entertainers; event productions; and houses of worship. The AV6X is the successor of last year's ADJ AV6 video panel but it now features higher quality LEDs for better color consistency and a darker black masking for higher contrast. We've taken the guesswork out of assembling a complete AV6X system. Our AV6X packages include all the components and cables necessary to get up and running with an amazing modular AV6X video wall system as fast as possible.

• Capable of displaying custom text, graphic sequences with effects, video, & more.
• 3-in-1 RGB SMD2121 LED technology ensures crisp & bright video presentation.
• Modular design allows for expansion and each video processor is capable of supporting up to 21 horizontal panels and 6 vertical.

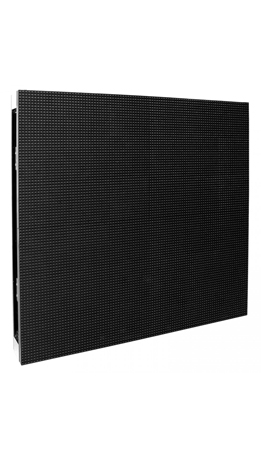

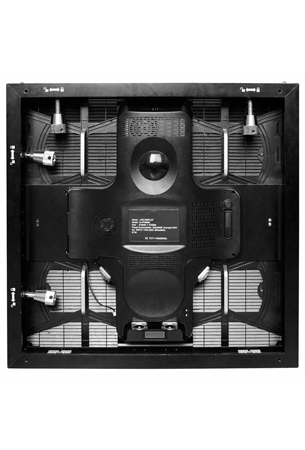

American DJ AV6X 6mm LED Video Panel

The AV6X is a new and improved video panel from ADJ. It still features the high resolution quality and performance that users have come to appreciate from the AV6, but it now features higher quality LEDs for better color consistency and a darker black masking for higher contrast.

Each panel has a pixel pitch of 6.0mm with a configuration of a 3-in-1 RGB SMD2121 LED. The brightness is 1200NITS. There are 4 mini modular panels with-in the master panel. This allows for easy serviceability. The AV6X connections include powerCon In/Out and Ethercon In/Out. This panel has features a Navistar receiving card.

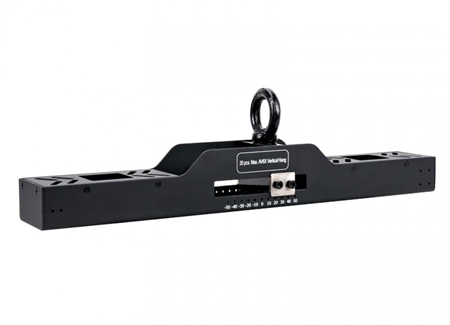

American DJ AV6RB2 Single Panel Rigging Bar for AV6 & AV6X Video Panels

Single panel rigging bar for the ADJ AV6 and AV6X video panels. It features an adjustable eye bolt to avoid truss cross bars.

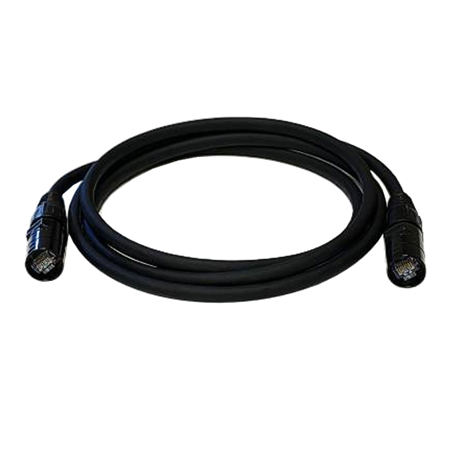

American DJ AV6 3FT Cabinet-to-Cabinet Standard Connector Data Link Cable [CAT303]

AV6 System 3' standard connector data cable, cabinet to cabinet, horizontal and vertical.

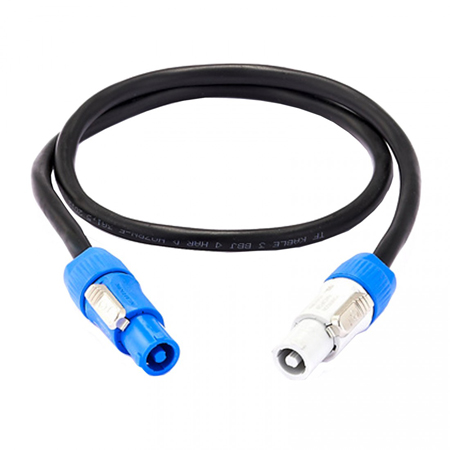

American DJ AV6 3FT Power Link Cable [PLC3]

AV6 System 3' power link cable, cabinet to cabinet, horizontal and vertical

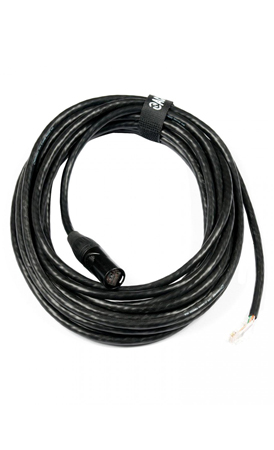

American DJ AV6 50FT Processor to Cabinet First Standard Connector Data Cable [CAT461]

AV6 System 50' 1st data cable, processor to first cabinet.

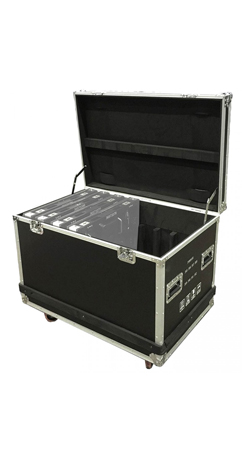

American DJ AV6 /AV6X Video Wall Flight Case [AV6FC]

If you are serious about your equipment, its imperative to keep it safe from damage.

ADJ's AV6 Video Wall Flight Case is a heavy duty road-case with wheels. It is designed to protect and safely transport 8 ADJ AV6 Video Wall panels.

Made with the professional who is always "on the go" in mind. The AV6F can withstand the lumps and bumps that other cases just can't take. The outer shell is made with sturdy metal and plastic to provide a strong yet stylish exterior.

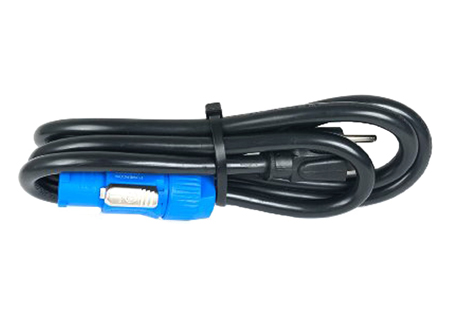

American DJ AV6 15FT Powercon to Edison main power cable [MPC15]

AV6 System 15' Powercon to Edison main power cable.

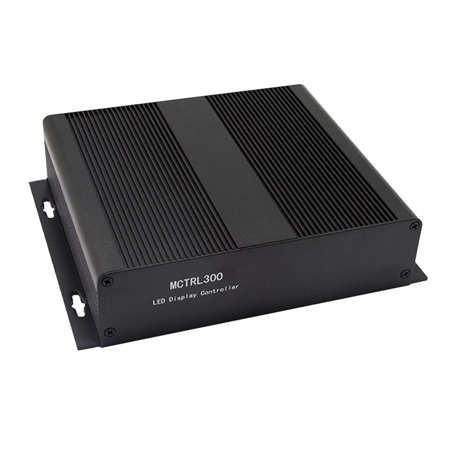

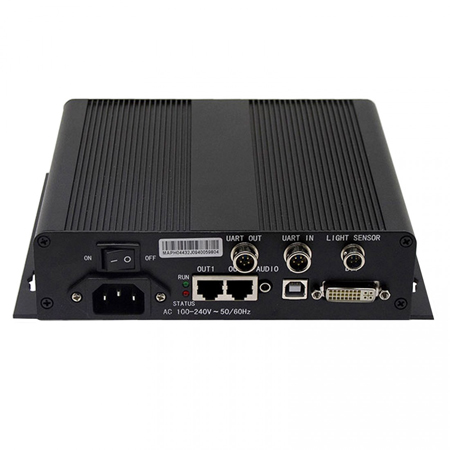

American DJ MCTRL-300 Novastar Video Processor for ADJ AV6 video panels

The MCTRL-300 is a controller for ADJ's AV6 LED video panels. It features one DVI signal source input and two RJ45 pixel-data outputs.

The controller is easily configured via USB and it will drive up to 1.3 million pixels supporting the following resolutions: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668.

The MCTRL-300 is an essential component for operation of ADJ AV6 video panels.

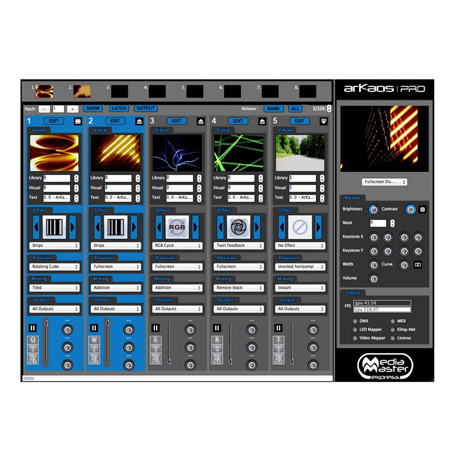

American DJ MediaMaster Express 4 Software Package

ArKaos has designed MediaMaster Express to help quickly setup a show that includes video. If you have basic needs of DMX or MIDI synchronization but still want to benefit from the powerful media management and efficient media playback of MediaMaster, the Express edition is your best choice. Drag and drop your visuals on the interface and assign them to DMX or MIDI triggers in a similar way to what made the ArKaos VJ DMX Simple Mode so popular. Simply put, it's the easiest media server software that ever existed.

Media Master Express 4 Features

• Control video layers with just a few DMX dimmers or MIDI notes.
• Work on a single DMX universe or MIDI channel.
• Drag & Drop visuals directly on the main interface.
• Organize your shows with up to 64 patches of 64 cells.
• Control up to 3 parameters per cell via DMX or MIDI.
• Optional fade time on trigger.

American DJ AV6X Specifications

• Pixel Pitch: 6.0mm (0.25")
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 96x96; 27,777 per square meter
• Size: 22.75" x 22.75" x 3" / 576 x 576 x 75mm
• Weight: 23lbs. / 8.15Kg

Mechanical Ratings:

• Surface Flatness: Gaps< 0.5mm

Optical Ratings:

• Brightness: 1200 NITS
• View Angle: Horizontal 140°/Vertical 140°
• Distance: 20ft. (6m)
• Gray Scale / Display Color: 14Bit
• Brightness Adjustment: 0~100% 100 Levels
• Processing: 14-bit

Power Supply:

• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 300W/per panel
• Ave. Power Consumption: 120W/per panel
• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

Control System:

• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/12 Duty
• Refresh Rate: 1200Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable 120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet

Environmental:

• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
• Operating Life / MTBF: 100,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: < 0.02%
• Listings: CE, FCC Class A

ADJ AV6FC Specifications

• Fits 8 AV6 video panels
• 9mm Plywood
• Butterfly Latches
• Swivel Castors
• Steel Ball Corners
• Foam Inlay
• Outer dimensions (LxWxH): 39.8" x 26" x 32.3" (1.01 x 0.66 x 0.82m)

ADJ MCTRL-300 Specifications

• Control Mode: Synchronous Display with Control PC by DVI.
• Frame Update Frequency: 50-60Hz.
• Scan Mode: 1/12 Duty.
• Refresh Rate: 1200Hz.
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI.
• Control Distance: Ethernet Cable 120m.
• Support VGA Mode: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668.
• Brightness Correction: Pixel, Module, Cabinet.

American DJ MediaMaster Express Specifications

• Control interface
• Computer keyboard
• Any MIDI controller compatible with your system
• Simple DMX lighting desk

System requirements (PC)

• OS: Windows XP, Vista or 7
• Processor: Pentium IV 2Ghz recommended
• RAM: 512MB, 1GB recommended
• Media Player: QuickTime 6.5.x (and up), Adobe FlashPlayer 9.0 (and up), DirectX 9.0c (and up)

System requirements (Mac)

• OS: Mac OS X 10.4 (and up)
• Processor: Any Intel Mac, G4/1Ghz (and up)
• RAM: 512MB, 1GB recommended
• Media Player: QuickTime 6.5.x (and up), Adobe FlashPlayer 9.0 (and up)

What's in the Box:

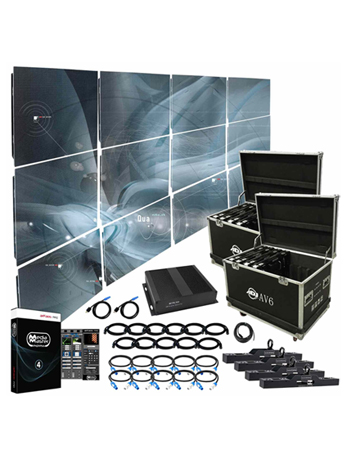

The AVX4X2 Package Includes:

• (12) American DJ AV6X 6mm LED Video Panels
• (4) American DJ AV6RB2 Single Panel Rigging Bars for AV6 & AV6X Video Panels
• (11) American DJ AV6 3FT Cabinet-to-Cabinet Standard Connector Data Link Cables [CAT303]
• (10) American DJ AV6 3FT Power Link Cables [PLC3]
• (1) American DJ AV6 50FT Processor to Cabinet First Standard Connector Data Cables [CAT461]
• (2) American DJ AV6 15FT Powercon to Edison main power cables [MPC15]
• (1) American DJ MCTRL-300 Novastar Video Processor for ADJ AV6 video panels
• (2) American DJ AV6 /AV6X Video Wall Flight Cases [AV6FC]
• (1) American DJ MediaMaster Express 4 Software Package

Each AV6X Box Includes:

• (1) American DJ AV6X 6mm LED Video Panel

Each AV6RB2 Box Includes:

• (1) American DJ AV6RB2 Single Panel Rigging Bar for AV6 & AV6X Video Panels

Each CAT303 Box Includes:

• (1) ADJ AV6 3FT Cabinet-to-Cabinet Standard Connector Data Link Cable [CAT303]

Each PLC3 Box Includes:

• (1) ADJ AV6 3FT Power Link Cable [PLC3]

The CAT461 Box Includes:

• (1) ADJ AV6 50FT Processor to Cabinet First Standard Connector Data Cable [CAT461]

Each MPC15 Box Includes:

• (1) ADJ AV6 15FT Powercon to Edison main power cable [MPC15]

The MCTRL-300 Box Includes:

• (1) ADJ MCTRL-300 Novastar Video Processor for ADJ AV6 video panels

Each AV6FC Box Includes:

• (1) ADJ AV6 Video Wall Flight Case [AV6FC]

The MediaMaster Express 4 Box Includes:

• (1) MediaMaster Installation CD-ROM
