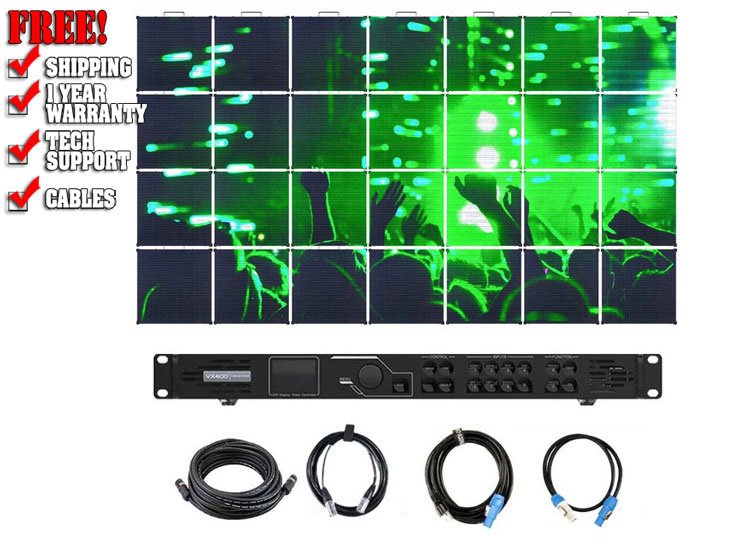

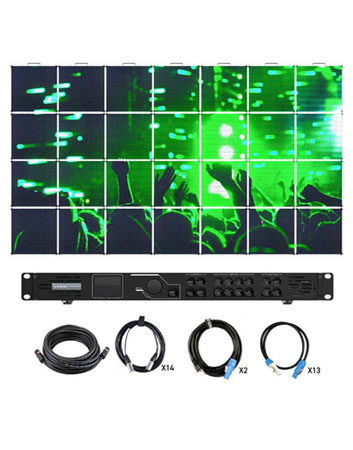

American DJ VS5 Vision Series RGB LED Video Wall 7x4 System with Video Panel Controller Processor

ADJ's Vision Series video panels offer the highest quality LED binning and bright, clear output. All models are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models are built on the same frame allowing panels with different resolutions to be used together. The Vision Series panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together, let go of the panels, then securely latch them on the rear. This allows for a single user to install a full wall of panels.

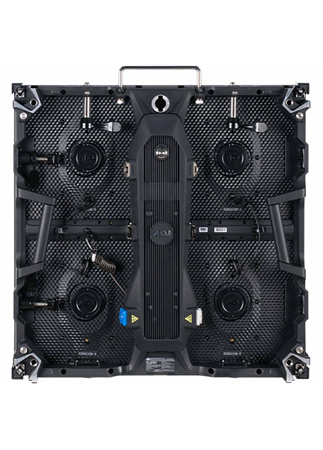

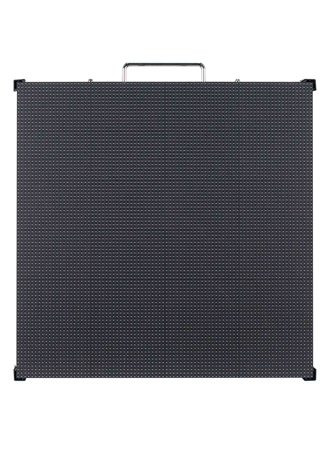

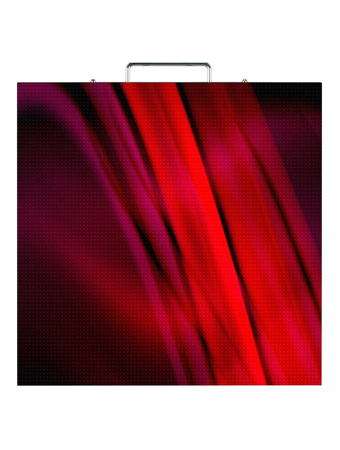

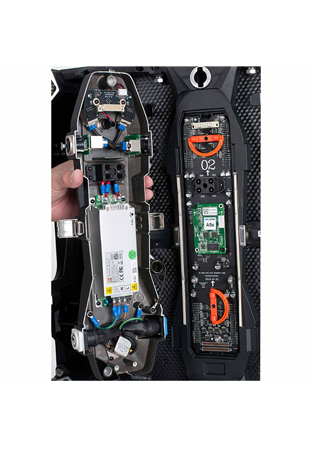

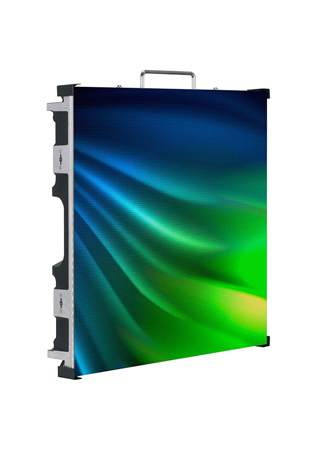

The VS5 is a high-resolution video panel with a pixel pitch of 5.95mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS5 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS5 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar.

American DJ VS5 5.9mm 168x168 Video Panel Features:

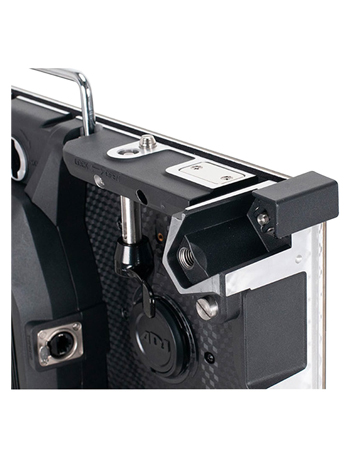

• Corner Protectors to protect the corners of the VS5 during transport, set-up and teardown.
• Front and rear serviceable.
• 4 easy to replace video modules on each panel.

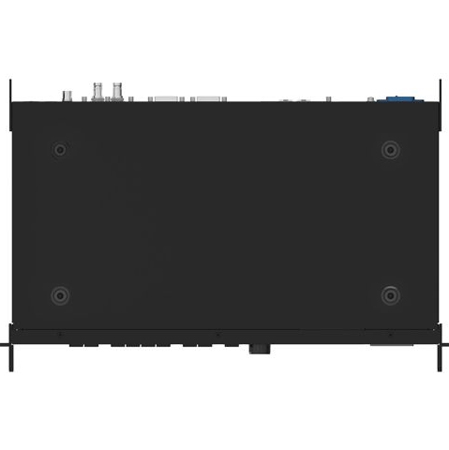

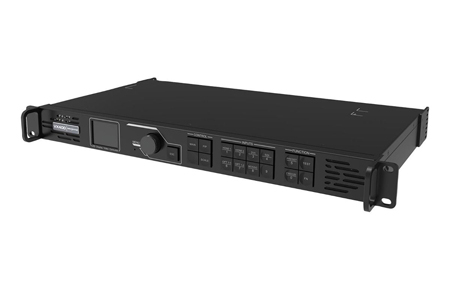

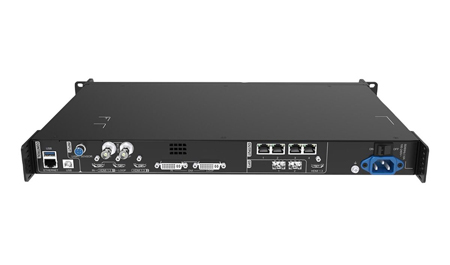

The VX400 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports and supports video control, fiber conversion, and bypass working modes. A VX400 unit can drive up to 2.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8,192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.

The VX400 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more to present you with an excellent image display experience. It can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

NovaStar VX400 Video Controller & Processor Features:

• Loading capacity: 2.9m pixels.
• Layers: 2.
• Mosaic input source supported.
• Audio input and output.
• Low latency.
• Output synchronization.
