Home › Video Panels › ADJ VS2 3x3 System Video Panel Package
ADJ VS2 3x3 System Video Panel Package
Regular Price $29879.99
Our Price $14939.99
WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $197.5 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details
Regular Price $799.99
Full Protection Only $395.00Regular Price $29879.99
Our Price $14939.99
TWO YEAR FULL WARRANTY. ONLY $197.5 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details
Regular Price $799.99
Full Protection Only $395.00
American DJ VS2-3X3SYSTEM Video Panel System with Processor and Cases Package
ADJ's Vision Series video panels offer the highest quality LED binning and bright, clear output. All models are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models are built on the same frame allowing panels with different resolutions to be used together. The Vision Series panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together, let go of the panels, then securely latch them on the rear. This allows for a single user to install a full wall of panels.

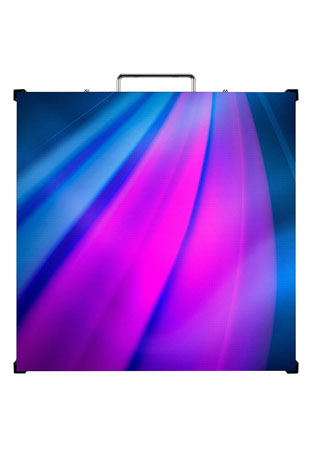

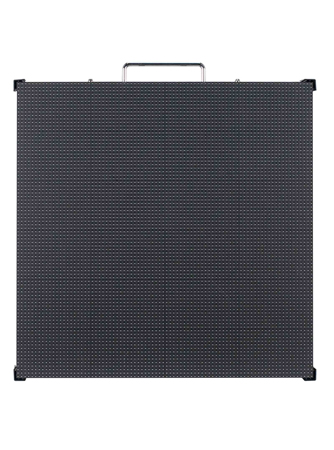

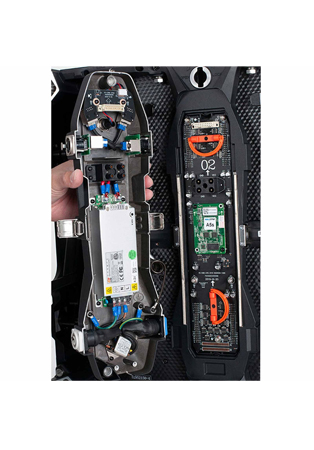

The VS2 is a high-resolution video panel with a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS2 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS2 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar.
American DJ VS2 168x168 Video Wall Panel Features:

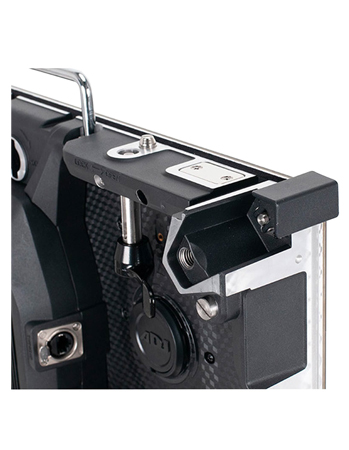

- Corner Protectors to protect the corners of the VS2 during transport, set-up and teardown.
- Front and rear serviceable.
- 4 easy to replace video modules on each panel.

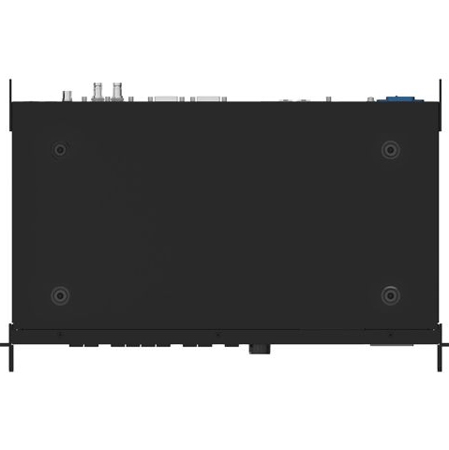

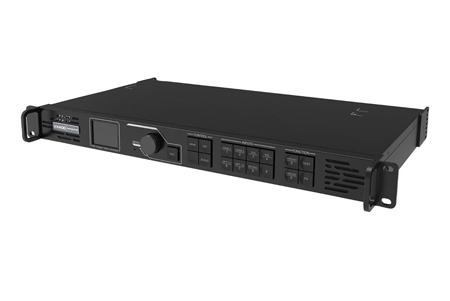

The VX400 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports and supports video control, fiber conversion, and bypass working modes. A VX400 unit can drive up to 2.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8,192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.
The VX400 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more to present you with an excellent image display experience. It can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.
NovaStar VX400 Video Controller & Processor Features:
- Loading capacity: 2.9m pixels.
- Layers: 2.
- Mosaic input source supported.
- Audio input and output.
- Low latency.
- Output synchronization.
Specification:
American DJ VS2 Product Specifications:
- Pixel Pitch: 2.97mm (0.12")
- LED Configuration: 3-in-1 SMD2121 LED
- Pixel Density: 168x168; 112896 per square meter
- Size: 19.68" x 19.68" x 2.75" / 500 x 500 x 69.6mm
- Module Quantity: 4
- Weight: 17 lbs. / 7.7kg.
Mechanical Ratings:
- Surface Flatness: Gaps < 0.5mm
Optical Ratings:
- Brightness: 1000 NITS
- View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
- Gray Scale: ≥14-bit
- Display Color: 256
- Brightness Adjustment: 0~100% 100 Levels
- Contrast ratio: 5000:1
- Processing: 14-bit
Power Supply:
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 170W/per panel
- Ave. Power Consumption: 68W/per panel
- Connections Power/Data: PowerLock In/Out; DataLock In/Out
Control System:
- Control Mode: Nova Star Synchronous System with Control via DVI
- Frame Update Frequency: 50-75Hz
- Scan Mode: 1/21
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Control Distance: Ethernet Cable < 120m or Fiber Optic>120m
- Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
- Brightness Correction: Pixel, Module, Cabinet
Environmental:
- Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
- Operating Life / MTBF: 50,000 Hours / 5,000 Hours
- Protection Level: IP20 (Front and Back)
- Out of Control Rate: < 0.02%
- Listings: cETLus (Pending)
NovaStar VX400 Product Specifications:

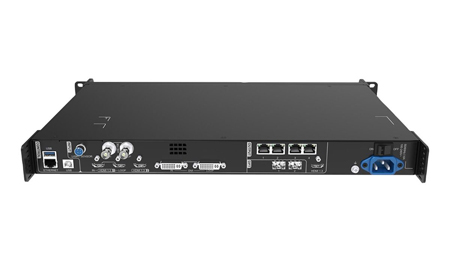

Connectors:
- 2x HDMI 1.3 + LOOP In
- 2x DVI (HDMI 1.3) + LOOP In
- 1x 3G-SDI + LOOP In
- 4x Gigabit Ethernet outputs
- 1x 10G OPT port
- 1x HDMI 1.3 (monitor)
- 1x RJ45 Ethernet (PC)
- 1x USB Type A (cascading)
- 1x USB Type B (PC)
Power:
- 100-240VAC, 50-60 Hz
- Power consumption: 28W, 1.5A
Dimensions & Weight:
- 19" L x 13.9" W x 2" H
- 13.9 lbs
Warranty:
- 3-year warranty
What's in the Box

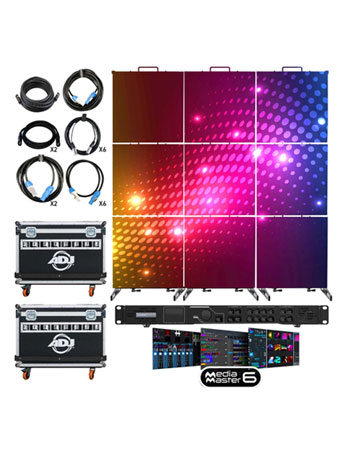

This Package Includes:
- (9) American DJ VS2 2.9mm 3-in-1 RGB LED Vision Series 168x168 Video Wall Panels
- (3) American DJ VSSCSB Single Column Support Bases for Vision Series LED Video Panels
- (1) NovaStar VX400 4-port 2-in-1 Professional Video Panel Controller & Processor
- (1) American DJ MEDIA-MASTER-PRO-6 Media Control Software
- (6) American DJ 6FT Seetronic Powercon Link Cables [SPLC6]
- (2) American DJ 10FT Seetronic Powercon Link Cables [SPLC10]
- (1) American DJ 25FT Seetronic Powercon Link Cable [SPLC25]
- (6) ADJ AV6 3FT Cabinet-to-Cabinet Neutrik Ethercon Data Link Cables [CAT6PRO3]
- (2) ADJ AV6 10FT Cabinet-to-Cabinet Standard Connector Data Link Cables [CAT310]
- (1) ADJ AV6 25FT Processor to Cabinet First Neutrik Connector Data Cable [CAT251]
- (2) American DJ VSFC8 Flight Cases for 8x Vision Series LED Video Panels
