ADJ NovaStar VX400

Capable of driving up to 2.6 million pixels, with a maximum output width of 10,240 pixels and height of 8192 pixels, it caters ideally to ultra-wide and ultra-high LED screens. The VX400 efficiently receives various video signals and processes high-resolution images, offering stepless output scaling, low latency, pixel-level brightness, chroma calibration, and more for an exceptional visual experience.

Moreover, the VX400 seamlessly integrates with NovaStar's premier software solutions, NovaLCT, and V-Can, streamlining in-field operations and control tasks such as screen configuration, Ethernet port backup settings, layer management, preset management, and firmware updates.

With its robust video processing and transmission capabilities, coupled with its array of advanced features, the VX400 finds extensive utility across diverse applications, including medium and high-end rental, stage control systems, and fine-pitch LED screens.

ADJ Applications:

• medium and high-end rental, stage control systems and fine-pitch LED screens

ADJ Features:

• All-in-one controller that integrates video processing and video control into one box
• 4 Ethernet ports and supports video control, fiber conversion, and bypass working modes
• Capable of receiving a variety of video signals and processing high-resolution images
• Can drive up to 2.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8,192 pixels respectively
• Stepless output scaling
• Low latency
• Pixel-level brightness and chroma calibration and more to present you with an excellent image display experience

ADJ Specifications:

Controller & Processor:

• The VX400 is a 4-port 2-in-1 video controller that combines video processing and video control functions. It can be widely used in the field of medium to high-end rental, stage control systems and fine-pitch LED screens.
• Warranty: 3 Year

Power & Current:

• 100-240VAC, 50-60 Hz
• Power consumption: 28W, 1.5A

Dimensions:

• 2" x 13.9" x 19"
• 8.9 lbs

General Specs:

• Loading capacity: 2.9m pixels
• Layers: 2
• Mosaic input source supported
• Audio input and output
• Low latency
• Output synchronization

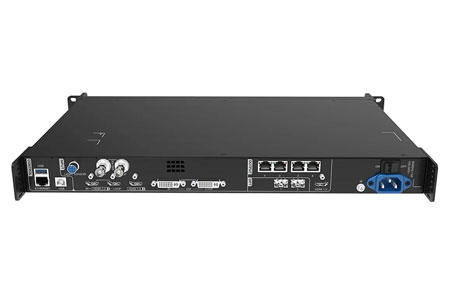

Connectors:G

• (2) HDMI 1.3 + LOOP In
• (2) DVI (HDMI 1.3) + LOOP In
• (1) 3G-SDI + LOOP In
• (4) Gigabit Ethernet outputs
• (1) 10G OPT port
• (1) HDMI 1.3 (monitor)
• (1) RJ45 Ethernet (PC)
• (1) USB Type A (cascading)
• (1) USB Type B (PC)
