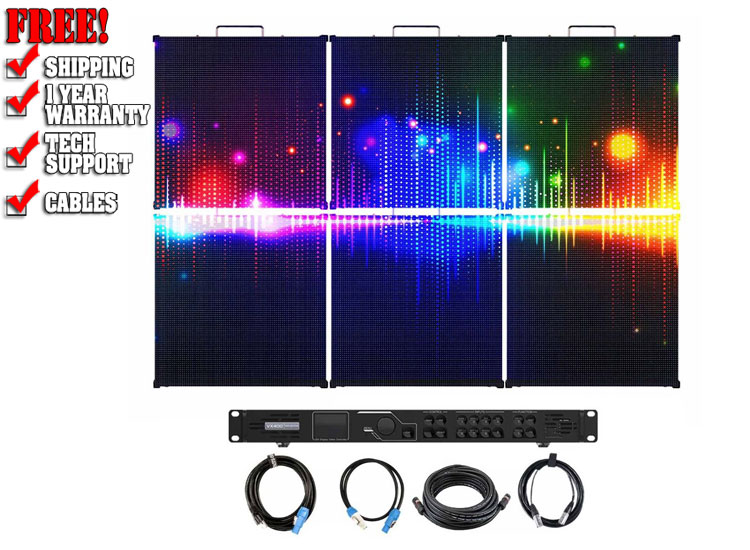

American DJ EVS3 3.91mm Pixel Pitch LED Video Wall 3x2 System with Video Panel Controller Processor

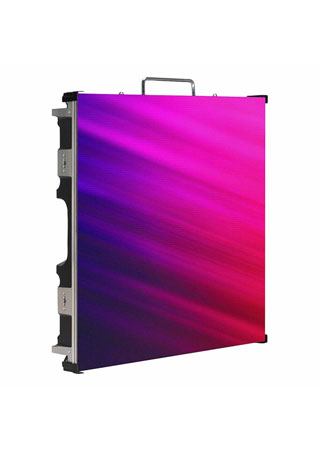

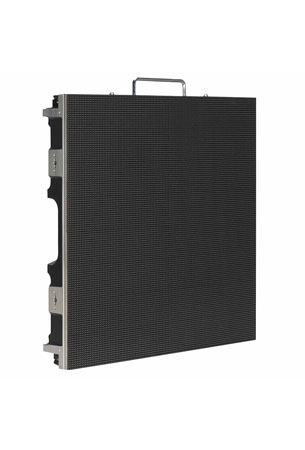

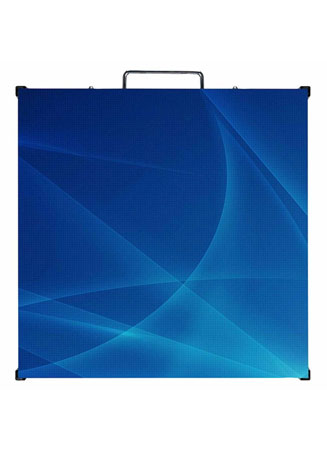

The ADJ Lighting EVS3 is a rugged LED video panel solution designed for temporary installations that demand stunning visual displays. With a pixel pitch of 3.91mm and a configuration of a 3-in-1 RGB SMD2121 LED, the EVS3 delivers crisp and vibrant images with a pixel density of 128x128, totaling an impressive 65,536 pixels per square meter. The EVS3 is built for convenience and durability, featuring front and rear serviceability with four easily replaceable video modules on each panel. Its compact size of 19.68" x 19.68" x 2.96" and lightweight construction weighing just 16.5 lbs make it highly portable and easy to handle.

Equipped with corner protectors for added durability during transport and setup, the EVS3 ensures that your investment remains protected. Its exceptional optical ratings include a brightness of 800 NITS and a wide viewing angle of 160° horizontal and 140° vertical at 9.75 ft. The EVS3 also offers versatile control options, supporting various input modes such as Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI. Hang up to 20 EVS3 Video Panels vertically with the VSRB1 (VS1100) Rigging Bar. There are magnets on the top and bottom to temporarily connect panels before latching together allowing a single user to install an entire wall. For added convenience, a range of optional accessories are available, including flight cases, rigging bars, support brackets, and video processors, allowing you to customize and enhance your installation according to your specific needs. Elevate your visual experience to new heights with the ADJ Lighting EVS3 LED video panel.

American DJ EVS3 3.91mm Pixel Pitch LED Video Panel Features:

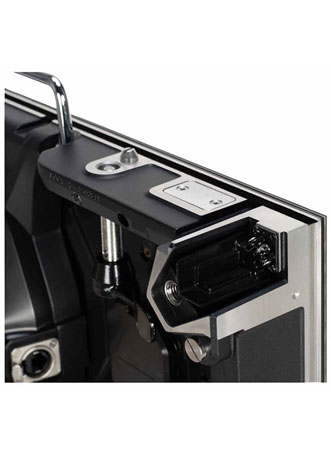

• Corner Protectors to protect the corners of the EVS3 during transport, set-up and teardown.

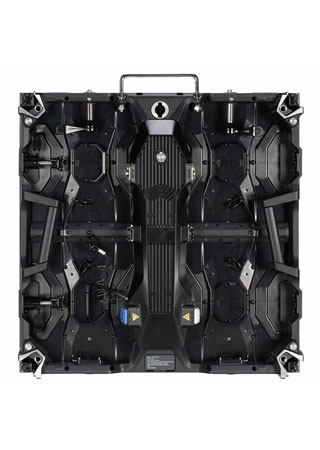

• Front and rear serviceable: 4 easy to replace video modules on each panel.
• Magnets on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall.
• This product was developed for temporary use only and should not be permanently installed.

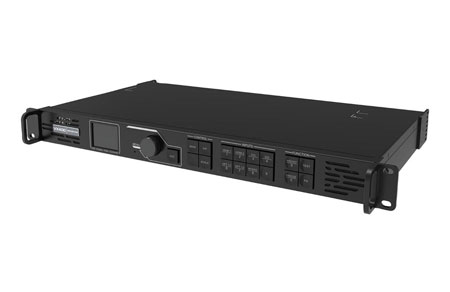

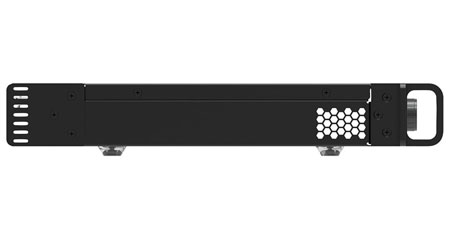

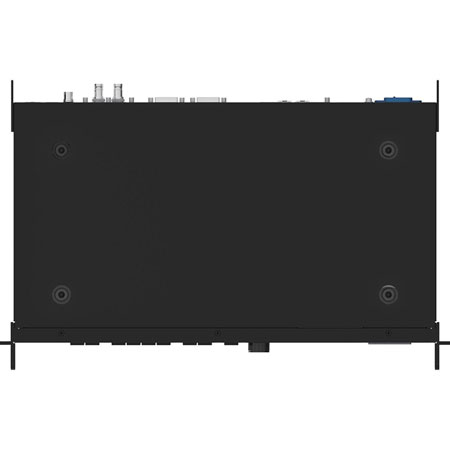

The VX400 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports and supports video control, fiber conversion, and bypass working modes. A VX400 unit can drive up to 2.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8,192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.

The VX400 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more to present you with an excellent image display experience. It can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

NovaStar VX400 Video Controller & Processor Features:

• Loading capacity: 2.9m pixels.
• Layers: 2.
• Mosaic input source supported.
• Audio input and output.
• Low latency.
• Output synchronization.

Specification:

American DJ EVS3 Product Specifications:

General:

• Pixel Pitch: 3.91mm (0.15")
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 128x128; 65536 per square meter
• Size :19.68" x 19.68" x 2.96" / 500 x 500 x 75mm
• Module Quantity: 4
• Weight: 16.5 lbs. / 7.5kg.

Mechanical Ratings:

• Surface Flatness: Gaps < 0.5mm

Optical Ratings:

• Brightness: 800 NITS
• View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
• Gray Scale: =14-bit
• Display Color: 256
• Brightness Adjustment: 0~100% 100 Levels
• Contrast ratio: 5000:1
• Processing: 14-bit

Power Supply:

• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 120W/per panel
• Ave. Power Consumption: 48W/per panel
• Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out

Control System:

• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-75Hz
• Scan Mode: 1/16
• Refresh Rate: 3840Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable < 120m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

Environmental:

• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: < 0.02%

Cables:

• Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
• Indoor Power Locking Link Cables
• Indoor Power Locking Main Power Cables

Certifications:

• cETLus (Pending)

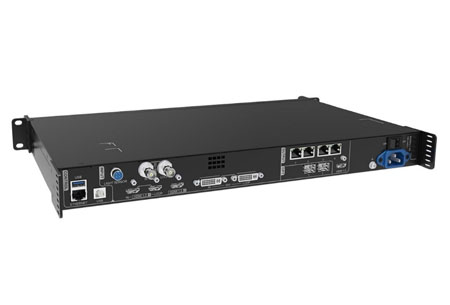

NovaStar VX400 Product Specifications:

Connectors:

• 2x HDMI 1.3 + LOOP In
• 2x DVI (HDMI 1.3) + LOOP In
• 1x 3G-SDI + LOOP In
• 4x Gigabit Ethernet outputs
• 1x 10G OPT port
• 1x HDMI 1.3 (monitor)
• 1x RJ45 Ethernet (PC)
• 1x USB Type A (cascading)
• 1x USB Type B (PC)

Power:

• 100-240VAC, 50-60 Hz
• Power consumption: 28W, 1.5A

Dimensions & Weight:

• 19" L x 13.9" W x 2" H
• 13.9 lbs

Warranty:

• 3-year warranty

What's in the Box

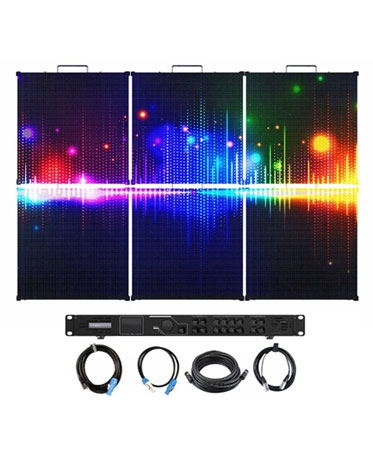

This Package Includes:

• (6) American DJ EVS3 3.91mm Pixel Pitch LED Video Panels
• (1) NovaStar VX400 4-port 2-in-1 Professional Video Panel Controller & Processor
• (5) American DJ AV6 3FT Cabinet-to-Cabinet Neutrik Ethercon Data Link Cables [CAT6PRO3]
• (1) American DJ AV6 25FT Processor to Cabinet First Neutrik Connector Data Cable [CAT251]
• (5) American DJ 3FT Seetronic Powercon Link Cables [SPLC3]
• (1) American DJ 15FT Seetronic Powerlocking Main Power Cable [SMPC15]
