2x3 video wall controller with Rs232 and remote control

1, Multiple splicing functions
The controller support 6 HDMI output ports to connect TV wall, and the video output signal can be customized 2*3, 3*2, 2*2 , 1*3, 1*2 according to what you want.

2,Multiple input signal

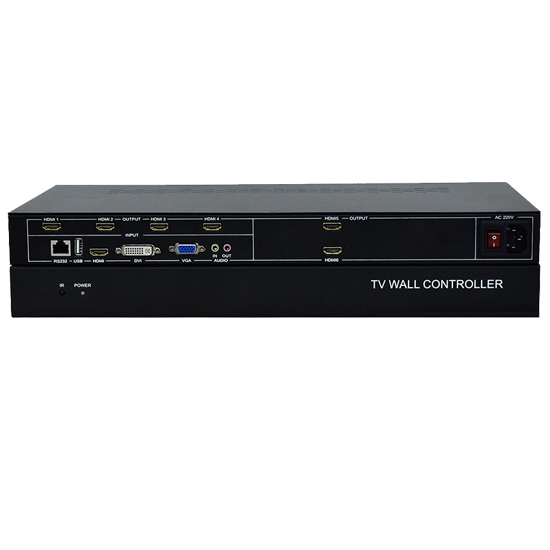

With 1 HDMI, 1DVI, 1VGA, 1USB four signal inputs totally, HDMI and USB signal with audio decoding, DVI and VGA signal plus the corresponding audio binding interface.

3, Mirror function
The TV wall controller can realize 180 degree image flip function for each screen. A up row of LCD TV rotated 180 degrees, thereby significantly reducing LCD splicing gap, reducing image distortion caused by the large seam.

4, Edge mask function
All display unit has some physical border gap, the image will appear pull-apart on visually and feel very unnatural if no edge shielding; past the edge mask processing ,the image without deformation, stretching, more natural and realistic.

5, U disk Play
Insert a U disk into USB interface, it can play a number of popular video, pictures, MP3, TXT documents and support round robin play, pause, fast-forward, the program list and other functions.

6, Remote control
All functions can be done on the remote control like settings, switching, adjustable, and use ultra-sensitive design, remote control distance up to 7-10 meters
