(4) ProX XTP-GSBPACK3 Truss Tower Stage Roofing System Packages with Hoists

Description

Full Package of four-legged outrigger Truss base, with a 4-way Square Truss junction box Sleeve Block, on a 3' long square Truss. Complete with the Rigging Top.

In this package, you have everything you need for one complete leg in the building and flying a large scale truss, supporting mid to heavy-grade level stage installations. The system includes:

• Rigger Base, with extending legs, XT-GSB
• 3.28ft Long Truss segment, XT-SQ328 (Longer segments available, price changes per length)
• 4' Outrigger Brace Tubes (4) with clamps, XT-GSOUT3
• Sleeve Block 4-Way Junction box, XT-BLOCK
• Truss Top with I-Beam mount with chain Pulley wheels, XT-TOPCM
• 4 Hinge block set, XT-HINGE
• (Winch Motor not included)

ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's rugged yet lightweight trussing solution is perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

All ProX Truss products are 100% compatible to connect along with many other manufacturers; and are constructed to the highest safety ratings by certified welders!

Features:

• Tolerance Free Standard Conical connector.
• Main tube wall thickness of .08in / 2mm.
• Constructed to the highest safety ratings by certified welders.

ProX XT-BLOCK Specifications:

• Dimensions
  • 22.50"Length (L) X 22.50"Width (W) X 18.50"Height (H)
  • Weight: 77.30 lbs
• Shipping Dimensions
  • 24.00"L X 24.00"D X 20.00"H
  • Weight: 80.00 lbs

ProX XT-GSB Specifications

• Dimensions
  • 28.50"Length (L) X 28.50"Width (W) X 9.00"Height (H)
  • Weight: 63.80 lbs
• Shipping Dimensions
  • 29.50"L X 29.50"D X 10.00"H
  • Weight: 65.00 lbs

ProX XT-GSOUTS3 Specifications

• 2" Diameter Tube with Clamp and Bolted hinge.
• 64" Alluminum Assist Tube with Clamp
• 36" Steel Base feet

ProX XT-SQ328 Specifications

• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: ~5.0 lbs/ft / ~7.0/m
• Main Tube: 2in / 50mm
• Braces: .75in / 20mm
• Material: EN-AWT6 6082 Aluminum
• Actual Height: 3.28 ft (1 Meter) Square Truss Segment
• Actual Weight: 19 lbs.
• Outside: 290mm - 11 7/16"
• Tubing: 2"
• Bracing: 3/4"
• Includes connecting hardware set.

Dimensions

• 12.00"Length (L) X 12.00"Width (W) X 39.36"Height (H)
• Weight: 19.00 lbs

ProX XT-MCH1TX2-30FT Manual Chain Stage Hoists with Chains and Case

Features

• Set of 2 Manual Chain Hoist. No electricity needed just manual labor.
• Each Chain is rated for 1 ton capacity load bearing.
• Included are a chain bag for each Chain and a Heavy Duty case for both hoists.
• Ideal for Stage truss and mobile stage.

• Portable lightweight hoist is durable and easy to operate
• Full forged drop steel swivel hooks with safety latch for a secure lift
• Compact design and low headroom
• Mechanical load brake for positive load control when lifting or spotting
• Rugged hardened steel construction
• Galvanized Grade 80 chain
• Forged steel hooks swivel 360 and have safety latches
• Designed with a safety factor 4 times rated capacity
• Meets ANSI/ASME standards

This Package Includes:

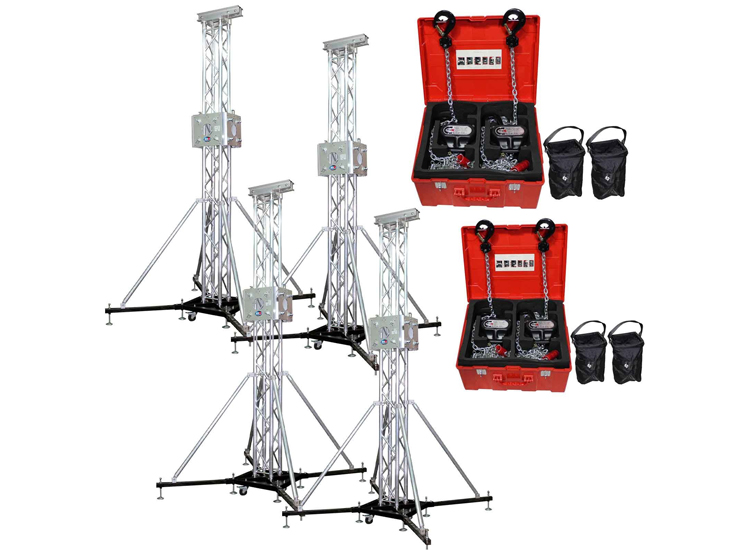

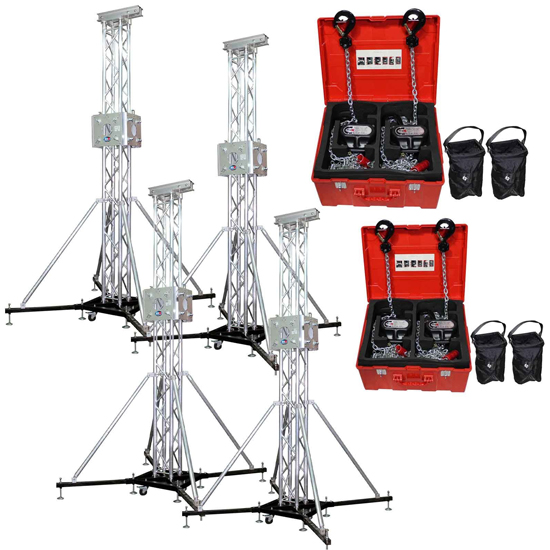

• (4) ProX XTP-GSBPACK3 Truss Tower Stage Roofing System Packages
• (2) ProX XT-MCH1TX2-30FT Sets of 2 1Ton Manual Chain Stage Hoists with 30ft Chains & Heavy Duty Cases

Each XTP-GSBPACK3 Truss Tower Package Includes the following components:

• (1) ProX XT-BLOCK Sleeve Block for 12" Trussing
• (1) ProX XT-TOPCM Top Truss Section for Electric Motor or Manual Chain Hoist
• (4) ProX XT-HINGE Single Tube Hinge Block
• (1) ProX XT-GSB Universal Ground Support Base On Wheels
• (4) ProX XT-GSOUTS3 Outrigger Braces for Ground Support Truss Tower
• (1) ProX XT-SQ328 3.28ft (1.00m) Square Truss Segments

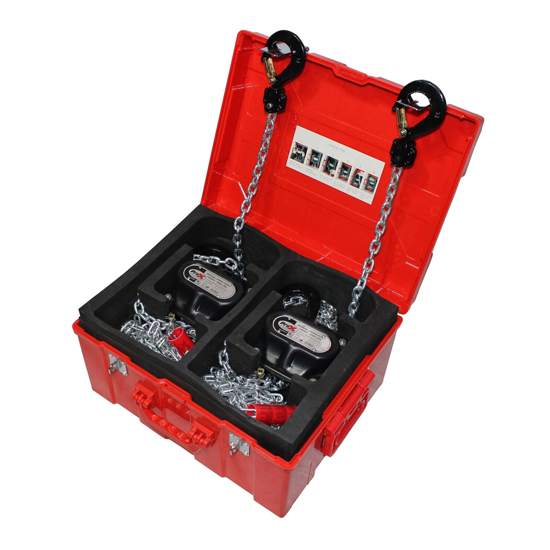

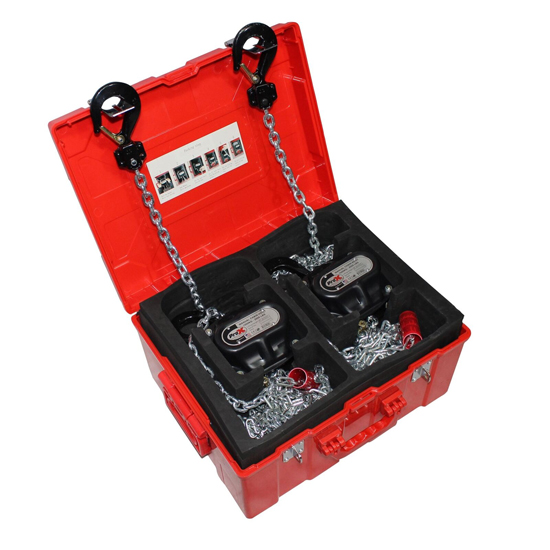

The XT-MCH1TX2-30FT Box Includes:

• (2) 1 ton Manual Chain Stage Hoists with 30ft / 9m Chains
• (2) Carry bags for the chains

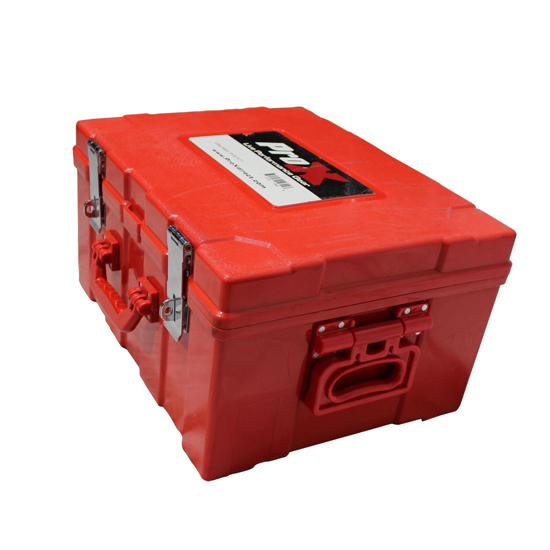

• (1) Heavy duty carry case for all equipment
