ProX XTP-GS323023-P7D F34 Stage Roofing Truss System

Description

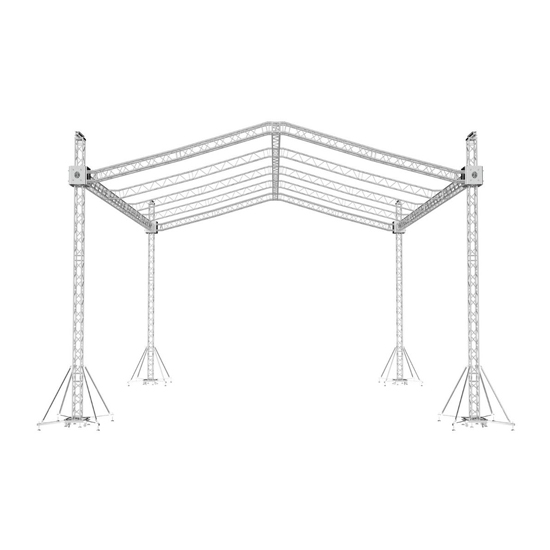

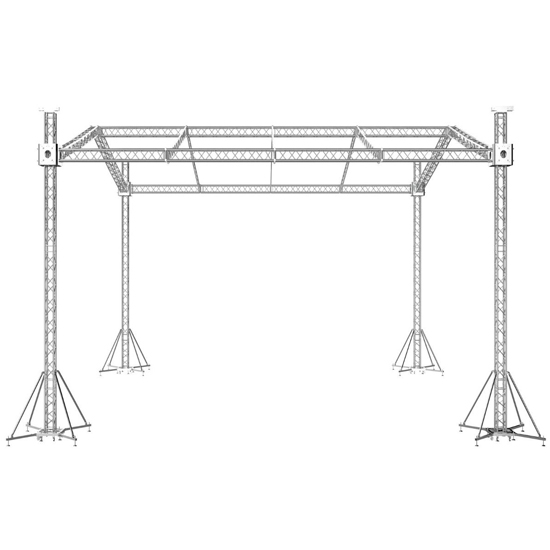

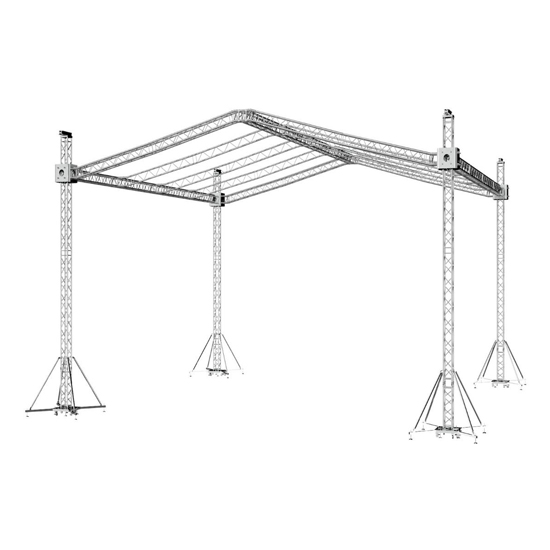

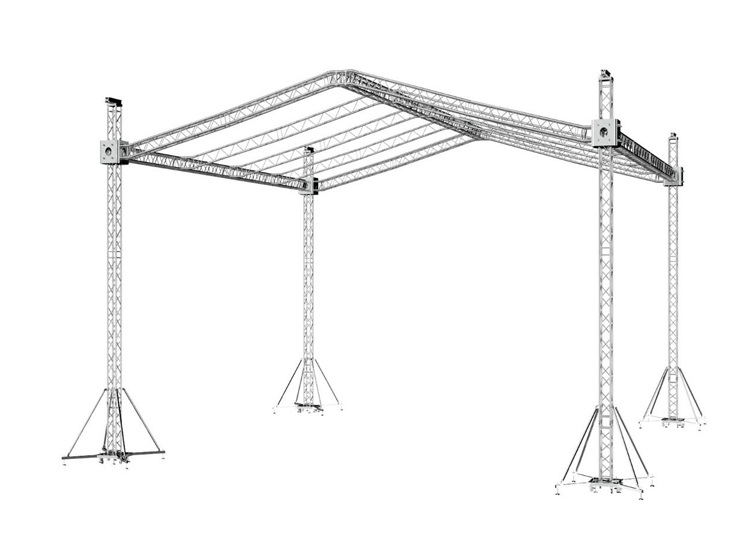

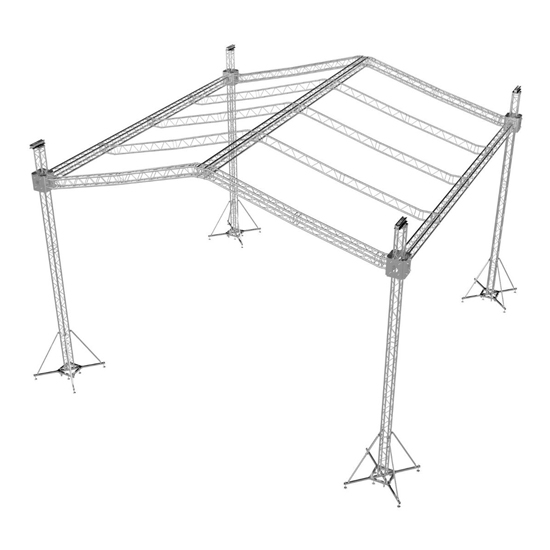

This Stage Roofing System is equipped with speaker wings, a premier solution designed to elevate your event production to new heights. This professional-grade system offers impressive dimensions of 32 feet in width, 30 feet in length, and 32 feet in height, complemented by six chain hoists for seamless lifting and support. The expansive trussing area provides a substantial space capable of accommodating multi-person live bands and expansive DJ setups. Additionally, the system features Truss wings meticulously crafted to effortlessly suspend speakers and lighting fixtures.

Experience unparalleled versatility as you effortlessly hang lighting, curtains, video screens, and speakers from the sturdy truss system. The height adjustment capability allows for precise customization and optimal visual and audio impact. Furthermore, this system is easily scalable to cater to smaller staging requirements, ensuring flexibility for various event sizes. The structural integrity of the stage roof trussing is engineered to withstand the demands of a diverse range of lighting and audio equipment. It ensures even distribution throughout the roofing system, guaranteeing a secure and stable setup. Please note that for most installations, guy wires are required to enhance stability and safety.

Features:

• TUV Certified for safety, quality, and sustainability.
• Exacting Specifications - Manufactured in-house.
• Tolerance-free conical connectors.
• Strong truss main tube (0.08in / 2mm wall thickness.)
• Impressive 1-ton load capacity per corner lift unit (4-ton total weight.)
• Material: EN-AWT6 6082 Aluminum and welded steel.

Specifications:

• Exterior Dimensions & Weight:
  • XT-SQ984 (8)118.08"H x 12.00"W x 12.00"L - Weight: 42.00 lbs
  • XT-JB6W-4W (2)11.45"H x 11.45"W x 11.45"L - Weight: 17.00 lbs
  • XT-SQ7D (8)11.42"H x 11.42"W x 10.00"L - Weight: 8.50 lbs
  • XT-SQ656 (8)78.72"H x 11.42"W x 11.42"L - Weight: 31.00 lbs
  • XT-SQ820 (12)98.40"H x 12.00"W x 12.00"L - Weight: 36.00 lbs
  • XT-SQ328 (4)39.36"H x 11.42"W x 11.42"L - Weight: 19.00 lbs
  • XT-GSOUTS3 (16)64.00"H x 2.00"W x 37.50"L - Weight: 29.00 lbs
  • XT-TOPCM (4)11.50"H x 9.50"W x 24.00"L - Weight: 26.40 lbs
  • XT-BLOCK-MK2 (4)18.50"H x 22.50"W x 22.50"L - Weight: 77.30 lbs
• Shipping Dimensions & Weight:
  • Box 1 of 15: XT-SQ984 (8 boxes) 14.00"H x 14.00"W x 120.00"L - Shipping Weight: 46.00 lbs
  • Box 2 of 15: XT-CP-103P (16 boxes) 2.00"H x 6.00"W x 4.00"L - Shipping Weight: 2.00 lbs
  • Box 3 of 15: XT-F32-7D (12 boxes) 12.00"H x 8.00"W x 8.00"L - Shipping Weight: 4.00 lbs
  • Box 4 of 15: XT-F32JBOX (9 boxes) 3.00"H x 12.00"W x 12.00"L - Shipping Weight: 6.00 lbs
  • Box 5 of 15: XT-F32-656 (12 boxes) 3.00"H x 12.00"W x 79.00"L - Shipping Weight: 13.00 lbs
  • Box 6 of 15: XT-MCH1TX2-30FT (2 boxes) 11.00"H x 19.00"W x 15.00"L - Shipping Weight: 104.00 lbs
  • Box 7 of 15: XT-JB6W-4W (2 boxes) 12.50"H x 12.50"W x 12.50"L - Shipping Weight: 17.50 lbs
  • Box 8 of 15: XT-SQ7D (8 boxes) 13.50"H x 11.00"W x 13.50"L - Shipping Weight: 10.00 lbs
  • Box 9 of 15: XT-SQ656 (8 boxes) 80.50"H x 13.00"W x 13.00"L - Shipping Weight: 35.00 lbs
  • Box 10 of 15: XT-SQ328 (4 boxes) 41.50"H x 12.50"W x 12.50"L - Shipping Weight: 21.00 lbs
  • Box 11 of 15: XT-HINGE (16 boxes) 2.00"H x 5.00"W x 5.00"L - Shipping Weight: 2.50 lbs
  • Box 12 of 15: XT-GSOUTS3 (16 boxes) 6.00"H x 8.00"W x 64.00"L - Shipping Weight: 34.00 lbs
  • Box 13 of 15: XT-GSB MK3 (4 boxes) 9.00"H x 29.00"W x 29.00"L - Shipping Weight: 70.00 lbs
  • Box 14 of 15: XT-TOPCM (4 boxes) 12.00"H x 10.00"W x 25.00"L - Shipping Weight: 28.00 lbs
  • Box 15 of 15: XT-BLOCK-MK2 (4 boxes) 20.00"H x 24.00"W x 24.00"L - Shipping Weight: 80.00 lbs

Whta's in the Box?

• (4) XT-BLOCK-MK2 Ground Support Sleeve Block for F34 Truss Segment Systems
• (4) XT-TOPCM Top Truss Sections for Electric Motor or Manual Chain Hoist
• (4) XT-GSB MK3 Universal Vertical Tower Truss Ground Support Bases on Wheels with Leveling Jacks for F34, F44 and 12" Bolt truss
• (16) XT-GSOUTS3 Single 3 Ft. Outrigger Support Braces for Leveling Ground Support Truss Tower Base
• (16) XT-HINGE Conical Tube Ground Support Post towers Male to Male Hinge Joint Fits F31 F32 F34
• (4) XT-SQ328 3.28 Ft - 1.00 M F34 Square Truss Segments | 2 mm Wall
• (12) XT-SQ820 8.20 Ft. 2.50 M F34 Square Truss Segments | 2 mm Wall
• (8) XT-SQ656 6.56 Ft - 2.00 M F34 Square Truss Segments | 2 mm Wall
• (8) XT-SQ7D 7 Degree F34 Square Truss Angle Connectors | 2mm Wall
• (2) XT-JB6W-4W 6 Way Square Truss Junction Blocks - Includes 4 Way 16 Half Conical Couplers
• (2) XT-MCH1TX2-30FT Pairs 1 Ton Manual Chain Hoist with 30 Ft (9 M) Chain for Stage Truss roof system and line array speakers
• (12) XT-F32-656 6.56 Ft. 2m F32 I-Beam Segment Trusses 2mm Wall
• (9) XT-F32JBOX F32 6 Way Universal Box Junctions | 3mm Wall
• (12) XT-F32-7D 7 Degree F32 Truss Corners
• (16) XT-CP-103P Truss Junction Box Connector Packs for One Side
• (20) XT-SPFF105 Spacer 105mm Female Couplers
• (8) XT-SQ984 9.84 Ft - 3.00 M F34 Square Truss Segments | 2 mm Wall
