ProX XTP-GS23X23X23 F34 Stage Roofing Truss System

Description

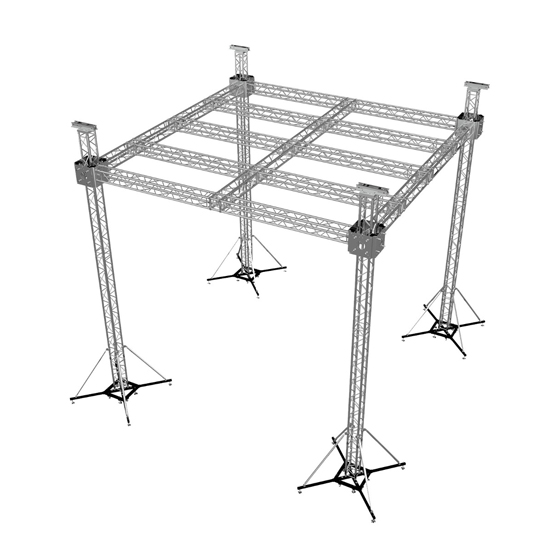

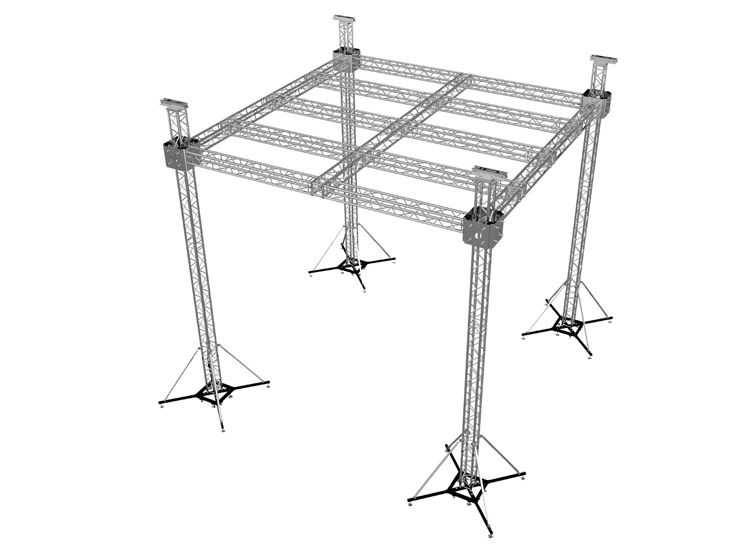

This Stage Roofing System is equipped with speaker wings, a premier solution designed to elevate your event production to new heights. This professional-grade system offers impressive dimensions of 23 feet in width, 23 feet in length, and 23 feet in height, complemented by six chain hoists for seamless lifting and support. The expansive trussing area provides a substantial space capable of accommodating multi-person live bands and expansive DJ setups. Additionally, the system features truss wings meticulously crafted to effortlessly suspend speakers and lighting fixtures.

Experience unparalleled versatility as you effortlessly hang lighting, curtains, video screens, and speakers from the sturdy truss system. The height adjustment capability allows for precise customization and optimal visual and audio impact. Furthermore, this system is easily scalable to cater to smaller staging requirements, ensuring flexibility for various event sizes. The structural integrity of the stage roof trussing is engineered to withstand the demands of a diverse range of lighting and audio equipment. It ensures even distribution throughout the roofing system, guaranteeing a secure and stable setup. Please note that for most installations, guy wires are required to enhance stability and safety.

Create a distinctive and striking exhibit that will increase your bottom line and visibility with a durable modular truss system from Global Truss.

Specifications:

• TUV Certified for safety, quality, and sustainability.
• Exacting Specifications – Manufactured in-house.
• Tolerance-free conical connectors.
• Strong truss main tube (0.08in / 2mm wall thickness.)
• Impressive 1-ton load capacity per corner lift unit (4-ton total weight.)
• Material: EN-AWT6 6082 Aluminum and welded steel.

Whta's in the Box?

• (4) XTP-GSBPACK3 Truss Tower Stage Roofing System Packages
• (18) XT-SQ984 9.84 Ft - 3.00 M F34 Square Truss Segments | 2 mm Wall
• (12) XT-SQ410 4.10 Ft - 1.25 M F34 Square Truss Segments | 2 mm Wall
• (11) XT-JB6W-2W 6 Way Square Truss Junction Blocks with 2 Way 8 Half Conical Couplers
• (14) XT-CP-103P Truss Junction Box Connector Packs
• (8) XT-SQ034 0.34ft (0.105m) F34 Segments
• (2) XT-MCH1TX2-30FT Pairs 1 Ton Manual Chain Hoists with 30 Ft (9 M) Chain for Stage Truss roof system and line array speakers
