ProX XTP-GS2013 LED Screen Display Panel System

Description

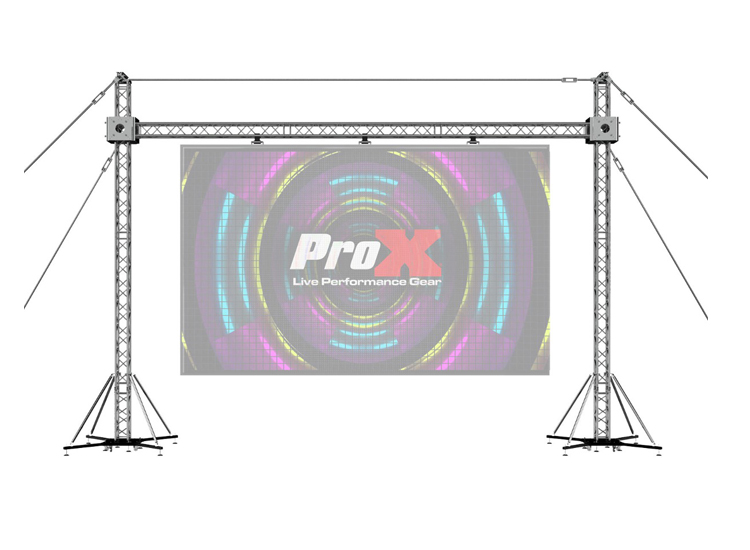

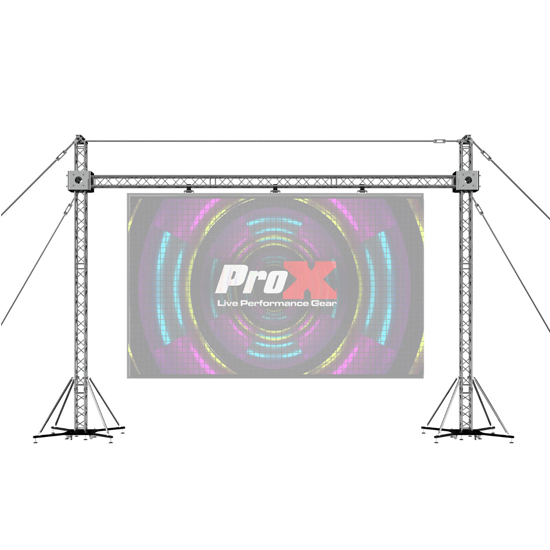

The ProX XTP-GS2013 LED Panel Support System package is 20'W x 13'H, and constructed with ProX's heavy-duty Aluminum XT truss, combined with their modular ground support towers as well as the GSBPACK3 Lift System. LED wall not included.

This Indoor / outdoor Truss Ground Support System is designed to fly LED Screen Display Panel Video Wall. The ProX XT-SQ Series Truss is one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and durable trussing solution perfect for live outdoor productions, nightclubs, and permanent installations. ProX XT Series Truss compares favorably to the other major trussing manufacturers. ProX manufactures with EN-AWT6 6082 Aluminum for safety and strength. The XT series F34 square truss utilizes a standard conical connector system, which easily mates with other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs, while their outstanding quality control and manufacturing techniques assure an excellent fit at every connection. ProX offers a wide variety of corners, base plates, connectors and accessories that add stability while expanding on limitless design configurations.

Features:

• Tolerance Free Standard Conical connector.
• Main tube wall thickness of .08in.
• Manufactured in ProX's own Factory.
• Material: EN-AWT6 6082 Aluminum.
• TUV Certified Aluminium Welding.
• ProX Truss products utilize industry-standard dimensions to connect with many other manufacturers F34 trussing products.

Specifications:

• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb per 3.28 ft / 9.5kg per meter
• Main Tube: 2in / 50mm
• Wall Thickness: .08in / 2mm
• Braces: .75in / 20mm

Whta's in the Box?

• (2) XTP-GSBPACK3 Truss Tower Stage Roofing System Packages
• (4) XT-SQ984 9.84ft (3.00m) Square Truss Segments With Connecting Hardware
• (1) XT-MCH1TX2-30FT Set of 2 1T Manual Chain Stage Hoists with 30ft Chains
