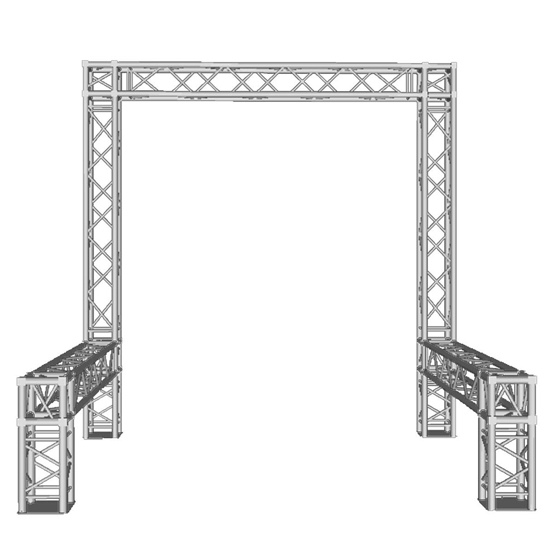

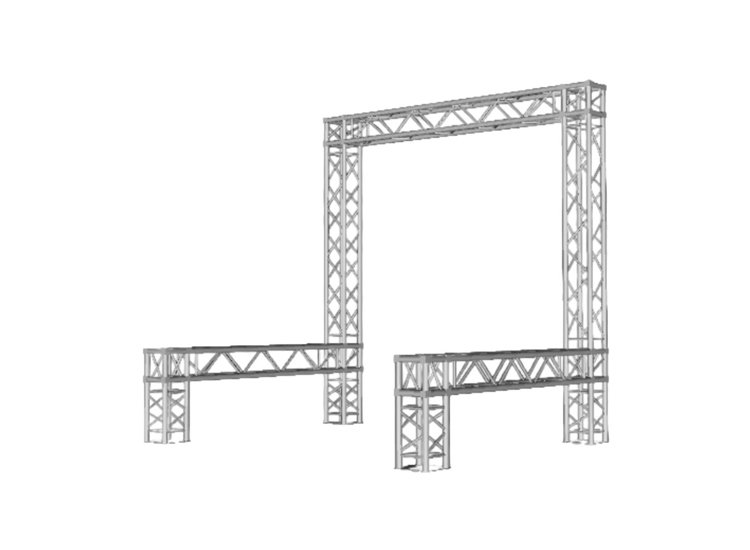

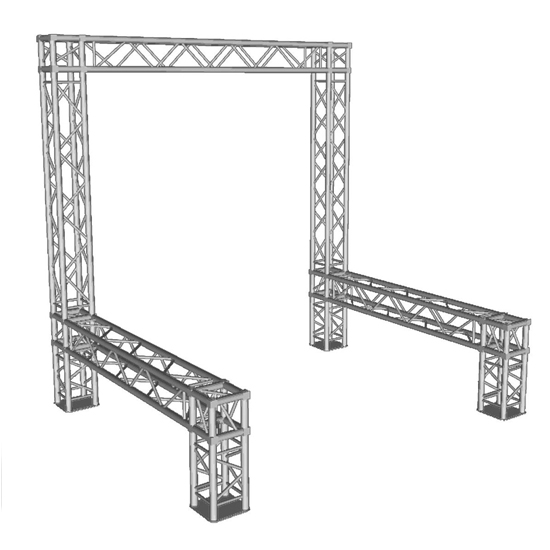

ProX XTP-E1010-2 10' x 10' Exhibition Module Stand Truss Package

Description

The XTP-E1010-2 Truss makes it easy to hang accessories like: lighting, screens, speakers, signage, time clocks, Icd panels and announcer sound systems. ProX offers a wide array of small to medium temporary booth and trade show solutions to suit all types of indoor and outdoor events. Custom temporary DJ and Production set projects are a specialty of the ProX Engineering Department, which focuses on safety and stability of its designs. Work with ProX's experienced Truss and Show Designers to help you easily build that unique, safe professional looking display you have in mind with ProX Truss.

ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations. At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations. Always know your load weight for your equipment.

Features:

• Tolerance Free Standard Conical connector.
• Main tube wall thickness of .08in.
• Includes connecting hardware set.
• ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.
• ProX Trussing provides high strength with exceptional quality control and excellent pricing.
• ProX owns the factory, not generic trussing.
• Built to exacting specifications.
• TUV Certified Welding & Processes.
• Compatible with most Conical Coupled trussing.
• Includes tapered shear pins with clips.

Specifications:

• Dimensions:
  • 2.68m W X 2.58m L x 3.08m H
  • 8.80W x 8.46L x 10.10H (ft)
• XT-SQ Series Dimensions:
  • Height: 11.42in / 290mm
  • Width: 11.42in / 290mm
  • Weight: 21lb per 3.28 ft / 9.5kg per meter
  • Main Tube: 2in / 50mm
  • Wall Thickness: .08in / 2mm
  • Braces: .75in / 20mm
• Exterior Dimensions & Weight:
  • XT-JB6W-2W (4): 11.45"H x 11.45"W x 11.45"L - Weight: 17.00 lbs
  • XT-JB6W-4W (2): 11.45"H x 11.45"W x 11.45"L - Weight: 17.00 lbs
  • XT-BP12A (4): 1.50"H x 12.00"W x 12.00"L - Weight: 4.00 lbs
  • XT-SQ164 (4): 19.68"H x 11.42"W x 11.42"L - Weight: 13.00 lbs
  • XT-SQ656 (4): 78.72"H x 11.42"W x 11.42"L - Weight: 31.00 lbs
• Shipping Dimensions & Weight:
  • Box 1 of 6: XT-JB6W-2W (4 boxes) 12.00"H x 12.50"W x 12.50"L - Shipping Weight: 17.50 lbs
  • Box 2 of 6: XT-JB6W-4W (2 boxes) 12.50"H x 12.50"W x 12.50"L - Shipping Weight: 17.50 lbs
  • Box 3 of 6: XT-BP12A (4 boxes) 2.00"H x 13.00"W x 13.00"L - Shipping Weight: 5.00 lbs
  • Box 4 of 6: XT-SQ164 (4 boxes) 22.00"H x 14.00"W x 14.00"L - Shipping Weight: 15.00 lbs
  • Box 5 of 6: XT-SQ656 (4 boxes) 80.50"H x 13.00"W x 13.00"L - Shipping Weight: 35.00 lbs
  • Box 6 of 6: XT-SQ705 13.00"H x 13.00"W x 86.00"L - Shipping Weight: 30.00 lbs

Whta's in the Box?

• (1) ProX XT-SQ705 2.15m Truss Section
• (4) ProX XT-SQ656 2m Truss Sections
• (4) ProX XT-SQ164 0.5m Truss Sections
• (4) ProX XT-JB6W-2W Junction Boxes
• (2) ProX XT-JB6W-4W Junction Boxes
• (4) ProX XT-BP1212A 1'X1' Aluminum Base Plates
