ProX XTP-E1010-1 Expo Standard Exhibition Module Stand Truss Package

Description

The most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

Features:

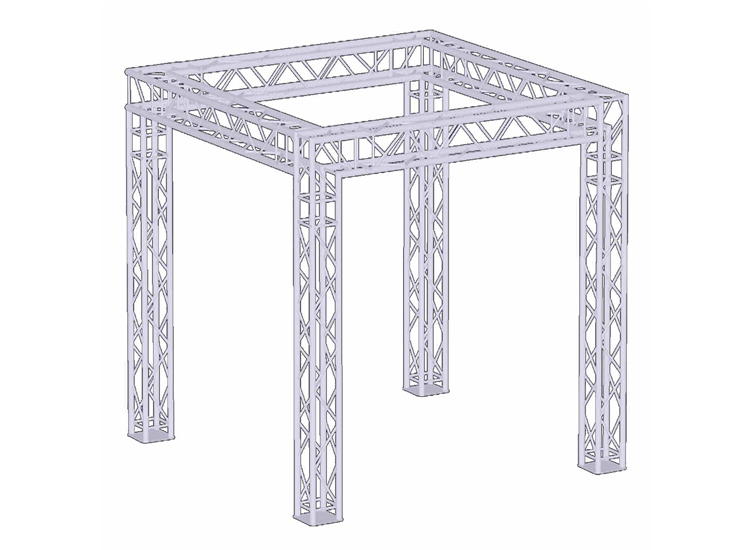

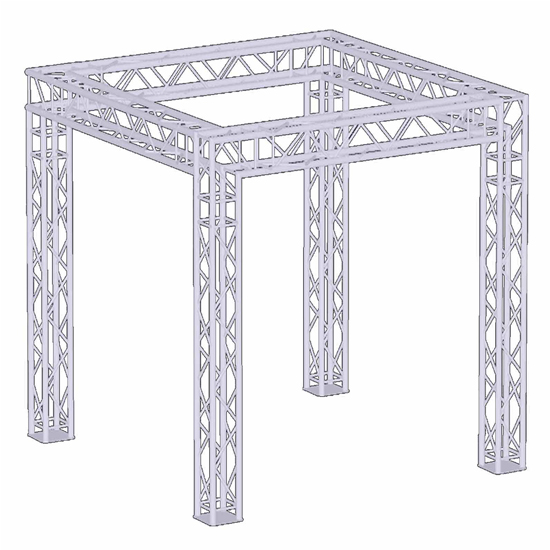

• 9.84W x 19.68L x 9.84H (ft)
• 3.00m W x 6.00m L x 3.00m H

Specifications:

• ProX XT-SQ820 Product Specifications:
  • Height: 11.42in / 290mm
  • Width: 11.42in / 290mm
  • Weight: ~5.0 lbs/ft / ~7.0/m
  • Main Tube: 2in / 50mm
  • Braces: .75in / 20mm
  • Material: EN-AWT6 6082 Aluminum
  • Actual Height: 8.2 ft (2.5 Meter) Square Truss Segment
  • Actual Weight: 36 lbs.
  • Outside: 290mm - 11 7/16"
  • Tubing: 2"
  • Bracing: 3/4"
  • Includes connecting hardware set.
  • All ProX Truss products are 100% compatible to connect along with many other manufacturers.
• Dimensions : 12.00" Length (L) X 12.00" Width (W) X 98.40" Height (H)
• To Fit : Standard Square Truss Configurations.

Whta's in the Box?

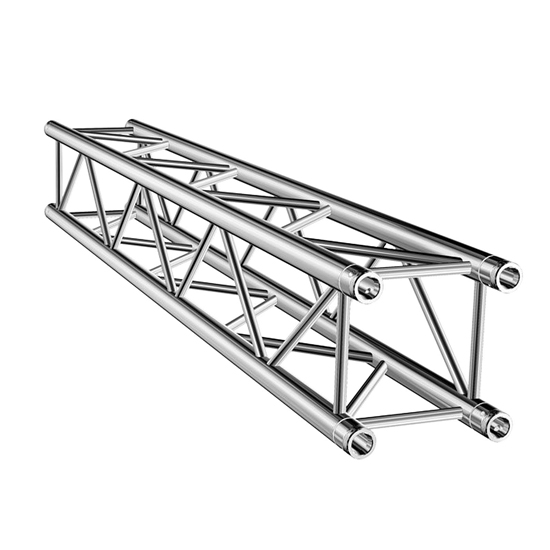

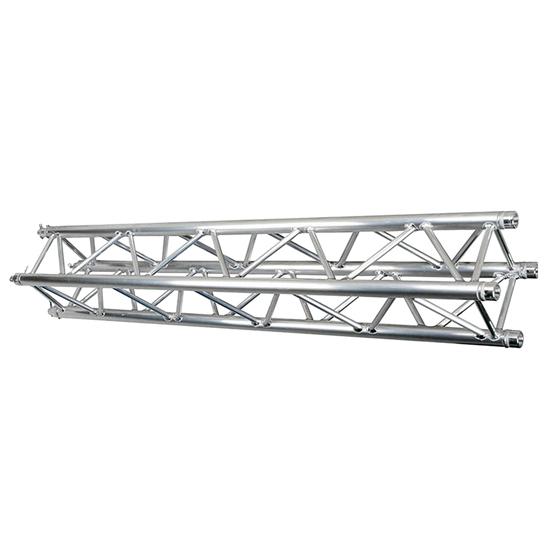

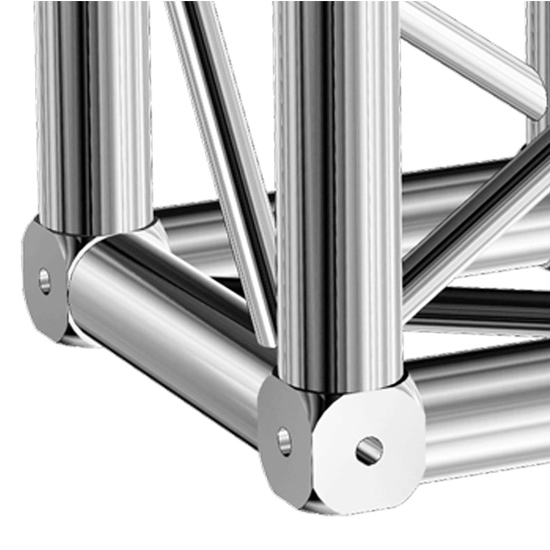

• (8) ProX 8.20ft (2.50m) Square Truss Segments

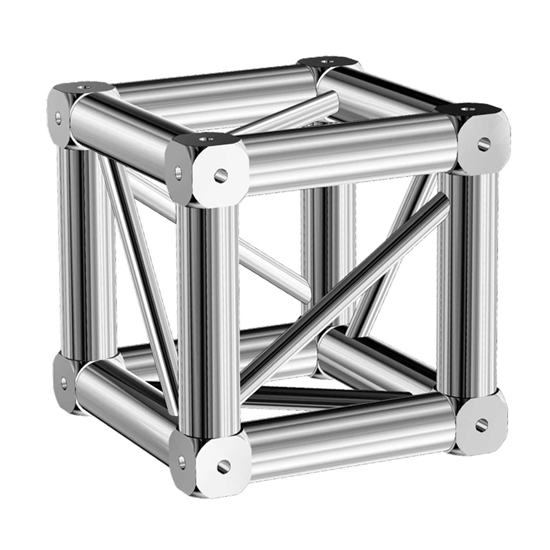

• (4) ProX XT-JB6W-2W 2 way Square Truss Junction Blocks

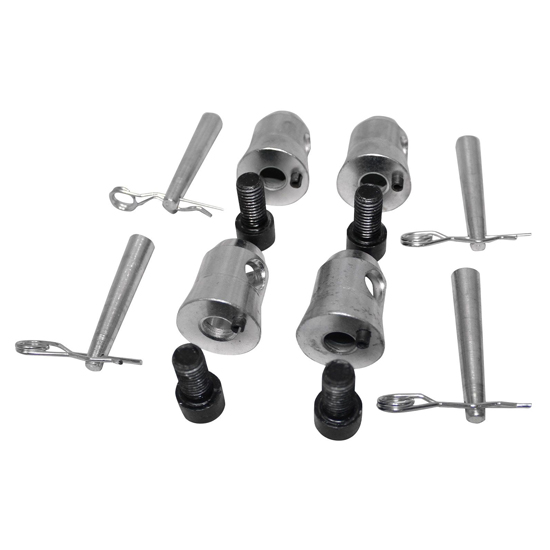

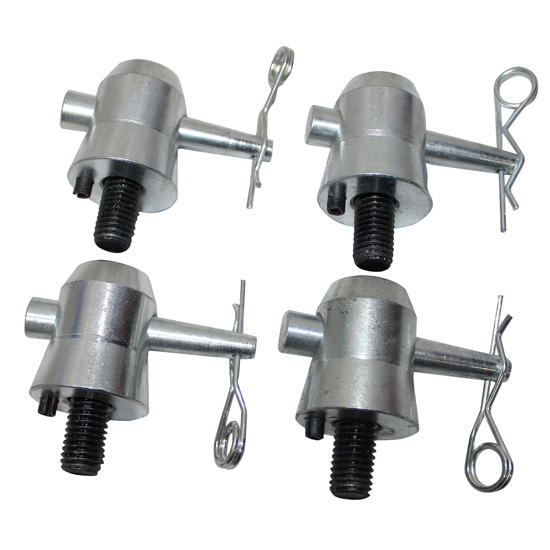

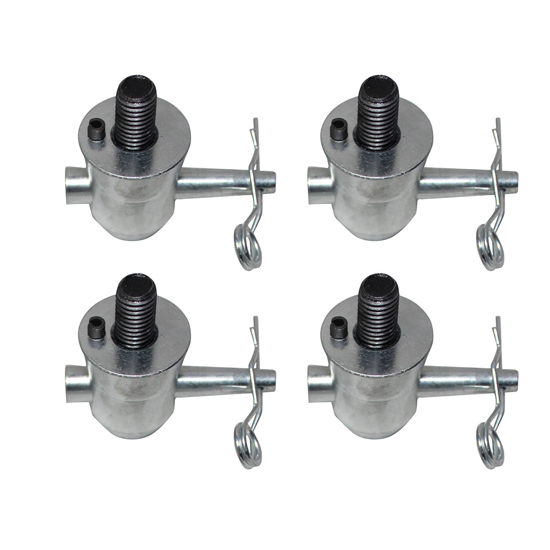

• (16) ProX XT-CP-103P Half-Ended Conicals
• (16) ProX XT-CP-103P Connector Pins
• (16) ProX XT-CP-103P Safety Pins

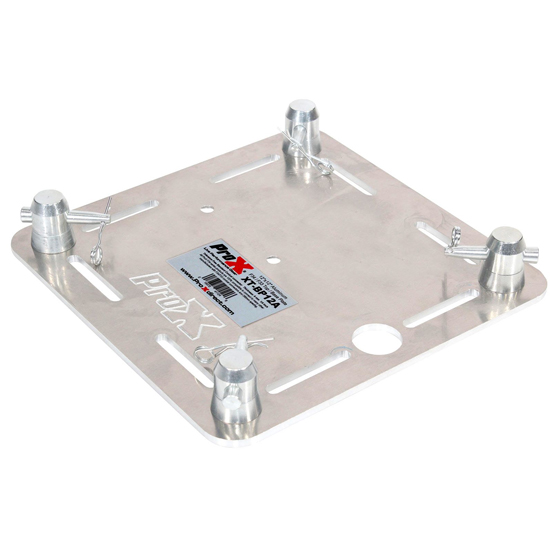

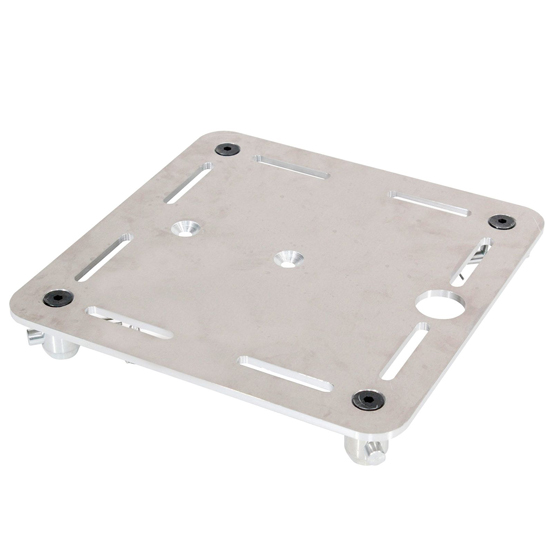

• (4) ProX XT-BP12A 12" x 12" F34 8mm Aluminum Top Plates with Slots and Mounting Holes for Totems
• (4) Sets of connecting hardware
