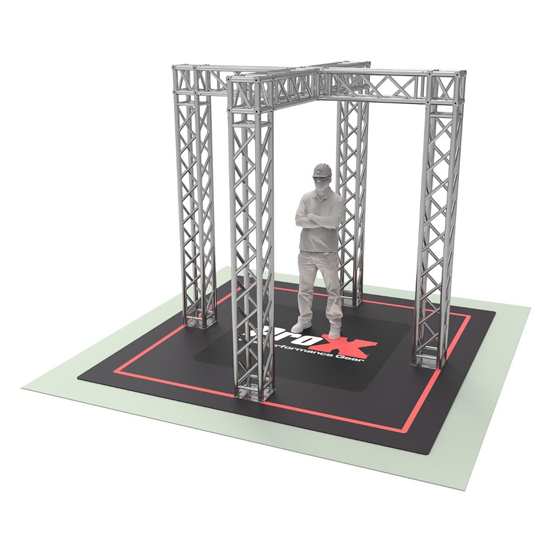

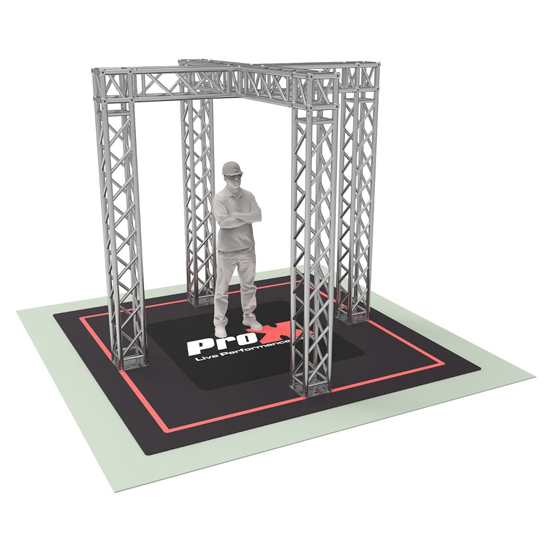

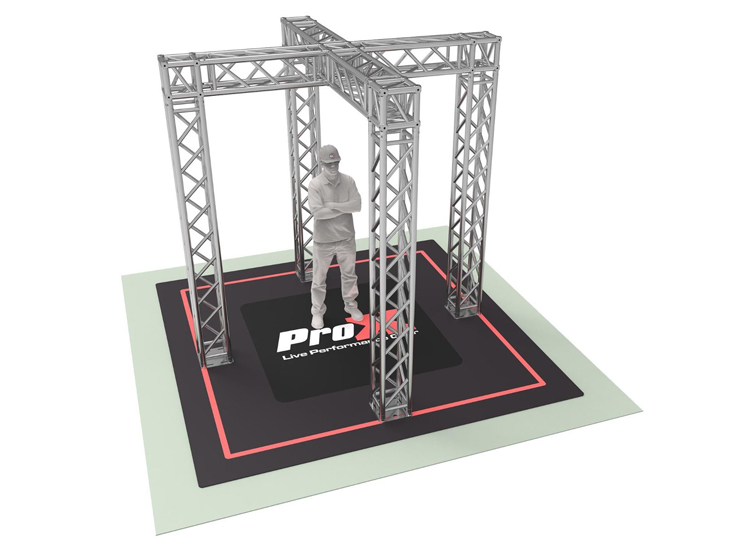

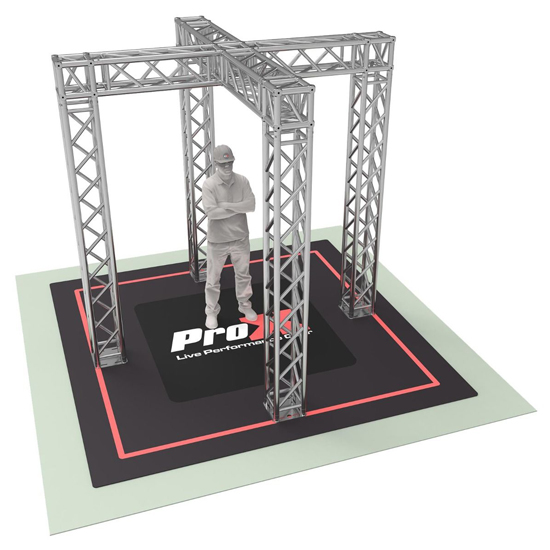

ProX XTP-999X Tradeshow Booth 9.42 W x 9.42 L x 9.20 ft H with X Shape Design in Center

Description

ProX XTP-999X Tradeshow Booth 9.42 W X 9.42 L X 9.20 FT H with X Shape Design in center features 2mm Heavy Duty Truss. This package is Ideal for Tradeshow Booths, marathons, Biking Events, Outdoor Events, Lectures, Speeches, Churches, Weddings, Projector Screens, and more. ProX Truss has the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations. Together with ProX, you can make sure the participants have an experience they will remember.

ProX offers a wide array of small to medium temporary booth and trade show solutions to suit all types of indoor and outdoor events. Custom temporary DJ and Production set projects are a specialty of the ProX Engineering Department, which focuses on the safety and stability of its designs. Work with ProX's experienced Truss and Show Designers to help you easily build that unique, safe professional-looking display you have in mind with ProX Truss. All ProX Truss products are 100% compatible to connect along with many other manufacturers. All ProX Trussing is constructed to the highest safety ratings by certified welders.

Features:

• Manufactured to Exacting Specifications in ProX's own Factory.
• Individual XT-SQ820 Length: 8.2 ft (2.5 Meter) Square Truss Segment.
• Individual XT-SQ820 Weight: 36 Lbs.
• Includes One Connecting Hardware Set.
• Material: EN-AWT6 6082 Aluminum.
• TUV Certified Aluminium Welding.
• ProX Truss products utilize industry standard dimensions to be compatible to connect to/ and work with many other manufacturers of F34 trussing products with conical connectors.

Specifications:

• Exterior Dimensions & Weight:
  • XT-SQ328 (4): 39.36"H x 11.42"W x 11.42"L - Weight: 19.00 lbs
  • XT-JB6W-4W (1): 11.45"H x 11.45"W x 11.45"L - Weight: 17.00 lbs
  • XT-JB6W-2W (4): 11.45"H x 11.45"W x 11.45"L - Weight: 17.00 lbs
  • XT-SQ820 (4): 98.40"H x 12.00"W x 12.00"L - Weight: 36.00 lbs
  • XT-BP12A (4): 1.50"H x 12.00"W x 12.00"L - Weight: 4.00 lbs
• Shipping Dimensions & Weight:
  • Box 1 of 4: XT-SQ328 (4 boxes) 41.50"H x 12.50"W x 12.50"L - Shipping Weight: 21.00 lbs
  • Box 2 of 4: XT-JB6W-4W 12.50"H x 12.50"W x 12.50"L - Shipping Weight: 17.50 lbs
  • Box 3 of 4: XT-JB6W-2W (4 boxes) 12.00"H x 12.50"W x 12.50"L - Shipping Weight: 17.50 lbs
  • Box 4 of 4: XT-BP12A (4 boxes) 2.00"H x 13.00"W x 13.00"L - Shipping Weight: 5.00 lbs

Whta's in the Box?

• (4) ProX XT-BP12A 12" Aluminum 6mm Truss Top Plates for F34 F32 F31 Conical Square Truss with Connectors
• (4) ProX XT-SQ820 8.20 Ft. 2.50 M F34 Square Truss Segments | 2 mm Wall
• (4) ProX XT-JB6W-2W 6 Way Square Truss Junction Blocks - Includes 2 Way Half Conical Couplers
• (1) ProX XT-JB6W-4W 6 Way Square Truss Junction Block - Includes 4 Way Half Conical Couplers
• (4) ProX XT-SQ328 3.28 Ft - 1.00 M F34 Square Truss Segments | 2 mm Wall
