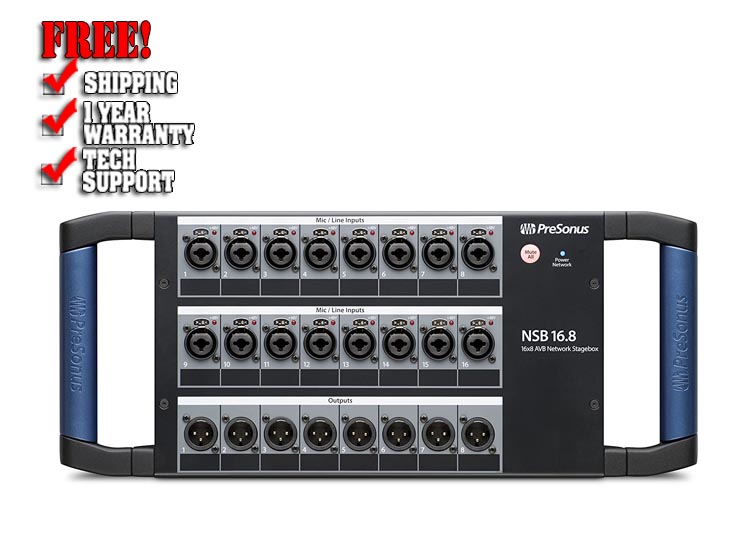

PreSonus NSB 16.8 16x8 AVB-networked Stage Box

Designed to work seamlessly with PreSonus StudioLive Series III mixers, the PreSonus NSB 16.8 stage box offers 16 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios, as well as 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software.

All eight outputs employ locking XLR jacks, while the built-in 2-port AVB switch lets you daisy-chain multiple units. The rugged steel chassis with sturdy handles is designed with a stage box form factor and allows the NSB 16.8 to sit well on the stage and survive the rigors of on-the-road wear and tear. The unit can be rackmounted with an optional rack-ear kit.

Features:

• Analog Input/Output
• Locking, remote controllable combo mic/line inputs
• 16 remote-controllable XMAX preamps
• Gain compensation for shared inputs
• 8 locking XLR line outputs
• Meters, Controls, and Processing
• Mute All button
• +48V indicators
• Easy setup and control from StudioLive Series III consoles and UC Surface
• Digital
• 32x8 AVB (16 direct input channels + 16 gain-compensated input channels)

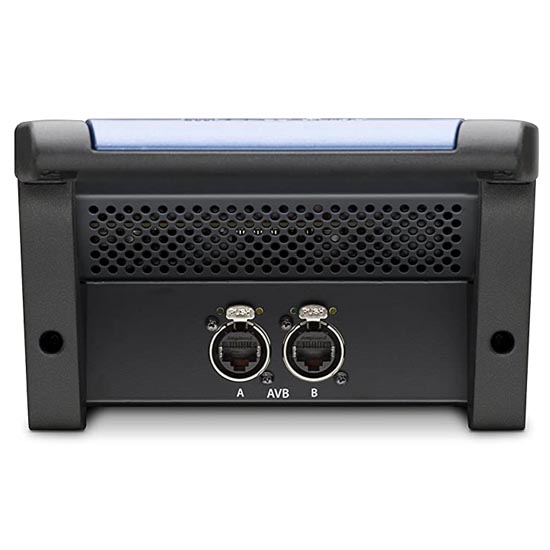

• 2 AVB ports with locking XLR Ethernet jacks
• Actively Integrated Software
• Easy setup and control from PreSonus UC Surface touch control software for Mac, Windows, iPad, and Android, available free from Apple App Store and Google Play
• Power

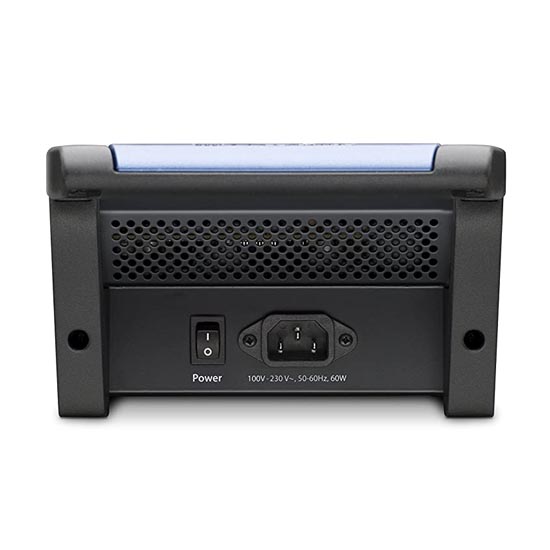

• Locking IEC power jack
• Physical
• Rugged stage box enclosure

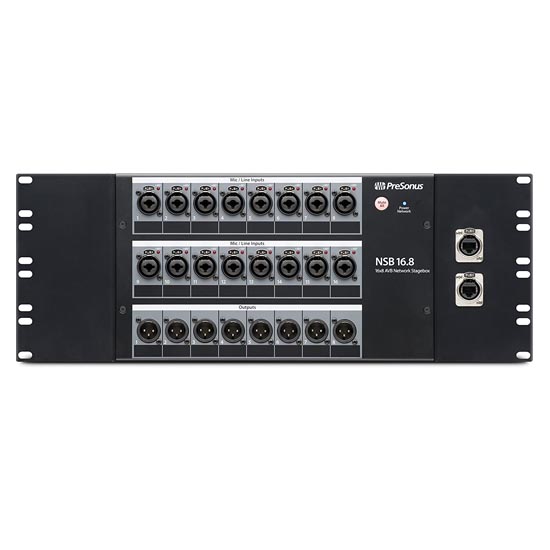

• Optional rack ears
• Compatible with stage pockets from Ace Backstage
