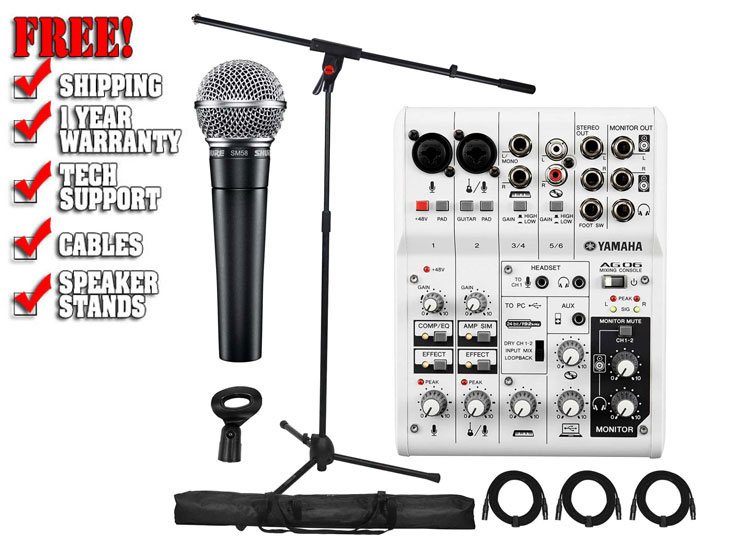

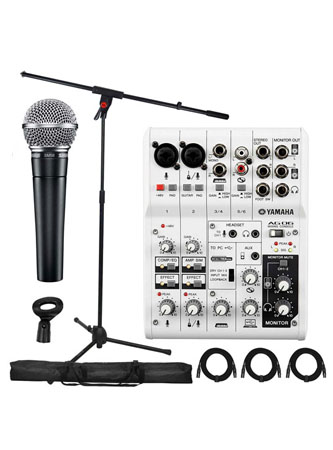

Yamaha AG06 Mixer Livestream Pack

Ready to share your musical creations with the world? AG is an ideal tool for fast and easy production of musical content for live streaming sites like YOUTUBE LIVE and USTREAM, online lessons in real time, or creating video or audio podcasts offline.The AG's studio-quality sound will give your content a professional edge to win over your audience and increase your fan-base. AG's high-quality design enables 192kHz / 24bit sound that can reproduce even the most subtle nuances of your original recordings. If you useASIO compatible playback software, you can even bypass the internal Kernal mixer and reproduce the original sound faithfully. AG's 192kHz/24bit sound quality is ideal for capturing the purest reproduction of your analog recordings when archiving your treasured collection.

The words you speak. The songs you sing. Your influences, opinions, and passions take shape in the creations that ultimately become your voice. When inspiration hits and you're ready to connect with an audience, whether it's your closest friends or a global network of fans that you haven't even met, you want to be sure that your voice, amongst so many others, is heard. The LOOPBACK function enables live broadcasting of all the microphones, instruments and other audio sources along with background music from your PC / Mac or iPad. Since AG comes equipped with phantom power, you can connect a wide range of microphones including professional-level condenser mics. Andthe AG's flexible Hi-Z input lets you connect a wide range of instruments like guitars, bass guitars and synthesizers.Equipped with studio-quality D-PRE mic preamps your AG will be able to capture the distinctive nuances of your vocal and instrumental performances with high-resolution sound. AG features 1-TOUCH DSP that utilizes Yamaha's state-of-the-art signal processing technology. COMP/EQ will hone your tone while EFFECT adds ambient reverb, and AMP SIM delivers a classic, warm tube amp sound-all at the touch of a button. Compatible with Windows and MAC, AG DSP Controller gives you additional control of 1-TOUCH DSP parameters such as COMP, EQ, HPF, reverb, and the AMP SIM. EASY mode utilizes a simple intuitive interface while EXPERT mode gives users more detailed control.

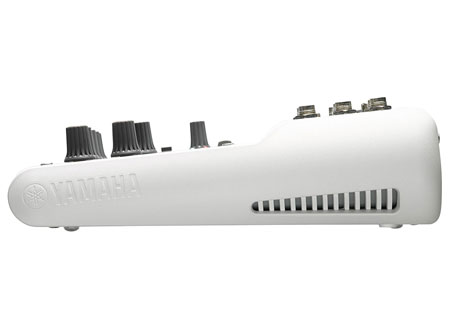

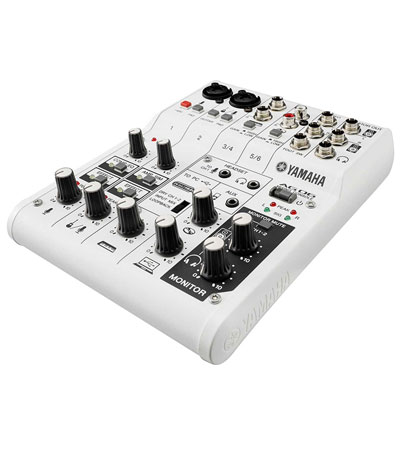

Yamaha AG06 Multipurpose 6-Channel Mixer Features:

• High resolution (24-bit192kHz) 2-track audio recording and playback.
• Flexible LOOPBACK feature - perfect for live recording or webcasting.
• "D-PRE" studio quality mic preamps with high gain and low noise.
• Easy control and pro sound with 1-TOUCH COMP/EQ, EFFECT and AMP SIM processing.
• +48V phantom power on CH1 input for condenser mics and Dl boxes.
• Hi-Z input for guitars on CH2.
• iPad (2 or later) connectivity via Apple iPad Camera Connection Kit (requires external USB power supply)
• USB bus-powered for Mac & PC.
• Rugged metal chassis.
• Includes Cubase Al downloadable version.

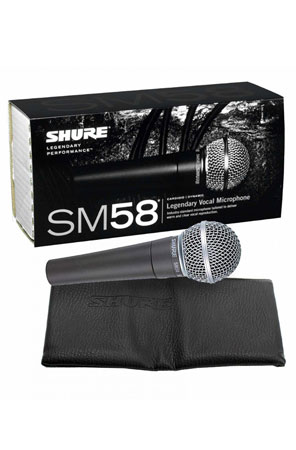

Legendary vocal microphone, tuned to accentuate the warmth and clarity of lead and back-up vocals. The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise. Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

Shure SM58 Vocal Microphone Features:

• Frequency response tailored for vocals, with brightened midrange and bass rolloff.
• Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise.
• Pneumatic shock-mount system cuts down handling noise.
• Effective, built-in spherical wind and pop filter.
• Supplied with break-resistant stand adapter which rotates 180 degrees.
• Legendary Shure quality, ruggedness and reliability.
• Cardioid (unidirectional) dynamic.
• Frequency response: 50 to 15,000 Hz.
• Replacement cartridge: R59.

Yamaha AG06 Specifications:

• Outline: I/O Phantom power + 48 V
• Input Channels Mono[MIC/LINE] 2 including HEADSET MIC (Plug-in Power)
  Stereo[LINE] 2
  AUX 1
• Output Channels STEREO OUT 1
  MONITOR OUT 1
  PHONES 2 including HEADSET PHONES
• Bus Stereo: 1
• Input Channel Function PAD 26 dB
  PEAK LED LED turns on when the signal reaches 3 dB below clipping level
• On-board processors DSP CH1: COMP / EQ, EFFECT (SPX Reverb) ; CH2: AMP SIM, EFFECT (SPX Reverb)
• Level Meter USB Output Level; 2 x 2 point LED meter [PEAK, SIG]
• USB USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit

General specifications

• Power requirements DC 5 V, 500 mA
• Power consumption Max. 2.5 W
• System Requirements OS Windows 7 or later / Mac OS X 10.7 or later
• Dimensions W 155 mm (6.1")
• H 63 mm (2.5")
• D 202 mm (8.0")
• Net weight 1.0 kg (2.2 lbs)
• Options Foot Switch: FC5, Mic Stand Adaptor: BMS-10A
• Others Foot Switch: EFFECT Mute on / off, Operating Temperature: 0 to + 40 °C

Shure SM58 Specifications

• Type Dynamic (moving coil)
• Frequency Response 50 to 15.000 Hz
• Polar Pattern Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency

What's in the Box

This Package Includes:

• (1) Yamaha AG06 Multipurpose 6-Channel Mixer with USB Audio Interface
• (1) USB cable (1.5 m)
• (1) Technical Specifications (English only): Includes general specifications, input/output characteristics, block diagram, dimensions, and jack and plug list.
• (1) CUBASE AI DOWNLOAD INFORMATION: Contains the access code necessary for downloading the Steinberg DAW software Cubase AI.
• (1) Shure SM58 Vocal Microphone
• (1) Swivel Stand Adapter
• (1) Storage Bag
• (1) Microphone Clip
• (1) Tripod Microphone Boom Stand
• (1) Microphone Stand Clip
• (1) Durable Mic Stand Carry Bag
• (3) 20FT XLR Connecting Cables
