DURABLE DESIGN

The DDJ-SB3 is constructed from premium materials and audio circuitry. Its robust build ensures durability, while the distinctive styling and aluminium jog wheel deliver a professional feel.

LARGE JOG WHEELS

It may be compact, but the DDJ-SB3 features large, low-latency jog wheels to give you great scratch response and accuracy.

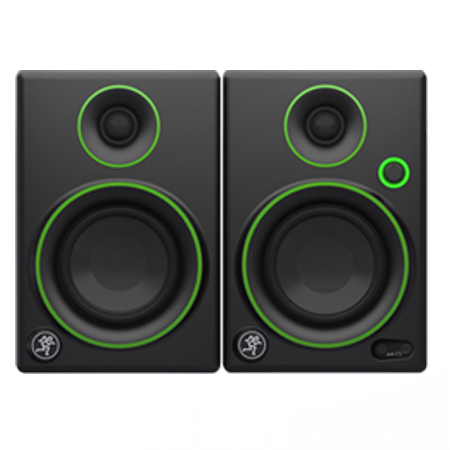

Mackie CR3 Studio Monitors

• Studio-quality design, sound and performance ideal for multimedia creation and entertainment
• Professional-grade components for optimized sonic performance
• 50 watts of clean, articulate stereo sound
• 3" polypropylene-coated woofer
• .75" ferrofluid-cooled silk-dome tweeter
• Ultra-wide frequency range perfect for full-range multimedia (80Hz - 20kHz)
• Choose which side of your desk gets the volume knob with CR3's convenient speaker placement switch
• Convenient front panel volume knob with lit power ring gives you on/off/volume control and power indication where you need it
• Plug your smartphone or other source right into the front of the speakers and listen instantly
• Front-facing headphone jack auto-defeats speaker output and provides tactile headphone volume control
• A choice of inputs for simple connection to almost any audio source (1/4", 1/8", RCA)
• Smooth waveguide design delivers unmatched clarity and sound dispersion at all listening levels

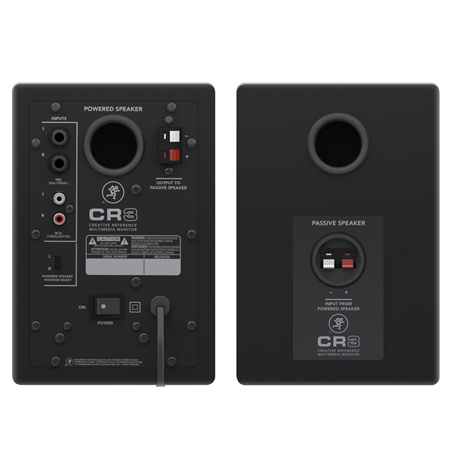

• Custom-tuned rear ports for smooth, even bass extension
• All-wood cabinet provides a natural sonic character superior to low-grade plastic designs

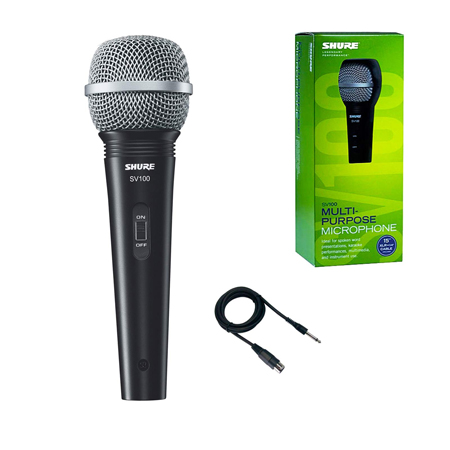

Shure SV100-W Multi-Purpose Microphone

Excellent sound quality. Ideal for spoken word, karaoke, multimedia, and instrument use. The unidirectional cardioid polar pattern of the SV100 helps reduce feedback, while the wide frequency response and high output deliver excellent sound quality. Ideal for spoken-word presentations, karaoke performances, multimedia, and instrument use.

3FT Dual RCA to RCA Cables

High quality cables from a company you can trust

Pioneer DJ DDJ-SB3 Specifications

Main Features

• USB Bus Powered : Yes
• Plug and Play : Yes
• Included Software : Serato DJ Intro(free download)

Software System Requirements

• Windows 8.1/Windows 8/Windows 7 with Service Pack 1
• CPU: Intel 2.0 GHz Core Duo/Intel i3, i5, and i7 Core
• Memory: 1GB
• Memory: 1GB
• CPU: Intel 1.6 GHz Core Duo/Intel i3, i5, and i7 Core
• Memory: 1GB
• Display Resolution
• 1024 x 768 or higher

Specifications

• Width:487 mm
• Height:58.5 mm
• Depth:271.2 mm
• Weight:2.1 kg
• Soundcard:24 bit/44.1 kHz
• Frequency Range:20 - 20,000 Hz
• Signal-to-Noise Ratio:90 dB
• Distortion:< 0.005 % (USB)
• Power Requirements:USB (through computer), rated output 5 V DC

Performance Control

• Channels:2
• Deck Control:4
• Trim knob:Yes
• Jog Wheel:128 mm durable aluminium jog wheel
• Filter:High & Low Pass filter
• Filter fade:Yes
• Trans:Yes
• Effects:FX engine Powered by iZotope: 10 effects
• Hot Cues:4
• Manual Loop:Yes
• Autoloop:Yes
• Slip Mode:Yes
• Talkover Function:Yes

Terminals

• Inputs:1 MIC (1/4 inch Jack)
• Outputs:1 MASTER (RCA),2 HEADPHONE MONITOR (1/4 inch Jack, MiniPin)
• USB:USB B port

Shure SV100-W Specifications

• Frequency Response:50 to 15,000 Hz
• lmpedance:600 Ohm
• Output Level:-52 dBV/Pa* at 1kHz *1 Pa=94 dB SPL
• Output Connection:XLR-¼" (6.3 mm)

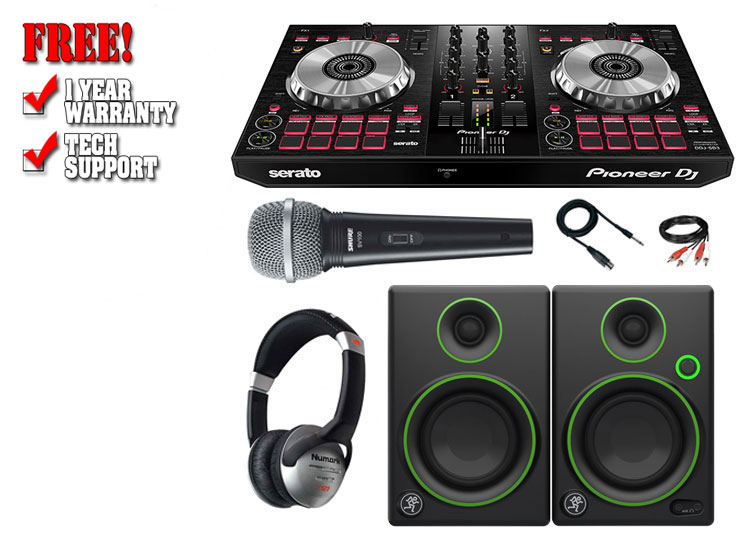

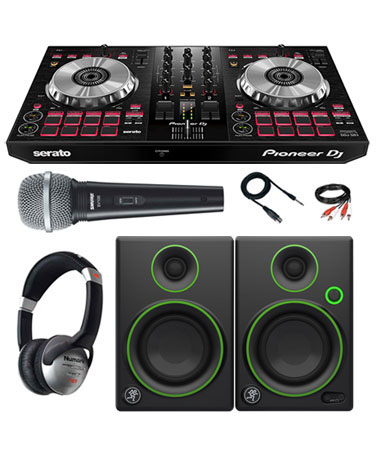

This Package Includes:

• (1) Pioneer DDJ-SB3 Performance DJ Controller
• (2) Mackie CR3 Studio Monitors

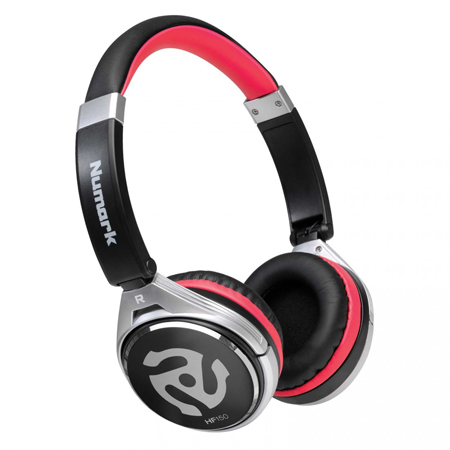

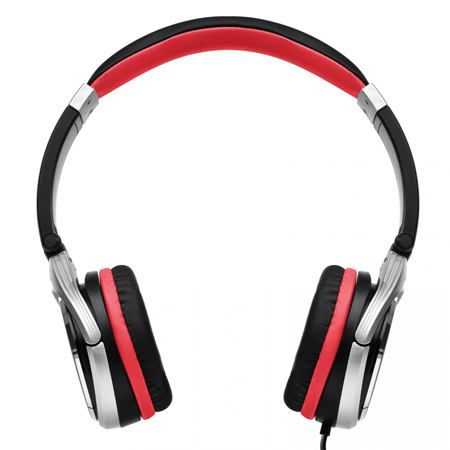

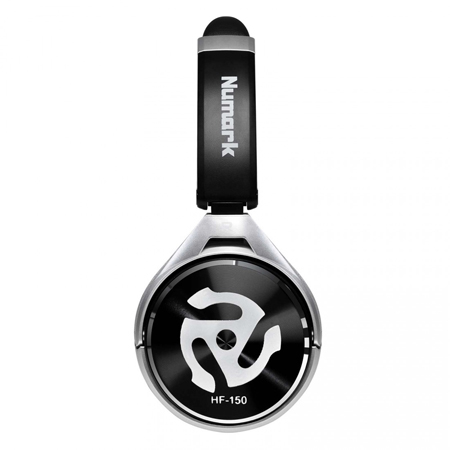

• (1) Professional DJ Headphones
• (1) Shure SV100-W Multi-Purpose Microphone
• (1) 3FT Dual RCA to RCA Cables

The DDJ-SB3 Box Includes:

• (1) Pioneer DJ DDJ-SB3 Portable 2-channel controller for Serato DJ
• (1) USB Cable
• (1) Operating Instructions

The Mackie CR3 Studio Monitors Box Includes:

• (2) Mackie CR3 Studio Monitors
• 1/8" to stereo RCA cable to connect computer output to speakers
• 1/8" to 1/8" cable to connect a smartphone or media player to front panel of speakers
• Speaker-to-speaker cable

The Shure SV100-W Box Includes:

• (1) SV100-W with On / Off switch
• (1) XLR-¼" cable
• (1) 1/4" adapter
• (1) User Guide
