Pioneer DDJ-REV1 DM40 and HDJCX Package

Pioneer DDJ-REV1

The two-channel unit comes equipped with Serato DJ Lite software and boasts a new battle-style layout for artists looking to begin scratch and open-format DJing. The DDJ-REV DJ Controller Series is an ideal solution for open-format and scratch DJs as it emulates a professional DJM-S mixer and PLX turntable setup. For the first time ever on a Pioneer DJ controller, the tempo sliders sit horizontally on the top of the deck sections to mirror PLX turntables in a battle configuration, while the Performance Pads and Lever FX paddles sit in the mixer section to parallel the DJM-S Series mixer design.

The all-new DDJ-REV1 features a spacious layout to test out new mixing techniques, and scratch-ready jog wheels, which are noticeably larger than jogwheels on Pioneer DJ's previous beginner level controllers. The controller is an ideal kit starter piece for artists considering learning how to battle, scratch and stream their sets. Artists can begin scratching right away with the controller's Tracking Scratch feature. Tracking Scratch enables artists to automatically return the track to its cue point by moving the jog wheel backward or taking their hand away from the controller-removing the need for crossfader use or jog wheel wind back. Artists can choose their desired Scratch Crossfader Cuts pattern by pressing the relevant Performance Pad and pushing the jog forward to scratch. In addition, artists can use the controller's Performance Pads to instantly trigger their favorite samples or tracks loaded on the Serato DJ Lite Scratch Bank-a feature previously only available in Serato DJ Pro. The controller also features Deck 3/4 Control, allowing artists to play sounds from all four decks in the software. Pioneer DJ's DDJ-REV1 controller makes it easy for artists to integrate speech and vocals into their sets for social media livestreams. Unlike previous controllers which require an external soundcard or mixer, artists simply plug their microphone into the DDJ-REV1 and the vocal audio goes straight to their laptop and into the stream.

Features:

• Deck 3/4 Control: Play tracks and sounds loaded on any of the four Serato DJ Lite decks.
• Serato DJ Pro Support: Elevate performances with a 14 day free trial of Serato DJ Pro.
• Paid Permanent Upgrade Available Separately.
• Battle-Style Setup.
• Bigger Jog Wheels.
• Lever FX.

Specifications

Brand-New Layout Design: Perform Intuitively

Artists are invited to get hands-on with an interface emulating two PLX turntables and a DJM-S series mixer - a common pro battle DJ setup. The DDJ-REV1 provides artists with space to perform mixing and scratching techniques with a new control arrangement. Tempo sliders are longer than sliders on the DDJ-SB3-measuring at 60mm-giving artists finer control. Sliders run horizontally above the decks while the Performance Pads are in the mixer section allowing artists to intuitively combine effects, trigger samples, and scratch tracks. Jog wheels on the DDJ-REV1 are the same size as jogwheels on the DDJ-SR2-a popular Pioneer DJ controller. Artists can dynamically add texture to their music with Lever FX in the mixer section, by pulling down the levers and holding them to apply effects from Serato DJ Lite in short bursts. Alternatively, artists can also push the levers up, to lock on effects and free their hands for scratching or track browsing.

Tracking Scratch: Get a Helping Hand with Scratching

The DDJ-REV1 helps artists have fun scratching without doing it all for them. Artists will still need to hone their skills, but the Tracking Scratch feature will silently take the music back to the cue point the moment they move the jog wheel backward or lift their hand away-in turn, saving them from needing to close the fader and find the right track place to start the scratch again. All artists need to do is select the Tracking Scratch Pad mode, press a Performance Pad to choose their desired Scratch Crossfader Cuts pattern and move the jog wheel.

Mixed Microphone Audio: Easily Add Voice While Streaming

For the first time in a Pioneer DJ controller at this level, the output of the master audio integrates with the microphone sound-removing the need for external equipment such as a soundcard or separate mixer. All sounds are sent to Serato DJ Lite so you can stream from there.

Serato DJ Lite Integration: Enjoy Full Use of the Free Software

After downloading Serato DJ Lite to their PC/Mac for free, artists connect the DDJ-REV1 via the supplied USB cable and begin DJing. Artists enjoy tactile control of various features and effects in the software by manipulating the controller's buttons, knobs, faders and jog wheels. With Scratch Bank pad mode, artists instantly load scratch samples from four banks that they've assigned in Serato DJ Lite or Pro by simply tapping the dedicated Scratch Bank button. Artists can load from a specific start point too - handy if they want to use this feature to drop in full tracks during a routine.

• Software : Serato DJ Lite, Serato DJ Pro (license/subscription not included)
• Frequency Response : 20 Hz - 20 kHz
• S/N Ratio :103 dB(USB
• Total Harmonic Distortion : 0.005 %
• Input / Output Terminals
  • Inputs
    • MIC x 1 (1/4" TS jack)
  • Outputs
    • MASTER x 1 (RCA x 1)
    • PHONES x 1 (3.5-mm stereo mini jack x 1)
  • USB : USB Type-B x 1
• Power Supply : USB Type-B bus powered
• Power Consumption : 5V 500mA
• Maximum Dimensions (W x D x H) : 526.0 X 255.5 X 59.2 mm / 20.7" X 10.06" X 2.33"
• Weight : 2.1 kg / 4.6 lbs.
• Accessories
  • USB cable
  • Warranty (for some regions)
  • Quick Start Guide
  • Precaution for Use

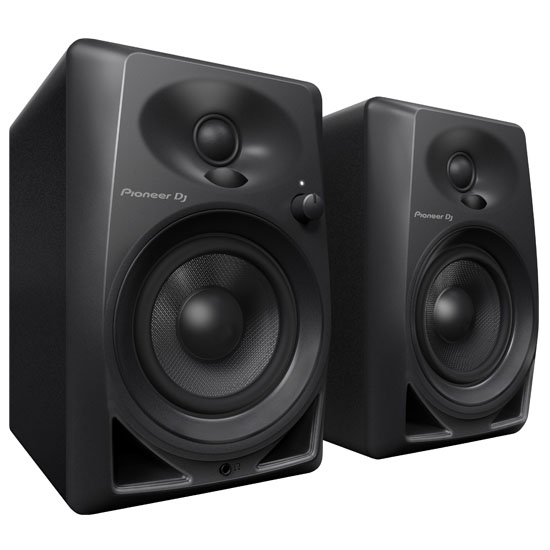

Pioneer DM-40 Black

VERSATILE SOUND

The compact DM-40 desktop monitors bring excellent audio quality to your home setup. They inherit the best from our professional S-DJX series and Pro Audio speakers, including a front-loaded bass reflex system for a rich, tight bass and DECO* technology for a wider reach and sweet spot.

All these features are combined in a compact design making the DM-40 the perfect match for DJing, producing and simply enjoying music at home.

The DM-40 speakers are sold as a pair.

KEY FEATURES

FRONT-LOADED BASS REFLEX SYSTEM

4-inch fiberglass woofers output a strong, punchy bass from the front, while grooves on the ducts reduce air friction. This way you'll feel a tight bass kick even when the monitors are positioned against the wall.

3D STEREO SOUND

The DM-40's ¾-inch soft dome tweeters are fitted with DECO convex diffusers that channel high frequencies in every direction. So you'll enjoy a wide sweet spot and 3D stereo sound wherever you sit or stand.

TIME ALIGNMENT

Class AB amplifiers deliver a crisp sound with low-distortion. Plus the tweeter and woofer are perfectly aligned to eliminate crossover and ensure a well-balanced response across the frequencies

Specification:

Main Features

• Type: 2-way bass reflex, active monitor speakers
• Tweeter: ¾-inch Soft Dome
• Woofer: 4-inch Fiberglass

What's in the box

• DM-40 x 2
• Power cord
• 2 m speaker cable (for left/right channel connection)
• Audio converter cable (3.5 mm stereo mini plug to RCA)
• Bottom cushion x 8
• Operating instructions

Dimensions

• Left ch: 146 x 227 x 223 mm
• Right ch: 146 x 227 x 210 mm
• Weight: Left ch: 2.7 kg
  Right ch: 2.2 kg
• Amplifier Output: Class A/B amp: 2 x 21 W / 4 O
• Frequency Range: 70 - 30000 Hz
• Impedance: 10 kO

Terminals

• Inputs: 1 LINE (RCA)
  1 LINE (Mini-jack)
• Outputs: 1 HEADPHONE MONITOR (Mini-jack)

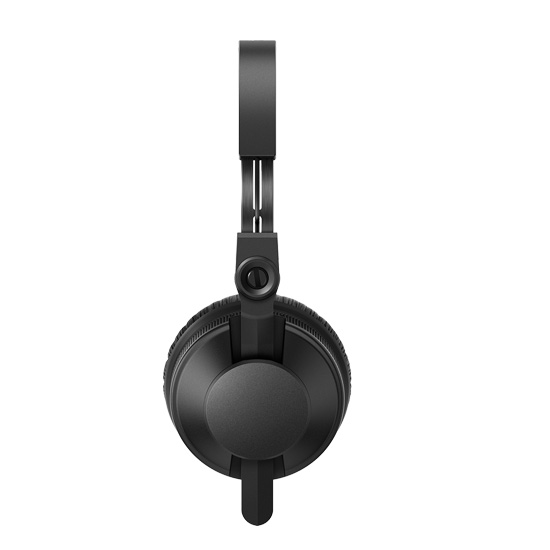

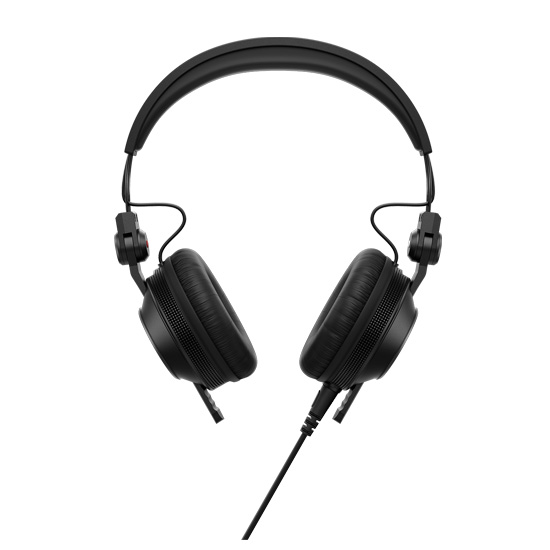

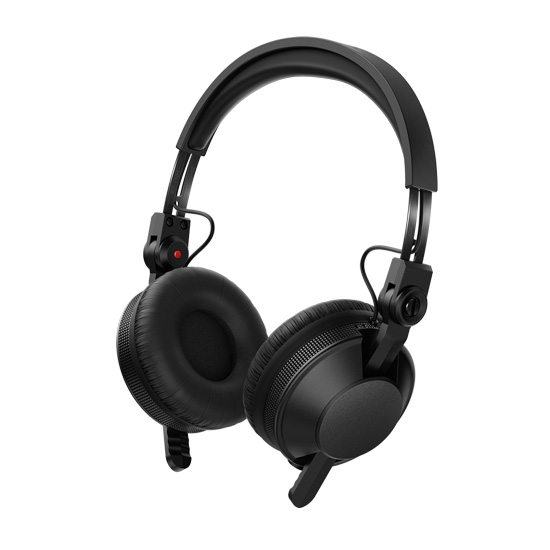

Pioneer HDJ-CX Black on-ear DJ Headphones

The HDJ-CX professional on-ear DJ headphones are specially designed to minimize stress to your neck and body while helping you maximize your potential for artistic expression through today's dance music. With a minimalist but strong design, and tight, wide-ranging audio, the concept is quite different from the HDJ-X Series headphones, which produce a more spacious sound and feature a chunkier construction. The HDJ-CX model offers you a special experience which could even change your style of DJing.

Features:

• Lightweight and flexible design - You can wear the HDJ-CX comfortably from your first mix to your last. Weighing just 136 g without the cable, they're ergonomically designed to minimize any stress to your head, neck, or shoulders. What's more, the stainless steel headband features a ladder-like structure for extra flexibility and stress resistance so you can easily find your perfect fit.
• Tight, wide-ranging sound and superior insulation - The new PEEK-PU-PEEK composite film diaphragm provides tight sound with a frequency response of 5 Hz to 30 kHz. This means you can clearly hear the kicks, snare drums, and hi-hats for precise monitoring and mixing in any environment. The f35 mm driver units realize the input power to reach 2,000 mW and the bass reflex chambers in the housings improve low frequency response even further while the sound insulators create a higher level of audio insulation, so you'll hear the full bass sound along with every nuance in the music.
• Highly robust construction - Don't let the lightweight feel of these headphones fool you - they're rugged and built to last. All the components are extra tough, including the steel core of the headband. Made to withstand the rigors of constant use on the road, they've passed demanding tests that other professional Pioneer DJ headphones are subjected to, as well as the stringent US Military Standard MIL-STD-810H Shock test.
• Interchangeable cables and accessories - Set your headphones up the way you like by choosing from the 2 supplied cables - straight or coiled. To make sure you never lose your 1/4" plug adapter, clip the adapter holder neatly onto your cable so it's always at hand. A pair of replacement ear pads are also included, and you can expect them to come in handy eventually because these headphones should serve you well for a long time.

Specifications:

• Weight (without cable) : 136 g
• Frequency range : 5 Hz - 30 000 Hz
• Sensitivity : 103 dB
• Maximum input power : 2000mW

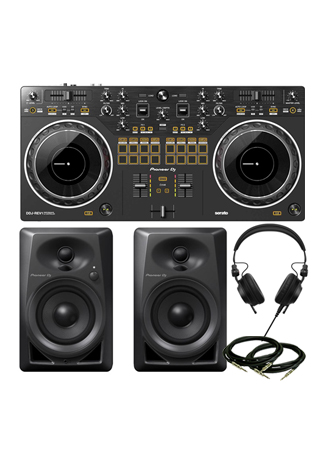

What's Included

• (1) Pioneer DDJ-REV1 DJ Controller
• (1) Pioneer DM-40 Black
• (1) Pioneer HDJ-CX Black on-ear DJ Headphones
• (2) Cables
