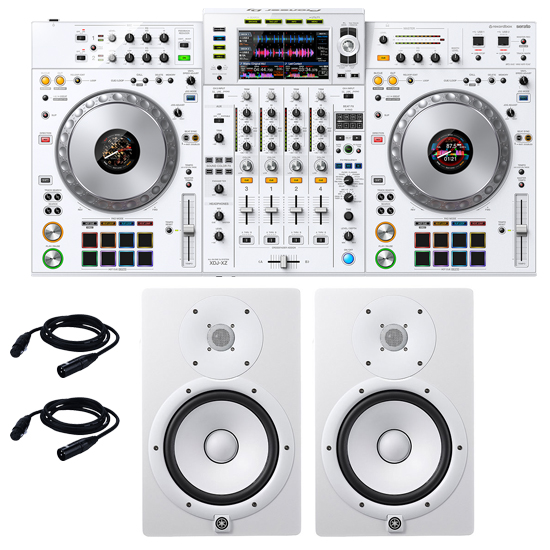

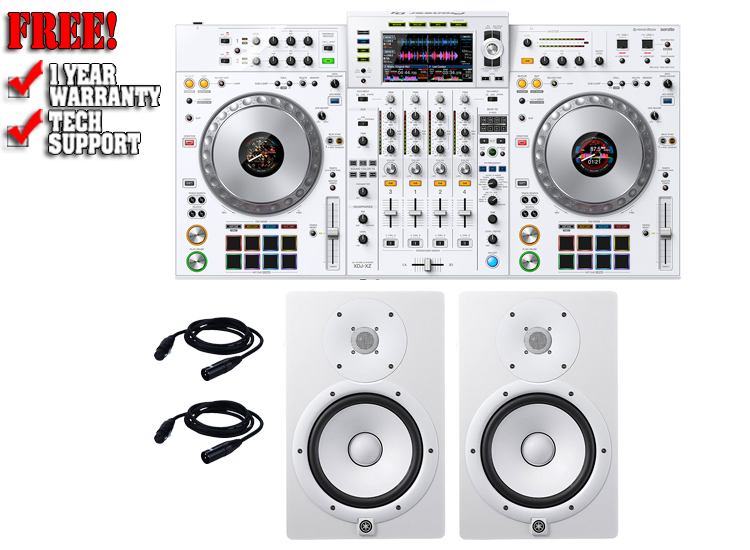

Pioneer XDJ-XZ-W and Yamaha HS8 White Package

Pioneer XDJ-XZ-W 4-channel professional all-in-one DJ system

The Powerhouse

The XDJ-XZ is a professional all-in-one DJ system that's perfect for events, a bar or club, or your private studio. Wherever you take it, the XDJ-XZ gives you all the features you need to get the job done. This 4-channel system features a professional layout - so you'll feel exactly like you're using our club-standard NXS2 setup. And, thanks to flexible media support, you can choose from a variety of ways to perform. Animate your sets with 14 professional Beat FX and 6 Sound Color FX, and trigger software-specific features using the 16 multicolored Performance Pads. Superior club-ready sound and a host of advanced features are at your fingertips at all times with the sturdily built, single unit. In the United States, XDJ-XZ-N is available exclusively at Guitar Center and Musician's Friend.

KEY FEATURES

Controls optimized for professional performances

Feel like you're playing on the NXS2 setup and get hands-on with all the features you need. Full-size jog wheels enable next-level scratching, and color On Jog Display gives you crucial track information. Add flair with 14 Beat FX and 6 Sound Color FX.

Flexible media support

Enjoy the freedom to play the way you want. Plug in a USB drive loaded with rekordbox-analyzed tracks or connect a laptop to use rekordbox or Link Export mode. Works with Serato DJ Pro.

Superior sound quality and multiple EQs

Rev up the crowd with crystal-clear audio thanks to the 64-bit digital signal processor. Fine-tune your entire mix using the 3-band master output EQ. The Feedback Reducer feature stops any "howling" from occurring on the mic, keeping things smooth.

Pro DJ Link expands your creative options

The XDJ-XZ is the first all-in-one DJ system to support Pro DJ Link. Connect equipment like CDJs to the 3rd and 4th channels and sync the audio to your mix. Use the XDJ-XZ's screen to browse the libraries from the external sound sources.

Touch screen and color On Jog Display

Keep track of all the information you need and focus on your performance. Waveforms, Hot Cues, BPM, and more is displayed via the 7-inch LCD touch screen and the color On Jog Display in the centre of each jog wheel.

OTHER FEATURES

3 USB ports

Perform back-to-back and hand over smoothly thanks to the 3 USB inputs (2 top-loading for USB devices and 1 laptop connection).

Link Export mode for rekordbox

Play tracks directly from your laptop via Link Export mode. You can connect up to 2 laptops at the same time.

16 Performance Pads

Trigger software-specific features with 16 multicolored Performance Pads (eight per deck).

High-quality audio

The mic input circuit produces crystal-clear sound, even with a high input level.

Easy to carry

Be ready to play at a moment's notice. The single-unit design with grab handles makes carrying and setup easy.

Specification:

Main Features

• Plays: AAC
  MP3
  WAV
  AIFF
  FLAC
• USB Storage Support: FAT
  FAT32
  exFAT
  HFS+
• Compatible DJ Software: Unlocks Serato DJ Pro
  rekordbox
• DVS Control: Serato DVS (Paid upgrade)
  rekordbox (Core plan or above)

Specifications

• Frequency Range: 20 - 20000 Hz
• Width: 34.57 in
• Height: 4.66 in
• Depth: 18.35 in
• Weight: 28.66 lb
• Signal-to-Noise Ratio: 111dB (USB)

Performance Control

• Channels: 4
• Deck Control: 2 (USB storage device) / 4 (DJ Software control)
• Jog Wheel: 206 mm
• Sound Color FX: Space
  Dub Echo
  Sweep
  Noise
  Crush
  Filter
• Beat FX: Delay
  Echo
  Filter
  Flanger
  Helix
  Phaser
  Ping Pong
  Pitch
  Slip Roll
  Spiral
  Reverb
  Roll
  Trans
  Vinyl Brake

Terminals

• Inputs: 2 LINE (RCA)
  2 PHONO (RCA)
  1 AUX (RCA)
  2 MIC (XLR & 1/4 inch TRS Jack)
• LAN: 3 (100Base TX)
• USB: 2 USB A ports
  1 USB B port
• Outputs: 2 MASTER (XLR, RCA)
  1 BOOTH (1/4 inch TRS Jack)
  2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack)
  1 SEND (1/4 inch TRS Jack)

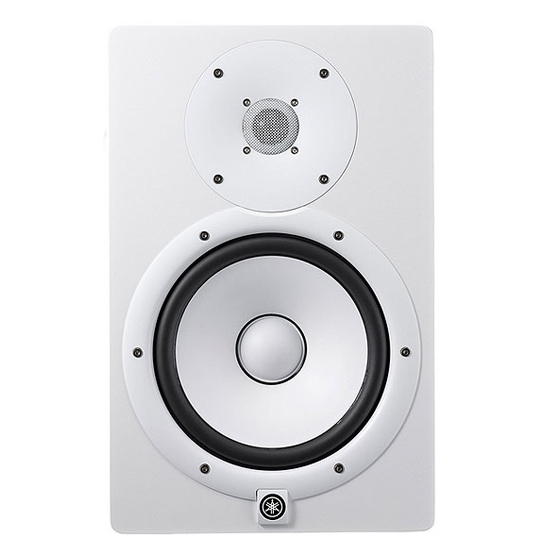

Yamaha HS8 White Powered Studio Monitor

Features:

• 2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter
• 38Hz - 30kHz frequency response
• 75W LF plus 45W HF bi-amp system for high-performance 120W power amplification
• ROOM CONTROL and HIGH TRIM response controls
• XLR and TRS phone jack inputs accept balanced or unbalanced signals
• Speaker type 2-way bi-amp powered studio monitor
• Frequency range (-10dB) 38Hz - 30kHz
• Components LF 8" cone, HF 1" dome
• Crossover 2kHz
• Output power 120W (LF:75W, HF:45W)
• I/O connectors XLR3-31 type (balanced), PHONE (balanced)
• Power consumption 60W
• Shape Bass-reflex type
• Cabinet material MDF
• Dimensions W 250mm (9.8"), H 390mm (15.4"), D 334mm (13.1")
• Net weight 10.2kg (22.5 lbs.)
• Others LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)

This Package Includes

• (1) Pioneer XDJ-XZ-W
• (2) Yamaha HS8 White Powered Studio Monitor
• (2) XLR 5 ft cables
