Pioneer XDJ-XZ-W and Electro Voice EVOLVE 50 White with Intimidator Spot 360 White Package

Pioneer XDJ-XZ-W 4-channel professional all-in-one DJ system

The Powerhouse

The XDJ-XZ is a professional all-in-one DJ system that's perfect for events, a bar or club, or your private studio. Wherever you take it, the XDJ-XZ gives you all the features you need to get the job done. This 4-channel system features a professional layout - so you'll feel exactly like you're using our club-standard NXS2 setup. And, thanks to flexible media support, you can choose from a variety of ways to perform. Animate your sets with 14 professional Beat FX and 6 Sound Color FX, and trigger software-specific features using the 16 multicolored Performance Pads. Superior club-ready sound and a host of advanced features are at your fingertips at all times with the sturdily built, single unit. In the United States, XDJ-XZ-N is available exclusively at Guitar Center and Musician's Friend.

KEY FEATURES

Controls optimized for professional performances

Feel like you're playing on the NXS2 setup and get hands-on with all the features you need. Full-size jog wheels enable next-level scratching, and color On Jog Display gives you crucial track information. Add flair with 14 Beat FX and 6 Sound Color FX.

Flexible media support

Enjoy the freedom to play the way you want. Plug in a USB drive loaded with rekordbox-analyzed tracks or connect a laptop to use rekordbox or Link Export mode. Works with Serato DJ Pro.

Superior sound quality and multiple EQs

Rev up the crowd with crystal-clear audio thanks to the 64-bit digital signal processor. Fine-tune your entire mix using the 3-band master output EQ. The Feedback Reducer feature stops any "howling" from occurring on the mic, keeping things smooth.

Pro DJ Link expands your creative options

The XDJ-XZ is the first all-in-one DJ system to support Pro DJ Link. Connect equipment like CDJs to the 3rd and 4th channels and sync the audio to your mix. Use the XDJ-XZ's screen to browse the libraries from the external sound sources.

Touch screen and color On Jog Display

Keep track of all the information you need and focus on your performance. Waveforms, Hot Cues, BPM, and more is displayed via the 7-inch LCD touch screen and the color On Jog Display in the centre of each jog wheel.

OTHER FEATURES

3 USB ports

Perform back-to-back and hand over smoothly thanks to the 3 USB inputs (2 top-loading for USB devices and 1 laptop connection).

Link Export mode for rekordbox

Play tracks directly from your laptop via Link Export mode. You can connect up to 2 laptops at the same time.

16 Performance Pads

Trigger software-specific features with 16 multicolored Performance Pads (eight per deck).

High-quality audio

The mic input circuit produces crystal-clear sound, even with a high input level.

Easy to carry

Be ready to play at a moment's notice. The single-unit design with grab handles makes carrying and setup easy.

Specification:

Main Features

• Plays: AAC
  MP3
  WAV
  AIFF
  FLAC
• USB Storage Support: FAT
  FAT32
  exFAT
  HFS+
• Compatible DJ Software: Unlocks Serato DJ Pro
  rekordbox
• DVS Control: Serato DVS (Paid upgrade)
  rekordbox (Core plan or above)

Specifications

• Frequency Range: 20 - 20000 Hz
• Width: 34.57 in
• Height: 4.66 in
• Depth: 18.35 in
• Weight: 28.66 lb
• Signal-to-Noise Ratio: 111dB (USB)

Performance Control

• Channels: 4
• Deck Control: 2 (USB storage device) / 4 (DJ Software control)
• Jog Wheel: 206 mm
• Sound Color FX: Space
  Dub Echo
  Sweep
  Noise
  Crush
  Filter
• Beat FX: Delay
  Echo
  Filter
  Flanger
  Helix
  Phaser
  Ping Pong
  Pitch
  Slip Roll
  Spiral
  Reverb
  Roll
  Trans
  Vinyl Brake

Terminals

• Inputs: 2 LINE (RCA)
  2 PHONO (RCA)
  1 AUX (RCA)
  2 MIC (XLR & 1/4 inch TRS Jack)
• LAN: 3 (100Base TX)
• USB: 2 USB A ports
  1 USB B port
• Outputs: 2 MASTER (XLR, RCA)
  1 BOOTH (1/4 inch TRS Jack)
  2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack)
  1 SEND (1/4 inch TRS Jack)

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth® Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 White systems simultaneously. High resolution Bluetooth® audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.

• Available Color Black

• Connector Type 2x XLR/TRS combo jack input 1x 3.5 mm Input 1x Stereo RCA input 1x Wireless Bluetooth® audio input 1x XLR THRU output 1x XLR MIX OUT output

• Coverage (Nominal -6 dB) H 120°

• Coverage (Nominal -6 dB) V 40°
• Crossover Frequency 200Hz
• Depth Sub: 18.5 in; 471mm Column: 6.9 in; 172mm Pole: 2.2 in; 55mm
• Enclosure Material sub – 15mm plywood, column – poly composite, pole – aluminum
• Family EVOLVE 50 White
• Frequency Range (-10 dB) 37 Hz – 20k Hz
• Frequency Response (-3 dB) 43 Hz – 20 kHz
• Grill Steel with black powder coat
• Height Sub: 20.9 in; 230mm Column: 32.5 in; 825mm Pole: 36.6 in; 929mm
• HF Power Handling 500Watts
• LF Power Handling 500Watts
• Max. SPL/1m (calc) 127dB
• Power Consumption 100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A
• Power Rating 1000W
• Powered or Passive Powered
• Shipping Weight 69lbs (31.3kg)
• Speaker Type Full-Range
• Weight Net 57.87lbs (26.25kg)
• Width Sub: 13.6 in; 345mm Column: 4.0 in; 102mm Pole: 1.9 in; 48.5mm
• Woofer Size 12inch

Features

• Feature-packed moving head fitted with a 100 W LED designed for mobile performances
• Dual rotating prisms split the beam for great effects and cover a larger area
• Throw light farther by decreasing the beam angle 5° using the manual zoom
• Unique 1/4-turn hanging bracket allows for single or dual clamp mounting options
• Project crisp gobos from nearly any distance with the motorized focus
• Beams always remain on the dance floor using the built-in, innovative Totem mode
• Set, save, and recall 1 scene manually, directly from the full-color LCD display
• Convenient, wireless non-DMX control using the optional IRC-6 remote
• powerCON®-compatible power input/output connections for power linking
• Suitable for every event with either black or white housing
• Fits best in the CHS-360 VIP carry bag or the Intimidator Road Case S35X flight case

Specifications

• DMX Channels: 8 or 14
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 8 + white, split colors, continuous scroll at variable speeds
• Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Light Source: 1 LED (white) 100 W, (3.2 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Illuminance: (12°): 35,010 lux @ 2 m
  (17°): 19,710 lux @ 2 m
  (12°): 5,470 lux @ 5 m
  3,097 lux @ 5 m
• Power Linking: 6 units @ 120 V; 11 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 163 W, 2.07 A @ 120 V, 60 Hz
  154 W, 1.18 A @ 230 V, 50 Hz
• Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
  Prism (1): 3-facet round, bidirectional rotation at variable speeds
  Prism (2): 5-facet linear, bidirectional rotation at variable speeds
• Zoom Angle: (manual): 12° to 17°
• Weight: 25 lb (11.4 kg)
• Size: 16.65 x 12.68 x 11.69 in (423 x 322 x 297)
• Approvals: CE, MET
• Optional Controllers: IRC-6

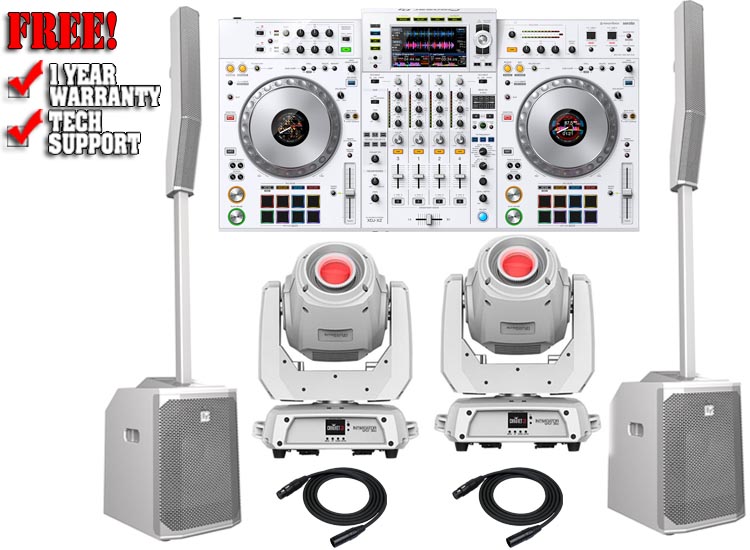

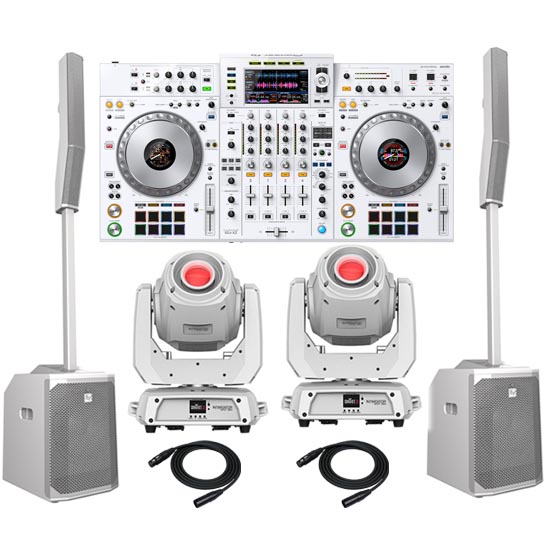

This Package Includes

• (1) Pioneer XDJ-XZ-W
• (2) Electro Voice EVOLVE 50 White
• (2) Chauvet DJ Intimidator Spot 360 White
• (2) XLR 25 ft Cables
