Pioneer TSP-16 Toraiz SP-16 Sampler with KRK 6" Powered Studio Monitors & Subwoofer Package

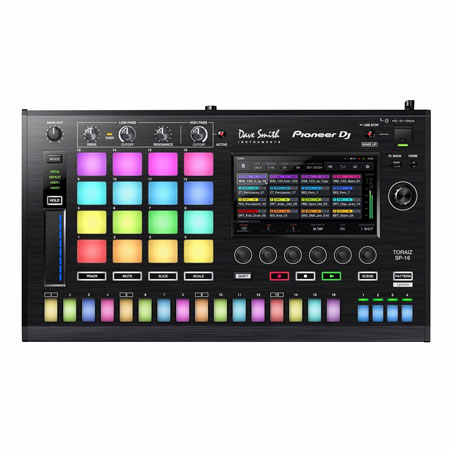

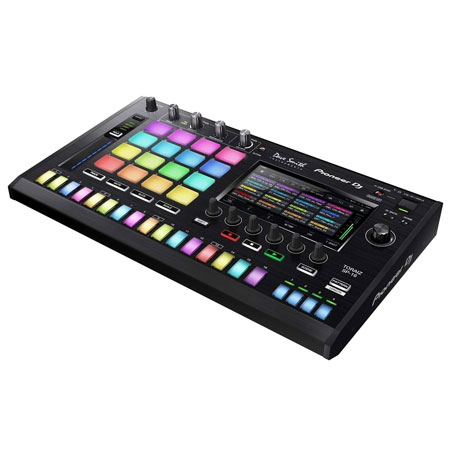

Pioneer TSP-16 Toraiz SP-16 Professional Sampler

Take your creativity to another level in the booth, the studio and on stage with the TORAIZ SP-16 sampler and step sequencer. The tactile sampler features an intuitive touch screen and layout, 16 powerful sampler engines, analogue filters based on Dave Smith Instruments' Prophet-6 synthesizer and quantize via Pro DJ Link. And you can use it as a stand-alone unit – no need to take a laptop into the booth.

We've poured more than 20 years of electronic music industry experience into our first sampler to create a versatile sound machine. Load samples via USB or from the internal memory; then use the 16-step sequencer to create patterns, or playback loops or trigger one-shots with the multicolored Performance Pads. And if you're connected to CDJs via Pro DJ Link, everything is synced to the beat of the master deck, so you can get creative with confidence.

We've partnered with the legendary synth creator Dave Smith to add his Prophet-6 analogue filters to the sampler, so you can give your creations a rich, analogue warmth and presence. Plus a touch strip gives you instinctive control of various parameters including pitch bending. The real-time processing engine means you can reliably manipulate the sound using time stretch, pitch bend and amp envelope.

The 7-inch full-color touch screen puts you in complete control. Pick the Track Menu to see the full information about your sounds and their parameters – which you can manipulate using the six rotary dials just below the screen. The sampler comes with 2GB of samples already on board, courtesy of Loopmasters, so you can start creating bass lines and loops right out of the box.

Toraiz SP-16 features at a glance:

• Create up to 256 patterns using the 16-step sequencer.
• 7-inch full-color touch screen with detailed sample information.
• Multi-colored Performance Pads with Velocity Mode.
• 16-track real-time playback engine.
• Amp envelope and time stretching.
• 8GB flash memory.
• Dave Smith high-pass and low-pass filters.
• Pro DJ Link and MIDI clock for synced one-shots and patterns.
• Touch strip with Pitch Bend.
• Comes with 2GB of Loopmasters sounds already on board.

Make it your own

The TORAIZ SP-16 sampler and step sequencer is the first in our line-up of music production tools for DJs and producers. We've partnered with the legendary synth creator Dave Smith to add his Prophet-6 analogue filters, so you can give your creations a rich, analogue warmth and presence.

Use the TORAIZ SP-16's simple layout and large touch screen for producing, or use it as a standalone unit in the DJ booth to enhance performances. Just load samples, create patterns, add FX, loops, and manipulate their parameters to make your music your own.

Toraiz SP-16 Key features:

Full-color touch screen

The 7-inch, full-color touch display gives you instant access to all the info you need. Browse, select and color-code samples intuitively, while manipulating their parameters with the rotary dials just below the screen.

Step sequencer

A 16-step sequencer lets you create up to 256 different patterns. You can save and play back your loops instantly, and use the dials to modulate the sounds. Plus the backlit buttons will reflect the colors assigned to each sound for a visual guide.

Tactile performance pads

Load up to 16 samples to the large rubber pads, then finger drum freely to layer sounds on-the-fly. The multicolor LEDs show what samples are in play, while Velocity Mode lets you control the sample volume with the amount of pressure you apply.

Powerful processing engine

You get all the power you need to play with 16 samples simultaneously – even when you're using time stretch, pitch bend or the amp envelope. And with 8GB of flash memory you have enough space to use the TORAIZ SP-16 as a stand-alone unit, with no need for a laptop.

Dave Smith analogue filters

The TORAIZ SP-16 has the same analogue filters as Dave Smith's renowned Prophet-6 synthesizer. Use the dials to sculpt your sound – manipulating Drive, Cut Off and Resonance – and add true analogue warmth and presence.

Pre-installed samples

With 2GB of pre-installed samples, by courtesy of Loopmasters, you can get started right out of the box.

Beat sync

Connect compatible devices via PRO DJ LINK and the sampler will snap your one-shots and loops to the beat of the master deck. A MIDI clock also lets you connect other devices via USB and stay in sync.

Touch strip

Use the touch strip for instinctive control of various parameters including pitch bending.

USB support

Load sound sources without hassle using a USB storage device.

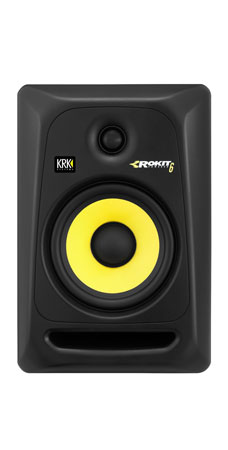

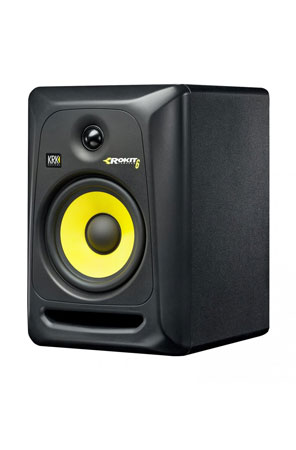

KRK Rokit 6 G3 RP6G3 6" Powered Studio Monitor Speaker

KRK Systems is one of the world's most respected manufacturers of studio reference monitors. In their state of the art design facility, KRK engineers create products that deliver natural and balanced spectral response with low distortion and superior imaging. KRK Studio Monitors have been the professional's choice of recording engineers and artists for mixing and mastering hit records around the globe, as they need to hear every nuance of the audio being reproduced. KRK ROKIT Generation 3 monitors continue in this design philosophy, so regardless of your musical style, genre, or particular mixing needs, KRK Rokits deliver.

ROKIT 6 Powered Monitor – Generation 3

KRK's ROKIT 6 G3 (Generation 3) powered studio monitors offer professional performance and accuracy for recording, mixing, mastering and playback. The system consists of a 1" soft dome tweeter and 6" glass-Aramid composite woofer. It delivers high frequencies up to 35kHz, vocal clarity and extended bass response. The proprietary bi-amped, class A/B amplifier grants SPL up to 107dB. The ROKIT waveguide is designed to ensure detailed imaging in the listening position. The front-firing bass port reduces boundary coupling to allow flexible positioning in the room while the engineered surface reduces diffraction distortion. Multiple input connections ensure the ROKIT 6 G3 will easily integrate in any system configuration.

In larger rooms, where smaller monitors might not provide enough headroom, the ROKIT 6 G3 provides enough backup for even larger set ups.

Rokit 6 G3 Features:

• Bi-amped, class A/B amplifier offering large headroom and low distortion.
• Proprietary waveguide optimized for superior imaging.
• 1" Soft-dome tweeter provides pristine clarity & extended response up to 35kHz.
• High-frequency adjustment tailors the system to personal taste.
• Lightweight, glass-Aramid composite woofer delivers clear midrange & tight bass.
• Low-frequency adjustment tailors the monitors to taste & adjusts for room acoustics.
• Front Firing Port — Low-frequency extension while reducing boundary coupling.
• Radiused edges reduce distortion from diffraction.
• Low-resonance enclosure for minimized distortion and colorization.
• Multiple audio input connectors (XLR, ¼", RCA) for universal connectivity in any studio environment.
• Factory installed foam pad provides isolation between the speaker and surface.
• Peak SPL : 107dB.
• Frequency Response 38Hz – 35kHz (+/- 1.5 dB).

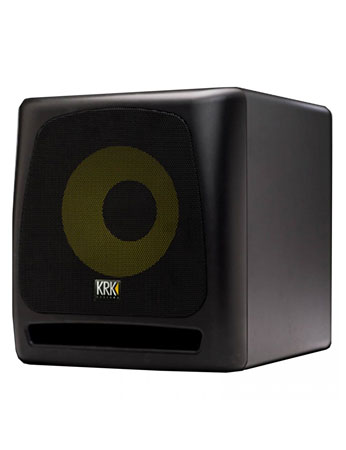

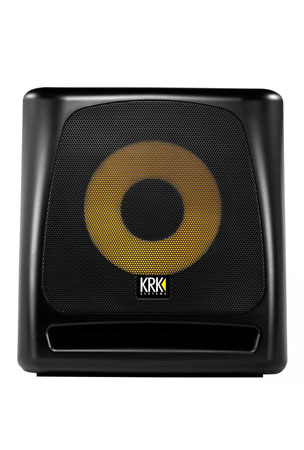

KRK 10S v2 Powered 10" Glass Aramid Composite Studio Subwoofer

The 10s powered studio subwoofer builds upon KRK's legacy for sonic accuracy and performance. The custom-voiced, glass-aramid woofer delivers tight, defined bass, while the Class-D powered Amplifier dramatically increases transient response, control and punch, allowing you to properly engineer the low-frequency portion of the mix. The four-position selectable crossover makes it easy to adjust the subwoofer setting to your existing monitors. Pairing the 10s with KRK or another studio monitors delivers an optimized listening and mixing experience with extended low end, while the exclusive bypass-control feature provides full range audio to the monitors if needed, without switching off the subwoofer.

KRK's 10s subwoofer doesn't just deliver precise bass and a rich feature set: it's the next dimension in subwoofer performance.

KRK 10S v2 Features:

• 10" glass aramid composite woofer.
• Bass extension to 28Hz with a max SPL of 117 dB.
• Footswitch input enables/disables sub and crossover filter (footswitch not included).
• Curved design with front-firing bass port for placement flexibility.
• Powerful, lightweight Class D amplification.
• Optimized four-position crossover control.
• Universal connectivity: XLR, 1/4" TRS, and RCA inputs and outputs.
• Polarity and input sensitivity controls.
• All-steel grill and 15 mm reinforced MDF enclosure provide maximum strength and protection.
• Ground lift switch prevents ground loops.
• 10FT 1/4" TS to 1/4" TS UnBalanced High Performance Audio Cable

SPECIFICATION

Pioneer TSP-16 Specifications

• Width 17.19 in
• Height 2.93 in
• Depth 10.28 in
• Weight 7.05 lb

Terminals

• Inputs: 2 PHONO/LINE (RCA)
  1 MIDI (Din)
• Outputs: 8 PHONO/LINE (RCA)
  1 MIDI (Din)
• 1 HEADPHONE MONITOR (1/4 inch Jack)
• LAN 1
• USB: 1 USB A port
  1 USB B port

KRK ROKIT 6 G3 Technical Specifications

• Configuration: 2-Way
• System type: Active Studio Monitor
• Low-Frequency: 6" Aramid Glass Composite woofer
• Mid-Frequency: N/A
• High-Frequency: 1" soft dome tweeter
• Frequency Response: 38Hz – 35kHz
• Max Peak SPL: 107 dB
• Amplifier Class: Class A-B
• Power Output: 73W
• High Frequency: 25W
• Mid-Frequency: N/A
• Low Frequency: 48W
• Input Impedance (Ohms): 10 K Ohm balanced
• HF Level Adjust: -2dB, -1dB, 0, +1dB
• System Volume: (-30dB – +6dB)
• Indicators: Power
• Input Connectors:
• Unbalanced RCA
• Balanced 1/4" TRS
• Balanced XLR
• Enclosure Construction: MDF
• Finish: Black vinyl wrap
• Port Configuration: Front firing slot port
• Dimensions (D x W x H): 11.4" (290mm) x 8.9" (226mm) x 13.1" (332mm)
• Weight: 18.5 Lbs. (8.4 Kg.)

KRK 10s Technical Specifications

• Configuration: Front loaded, vented subwoofer
• System type: Active Subwoofer
• Low-Frequency: 10" glass aramid composite woofer, 2" VC
• Frequency Response: 31Hz – 110Hz
• Max Peak SPL: 117.2 dB
• Amplifier Class: Class D
• Power Output: 160 Watts Continuous @ 1% THD+N @ 44Hz
• SNR (signal to Noise Ratio): 98dB
• Amplifier Distortion (THD+N): ≤ 0.1% @-3dB of Max Power Output 20Hz – 200Hz
• Input Impedance (Ohms): 10 kΩ Balanced or unbalanced
• Ground Lift: On / Off
• Low Pass Frequency: 50Hz to 130Hz
• HPF bypass: with footswitch only
• Footswitch: Optional
• Phase: 0 or 180 degrees
• System Volume: -30dB to +6dB
• Indicators: Power
• Input Connectors:

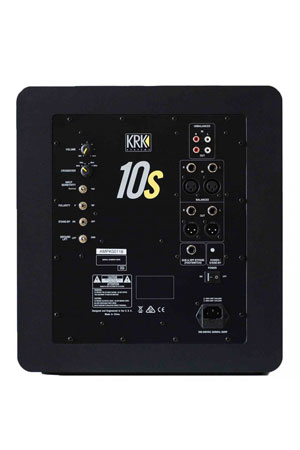

• XLR Left/Right, 1/4" TRS Left/Right, RCA Left/Right, 1/4" footswitch
• LFE input: N/A
• Output Connectors:
• XLR Left/Right, 1/4" TRS Left/Right, RCA Left/Right
• AC Power Input: 100VAC-240VAC
• Enclosure Construction: 15mm reinforced MDF
• Finish: Black Vinyl Wrap
• Port Configuration: Front firing slot port
• Finish: black vinyl wrap
• Grille: Metal Mesh
• Dimensions (H x W x D): 15" (382mm) x 14" (355mm) x 16.06" (408mm)
• Weight: 34.5 Lbs. (15.6Kg.)

* For improvement purposes, specifications and design are subject to change without notice.

ProX XC-PP10 Specifications

• Gold Plated all metal unbalanced 1/4" connectors for excellent durability and superior signal transfer.
• 20 AWG x 2 Oxygen-Free Copper (OFC) conductors.
• Extra Durable & Flexable long life construction.
• ProX Limited Lifetime Warranty – Protect Your Sound!

In The Box

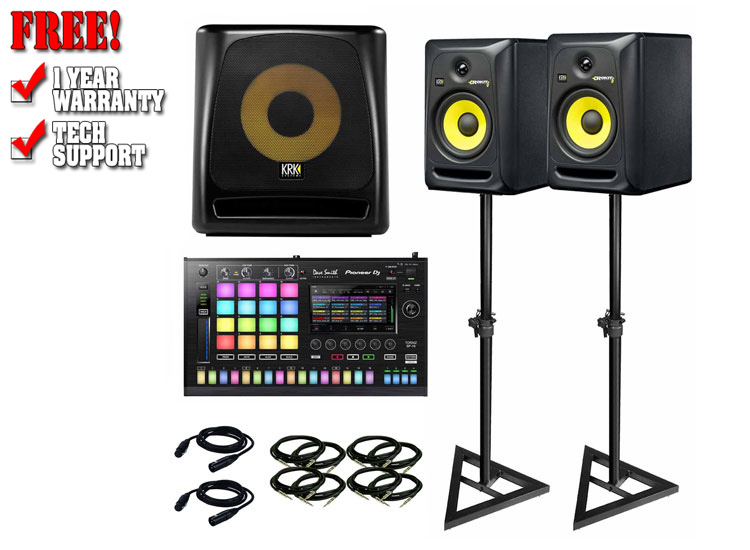

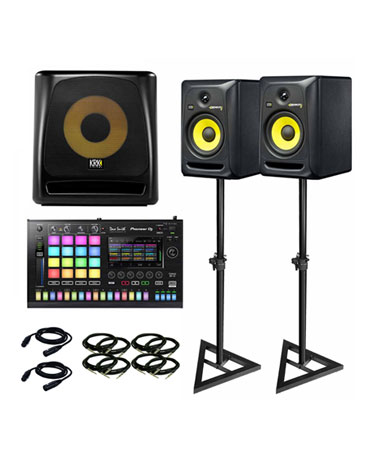

This Package Includes:

• (1) Pioneer TSP-16 Toraiz SP-16 Professional sampler
• (2) KRK Rokit 6 G3 RP6G3 6" Powered Studio Monitor Speakers
• (1) KRK 10S v2 Powered 10" Glass Aramid Composite Studio Subwoofer
• (8) 10FT 1/4" TS to 1/4" TS UnBalanced High Performance Audio Cables

The Pioneer TSP-16 Box Includes:

• (1) Pioneer TSP-16 Toraiz SP-16 Professional sampler
• (1) USB cable
• (1) AC power adapter
• (1) Operating instructions (quick start guide)
• (1) Audio cable
• (1) LAN Cable

Each RP6G3 Box Includes:

• (1) KRK Rokit 6 G3 RP6G3 Powered Studio Monitor Speaker
• (1) Power Cord
• (1) User guide & warranty card

The KRK 10 v2 Box Includes:

• (1) KRK 10S2 Powered 10" Glass Aramid Composite Studio Subwoofer
• (1) IEC power cord
• (1) User manual

• (1) 10FT 1/4" TS to 1/4" TS UnBalanced High Performance Audio Cable
