Pioneer DJ XDJ-RX3 and Pioneer DJ XPRS12 Package

Pioneer DJ XDJ-RX3 2-channel performance all-in-one DJ system

The new 2-channel DJ system features an advanced 10.1-inch touch screen and inherits the flexibility and practicality of its predecessor while packing a host of new features from the renowned club-standard CDJ-3000 Professional DJ Multi Player and DJM-900NXS2 Professional DJ mixer.

Whether an artist is looking for a cutting-edge portable setup for mobile performances, or a venue manager is needing a new system to install in a bar or small venue, the XDJ-RX3 covers all the bases. Similar to the XDJ-RX2, artists can choose between playing rekordbox-analyzed tracks from USB drives or connecting a laptop to unlock rekordbox Performance mode. Support for Serato DJ Pro is included and is available in early 2022.

The 10.1-inch touch screen on the XDJ-RX3 delivers a higher resolution and frame rate than the previous model, and features a brand-new interface for quick music browsing and easy effects control. The new all-in-one system inherits the flagship CDJ-3000's browse section for intuitive playlist navigation. With the new Playlist Bank feature, artists can rapidly access their four favorite playlists at a single touch, while Touch Preview enables artists to listen to any part of a track without loading it to the deck.

Artists can switch between viewing the pad status or Beat FX and the X-Pad with one tap on the screen. The 3Band Waveform feature-also from the CDJ-3000- allows artists to see the volume levels of different frequency ranges in rekordbox-analyzed tracks for a clear visual representation of how tracks sound.

The XDJ-RX3 also features a Color On Jog Display which displays important track information or artwork on the LCD screen in the center of each jog wheel for user reference. Artists can also customize the "weight" of the jogs by tweaking each jog wheel's Feeling Adjust dial. Artists looking to make every mix sound unique can do so with all 14 Beat FX and 6 Sound Color FX from the DJM-900NXS2. Dynamic music manipulation is easier with the Performance Pads and the newly added Release FX.

The XDJ-RX3 also features a Color On Jog Display which displays important track information or artwork on the LCD screen in the center of each jog wheel for user reference. Artists can also customize the "weight" of the jogs by tweaking each jog wheel's Feeling Adjust dial. Artists looking to make every mix sound unique can do so with all 14 Beat FX and 6 Sound Color FX from the DJM-900NXS2. Dynamic music manipulation is easier with the Performance Pads and the newly added Release FX.

Key features

10.1-inch Touch Screen: Instinctively Browse Playlists, Mix tracks and Apply Effects

The XDJ-RX3 features a 10.1-inch touch screen, noticeably larger than the XDJ-RX2's 7-inch screen, making it the largest screen on a Pioneer DJ all-in-one system. The new screen also delivers a higher resolution 1280:800 (WXGA), increased frame rate, fresh GUI design and a host of new features for easy navigation, quick browsing and accurate mixing. The system's new screen also shortens track scrolling time as the browse section features 12 tracks instead of 8.

Rapid Browsing

• Playlist Bank


  Playlist Bank allows artists to add four playlists to the Playlist Bank for rapid playlist access and quick track selection.

• Touch Preview


  Artists can preview any part of a track without loading it to a deck by touching its waveform in the relevant place in the browse section-similar to how an artist would on the CDJ-3000 Multi Player.

Accurate Mixing

• Phrase Display


  Phrase Display utilizes rekordbox's track analysis technology to visually showcase track structure and music progression, with sections such as the intro, chorus and bridge indicated on the overall waveform.

• 3Band Waveform


  3Band Waveform is a popular feature from the CDJ-3000 indicating the volume of the high, mid, and low frequency bands in rekordbox analyzed files with different colors. This indication allows artists to better understand the music's composition by looking at the waveform. 3Band Waveform comes in addition to the previous RGB and Blue options.

Advanced Performance

• Pad Status Display


  With Pad Status Display, artists can view the Performance Pad mode to know exactly what to expect before hitting a pad.

• Beat FX Bank and X-Pad


  Artists can save their four favorite effects to the new Beat FX Bank to quickly activate the effects with a single touch. Also, for the first time ever in an all-in-one DJ system, the X-Pad integrates into the touch screen, giving artists a simple way to apply complex-sounding effects by swiping their finger from side to side.

Tools

• Countdown Timer


  Artists can now set a timer to count down to a specific point in their set. For example, midnight on New Year's Eve, the moment a vocalist is due to join a performance or the hand over to another DJ. The new Countdown Timer feature reminds artists of an approaching crucial moment.

• Repeat Mode


  In the case an artist needs to leave the booth, they can play a track or playlist on repeat to keep the music going while away with the XDJ-RX3's new Repeat Mode. This new feature is helpful in situations such as sound checks, saving artists from constantly going back to the booth to hit play.

Color On Jog Display: Visually Grasp Track Information

The XDJ-RX3's jog wheels feature a center LCD screen to indicate a track's playhead position, along with an improvement in wheel rotation responsiveness. Artists can also choose to display track artwork as a reminder of the track that is loaded on the deck. Additionally, artists can adjust the "weight" of each jog wheel to their preference with the Feeling Adjust control.

More Beat FX and Sound Color FX: Texturize and Build Drama in Mixes

The XDJ-RX3 includes all the effects from its predecessor, plus an extra six Beat FX and two additional Sound Color FX. The new system also features the full range of effects from the renowned DJM-900NXS2 with 14 Beat FX including Ping Pong, Filter, Phaser, Slip Roll, Vinyl Brake, and Helix, and six Sound Color FX including Space and Crush.

Release FX: Inject New Energy Into Performances

Artists can hit the Performance Pads to instantly change the energy of their performance, whether they want to add drama to a section of a track, or create an exciting moment before transitioning to another song on the other deck. For example, artists might use Echo Out or Spin Out to dynamically mix into the next track. Choose from 8 effect types: Vinyl Brake (Short / Long), Backspin (Short / Long), Echo Out, Build Up, Mute, and Ducking.

Plug and Play: rekordbox and Serato DJ Pro Compatibility

The XDJ-RX3 can play rekordbox-analyzed music from USB storage devices via Export mode, or artists can connect a laptop to use Link Export or Performance mode via USB-HID control. Because the XDJ-RX3 is a Hardware Unlock device, rekordbox Performance mode can be used for free - there's no need for a paid subscription plan - so artists can play all the tracks in their rekordbox library and enjoy free use of all the features in the Core plan when a laptop is connected. Free plug-and-play compatibility for Serato DJ Pro is included too (coming in early 2022).

Refined Design: Add a Pro Look to the Setup

With contrasting surface finishes on different sections of the unit, and a club-standard layout design featuring illumination around the play and cue buttons, and Color On Jog Displays - the XDJ-RX3 carries a look echoing a professional setup.

Specifications:

• Software
  • rekordbox
  • Serato DJ Pro - Available in early 2022
• Frequency Response : 20 Hz - 20 kHz
• S/N Ratio : 110 dB (USB)
• Total Harmonic Distortion : 0.003% (USB-MASTER1)
• Input/Output Terminals
  • Inputs
    • LINE x 2 (RCA)
    • PHONO x 2 (RCA)
    • MIC x 2 (XLR x 1, 1/4" TRS jack x 1)
    • AUX x 2 (RCA x 1, 3.5-mm stereo mini jack x 1)
  • Outputs
    • MASTER x 2 (XLR x 1, RCA x 1)
    • BOOTH x 1 (1/4" TRS jack)
    • PHONES x 2 (1/4" stereo jack x 1, 3.5-mm stereo mini jack x 1)
  • USB
    • USB Type-A x 2
    • USB Type-B x 1
• Power Supply : AC 110 V - 240 V, 50 Hz / 60 Hz
• Power Consumption (standby) : 54 W (0.3 W)
• Maximum Dimensions (W x D x H) : 728.1 x 469.5 x 118.4 mm / 28.7" x 18.5" x 4.7"
• Weight : 9.3 kg / 20.5 lb
• Accessories
  • Power cable
  • USB cable
  • Quick Start Guide
  • Software license notice
  • Precautions for Use Warranty (for some regions)

Powersoft Class D amps for reliable, high-powered performance

Powersoft's new Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output, similar to that of larger stand-alone speaker amplifiers. The amps are equipped with Power Factor Correction (PFC) to reduce power consumption while ensuring reliability and a steady performance in all environments.

The auto-ranging power supply means you plug in the XPRS Series anywhere in the world - including venues with generators or temporary power supplies - and expect the same high quality sound.

Advanced protection features help prolong your speakers' life

We've packed the speakers with features to protect the driver, amp and power supply - giving you peace of mind, consistent high quality sound, and extending the life of your sound system.

Amplifier protection

• Thermal limiting: cuts off to prevent overheating.
• Output overcurrent: reduces the speaker's output to safe levels in the event of output overcurrent.

Speaker protection

• DC offset removal: shuts down to prevent further damage if the speaker blows.
• Stationary High Frequency Protection: protects the speaker from loud bursts such as feedback.
• Input voltage limiter: Peak and RMS.
• Output voltage limiter: cuts the LF and compression drivers separately when either reaches their peak.

Power protection

• AC mains over-voltage protection: protects against power surges.
• Plus the status LED on the front of the cabinet can has three settings - power, limiter or off - giving an optional visual reference to the status of the speaker.

High-performance drivers deliver a powerful, full range sound

Both speakers use a high-grade ferrite LF driver (12-inch) and a 1.75-inch titanium diaphragm compression driver to reproduce a clean, full range sound with low distortion even at high outputs.

Four EQ modes for a variety of genres and environments

Buttons on the back of the speakers give you instant access to four EQ modes:

• Flat: neutral production of the source audio.
• Bass +: amplifies the bass for dance music events.
• Speech: produces clear vocal sounds for seminars and speeches.
• Wedge: reduces the low frequencies to give a more balanced sound if you're using the speaker as a floor monitor.

Rotatable horn lets you mount the speakers vertically and horizontally

The speakers' horn gives a dispersion of 90 x 60 degrees and can be rotated by 90 degrees - giving you flexibility to mount the speakers vertically or horizontally to choose the coverage to suit your space.

Wedge shape and polemount socket with tilt for a choice of three positions

The XPRS12 speakers are wedge shaped, making them ideal floor monitors. Or the polemount socket can be set to straight or tilted to 7 degrees to direct the sound exactly where you want it.

Multiple inputs and outputs for flexible, easy set-up

The speakers have two balanced XLR/TRS combo sockets and an unbalanced RCA connection, so you can connect a MIC and other external devices at the same time - including using an AUX cable to connect and play directly from portable audio players, line-level mixers and tablets/smartphones. Each input can be controlled individually or using the master controls for lines one and two. Plus two balanced XLR through output terminals enable easy connection to other speakers and subs.

• Speaker Type: 12" 2-way full range, bass reflex, bi-amp, active speaker
• System characteristic:
• Frequency Response(-10 dB) 50 Hz to 20 kHz
• Dispersion (H x V) 90° x 60° (rotatable)
• Maximum SPL (peak@1m/1w) 135 dB
• Crossover Frequency 2.0 kHz
• Amplifier
• Amplifier type Class D
• Power Rating 2400 W peak / 1200 W cont. (LF800 W/HF400 W)
• Input connectors 2x XLR/TRS Combo (balanced), 2x RCA (unbalanced)
• Impedance 10 kO
• Output connectors 2x Through output XLR (balanced)
  1x Mixed output XLR (balanced)
• Speaker
• LF driver 12-inch ferrite LF cone driver
• HF driver 1.75-inch titanium diaphragm neodymium compression driver
• Enclosure 15 mm birch plywood, bass reflex type
• Finish Impact-resistant, black semi-matt textured
• Handle 2 (on both sides)
• Pole socket 35 mm socket (0°/7° multi-angle)
• Rigging point 12x M10
• Protection
• Amplifier Protection Thermal limiting, over-temperature muting, output overcurrent
• Driver Protection DC offset removal, high frequency stationary loud signals, input voltage limiter (Peak/RMS)
• Power unit Protection Primary AC mains overvoltage protection, Primary AC mains overcurrent protection
• Power unit/other
• Supported voltages 100 V (50 Hz/60 Hz) / 110 V to 240 V (50 Hz/60 Hz)
• Power consumption 167 W
• Dimensions (W x H x D) 380 x 647 x 398 mm
• Weight 23.1 kg

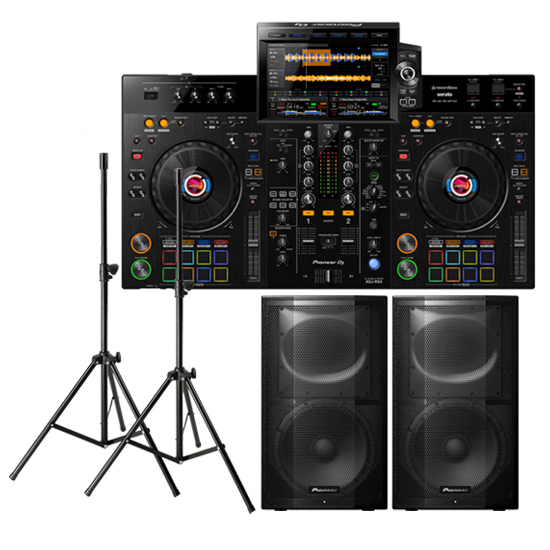

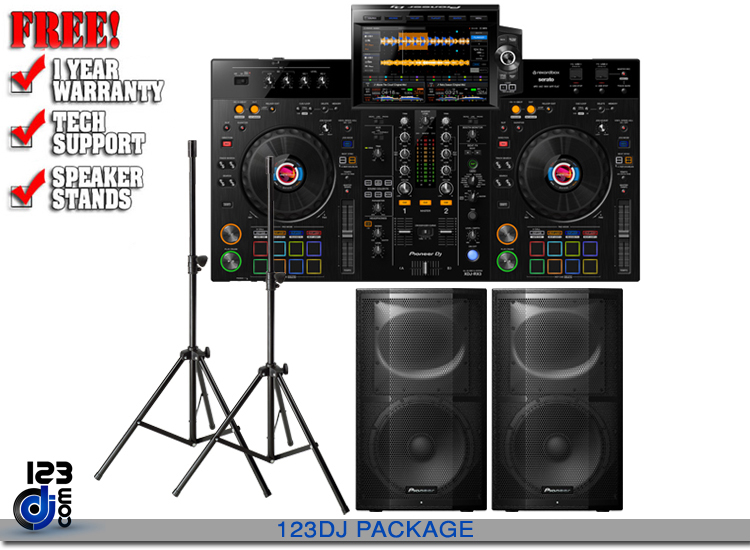

What's in the Box:

This Package Includes:

• (1) Pioneer DJ XDJ-RX3 Controller
• (2) Pioneer DJ XPRS12
• (2) Speaker Stands
