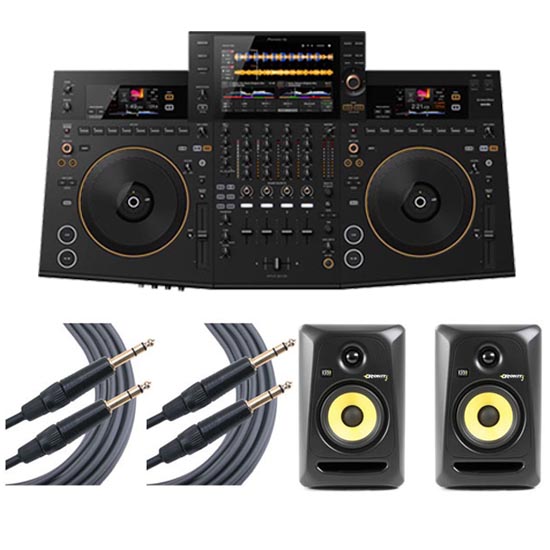

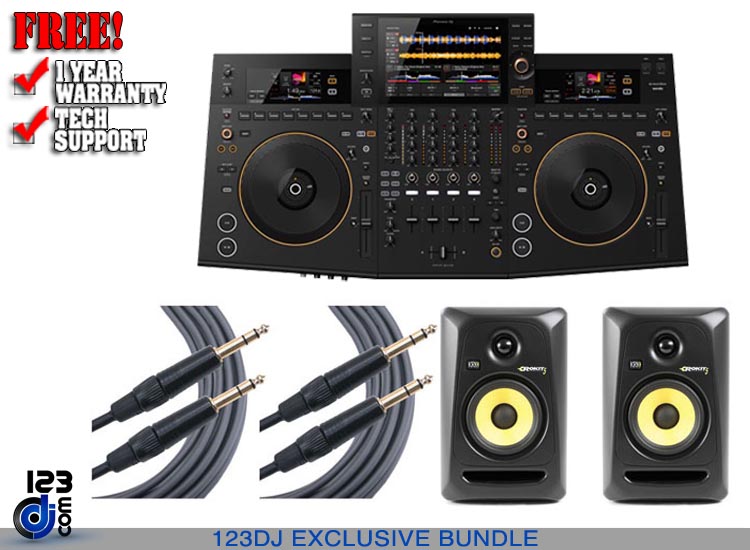

Pioneer DJ OPUS-QUAD Bedroom Rocker Kit 1

Support for multiple media sources to match different playing styles

How do you like to play? From USB thumb drives or huge SSD drives? By plugging in your PC/Mac that's running DJ software? By connecting via Wi-Fi? to wirelessly play tracks from your smartphone using rekordbox (coming April 2023), or by using rekordbox CloudDirectPlay? You can draw from various music libraries with just 1 OPUS-QUAD and you can even pair a mobile device via Bluetooth?/MD wireless technology ? perfect if you want to quickly drop a request into your set.

Rapid and accurate track search - even from the biggest collections

Find your tracks faster and more accurately than ever before with the freshly designed user interface with an electrostatic touch module. No matter how big your music library is, you can use the 10.1-inch touch screen to quickly search for songs via the keyboard or use Playlist Bank for quick navigation between playlists. With Touch Preview, you can even preview tracks while browsing. The new Smart Rotary Selector offers a joystick-like experience with left/right, up/down, rotation, and push control. And the other browsing controls are neatly arranged around the selector so you can scour your music collection and preview and load tracks without moving your hand.

Optimized deck configuration and new Smart Cue

Take control of the music with a slick deck layout that includes a deck display and 8 Hot Cue buttons above each full-size jog wheel. With this arrangement, you don't need to switch your gaze when manipulating tracks or checking things such as the track information, parameter, and status of each function. And with the new Smart Cue feature*, you can automatically overwrite the current cue position with the recalled Hot Cues. This makes it much quicker and more intuitive than ever before to use Hot Cues with one touch.

High-quality pleasant sound that enhances the audience's experience

Designed to meet the needs of the increasingly diverse DJ scene, the OPUS-QUAD produces high-quality sound that's comfortable to listen to for long periods of time. The configuration of the unit eliminates transmission loss and AD-DA conversion loss and it's loaded with a high-quality 32-bit D/A converter from ESS Technology. As a result, wherever you play on the OPUS-QUAD, the entire venue is gently enveloped by a comfortable sound that enhances the spatial experience.

Easy-to-use professional effects

The evolved effects on the OPUS-QUAD make it easy to add texture and tension to the music so you can hype up the crowd and personalize your sound with Beat FX. The XY-Pad makes it easy to control features such as FX Bank and channel select, as Beat FX parameters and the cut-off frequency of the filter are controlled by movement on the X and Y-axis respectively, so you can blend both effects with a single finger. With the popular Smooth Echo feature, you can easily trigger an echo sound by moving a fader or knob you've pre-assigned to apply the effect when it's turned on.

Zone output for playing different music in different spaces

Thanks to the zone output ? which can output sound that's separate from the master ? you can play different music in different rooms from just 1 OPUS-QUAD. For example, you could connect a phone to the unit via Bluetooth and set a playlist of background music to play quietly in a bar area or second room where people are socializing while you mix tracks from a USB device in the main room.

rekordbox and Serato compatibility

Plug-and-play compatibility for rekordbox Performance mode and Serato DJ Pro (coming summer 2023) is included with the OPUS-QUAD. You can simply plug in your PC/Mac running either application to get started ? there's no need for a license or subscription. If you use rekordbox you can also connect to the rekordbox for iOS/Android mobile app (coming April 2023).

OTHER FEATURES

• rekordbox Link Export


  Play tracks directly from your laptop as if it were a USB drive via rekordbox Link Export mode.

• Firmware Update Manager


  You'll be automatically notified when firmware updates become available. You can download the Firmware Update Manager here.

• Smooth Echo


  Assign the Smooth Echo effect to your choice from a selection of controls, e.g. a fader or pad. Then, when you turn on Smooth Echo with its dedicated button, the echo will be triggered as soon as you move the relevant control.

• 2 mic inputs


  The mic input circuit produces crystal-clear sound, even with a high input level.

• Beat Loop knob


  Using just one knob, you can turn on/off and change the length of a Beat Loop.

Main Features:

• Plays
  • MP3
  • AAC
  • WAV
  • AIFF
  • Apple Lossless
  • FLAC
• USB Storage Support
  • FAT16
  • FAT32
  • exFAT
  • HFS+
  • (NTFS isn't supported.)
• Compatible DJ Software
  • rekordbox for Mac/Windows: Hardware Unlock
  • rekordbox for iOS/Android (coming April 2023)
  • Serato DJ Pro: Hardware Unlock (coming summer 2023)
• MIDI Control : Yes
• USB record : Yes
• Plug and Play : Yes
• Auto Standby : Yes

KRK Rokit 5 G3

KRK ROKIT MONITORS - GENERATION 3

KRK Systems is one of the world's most respected manufacturers of studio reference monitors. In their state of the art design facility, KRK engineers create products that deliver natural and balanced spectral response with low distortion and superior imaging. KRK Studio Monitors have been the professional's choice of recording engineers and artists for mixing and mastering hit records around the globe, as they need to hear every nuance of the audio being reproduced. KRK ROKIT Generation 3 monitors continue in this design philosophy, so regardless of your musical style, genre, or particular mixing needs, KRK Rokits deliver.

ROKIT 5 Powered Monitor - Generation 3

KRK's ROKIT 5 G3 (Generation 3) powered studio monitors offer professional performance and accuracy for recording, mixing, mastering and playback. The system consists of a 1" soft dome tweeter and 5" glass-Aramid composite woofer. It delivers high frequencies up to 35kHz, vocal clarity and extended bass response. The proprietary bi-amped, class A/B amplifier grants SPL up to 106dB. The ROKIT waveguide is designed to ensure detailed imaging in the listening position. The front-firing bass port reduces boundary coupling to allow flexible positioning in the room while the engineered surface reduces diffraction distortion. Multiple input connections ensure the ROKIT 5 G3 will easily integrate in any system configuration.

As one of the most used Studio monitors in the world, the ROKIT 5 is a high valuable and compact solution towards an accurate mix.

Mogami TRS-TRS 6' Cable:

For outstanding neutral tone and noise rejection, Mogami Gold TRS-TRS is an excellent interconnect cable for any ¼ " balanced line cable. This cable is a very popular choice for line output into mixers and powered speakers.

Pioneer DJ OPUS-QUAD Specifications:

• Sampling Rate : 44.1 kHz
• Frequency Range : 20 - 20000 Hz
• Width : 36.44 in
• Height : 5.59 in
• Depth : 19.67 in
• Weight : 29.1 lb
• Power Supply : AC 100-240 V, 50 Hz / 60Hz
• Power Consumption : 60 W
• MASTER DA converter : 32 bit
• A/D Converter : 24 bit
• Signal-to-Noise Ratio
  • USB: 114 dB
  • LINE: 96 dB
  • PHONO: 85 dB
  • MIC: 79 dB
• Distortion
  • USB: 0.003 %
  • LINE: 0.005 %
• Performance Control
  • Channels : 4
  • Deck Control : 4 (USB storage device), 4 (DJ Software control)
  • Jog Wheel : 206 mm
  • Jog Feeling : Yes
  • Sound Color FX
    • Space
    • Dub Echo
    • Sweep
    • Noise
    • Crush
    • Filter
  • Beat FX
    • Delay
    • Echo
    • Ping Pong
    • Spiral
    • Reverb
    • Trans
    • Filter
    • Flanger
    • Phaser
    • Pitch
    • Slip Roll
    • Roll
    • Vinyl Brake
    • Helix
  • Hot Cues : 8 per deck
  • Beat Loop : Yes
  • Auto Beat Loop : Yes
  • Beat Sync : Yes
  • Quantize : Yes
  • WaveZoom : Yes
  • Manual Loop : Yes
  • Trim knob : Yes
  • EQ Isolator : Yes
• Mic
  • Mic Connection : XLR connector & 1/4 inch TRS jack
  • Mic EQ : 3 band
  • Talkover : MIC OFF/ON/TALK OVER slide SW
• Terminals
  • Inputs
    • 2 LINE (RCA)
    • 2 PHONO (RCA)
    • 2 MIC (XLR connector & 1/4 inch TRS jack)
  • Outputs
    • 1 MASTER (XLR)
    • 1 MASTER (RCA)
    • 1 ZONE (XLR)
    • 1 BOOTH (1/4 inch TRS Jack)
    • 1 PHONES (1/4 inch stereo phone Jack)
    • 1 PHONES (3.5-mm stereo mini jack)
  • USB
    • 3 USB A ports
    • 1 USB C port
• Wireless LAN
  • Supported standards : IEEE 802.11 a / b / g / n / ac
  • Frequency band used : 2.4 GHz / 5 GHz
• Bluetooth
  • Wireless system : Bluetooth ver. 4.2
  • Maximum transmission distance : Approximately 20 m in unobstructed circumstances.
  • Modulation method : FH-SS (Frequency Hopping Spread Spectrum)
  • Compatible codecs : SBC, AAC

KRK Rokit 5 G3

• Bi-amped, class A/B amplifier offering large headroom and low distortion
• Proprietary waveguide optimized for superior imaging
• 1" Soft-dome tweeter provides pristine clarity and extended response up to 35kHz
• High-frequency adjustment tailors the system to personal taste
• Lightweight, glass-Aramid composite woofer delivers clear midrange and tight bass
• Low-frequency adjustment tailors the monitors to taste and adjusts for room acoustics
• Front Firing Port - Low-frequency extension while reducing boundary coupling
• Radiused edges reduce distortion from diffraction
• Low-resonance enclosure for minimized distortion and colorization
• Multiple audio input connectors (XLR, ¼", RCA) for universal connectivity in any studio environment
• Factory installed foam pad provides isolation between the speaker and surface
• Peak SPL : 106dB
• Frequency Response 45Hz - 35kHz (+/- 2 dB)
• Peak SPL : 106dB
• Frequency Response 45Hz - 35kHz (+/- 2 dB)
• Configuration : 2-Way
• System type : Active Studio Monitor
• Low-Frequency : 5" Aramid Glass Composite woofer
• Mid-Frequency : N/A
• High-Frequency : 1" soft dome tweeter
• Frequency Response : 45Hz - 35kHz
• Max Peak SPL : 106 dB
• Amplifier Class : Class A-B
• Power Output : 50W
• High Frequency : 20W
• Mid-Frequency : N/A
• Low Frequency : 30W
• Input Impedance (Ohms) : 10 K Ohm balanced
• HF Level Adjust : -2dB, -1dB, 0, +1dB
• System Volume : (-30dB - +6dB)
• Indicators : Power
• Input Connectors
• Unbalanced RCA
• Balanced 1/4" TRS
• Balanced XLR
• Enclosure Construction : MDF
• Finish : Black vinyl wrap
• Port Configuration : Front firing slot port
• Dimensions (D x W x H) : 9.06" (230mm) x 7.28" (185mm) x 11.10" (282mm)
• Weight : 14.1 lbs (6.4 kg)

Mogami TRS-TRS 6' Cable:

• Wired with Neglex Studio Quad
• Offers superior clarity and freedom from noise/RF interference
• Terminated with black body, gold contact TRS connectors
