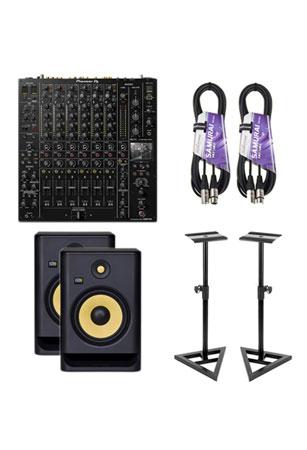

Pioneer DJ DJM-V10 6-Channel & KRK RP8G4 Pair Package

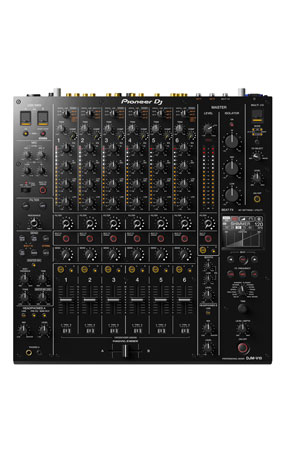

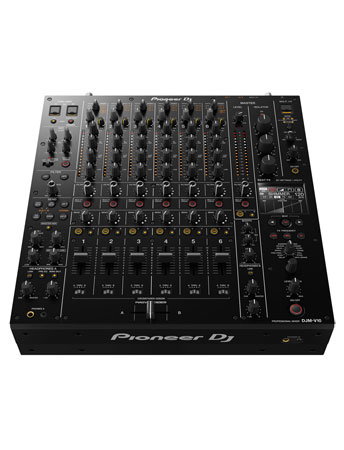

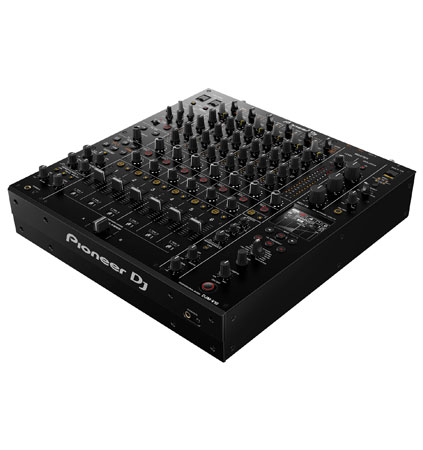

Building upon the success of the DJM-900NXS2, the black Pioneer DJ DJM-V10 is the latest flagship DJ mixer well suited for professional DJs, clubs, festivals, mobile DJs, nightclub installations, recording studios, and more. The mixer features an updated 6-channel layout and an integrated USB soundcard with support for up to 6 stereo channels of 32-Bit / 96 kHz audio and 64-bit internal processing. Its digital throughput also delivers a wide variety of DSP effects

Many enhancements have been made to the V10 including a complete redesign of the mixer's interface, which now includes a 4-band EQ, dedicated high-pass or low-pass filters with resonance, and send FX on each channel. Send FX offers four internal effects with dedicated parameter controls, plus two stereo sends with returns for interfacing with external FX processors such as guitar pedals, studio multi-FX, and more. Additionally, each Send FX (internal or external) can be assigned to one of the six channel strips for even more advanced routing and processing

Each channel also features a compressor, which is designed for producer/DJs to play unmastered tracks seamlessly, help match older tracks to modern compression standards, or fatten up and tame dynamics. The updated Beat FX now features a larger touchscreen for hands-on, real-time manipulation of effects, plus Hi/Mid/Low FX frequency cuts for further performance enhancements. Two independent headphone outputs add control for a dual cueing system, allowing DJs to play seamless back-to-back sets and smooth DJ transitions.

There are four inputs for turntables and six line-level inputs for digital decks. Additional features include Pro DJ Link, six S/PDIF digital input connections, one AES/EBU digital output connection, a DIN MIDI output for synchronizing external hardware effects and sequencers, two top-mounted USB connections, and an additional USB port that supports iOS devices for use with Pioneer's optional RMX-1000 for iPad. An independent send-and-return section allows for external effects to be used simultaneously with the internal effects. The DJM-V10 ships with a power cord.

Elite Sound Quality

Elite sound quality

• Feel the warmth of natural sound and hear every detail
• Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to produce a full low-end, vibrant mids, and precise highs

ESS Technology 32-bit D/A converter

• 32-bit SABRE 8-channel DAC (ES9016S) is used for both the master and booth outputs
• DAC output is driven in parallel to further improve S/N
• Honed output circuit by improving operation amps and capacitors and performing optimal tuning, resulting low-noise, high-resolution sound that's easy to listen to, even at high volume

32-bit A/D converter by Asahi Kasei Electronics

• Analog channel inputs use a 32-bit premium ADC (AK5578EN/AK5574EN) with VELVET SOUND technology by Asahi Kasei Electronics
• Redesigned input differential conversion circuit and optimized audio parts used results in a rich, high-definition and low-distortion sound

EM Devices' Mechanical Relays

• Line/phono input switch, master output, and headphones output circuit use high-performance, highly durable mechanical relays (EA2 relays) from EM Devices Co.
• Eliminate signal distortion due to the use of non-linear electrical components, completely cancelling unpleasant noise in the mute circuit

AES/EBU output

• Master outputs feature a noise-resistant balanced transmission system and a professional digital audio-standard AES/EBU terminal that's suitable for long-distance transmission in large venues

6 Channels with Wide Range of Inputs

6 channels

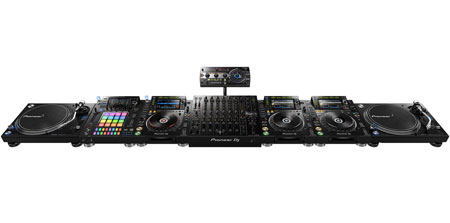

• Choose your ideal setup and plug in everything from CDJs and turntables to samplers, synths, and drum machines
• Easy setup thanks to analog input terminals that line up with each channel on the top panel, so you'll always know where to connect your cables when you're in the booth

USB/MIDI terminal

• With a 96 kHz / 24-bit sound card, you can input and output up to 6 stereo channels without any deterioration of sound quality when connected to a PC/Mac
• Input and output of the send and master signals, as well as the input and output of individual channels, can be routed via USB to your computer
• Smooth DJ handovers by simultaneously connecting 2 laptops (PC/Mac)

MULTI I/O terminal

• USB Type-A terminal and 1/4? TS jacks are mounted on the top and the rear of the mixer
• Arrange your sounds using the RMX-1000 app for iPad or another FX app, or record your mix directly to the DJM-REC app without any deterioration in sound quality
• Route insert-type hardware effect units, such as the RMX-1000, through the 1/4? TS jacks

DIN MIDI Out

• Sync external production gear using the BPM from rekordbox
• Quantized BPM information is shared via Pro DJ Link when connected to a LAN hub
• When not using PRO DJ Link, the DJM-V10's BEAT FX suite will analyze and display a track's BPM

4-Band EQ & Compressor

4-band EQ

• Sculpt your sound just the way you like it
• Frequencies, curves, boost, and cut amounts on each band have all been specially designed to give you total flexibility
• Completely isolate the high and/or low and tweak the two mid ranges to fine tune your mix
• Midrange EQs have their own custom curves

Compressor knob on each channel

• Seamlessly play old or unreleased tracks alongside modern compressed productions
• Compressor knob on the relevant channel will beef up the audio in real time
• Quieter tracks will have added pressure, boosting the sound of weaker tracks
• Mastered music will have a minimal effect

Channel Fader

• Each channel is equipped with a newly developed, precise fader that enables fine adjustment
• Highly stable and durable, faders will still feel smooth even after years of use

Creative FX

Send section

• Send audio to one of four built-in FX
• Short Delay
• Long Delay
• Dub Echo
• Reverb
• Send audio to up to two pieces of external equipment to create unique sounds and even live remixes
• Connect guitar pedals, FX units, and more to the TS jack send/return terminals

Filter

• Newly developed filter with resonance control
• Drastically change the sound of a track or subtly tweak it
• Switch on high- or low-pass filters by pressing either button
• Turn the knob from all the way to the left (no filter applied) to the furthest position on the right (maximum filter applied)
• High- and low-pass filters are separated, offering twice the resolution to play with compared to the filter on the DJM-900NXS2
• Allows for more pronounced adjustments

Beat FX

• Control the X-Pad via the touch display for more intuitive effects manipulation
• Bring harmony to sound sources such as vocals and synthesizers to create unique sounds
• Directly select the channel you want to add the effect to with the BEAT FX Assign button
• Added Shimmer effect that adds brightness to the original audio

3-Band Master Isolator

• Effortlessly control the tone of your entire mix
• 3-band master isolator features boost/cut curves and adjustments to the crossover frequencies
• Grab the large dials and drastically changing the sound for immediate tension and release

Dual Headphone Output and Booth EQ

Dual Headphones Output

• Plug in your headphones at the same time as another DJ for independent monitoring
• Headphones' output has its own Cue/Master Mix control and level adjustment knob
• Choose what you want to hear as you prepare to take over the decks, or during back-to-back sets

Booth EQ

• Tweak the sound from the monitor speakers to prevent ear fatigue during long sets

Lockable Power Cable

• Lockable power cord included for added reliability
• Helps prevent accidental disconnections

DJM-REC Compatible

• Record and archive your mixes via iPhone or iPad
• Upload your sounds to cloud services
• Effortlessly live-stream your sessions

rekordbox

• Make full use of rekordbox's low-latency DVS feature for intuitive, smooth scratching

Serato DVS-Ready

• Use Serato DVS to control and scratch with CDJs or turntables
• Serato DJ Club Kit license required and available separately

Traktor DVS-Ready

• Enjoy DVS control via Native Instruments' TRAKTOR PRO 3 (available separately)
• Intuitively control and scratch with digital audio files stored on your computer

ShowKontrol

• Supports the extended PRO DJ LINK ShowKontrol protocol
• Enables DJs, technical producers, LJs, and VJs to use all the key information from the DJM-V10, such as fader and knob positions, to align sound and visuals. and to create mind-blowing shows

Specs

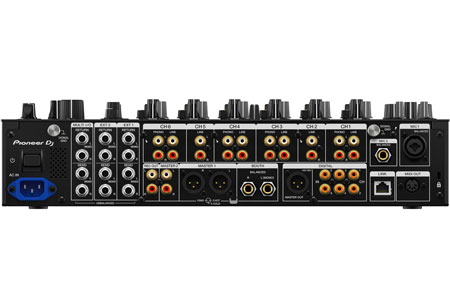

• Total # Of Channels 6 Channels + 3 Send/Return + 2 Mic Channels
• Input Connectors Phono: 4 x Stereo RCA
• Line: 6 x Stereo RCA
• Ext 1 Return: 2 x 1/4 / 6.35 mm
• Ext 2 Return: 2 x 1/4 / 6.35 mm
• Multi I/O Return: 2 x 1/4 / 6.35 mm
• Mic 1: 1 x XLR-1/4" / 6.35 mm TRS Combo Jack
• Mic 2: 1 x 1/4" / 6.35 mm TRS
• Digital Inputs 6 x RCA Coaxial Stereo
• Output Connectors Master 1: 2 x XLR
• Master 2: 2 x RCA
• Rec Out: 2 x RCA
• Home: 2 x 1/4" / 6.35 mm TRS
• Ext 1 Send: 2 x 1/4 / 6.35 mm
• Ext 2 Send: 2 x 1/4 / 6.35 mm
• Multi I/O Send: 2 x 1/4 / 6.35 mm
• Digital Outputs Master: 1 x AES/EBU
• USB Computer: 2 x USB Type-B
• Multi I/O: 1 x USB Type-A
• Headphone Output Headphone A
• 1 x 1/4" / 6.35 mm TRS stereo
• 1 x 1/8" / 3.5 mm TRS stereo
• Headphone B
• 1 x 1/4" / 6.35 mm TRS stereo
• 1 x 1/8" / 3.5 mm TRS stereo
• Network Pro-Link: 1 x LAN terminal (100Base-TX)
• MIDI Out 1 x 5-Pin DIN
• Sampling Rate 96 kHz
• A/D/A Converter D/A Converter: 32-Bit
• A/D Converter: 32-Bit
• Frequency Response Line: 20 Hz to 40 kHz
• Signal to Noise Ratio Line: 105 dB
• Phono: 88 dB
• Mic 1 & 2: 79 dB
• THD Line: < 0.005%
• Channel Strips EQ: 4-Band
• EQ Range:
• Hi: -& ~ +6 dB
• Hi-Mid: -26 dB ~ +6 dB
• Low-Mid: -26 dB ~ +6 dB
• Low: -8 ~ +6 dB
• Compression
• Performance Control Channels: 6
• Filter: HPF, LPF Buttons, Resonance Knob

Send FX:

• Short Delay
• Long Delay
• Dub Echo
• Reverb
• 2 Externals (1/4" TS jack)

MULTI I/O:

• 1/4" / 6.35 mm jack
• USB (Type A)

Beat FX:

• Delay
• Echo
• Ping Pong
• Spiral
• Helix
• Reverb
• Shimmer
• Flanger
• Phaser
• Filter
• Trans
• Roll
• Pitch
• Vinyl Brake

• FX Frequency: Yes
• X-PAD: Yes
• rekordbox Quantize: Yes
• Master Isolator: 3-Band
• Crossfader Crossfader Type: Magvel Fader
• CURVE Assignable: Yes
• Fader Curve: 3
• Microphone Controls Talk Over: 3-Position Switch
• Talk Over Attenuator
• EQ: 2-Band (Hi/Low)
• Beat FX Assign: Button
• Power Locking Power Connector: IEC
• Dimensions (W x H x D) 17.2 x 4.3 x 18.4" / 43.8 x 10.8 x 46.7 cm
• Weight 26.2 lb / 11.9 kg

In the box

• Pioneer DJ DJM-V10 6-Channel

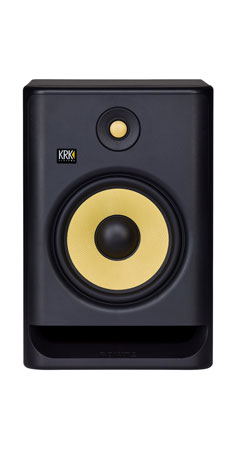

• KRK RP8G4 Pair

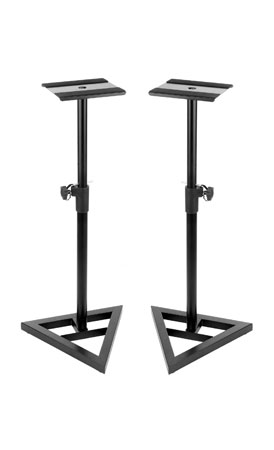

• Monitor Stands

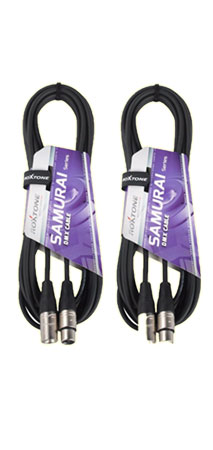

• XLR 15FT Cables
