Pioneer DDJ1000SRT Controller & Pioneer XPRS15 Speakers Package

Pioneer DDJ-REV7 Overview

The innovative, two-channel unit enables artists to maximize the full potential of Serato DJ Pro performance software, and boasts a brand-new design including large, vinylized, motorized jog wheels with On Jog Display to create a tactile connection between artists and their music. The DDJ-REV DJ Controller Series is an ideal solution for open-format and scratch DJs as it emulates a professional DJM-S mixer and PLX turntable setup. For the first time ever on a Pioneer DJ controller, the tempo sliders sit horizontally on the top of the deck sections to mirror PLX turntables in a battle configuration, while the Performance Pads and Lever FX paddles sit in the mixer section to parallel the DJM-S Series mixer design. Unlike a traditional DJ controller, the DDJ-REV7 enables artists to replicate the analog mixing experience with its motorized 7-inch VINYLIZED JOG wheels. The jog wheels feature customizable settings and two slip sheets included inside each deck to allow artists to experiment with torque and friction. The acrylic top plate is uniquely finished to feel like a real analog record, and includes a spin treatment to easily catch on artists' fingertips.

In the center of each jog wheel is a 3.5-inch On Jog Display - delivering essential information to artists such as track waveforms, Hot Cues and playback positions. The On Jog Display features omnidirectional viewing angles for clear readability, regardless of an artist's viewing angle. The DDJ-REV7 also inherits Pioneer DJ's renowned Magvel Fader Pro for a slick and accurate response while scratching. Sampling during scratching is now exceptionally streamlined thanks to the DDJ-REV7's new Instant Scratch buttons. The Instant Scratch buttons, complete with four original samples, are a built-in controller feature, making them accessible to artists without needing a laptop. Artists looking to drop their own samples, even full tracks, can do so by loading samples into the Serato DJ Pro Scratch Bank and tapping the Performance Pads. The DDJ-REV7 has 22 Beat FX's including 3 brand-new ones and five Sound Color FX for dramatic and texturized performances. The new controller also features advanced audio components and produces the highest level of sound quality in the entire Pioneer DJ controller range.

Features:

• Silent Cue: Switch on Silent Cue and avoid the sound of the music speeding up as the platter spins.
• Artists simply select a Hot Cue and hit play on the deck, and it will sound the same as hitting a cue point on a DJ player.
• Smooth Echo: Assign the Smooth Echo effect to a selection of controls, e.g., a fader or pad, and the echo will trigger as soon as the relevant assigned control is moved.

Specifications

Brand-new Motorized, Vinylized Jog: Record-like Feel

At the heart of each deck on the DDJ-REV7 are the new 7-inch motorized jog wheels, featuring the same rotational stability as a 12-inch turntable and recreating the feel of real vinyl records. The jog wheels acrylic top plate is finished with a vinyl-like texture for an effortless finger grip. Artists can choose between low- and high-torque settings and use the two included slip sheets inside each deck - which fit neatly inside the jog wheel - to find their preferred amount of friction. With the DDJ-REV7, manipulating and fading out sound is simple. Artists can switch between a rotation speed of 33? or 45rpm anytime and use the Stop Time setting to adjust how long it takes for the music to end when pressing pause. Artists can also halt the music immediately or slow it down gradually, as if the power on an analog deck was turned off.

On Jog Display: Keep an Eye on Essential Information

In the center of each jog wheel is a 3.5-inch LCD display showing important information and removing the need for artists to switch their gaze between the decks and laptop. The LCD display also features an omnidirectional viewing angle, allowing artists to see the displayed information from any angle. Artists can turn off the digital marker indicating the playback position at any time or mark jog wheels with the included stickers if preferred.

Waveform Mode: View the overall waveform of the track on that deck, plus detailed waveforms of the tracks on both decks side-by-side to make quick, intuitive adjustments. BPM, playback speed, remaining or elapsed time, digital marker for the playback point (which can be turned off), and the number of beats in a loop are also available to view.

Virtual Deck Mode: View the virtual deck of Serato DJ Pro and the number of beats to the next Hot Cue point.

Artwork Display: Display the artwork for the playing track.

DJ Logo Display: Use the Image Transfer Tool for PC/Mac to display a logo or favorite image on each deck.

Instant Scratch: Rapidly Fire Samples with Dedicated Buttons

The DDJ-REV7 features four original scratch samples to trigger with the press of corresponding hardware buttons. Scratch sounds are built directly into the controller, enabling artists to fire them at any time-even if the controller isn't connected to a laptop. If DJs want to use their own samples in the set, they can instantly load scratch samples from four banks assigned in Serato DJ Pro with the Scratch Bank feature.

Advanced Audio Design: Enjoy High-Quality Audio

With a digital-to-analog converter from ESS Technologies and improvements to the audio design, the DDJ-REV7 achieves the highest sound quality of any Pioneer DJ controller. Unwanted noise commonly created by on-board power supplies has been reduced for a purer audio experience.

Magvel Fader Pro: Scratch Freely

Artists can scratch with style and confidence with Pioneer DJ's signature Magvel Fader Pro. Aside from its highly robust design, the fader is customizable with various settings, allowing DJs to find the right feel for their style.

22 Built-in Beat FX Including Three New Additions: Dynamically Change The Sound of Tracks

Artists can add drama to track transitions with three brand-new Beat FX. In total, there are now 22 Beat FX, which can be triggered with the dedicated controls. The new Beat FX include:

Duck Down: A roll effect fading out while lowering the pitch.

Fill Out: A roll effect forming with a changing rhythm pattern and fading out with echo.

Helix Out: An effect sampling the input sound and repeatedly fades it out like a reverb, while increasing the playback speed and pitch.

DJs can pull and hold the effect levers down to apply Serato DJ Pro effects in short bursts or push them up to lock effects. Artists can also instantly trigger effects saved in four FX Banks and edit them via the Setting Utility on a PC/Mac. While using an effect, artists can trigger up to six more from Serato DJ Pro. The DDJ-REV7 also has five popular Sound Color FX for artist experimentation.

Plug and Play Compatibility with Serato DJ Pro: Enjoy Free Use of the Software

After Serato DJ Pro installation on a PC/Mac, artists connect the DDJ-REV7 controller via the supplied USB cable to start DJing. Artists can enjoy tactile control of various features and effects in the software by manipulating the controller's buttons, knobs, faders and jog wheels. A Serato Pitch 'n Time DJ Expansion Pack voucher is included, which enables key shifting and key syncing with high audio performance.

Portable, Sophisticated Design: Take your Performances Anywhere

The DDJ-REV7 is solid and robust, yet lightweight enough to grab by the handles on the chassis and carry to the next gig. Contrasting matte and hairline finishing in different sections of the aluminum top plate creates distinction between the deck and mixer sections, recreating the layout of a traditional turntable and mixer setup, while the On Jog Displays mimic the label in the center of a vinyl record.

• Software : Serato DJ Pro
• Frequency Response : 20 Hz - 20 kHz (USB, LINE, AUX (LINE /PORTABLE), MIC 1, MIC 2)
• S/N Ratio
  • 110 dB (USB)
  • 95 dB (LINE)
  • 84 dB (PHONO)
• Total Harmonic Distortion
  • 0.003% (USB)
  • 0.005% (LINE)
  • 0.017% (PHONO)
  • Input/Output
• Input / Output Terminals
  • Inputs
    • LINE / PHONO x 2 (RCA)
    • MIC x 2 (XLR & 1/4" TRS jack x 1, 1/4" TRS jack x 1)
    • AUX x 1 (RCA)
  • Outputs
    • MASTER x 2 (XLR x 1, RCA x 1)
    • BOOTH x 1 (1/4" TRS jack x 1)
    • PHONES x 2 (1/4" stereo jack x 1, 3.5-mm stereo mini-jack x 1)
  • USB : USB Type-B x 2
• Power Supply AC 100 V - 240 V, 50 Hz / 60 Hz
• Power Consumption DC 24 V, 1000 mA
• Maximum Dimensions (W x D x H) 732 x 382.2 x 82.4 mm / 28.8" x 15.0" x 3.2"
• Weight 10.7 kg / 23.6 lbs.
• Accessories
  • AC adapter
  • Power cord
  • USB cable
  • Warranty (for some regions)
  • Quick Start Guide
  • Precaution for Use
  • Serato DJ Pro Expansion Pack voucher

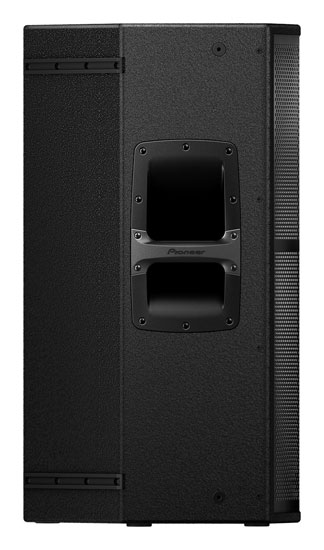

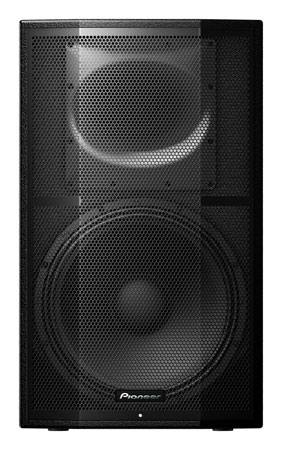

Pioneer XPRS15 Description

Hardwood enclosures and high-quality driver materials produce a natural sound

The speakers are enclosed in 15 mm birch plywood cabinets to deliver a natural, dynamic sound. Pioneer's patented AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs just the standing waves, increasing the low frequency response.

The XPRS15 uses lightweight 12-inch ferrite LF drivers and 1.75-inch titanium diaphragm compression drivers.

Powersoft Class D amps for reliable, high-powered performance

Powersoft's new Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output, similar to that of larger stand-alone speaker amplifiers. The amps are equipped with Power Factor Correction (PFC) to reduce power consumption while ensuring reliability and a steady performance in all environments.

The auto-ranging power supply means you plug in the XPRS Series anywhere in the world - including venues with generators or temporary power supplies - and expect the same high quality sound.

Advanced protection features help prolong your speakers' life

We've packed the speakers with features to protect the driver, amp and power supply - giving you peace of mind, consistent high quality sound, and extending the life of your sound system.

Amplifier protection

• Thermal limiting: cuts off to prevent overheating.
• Output overcurrent: reduces the speaker's output to safe levels in the event of output overcurrent.

Speaker protection

• DC offset removal: shuts down to prevent further damage if the speaker blows.
• Stationary High Frequency Protection: protects the speaker from loud bursts such as feedback.
• Input voltage limiter: Peak and RMS.
• Output voltage limiter: cuts the LF and compression drivers separately when either reaches their peak.

Power protection

• AC mains over-voltage protection: protects against power surges.
• Plus the status LED on the front of the cabinet can has three settings - power, limiter or off - giving an optional visual reference to the status of the speaker.

High-performance drivers deliver a powerful, full range sound

Both speakers use a high-grade ferrite LF driver (12-inch) and a 1.75-inch titanium diaphragm compression driver to reproduce a clean, full range sound with low distortion even at high outputs.

Four EQ modes for a variety of genres and environments

Buttons on the back of the speakers give you instant access to four EQ modes:

• Flat: neutral production of the source audio.
• Bass +: amplifies the bass for dance music events.
• Speech: produces clear vocal sounds for seminars and speeches.
• Wedge: reduces the low frequencies to give a more balanced sound if you're using the speaker as a floor monitor.

Rotatable horn lets you mount the speakers vertically and horizontally

The speakers' horn gives a dispersion of 90 x 60 degrees and can be rotated by 90 degrees - giving you flexibility to mount the speakers vertically or horizontally to choose the coverage to suit your space.

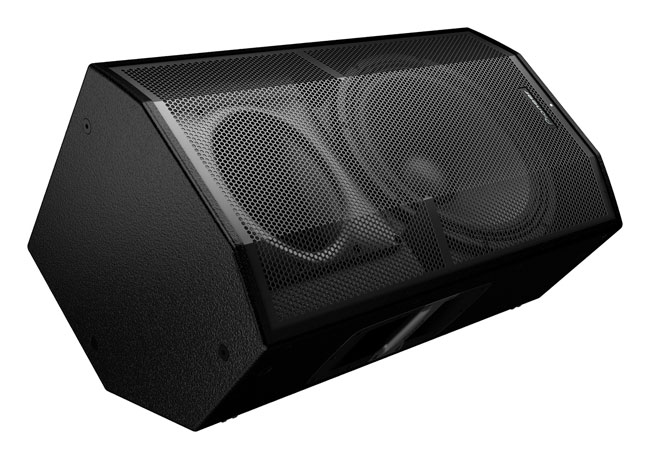

Wedge shape and polemount socket with tilt for a choice of three positions

The XPRS15 speakers are wedge shaped, making them ideal floor monitors. Or the polemount socket can be set to straight or tilted to 7 degrees to direct the sound exactly where you want it.

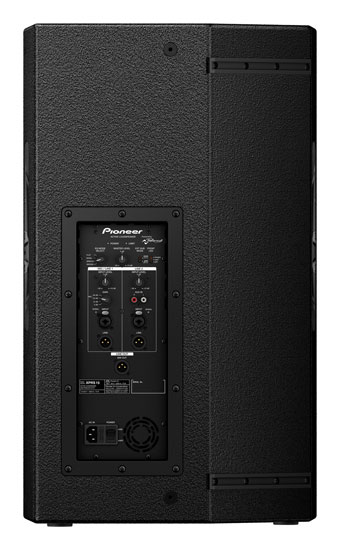

Multiple inputs and outputs for flexible, easy set-up

The speakers have two balanced XLR/TRS combo sockets and an unbalanced RCA connection, so you can connect a MIC and other external devices at the same time - including using an AUX cable to connect and play directly from portable audio players, line-level mixers and tablets/smartphones. Each input can be controlled individually or using the master controls for lines one and two. Plus two balanced XLR through output terminals enable easy connection to other speakers and subs.

• Speaker Type: 15" 2-way full range, bass reflex, bi-amp, active speaker
• System characteristic:
• Frequency Response(-10 dB) 40 Hz to 20 kHz
• Dispersion (H x V) 90° x 60° (rotatable)
• Maximum SPL (peak@1m/1w) 136 dB
• Crossover Frequency 2.0 kHz
• Amplifier
• Amplifier type Class D
• Power Rating 2400 W peak / 1200 W cont. (LF800 W/HF400 W)
• Input connectors 2x XLR/TRS Combo (balanced), 2x RCA (unbalanced)
• Impedance 10 kO
• Output connectors 2x Through output XLR (balanced)
  1x Mixed output XLR (balanced)
• Speaker
• LF driver 15-inch ferrite LF cone driver
• HF driver 1.75-inch titanium diaphragm neodymium compression driver
• Enclosure 15 mm birch plywood, bass reflex type
• Finish Impact-resistant, black semi-matt textured
• Handle 2 (on both sides)
• Pole socket 35 mm socket (0°/7° multi-angle)
• Rigging point 12x M10
• Protection
• Amplifier Protection Thermal limiting, over-temperature muting, output overcurrent
• Driver Protection DC offset removal, high frequency stationary loud signals, input voltage limiter (Peak/RMS)
• Power unit Protection Primary AC mains overvoltage protection, Primary AC mains overcurrent protection
• Power unit/other
• Supported voltages 100 V (50 Hz/60 Hz) / 110 V to 240 V (50 Hz/60 Hz)
• Power consumption 175 W
• Dimensions (W x H x D) 445 x 750 x 416 mm
• Weight 28.5 kg

Pioneer DJ HDJ-X5 Over-ear DJ headphones (black)

Overview

Prime Sound Quality

Hear your tracks loud and clear in the booth and on the move with the HDJ-X5. By taking on board feedback from DJs and analysing many different styles of monitoring, we've made sure our new DJ headphone range includes all the features needed for performing at every level. Thanks to the high-quality audio design inherited from our previous professional DJ headphones, you can enjoy distortion-free monitoring, even at high volumes, wherever you go.

The HDJ-X headphones are designed to be flexible. Their swivel mechanism allows you to wear them comfortably, whichever way you prefer, for long periods of time. No need to worry about bumps and knocks during transport as these DJ headphones can handle severe conditions and heavy use. They even cleared the US Military Standard Shock test.

Key Features

Outstanding sound

With a new 40-mm driver, hear your tracks loud and clear. The 4-core twisted-structure cable gives superior left and right channel separation and the magnetic circuit is optimised so, thanks to fine noise suppression and elaborate tuning, you can enjoy distortion-free sound.

High-quality audio design

The HDJ-X5 headphones feature a new 40-mm driver with copper-clad aluminum wire (CCAW) voice coils. The magnetic circuit is optimised and thanks to fine noise suppression and elaborate tuning, so you can enjoy clear, distortion-free sound for easy monitoring.

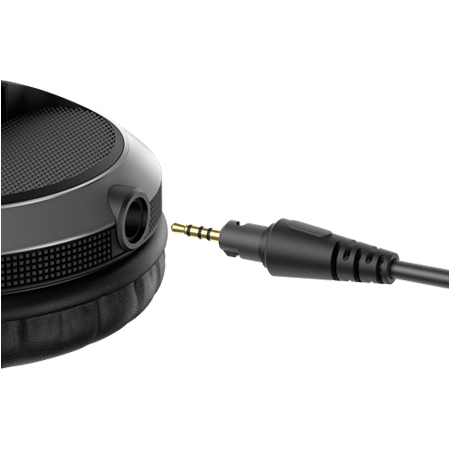

4-core twisted-structure cable

The independent ground wire in the 4-core twisted-structure cable gives superior left and right channel separation, improving sound quality.

Bass reflex chamber

The bass reflex chamber in the upper housing ensures excellent bass response and sound insulation.

Rigorously tested

Take the HDJ-X headphones on the road and feel confident they'll handle severe conditions and heavy use. All the HDJ models have cleared the US Military Standard Shock test* as well as our own stringent stress testing.
*MIL-STD-810G

Comfortable fit

These headphones are comfortable to use no matter how you wear them. The housing design reduces pressure on your head, while its outside texture enhances grip. To help you find the perfect fit, they also feature a flexible, durable headband and a flexible swivel.

Solid, refined design

All the HDJ-X headphones feature a refined look and durable construction. Choose from black or silver versions to complete your desired look.

Main Features

• Type : Closed, dynamic
• Driver Units : 40 mm dome type
• Cord : 1.2 m short coiled cable (1.8 m extended length)
• Included Accessories : 6.3 mm stereo plug adapter (threaded type), Carrying pouch

Specifications

• Weight (without cord) : 269 g
• Maximum Input Power : 2000 mW
• Output Sound Level : 102 dB
• Frequency Range :L 5 - 30000 Hz
• Impedance : 32 O

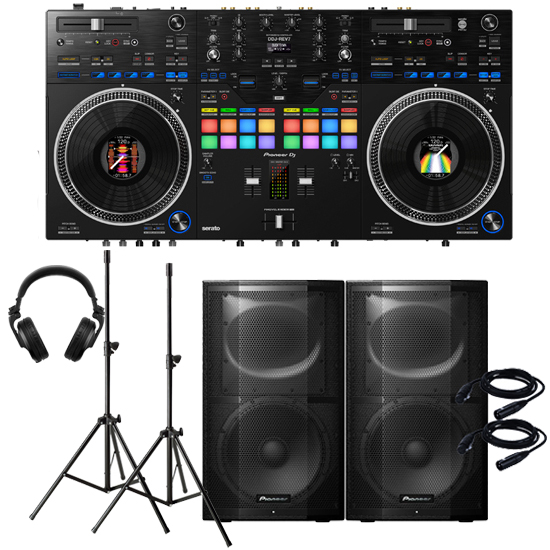

This Package Includes:

• (1) Pioneer DDJ-REV7 DJ Controller
• (2) Pioneer DJ XPRS15 speakers
• (1) Pioneer DJ HDJ-X5 Over-ear DJ headphones (black)
• (2) Speaker Stands & Cables
