Pioneer DDJ1000SRT and QSC K12-2 with QSC KS112 Package

FEATURES

BIG JOG AND MAGVEL FADER

Scratching feels intuitive thanks to the full-size jog wheels, which you can set to your preferred resistance using Jog Adjust, and a MAGVEL FADER. Highly durable for more than 10 million movements, the MAGVEL FADER makes intricate performances feel easy.

CLUB-STYLE LAYOUT

The buttons and knobs on this Serato DJ Pro controller are arranged in the same way as those on our club-standard NXS2 DJ equipment. As a result, transitioning between this setup and gear you find in DJ booths is a breeze.

ON JOG DISPLAY

See all the information you need via the full-color, high-definition LCD screen in the center of each jog. Monitor playback time, BPM, playback position, and more. This feature's easy to use, with the display matching the Serato DJ Pro GUI.

PROFESSIONAL FX

Enhance tracks using 4 popular Sound Color FX – Pitch, Filter, Dub Echo, and Noise – from our DJM-series DJ mixers, and get creative with 14 Beat FX. You can instantly reference BPM and the name of the selected FX thanks to the dedicated Beat FX screen.

WELL CONNECTED

The DDJ-1000SRT has 4 inputs so you can connect to CDJs or analog turntables, and use it as a stand-alone DJ mixer. You can also connect directly to PA speakers and microphones thanks to a Booth, 2 Master, and 2 Mic inputs.

Performance Pads

Hit the 16 back-lit rubber Performance Pads to trigger Hot Cues, Rolls, Slicer, Sampler, and Pitch Play at a touch.

Key Shift and Key Sync

Enjoy the key-related features in Serato Pitch 'n Time DJ. You can shift and sync the key of tracks, get creative in extreme tempos, and mix, cut, and scratch while maintaining perfect key and audio quality.

Unlocks Serato DJ Pro

Simply connect the DDJ-1000SRT to your PC/Mac to instantly enable Serato DJ Pro – no need for a license key or subscription.

Paid upgrade to Serato DVS

Pick up the Serato DVS Expansion Pack to control and scratch with CDJs or turntables.

Specification:

General

• Channels: 4
• Bit resolution: 24-bit
• Sampling rate: 44.1kHz
• Frequency response: 20Hz – 20kHz

Connectivity

• Phono inputs: 2 (RCA)
• CD/Line inputs: 2 (RCA)
• Mic inputs 2
• USB ports: 2
• Booth out: TRS
• Master out: 2 (RCA, XLR)

Onboard Features

• Displays: 4
• Jog wheels: Yes
• Touch strip No
• Mixer: 4-channel
• EQ: 3-band
• Filter control: Yes
• Built-in FX: Yes
• Trigger pads 16
• Loop recorder: Yes
• DJ software: Serato DJ Pro

Other

• Width: 27.87"
• Height: 2.88"
• Depth: 14.22"
• Weight: 13.22 lb.

QSC K12-2 Active Powered 12" Speaker Subwoofer

Features:

The QSC K.2 Series represents the best-inclass loudspeaker for today's demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.

Speakers Specifications

• Best in class audio performance
• 2000 Watt Class-D amplifier module
• Intrinsic Correction™ tuning and loudspeaker management
• DMT™ (Directivity Matched Transition) design provides excellent power response and consistent performance across the listening are
• Refined, professional appearance looks great in any application
• Rugged ABS enclosure for long life and lasting durability
• Deployment in either main PA or floor monitor position
• Factory Presets and savable/recallable Scenes for commonly-used application
• Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
• Dual pole cup mounts (standard and 7.5 degree down-tilt)
• M10 fittings for flown applications
• Optional security panel prevents unauthorized tampering of controls
• Complete EASE and CAD information available online
• 6-Year Warranty (with product registration)

Advanced Power and DSP

The 2000 Watt power module delivers ample burst and continuous power for the loudspeaker's premium drivers. It has been designed with very low-noise fan cooling, enabling the enclosures to be used in settings where background noise must be kept to a minimum. Carefully tailored, subtle and sophisticated dynamics processing is used to protect the drivers from damage and the performance from distortion.

Presets

The user may select from an extensive list of factory preset EQ contours including Live, Dance, Monitor, and many more

Scenes

Savable and recallable Scenes can store information like user EQ, Delay, and input configuration settings.

Inputs

A pair of balanced combo XLR/F plus 1/4" TRS connectors with independent gain control are provided. The first is equipped with selectable MIC/LINE (Microphone or Line) level input while the second offers selectable HI-Z/LINE (High Impedance or Line) level input, specifically for musical instruments. Both inputs are connected directly to a pair of XLR/M throughput connectors so that the signals may be "daisy-chained" to another audio device. A 3.5 mm TRS input jack with independent gain control is also provided for connection of sources such as smart phones, computers, and MP3 players.

Outputs

In addition to the two throughput XLRs, a line-level output with the mixed signal from all inputs is also provided. (An optional security cover (K-LOC) may be installed to prevent unauthorized tampering of settings)

Coverage

DMT™ (Directivity Matched Transition) design matches the coverage angle of the woofer at the cross-over frequency with the horn pattern to ensure uniform response across the coverage area. Intrinsic Correction techniques are also employed ensuring smooth power response from the loudspeaker. The result is an extremely accurate loudspeaker that behaves well in a wide range of acoustic spaces with little or no equalization.

Flexible Design

Each model is housed in a rugged ABS enclosure with a professional yet unobtrusive appearance that is at home in any application. Each model can be utilized in either main PA or floor monitor applications, while ergonomic handles and a heavy-duty steel grille with fabric lining further enhance overall appearance and functionality. The dual pole cups allow a zero or 7.5 degree downward tilt when deployed on a pole. This allows for more even coverage across the listening area and less problems due to rear wall reflections. For suspended applications, integrated M10 fittings with a single pullback are included to accommodate M10 eyebolts. An optional yoke mount accessory is also available for permanent installation to walls and ceilings or for temporary attachment to truss (requires 3rd party hardware). 6-Year Warranty: Robust QSC reliability backed by a global 6-Year Warranty*

• Configuration : Multi-purpose, 2-way powered loudspeaker
• LF Transducer : 12" (305 mm), cone
• HF Transducer : 1.4" (35.6 mm) titanium diaphragm compression driver
• Frequency Response (-6 dB) : 50 Hz - 20 kHz
• Frequency Range (-10 dB) : 45 Hz - 20 kHz
• Nominal Coverage Angle : 75° Axisymetric
• Maximum Rated SPL1 : 132 dB @ 1 M, peak 126 dB @ 1 M, continuous
• Amplifier : Class D Peak: 1800 W (LF), 225 W (HF)
• Cooling : Low-noise, variable speed fan
• Controls : Power 3 x Level Rotary encoder (push) 2 x selection buttons
• Indicators : Monochrome LCD Display 1.75" x 1" (45 mm x 25.4 mm) 2 x Power LED (front and rear) 3 x Input Signal LED Input A Mic selected LED Input B Hi-Z selected LED Limiter active LED
• Connectors : 2 x locking XLR/F " combo (Mic/Line Input and Hi-Z/Line Input 1 x 3.5 mm TRS (Stereo Input) 2 x XLR/M (Loop-thru Output) 1 x XLR/M (Mix Output) 1 x locking IEC power connector
• AC Power Input : Universal power supply 100 240 VAC, 50 60 Hz
• AC Power Consumption 1/8th Power² : 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
• Enclosure Details
• Enclosure Enclosure : Impact Resistant ABS
• Attachment Points : 2 x M10 threaded inserts plus Pull-Back
• Color : Black (RAL 9011)
• Grille : 18 Gauge powered coated steel, internal cloth lining
• Dimensions (HxWxD): 23.7 x 14 x 13.8 in 602 x 356 x 350 mm
• Net Weight : 17.7 kg (39 lbs)
• Shipping Weight : 21.7 kg (47.8 lbs)
• Regulatory : CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
• Optional Accessories : K12 Tote, K12 Outdoor Cover M10 Kit-C, K.2-LOC LockOut Cover K12.2 Yoke

QSC KS112 Description

The QSC KS112 is an ultra-compact powered subwoofer for installation and highly portable entertainment applications. The QSC KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 watt peak power class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.

Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).

Features

• High Output in an ultra-compact form factor
• 2000 Watt class D amplifier module
• 12-inch, long-excursion driver; 6th order bandpass design
• Variable crossover and savable/recallable scenes for commonly-used applications
• Intrinsic Correction^™ tuning and loudspeaker management
• Refined, professional appearance looks great in any application
• Rugged painted wood enclosure for long life and lasting durability
• Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings
• Optional KS-LOC security cover prevents unauthorized tampering of controls
• Complete EASE & CAD information available online
• 6-Year Warranty*

Specifications

• Configuration : 6th-Order Bandpass Subwoofer
• LF Transducer : 12-inch (305 mm), Cone
• Frequency Response (-6 dB) : 41 Hz - 108 Hz
• Frequency Range (-10 dB) : 38 Hz - 121 Hz
• Maximum Rated SPL¹ : 128 dB @ 1 m (peak)
• Amplifier : Class D
  2000W (peak)
• Cooling : Low-noise, variable speed fan
• Controls : Power On/Off
  Gain Control
  Rotary encoder
  2 x selection buttons
• Indicators : 2 x Power LED (front and rear)
  Input Signal LED
  Limiter Active LED
• Connectors : 2 x locking XLR/F 1/4" combo
  2 x XLR/M (Loop-thru Output)
  1 x locking IEC power connector
• AC Power Input : Universal power supply 100 - 240 VAC, 50 - 60 Hz
• AC Power Consumption : 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A
• Enclosure Details
• Enclosure : 15 mm Birch Plywood
• Color : Black (RAL 9011)
• Grille : Internal woofer cover
• Dimensions (HWD) inches : 24.5 x 15.5 x 24.25
• Dimensions (HWD) mm : 622 x 394 x 616
• Net Weight : 28.4 kg (62.6 lbs)
• Shipping Weight 34.5 kg (76 lbs)
• Regulatory : CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
• Included Accessories : 4 x Low-Noise, Heavy Duty Casters
• Optional Accessories : QSC KS112 CVR Transport Cover, KS-LOC Lock-Out Cover
  SP-16X Extension Pole, SP-36 Extension Pole

• ¹ Peak SPL is measured on-axis at 1m, pink noise crest factor 10dB, unweighted Continuous SPL is based on theoretical calculations based upon transducer sensitivity and peak available power (for comparison purpose and in accordance with common industry practice.

Downloads

• Specifications Sheet

Gemini DJ ST-Pack Dual Speaker Stands with Carrying Case

(2) Speaker stands with carrying case, stands extend to 6' 2".

Features:

• Works with internal or external speaker mounts.
• Hand adjustable bold tightens shaft in any location from 43" (1.1m) to 80" (2m).
• Locking safety pin adds another layer of security, keeping your speaker securely in place.
• 120-degree tripod leg design spreading from 32" (81cm) to 48" (122cm), expanding up to twice the width of the speaker cabinet.
• Black powder coating finish.
• Non-slip rubber feet.
• Holds up to 200lb (90kg)
• Tube diameter: 1-3/8" (35mm)

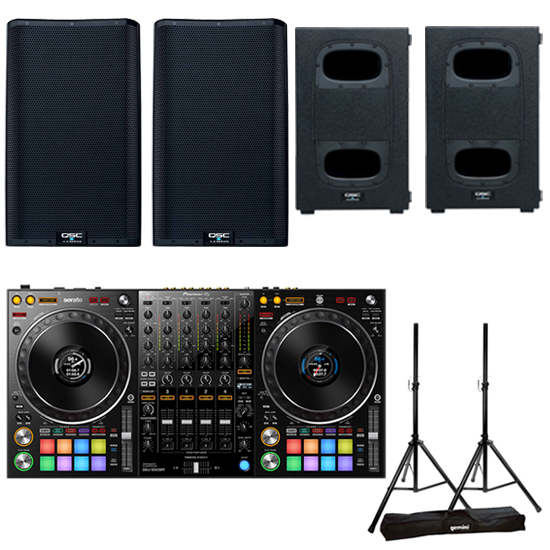

This Package Includes:

• (1) Pioneer DDJ1000SRT
• (2) QSC K12-2
• (2) QSC KS112
• (1) Gemini DJ ST-Pack
