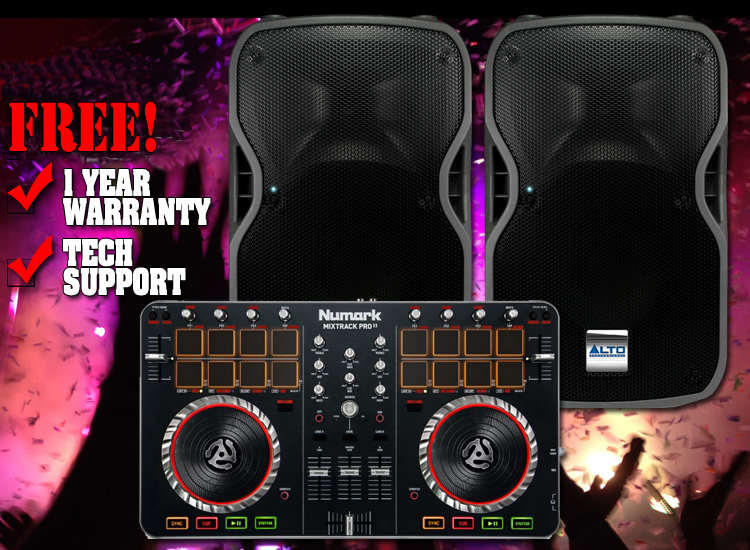

MixTrack 2 TS110A DJ System

Overview

• Numark MixTrack Pro 2 Digital DJ Controller
  • 16 backlit rubber drum pads with Loop Mode, Sample Mode, and Hot Cue Mode
  • Touch-activated illuminated platters for precise scratching and control
  • Complete mixer section with a crossfader, 3-band EQ, and music library navigation controls
  • 16 dedicated effects controls to add and manipulate flanger, phaser, echo, and more
  • Built-in audio system for headphone cueing, microphone input, and PA system output
  • Pitch and Sync controls for seamless and easy mixing
  • Serato DJ Intro software included
  • Standard MIDI for use with most popular DJ software
  • Class-compliant with both Mac and PC; no driver required
  • USB-powered; no power adapter required
  • 1/8" and 1/4" headphone inputs
• Two Alto TS110A Powered DJ Speakers
  • ACTIVE 600 WATT 2-WAY 10" LOUDSPEAKER
  • 600 Watts Class D power
  • 10" low-frequency transducer, 1" neodymium driver
  • Two Mic/Line combo inputs with independent volume controls
  • XLR output to link speakers
  • Lightweight, trapezoidal cabinet with handle
  • Stand and pole-mountable or flyable
  • Clip Limiter with red LED
  • Ground Lift switch
  • Contour switch for increased EQ control
  • Accurate audience coverage, not just on-axis
  • Use as traditional upright loudspeaker or as floor wedge monitor
  • Designed and tuned in the USA
  • Transducer Low: 10" Woofer with 1.5" voice coil
  • Transducer High: Neodymium compression driver, 1" exit with 1" voice coil
  • Power Amplification: 600 Watts peak (470 W LF + 130 W HF), 300 Watts continuous (235 W LF + 65 W HF)
  • Frequency Range: (-10 dB): 53 Hz - 20 kHz
  • Frequency Response: (±3 dB): 70 Hz - 19 kHz
  • Maximum SPL @ 1m: 123 dB peak, 120 dB continuous
  • -6 dB Nominal Coverage: 80° / 100° x 60° nominal
  • Active Crossover: 2.5 kHz
  • Connectors: 2 x Mic / Line Female XLR - 1/4" combo inputs, 1 x Loop - Out Male XLR
  • Input Control: Line / Mic -8 to +50 dB, Maximum input level +23 dBu , Input Impedance 15 kOhms
  • External Controls: Volume, Power switch with LED indicator, Clip/Limit LED, Ground Lift switch
  • Protection Features: Over-excursion, Thermal, Driver
  • AC Power: 100 VAC, or 110 – 120 VAC, or 220 - 240 VAC (50 / 60 Hz)
  • Enclosure: Trapezoidal, with floor monitor capability. Injection molded, polypropylene enclosure, with perforated steel grille
  • Mounting: Integrated pole-socket (36 mm dia.) One Handle, four M10 threaded sockets: 2 top, 2 bottom
  • Dimensions (WxLxH): 20.2in x 12.99in x 11.73in
  • Weight: 26.6 lb
