Pioneer DDJ-REV1 & Pioneer XPRS12 Speakers Package

Pioneer DDJ-REV1

The two-channel unit comes equipped with Serato DJ Lite software and boasts a new battle-style layout for artists looking to begin scratch and open-format DJing. The DDJ-REV DJ Controller Series is an ideal solution for open-format and scratch DJs as it emulates a professional DJM-S mixer and PLX turntable setup. For the first time ever on a Pioneer DJ controller, the tempo sliders sit horizontally on the top of the deck sections to mirror PLX turntables in a battle configuration, while the Performance Pads and Lever FX paddles sit in the mixer section to parallel the DJM-S Series mixer design.

The all-new DDJ-REV1 features a spacious layout to test out new mixing techniques, and scratch-ready jog wheels, which are noticeably larger than jogwheels on Pioneer DJ's previous beginner level controllers. The controller is an ideal kit starter piece for artists considering learning how to battle, scratch and stream their sets. Artists can begin scratching right away with the controller's Tracking Scratch feature. Tracking Scratch enables artists to automatically return the track to its cue point by moving the jog wheel backward or taking their hand away from the controller-removing the need for crossfader use or jog wheel wind back. Artists can choose their desired Scratch Crossfader Cuts pattern by pressing the relevant Performance Pad and pushing the jog forward to scratch. In addition, artists can use the controller's Performance Pads to instantly trigger their favorite samples or tracks loaded on the Serato DJ Lite Scratch Bank-a feature previously only available in Serato DJ Pro. The controller also features Deck 3/4 Control, allowing artists to play sounds from all four decks in the software. Pioneer DJ's DDJ-REV1 controller makes it easy for artists to integrate speech and vocals into their sets for social media livestreams. Unlike previous controllers which require an external soundcard or mixer, artists simply plug their microphone into the DDJ-REV1 and the vocal audio goes straight to their laptop and into the stream.

Features:

• Deck 3/4 Control: Play tracks and sounds loaded on any of the four Serato DJ Lite decks.
• Serato DJ Pro Support: Elevate performances with a 14 day free trial of Serato DJ Pro.
• Paid Permanent Upgrade Available Separately.
• Battle-Style Setup.
• Bigger Jog Wheels.
• Lever FX.

Pioneer XPRS12

Hardwood enclosures and high-quality driver materials produce a natural sound

The speakers are enclosed in 15 mm birch plywood cabinets to deliver a natural, dynamic sound. Pioneer's patented AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs just the standing waves, increasing the low frequency response.

The XPRS12 uses lightweight 12-inch ferrite LF drivers and 1.75-inch titanium diaphragm compression drivers.

Powersoft Class D amps for reliable, high-powered performance

Powersoft's new Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output, similar to that of larger stand-alone speaker amplifiers. The amps are equipped with Power Factor Correction (PFC) to reduce power consumption while ensuring reliability and a steady performance in all environments.

The auto-ranging power supply means you plug in the XPRS Series anywhere in the world - including venues with generators or temporary power supplies - and expect the same high quality sound.

Advanced protection features help prolong your speakers' life

We've packed the speakers with features to protect the driver, amp and power supply - giving you peace of mind, consistent high quality sound, and extending the life of your sound system.

Amplifier protection

• Thermal limiting: cuts off to prevent overheating.
• Output overcurrent: reduces the speaker's output to safe levels in the event of output overcurrent.

Speaker protection

• DC offset removal: shuts down to prevent further damage if the speaker blows.
• Stationary High Frequency Protection: protects the speaker from loud bursts such as feedback.
• Input voltage limiter: Peak and RMS.
• Output voltage limiter: cuts the LF and compression drivers separately when either reaches their peak.

Power protection

• AC mains over-voltage protection: protects against power surges.
• Plus the status LED on the front of the cabinet can has three settings - power, limiter or off - giving an optional visual reference to the status of the speaker.

High-performance drivers deliver a powerful, full range sound

Both speakers use a high-grade ferrite LF driver (12-inch) and a 1.75-inch titanium diaphragm compression driver to reproduce a clean, full range sound with low distortion even at high outputs.

Four EQ modes for a variety of genres and environments

Buttons on the back of the speakers give you instant access to four EQ modes:

• Flat: neutral production of the source audio.
• Bass +: amplifies the bass for dance music events.
• Speech: produces clear vocal sounds for seminars and speeches.
• Wedge: reduces the low frequencies to give a more balanced sound if you're using the speaker as a floor monitor.

Rotatable horn lets you mount the speakers vertically and horizontally

The speakers' horn gives a dispersion of 90 x 60 degrees and can be rotated by 90 degrees - giving you flexibility to mount the speakers vertically or horizontally to choose the coverage to suit your space.

Wedge shape and polemount socket with tilt for a choice of three positions

The XPRS12 speakers are wedge shaped, making them ideal floor monitors. Or the polemount socket can be set to straight or tilted to 7 degrees to direct the sound exactly where you want it.

Multiple inputs and outputs for flexible, easy set-up

The speakers have two balanced XLR/TRS combo sockets and an unbalanced RCA connection, so you can connect a MIC and other external devices at the same time - including using an AUX cable to connect and play directly from portable audio players, line-level mixers and tablets/smartphones. Each input can be controlled individually or using the master controls for lines one and two. Plus two balanced XLR through output terminals enable easy connection to other speakers and subs.

• Speaker Type: 12" 2-way full range, bass reflex, bi-amp, active speaker
• System characteristic:
• Frequency Response(-10 dB) 50 Hz to 20 kHz
• Dispersion (H x V) 90° x 60° (rotatable)
• Maximum SPL (peak@1m/1w) 135 dB
• Crossover Frequency 2.0 kHz
• Amplifier
• Amplifier type Class D
• Power Rating 2400 W peak / 1200 W cont. (LF800 W/HF400 W)
• Input connectors 2x XLR/TRS Combo (balanced), 2x RCA (unbalanced)
• Impedance 10 kO
• Output connectors 2x Through output XLR (balanced)
  1x Mixed output XLR (balanced)
• Speaker
• LF driver 12-inch ferrite LF cone driver
• HF driver 1.75-inch titanium diaphragm neodymium compression driver
• Enclosure 15 mm birch plywood, bass reflex type
• Finish Impact-resistant, black semi-matt textured
• Handle 2 (on both sides)
• Pole socket 35 mm socket (0°/7° multi-angle)
• Rigging point 12x M10
• Protection
• Amplifier Protection Thermal limiting, over-temperature muting, output overcurrent
• Driver Protection DC offset removal, high frequency stationary loud signals, input voltage limiter (Peak/RMS)
• Power unit Protection Primary AC mains overvoltage protection, Primary AC mains overcurrent protection
• Power unit/other
• Supported voltages 100 V (50 Hz/60 Hz) / 110 V to 240 V (50 Hz/60 Hz)
• Power consumption 167 W
• Dimensions (W x H x D) 380 x 647 x 398 mm
• Weight 23.1 kg

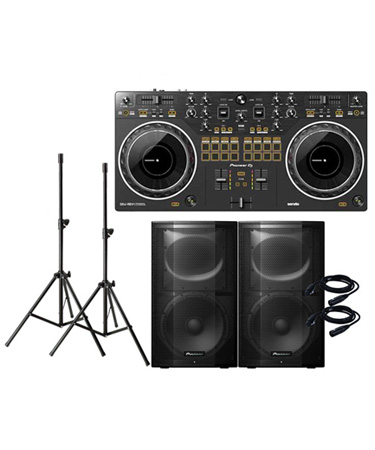

This Package Includes:

• Pioneer DDJ-REV1 Controller
• (2) Pioneer DJ XPRS12 speakers
• Speaker Stands & Cables
