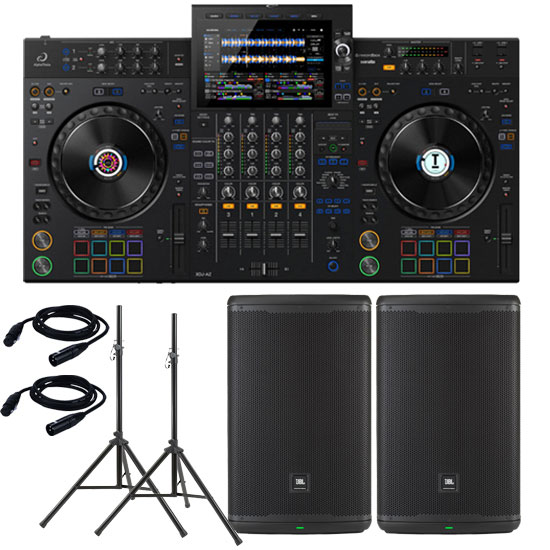

AlphaTheta XDJ-AZ and JBL EON715 Package

The XDJ-AZ inherits the layout and feel of the flagship CDJ-3000 and DJM-A9DJM-A9 to give you an intuitive experience. When you perform on the system, it feels as if you're at one with the decks, allowing for more creative performances. With full-size jog wheels that feel just like those on the CDJ-3000, pitch bending and scratching on the XDJ-AZ are incredibly smooth. The mixer section inherits the intuitive layout of the DJM-A9, with all controls positioned to maximize playability. And it features user-friendly buttons for assigning Beat FX to help you express yourself through the music. So, when you've mastered the XDJ-AZ, you'll be familiar with the way club-standard equipment works and feels, making it much easier to perform at your best in clubs.

Built-in Wi-Fi® and support for various media types to suit your DJ style

rekordbox CloudDirectPlay compatibility

Access your cloud-based rekordbox library directly from the XDJ-AZ with CloudDirectPlay. You can use the latest version of your playlists and performance data, such as Hot Cue information, and even update it from the unit. This not only ensures a seamless DJ experience but also allows you to do all your preparation solely from your all-in-one system.

StreamingDirectPlay compatibility

With support for Beatport Streaming, the StreamingDirectPlay feature enables you to directly play tracks from Beatport's vast dance music library and the latest genre-specific playlists. You'll even get analysis data such as waveform, BPM, and grid information so you can easily mix new and diverse music into your sets.

Extensive device and DJ application compatibility

As well as playing tracks from USB drives, you can DJ by connecting to your PC/Mac or mobile device. And, if you want to showcase your individuality even further, you can play audio from external devices like turntables and samplers. The unit has a USB Type-C port for PC/Mac connection, so you can use rekordbox for Mac/Windows in Performance mode or Serato DJ Pro*1 and there's no need for a paid subscription plan for either. And, if you use the Wi-Fi® connection for rekordbox Link Export, you can conveniently access tracks from your PC/Mac or mobile device without needing to plug in cables.*2

*1 Coming December 2024.
*2 You can use the Link Export of rekordbox for Mac/Windows or rekordbox for iOS/Android. Link Export in rekordbox for Android doesn't support wired connections.

Large touchscreen for seamless control, from selecting tracks to performing

The 10.1-inch capacitive touchscreen on the XDJ-AZ doesn't just give you more visual information - it makes it easier to control everything too. Up to 13 tracks can be displayed at once - a massive increase from the 8 on the XDJ-XZ - so you can see more of your music and find songs quicker. Other advanced features include Playlist Bank, to which you can register up to 4 playlists for rapid access, Touch Preview, which allows you to preview tracks in playlists without loading them, and Touch Cue, which you can use to preview the upcoming section of tracks currently playing on the deck. All this makes track selection quick and smooth. And, with the option to display the status of the selected Performance Pad and Beat FX settings simultaneously, you can instantly grasp the information you need in order to perform.

Standalone 4-deck playback: DJ your way

Whether you want to add more sounds to your mix, create live mashups, go back-to-back with another DJ, or get more tracks lined up so you're ready to drop them at the perfect time, 4-deck playback support on the XDJ-AZ gives you the flexibility to perform however you like. You can seamlessly integrate CDJs into your setup too, so there's no need to switch decks. With PRO DJ LINK™ compatibility, beat and on-air information are synced across the players, so you'll feel in full control.

Ultra-low-latency wireless monitoring with SonicLink-compatible DJ headphones

Thanks to the integrated SonicLink transmitter, you can enjoy ultra-low-latency wireless monitoring with the HDJ-F10 professional DJ headphones. Press a single button to pair the XDJ-AZ with the headphones and you can move around the DJ booth or stage freely, knowing you'll never tangle or pull on a cable. SonicLink is AlphaTheta's own proprietary ultra-low-latency wireless technology. It transmits audio 20 times faster than the commonly used Bluetooth® SBC codec, so you'll never notice a delay between pressing a button or scratching with the jog wheels and hearing the sound from the output.

Professional club-ready quality

Clear and dynamic audio

If you're familiar with the preceding XDJ-XZ, you'll notice various upgrades have been made in the design of the XDJ-AZ. By incorporating a 32-bit D/A converter from ESS Technology, the sound quality has been significantly enhanced to create clear and dynamic audio that can rock large venues and clubs.

3-Band Master EQ

You can also use the 3-Band Master EQ to tweak the output sound according to the acoustic characteristics of the venue.

Mixer Settings

And the unit features a dedicated button for the mixer settings, so you can quickly check and adjust the mixer's status on-screen.

Other features

Hardware Unlock

The XDJ-AZ is a Hardware Unlock device. Simply plug the XDJ-AZ into a PC / Mac running the rekordbox application and you can use the software.

Serato DJ Pro

Simply plug the XDJ-AZ into a PC / Mac running the Serato DJ Pro application and you can use the software. (Coming December 2024).

3 USB ports

Perform back-to-back with another DJ and hand over smoothly thanks to the 3 USB inputs (2 top-loading for USB devices and 1 laptop connection).

rekordbox Link Export

Play tracks directly from your PC/Mac or mobile device by connecting via a USB cable, LAN cable, or wireless connection.

Performance Pads

Hit the 8 back-lit rubber Performance Pads to trigger Hot Cues, Beat Loop, Slip Loop and the Beat Jump.

Gate Cue

Experiment with your pad play using Gate Cue, which plays the music from the cue point only when you press the pad. Take your finger off the pad and the music stops instantly, and silently returns to the cue point.

Easy to carry

Be ready to play at a moment's notice. The single-unit design with grab handles makes carrying and setup easy.

High-quality audio

The mic input circuit produces crystal-clear sound, even with a high input level.

Firmware Update Manager

You'll be automatically notified when firmware updates become available. You can download the Firmware Update Manager here.

AlphaTheta Care

Our extended product warranty service ensures longer and more reliable use of your products. Click here for details.

Specifications

• Maximum Dimensions (W x D x H) 895 x 504.1 x 133.4 mm / 35.24" x 19.85" x 5.25"
• Main unit weight 13.5 kg / 29.8 lbs.
• Frequency response 20 Hz - 20 kHz (USB)
• S/N ratio 115 dB (USB)
• Total harmonic distortion 0.0018 % (USB)
• Accessories Power cord
• Quick Start Guide
• Precautions for use
• Warranty (for some regions)
• Compatible software rekordbox for Mac/Windows
• rekordbox for iOS/Android
• Serato DJ Pro (Coming December 2024)

Terminals

• Inputs LINE / PHONO x 2 (RCA)
• MIC x 2 (XLR & 1/4" TRS jack)
• Outputs MASTER x 2 (XLR x 1, RCA x 1)
• BOOTH x 1 (1/4" TRS jack)
• PHONES x 2 (1/4" stereo jack x 1, 3.5 mm stereo mini jack x 1)
• USB USB Type-A x 2
• USB Type-C x 1
• Others LAN port (100BASE-TX) x 1

Wireless LAN

• Supported standards IEEE 802.11 a / b / g / n / ac
• Frequency band used 2.4 GHz / 5 GHz

Bluetooth

• Wireless system Bluetooth ver. 5.3
• Compatible codecs SBC, AAC

SonicLink

• Frequency band used 2.4 GHz

Performance Control

• Channels 4
• Deck Control 4 (USB Storage Device)
  4 (DJ Software Control)
• Jog Wheel 206 mm
• Jog Feeling v
• Sound Color FX DUB ECHO
  NOISE
  SWEEP
  FILTER
  SPACE
  CRUSH
• Beat FX DELAY
  ECHO
  PING PONG
  SPIRAL
  REVERB
  TRANS
  FILTER
  TRIPLET FILTER
  FLANGER
  PHASER
  ROLL
  TRIPLET ROLL
  HELIX
  MOBIUS

System Versatility

EON715 loudspeakers can be used as main PA speakers or floor monitors. Top and rear suspension points enable flying speakers; rear suspension points serve as connections for fixed installations, using an optional universal yoke mount.

Indexed feet molded into enclosures enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport. (Companion EON718S subwoofers feature a threaded pole mount for full-range speakers and are easily stacked for cardioid configurations.)

Rugged and Reliable

All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible-not only in terms of reliability, but in terms of how good the system sounds every time it's turned on.

The EON715 is housed in an FEA-optimized composite enclosure, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. Computer-optimized ergonomic handles make moving boxes a breeze.

Like every JBL Professional product, the EON715 undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.

Features:

• Custom-designed 15-inch woofer
• 2414H compression driver
• Re-designed high-frequency horn
• Power: 1,300W peak / 650W RMS
• Frequency response: 45 Hz-20 kHz (-10 dB); 55 Hz-20 kHz (-3 dB)
• Max SPL: 128 dB
• Dispersion: 90° H x 60° V
• Audio I/Os: 2 XLR Combo, 1 XLR passthrough
• Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
• Built-in 3-channel digital mixer
• Backlit color LCD screen provides easy access to functions
• Universal JBL Pro Connect app control
• Bluetooth 5.0 streaming and control
• Durable polypropylene cabinet and metal grille
• Two ergonomic handles simplify transport
• Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
• Stackable cabinets allow easy storage
• Dimensions: 27.6 x 17.2 x 13.8 in (702 x 438 x 351 mm) (HxWxD)
• Weight: 37.3 pounds (16.9 kg)
• Shipping dimensions: 29.92 x 21.73 x 18.38 in (760 x 552 x 467 mm) (HxWxD)
• Shipping weight: 49.6 pounds (22.5 kg)

Specifications:

• System Type : 15IN Powered Loudspeaker
• Woofer Model : 715G
• Woofer Size : 15"
• Woofer Magnet : Ferrite
• Woofer Voice Coil : 2"
• Tweeter Model : 2414H Compression Driver
• Tweeter Size : 1"
• Tweeter Magnet : Neodymium
• Transducer Impedence : LF 4ohm rated, HF 8ohm rated
• Max SPL : 128dB @1m/4Pi
• Freq Range -10 : 45Hz - 20kHz
• Freq Range -3 : 55Hz - 20kHz
• Hor Dispersion : 90°
• Vert Dispersion : 60°
• Power Rating : 1300W peak / 650 RMS
• AC power input : 100V-120V or 220V-240V
• Cooling : Passive
• LED indicators : 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs
• Input Impedance : 50k/100k un-balanced/balanced
• Input Gain : -8to +36db
• Crossover Frequency : 1.9 kHz
• I/O : 2 XLR Combo Jacks / BT, 1 XLR M Thru
• Cabinet : PP+10% Talc
• Grille : 16GA perforated steel with acoustically transparent black cloth backing
• Suspension / Mounting : 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes
• Handles : 2, cable channel on bottom
• Net Weight : 17kg (37.48 lbs.)
• Gross Weight : 21.5kg (47.40 lbs.)
• Product Dims : HxWxL 716x438x358mm (28.19x17.24x11.09 in.)
• Shipping Dims : HxWxL 738x543x458mm (29.06x21.38x18.03 in.)
