(2) Mackie Thrash 212 Speaker with Yamaha MG06X 6-Input Stereo Mixer Package

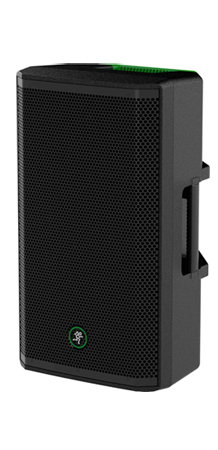

Mackie Thrash 212 12" 1300W Powered Loudspeaker

CRANK IT UP

AND LET'S DO THIS

For those that want to plug in, crank it up, and get down to business, Thrash is the loudspeaker for you. With flexible inputs, lightweight and durable construction, and a wall-shaking 1300W of power, Thrash has what it takes to keep up with every gig, rehearsal, rowdy spelling bee, you name it.

• 1300W ultra-efficient Class-D amplifiers
• Built-Like-A-Tank™ to conquer every gig while lightweight for easy loading
• Dual inputs feature XLR/TRS combo inputs
• High-performance woofers
• Titanium compression drivers
• Standard pole mount
• Equipped with 4 handles for easy loading
• Dual-angle monitor wedge for use as a floor monitor
• Rotatable grille badge
• Thermal limiter

Power to Perform

With 1300W of ultra-efficient, reliable power, Thrash is the perfect start to your PA system. If you are a band that is ready to gig or even upgrade your rehearsal space, Thrash is ready to make it happen.

The Sound of Rock

From Punk to Metal to Djent, Thrash is voiced to make your voice and instruments cut through in loud basement shows, garage rehearsals, and dusty old venues.

No Fuss I/O

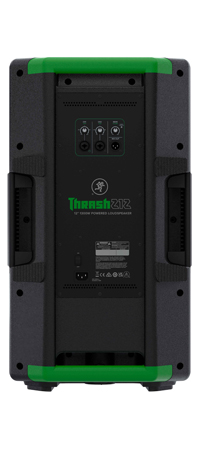

Want to plug in, crank it, and get playing? Thrash won't get in your way. Dual XLR/TRS inputs plus a Mix Out are easy and versatile for connecting to your gear. You can even connect a microphone directly into either input when you just need simple vocal reinforcement.

Take the Heat

When things get hot, automatic thermal limiting within Thrash will keep things in check so you can focus on your performance.

Specification

12" 1300W Powered Loudspeaker

• 1300W ultra-efficient Class-D amplifier
• Built-Like-A-Tank™ to conquer every gig while lightweight for easy loading
• Frequency response: 52Hz – 20kHz (-10dB)
• Max SPL: 125 dB
• Flexible I/O
  • Inputs 1 and 2 feature XLR/TRS combo inputs
  • Inputs accept both line and mic level
• Mix output contains audio from both input channels
• 12" high-performance woofer
• 1" Titanium compression driver
• Standard pole mount
• Equipped with 4 handles for easy loading
• Dual-angle monitor wedge for use as a floor monitor
• Rotatable grille badge
• Thermal limiter
• Weight: 36.4 lb / 16.51 kg

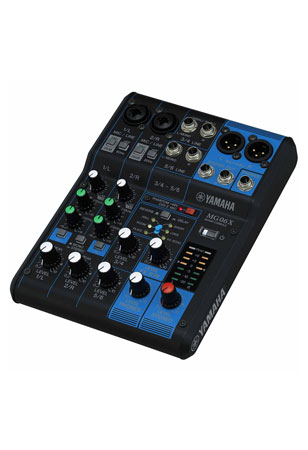

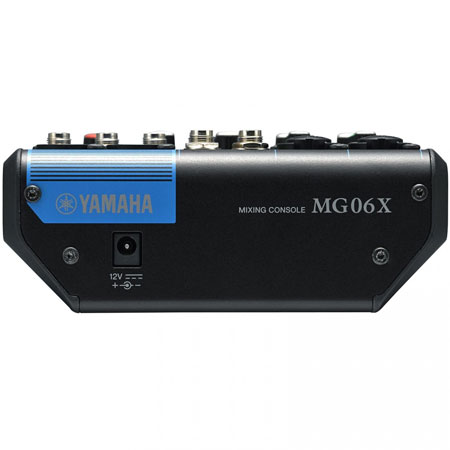

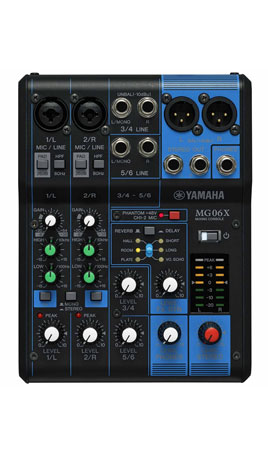

Yamaha MG06X 6-Input Stereo Effect Mixer Features:

• 6-Channel Mixing Console.
• Yamaha's high-quality SPX effects (6 types), providing optimum processing for instruments or vocals.
• Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo.)
• 1 Stereo Bus.
• "D-PRE" mic preamps with an inverted Darlington circuit.
• XLR balanced outputs.
• PAD switch on mono inputs.
• +48V phantom power.
• Metal chassis.
• Dimensions(WxHxD): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9".)
• Net Weight: 0.9 kg (1.98 lbs.)

Yamaha MG06X Specifications:

• Outline MG06X
• I/O Phantom power +48 V
• Input Channels Mono[MIC/LINE] 2
• Stereo[LINE] 2
• Output Channels STEREO OUT 2
• MONITOR OUT -
• PHONES 1
• AUX SEND -
• Bus Stereo: 1
• Input Channel Function PAD 26 dB (Mono)
• HPF 80 Hz, 12 dB/oct (Mono)
• COMP -
• EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• EQ MID -
• EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
• Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
• General specifications MG06
• Total harmonic distortion 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
• Frequency response +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max)
• Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
• Crosstalk -88 dB
• Power requirements PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
• Power consumption 12 W
• Dimensions W 149 mm (5.9")
• H 62 mm (2.4")
• D 202 mm (7.9")
• Net weight 0.9 kg (1.98 lbs.)
• Accessories Included Accessory: AC Adaptor, Owner's Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
• Others Operating Temperature: 0 to +40°C
• MG06X Analog Input Characteristics
• Input terminal PAD
• 26 dB GAIN Trim
• Position Actual Load
• Impedance For Use With
• Input level Connector
• Sensitivity *1 Nominal Max. before clip
• MIC/LINE
• 1/L, 2/R OFF +64 dB 3kO 50-600O
• Mics/Lines -72 dBu
• (0.195 mV) -60 dBu
• (0.775 mV) -46 dBu
• (3.884 mV) Combo
• jack *2
• (Balanced)
• +20 dB -28 dBu
• (30.9 mV) -16 dBu
• (122.8 mV) -2 dBu
• (615.6 mV)
• ON +38 dB -46 dBu
• (3.884 mV) -34 dBu
• (15.46 mV) -20 dBu
• (77.5 mV)
• -6 dB -2 dBu
• (615.6 mV) +10 dBu
• (2.451 V) +24 dBu
• (12.283 V)
• LINE
• 3/4, 5/6 – – 10kO 600O
• Lines -22 dBu
• (61.56 mV) -10 dBu
• (245.1 mV) +4 dBu
• (1.228 V) Phone jack *5
• (Unbalanced)

MG06X Analog Output Characteristics

• Output Terminals Actual source
• impedance For Use With
• Nominal Output level Connector
• Nominal Max. before clip
• OUT [L, R] 75O 10kO Lines +4 dBu
• (1.228 V) +18 dBu
• 6.156 V) XLR-3-32 *3
• jack *4
• (Balanced)
• PHONES 33O 40O Phones 2.4mW + 2.4mW 24mW + 24mW Stereo phone jack

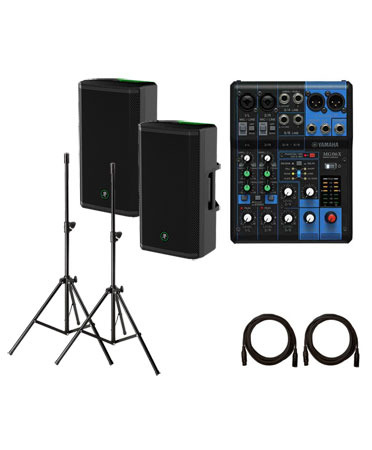

What's in the Box

This Package Includes:

• (2) Mackie Thrash 212 12" 1300W Powered Loudspeaker
• (2) Power Cables
• (1) Yamaha MG06X 6-Input Stereo Mixer with Effects
• (1) AC Power Adaptor

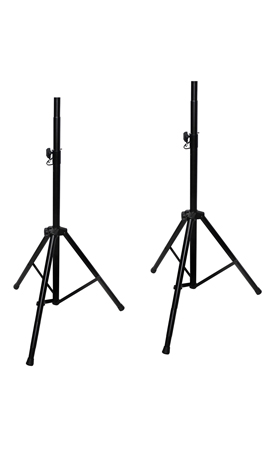

• (2) Clutch CL-STPACK Tripod Speaker Stands
• (1) Clutch Durable Tripod Speaker Stand Set Carry Bag
• (1) Clutch 20' Blue Sure-Fit XLR Female to XLR Male Microphone / Speaker Cables
• (5) 8" Reusable Hook and Loop Cable Ties
