(2) Alto TX312 12" Speakers with Yamaha MG06X 6-Input Stereo Mixer Package

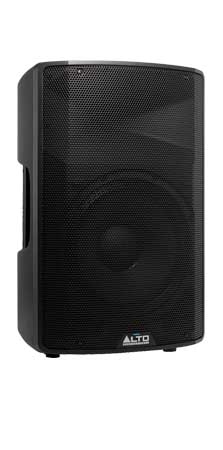

Introducing the Alto TX312, a 700-watt powered speaker perfect for a variety of live sound situations. With the TX3 Series, Alto Professional has created a family of powered loudspeakers suitable for your most demanding gigs, night after night. Utilizing much of the technology of our acclaimed TS3 series, the new TX3 Series delivers the power and clarity you need to sound your best.

The TX312 features a bi-amplified 2-way designs, with a long-excursion woofer and a 1-inch titanium compression driver in a precision horn. The horn design of the TX3 Series improves high-frequency performance and produces a very precise 90°H X 60°V radiation pattern—ideal for optimal audience coverage.

The TX312 Series are housed in rugged, lightweight, easily transportable cabinets. The trapezoidal shape enables either upright or wedge monitor positioning and the full-sized steel grille gives complete driver protection. These speakers are built for continuous heavy-duty use. Add to that a full complement of inputs/outputs and mounting options and it's easy to see that the TX312 plays an indispensable role in your performance.

Features:

• 700 Watts peak (350 Watts continuous) Class D power
• The 90 H x 60 V horn delivers greater coverage
• The full grille delivers style and provides protection for your investment.
• 12-inch (305 mm) LF driver, 2-inch (51 mm) voice coil
• 1-inch (25.4 mm) titanium HF compression driver
• Lightweight, portable design for main or wedge monitor operation
• Standard speaker pole socket
• Bi-amplified design with precision active crossover and EQ
• Balanced XLR Mic/Line input, Link Output and Volume control
• Integrated analog limiter and overload protection circuitry
• Contour switch with low- and high-frequency +3dB boost
• Ground-lift switch removes unwanted hum or buzz
• Designed and tuned in the USA

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of their products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class. Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or color to give it a "signature" sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class. The head amp determines sound quality, and op-amp integrated circuits are one of the most important parts in the head amp circuit. MG Series mixers feature new, high-quality, custommade MG01 op-amps that we developed in cooperation with the semiconductor manufacturer. Although many other Op-amps prioritize electrical design and efficiency, we worked directly with the semiconductor manufacturer to focus on sound quality first. MG01 op-amps feature redesigned circuitry in which even the internal components and wiring have been optimized, and use materials such as high-quality silicon wafers and copper wire to achieve superb resolution.

With phantom power, MG Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones. The input channel with PAD switch accepts MIC to line level of inputs, PAD Switch attenuates high input signals that often accompany mic'ed instruments during performance, avoiding the clippingthat can seriously affect your mix. When was the last time you heard guitar without EQ or a completely unprocessed vocal on one of your favorite songs? Probably never. Yamaha mixers are famous for their flat response and sonic purity, but it often takes more than a perfectly-captured instrumental performance or vocal to achieve a professional-sounding mix. Equipped with some of the same state-of-the-art functionality featured on Yamaha's high-end consoles, the MG Series gives you the tools you need to produce high quality sound that is uniquely your own. There's nothing more useful than reliable equalization when you need nuanced management of your tone. The MG Series benefits from Yamaha's unparalleled experience in designing pro audio gear, featuring 2-band equalizers on all mono channels for precise control of your sound. High-pass filter allows you to eliminate unwanted low-frequency noise, for a smoother, cleaner mix. MG Series mixers feature up to AUX sends for expanding your sound reinforcement or recording setup, allowing you to incorporate additional effects, output to external recording devices, or feed to an monitoring system. (except for MG06 / 06X) Master send controls are also provided. The MG06 / 06X, MG10 / 10XU / 10XUF and MG12XUK have a single stereo bus. All other models additionally feature one or two stereo group buses and outputs that can be used for convenient channel grouping. Assign switches for the stereo and group buses are located next to each channel fader.

Yamaha MG06X 6-Input Stereo Effect Mixer Features:

• 6-Channel Mixing Console.
• Yamaha's high-quality SPX effects (6 types), providing optimum processing for instruments or vocals.
• Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo.)
• 1 Stereo Bus.
• "D-PRE" mic preamps with an inverted Darlington circuit.
• XLR balanced outputs.
• PAD switch on mono inputs.
• +48V phantom power.
• Metal chassis.
• Dimensions(WxHxD): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9".)
• Net Weight: 0.9 kg (1.98 lbs.)

Specifications:

• System Type: 2-way active ported loudspeaker
• Drivers:
  • Low-Frequency: 12.0" (305 mm) driver, 2.0" (51 mm) voice coil
  • High-Frequency: 1.0" (25 mm) titanium-diaphragm compression driver, 1.0" (25 mm) voice coil
• Amplifier: 700 watts (peak), 350 (continuous), Class D power
• Horn Coverage: 90º horizontal x 60º vertical (nominal)
• Frequency Response: 70 Hz – 20 kHz (-3 dB)
• Crossover Frequency: 2.5 kHz
• Max SPL: 120 dB @ 1 m
• Equalization: Contour switch with low- and high-frequency +3 dB boost

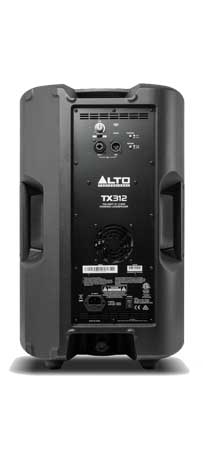

• Connectors:
  • (1) XLR/TRS 1/4" (6.35 mm) balanced input (Line/Mic)
  • (1) XLR output (Link)
  • (1) IEC power cable input
• Controls: Power switch, volume control knob, contour switch, ground-lift switch
• Indicators: (2) power LEDs (1 front panel, 1 rear panel), clip limiter LED
• Power:
  • Connection: IEC
  • Voltage: 100–120 V~, or 220–240 V~; 50/60 Hz
  • Fuse: 100–120V T6.3AL AC250V or 220–240V T3.15AL AC250V
  • Consumption: 350 W
• Protection: Thermal, overload analog limiter/compressor
• Enclosure: Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)
• Mounting/Installation: Standard 36 mm pole socket, wedge monitor
• Dimensions (height x width x depth):
  • 23.7" x 15.0" x 13.5"
  • 602 x 381 x 343 mm
• Weight:
  • 29.3 lb
  • 13.3 kg

Yamaha MG06X Specifications:

• Outline MG06X
• I/O Phantom power +48 V
• Input Channels Mono[MIC/LINE] 2
• Stereo[LINE] 2
• Output Channels STEREO OUT 2
• MONITOR OUT -
• PHONES 1
• AUX SEND -
• Bus Stereo: 1
• Input Channel Function PAD 26 dB (Mono)
• HPF 80 Hz, 12 dB/oct (Mono)
• COMP -
• EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• EQ MID -
• EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
• Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
• General specifications MG06
• Total harmonic distortion 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
• Frequency response +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max)
• Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
• Crosstalk -88 dB
• Power requirements PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
• Power consumption 12 W
• Dimensions W 149 mm (5.9")
• H 62 mm (2.4")
• D 202 mm (7.9")
• Net weight 0.9 kg (1.98 lbs.)
• Accessories Included Accessory: AC Adaptor, Owner's Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
• Others Operating Temperature: 0 to +40°C
• MG06X Analog Input Characteristics
• Input terminal PAD
• 26 dB GAIN Trim
• Position Actual Load
• Impedance For Use With
• Input level Connector
• Sensitivity *1 Nominal Max. before clip
• MIC/LINE
• 1/L, 2/R OFF +64 dB 3kO 50-600O
• Mics/Lines -72 dBu
• (0.195 mV) -60 dBu
• (0.775 mV) -46 dBu
• (3.884 mV) Combo
• jack *2
• (Balanced)
• +20 dB -28 dBu
• (30.9 mV) -16 dBu
• (122.8 mV) -2 dBu
• (615.6 mV)
• ON +38 dB -46 dBu
• (3.884 mV) -34 dBu
• (15.46 mV) -20 dBu
• (77.5 mV)
• -6 dB -2 dBu
• (615.6 mV) +10 dBu
• (2.451 V) +24 dBu
• (12.283 V)
• LINE
• 3/4, 5/6 – – 10kO 600O
• Lines -22 dBu
• (61.56 mV) -10 dBu
• (245.1 mV) +4 dBu
• (1.228 V) Phone jack *5
• (Unbalanced)

MG06X Analog Output Characteristics

• Output Terminals Actual source
• impedance For Use With
• Nominal Output level Connector
• Nominal Max. before clip
• OUT [L, R] 75O 10kO Lines +4 dBu
• (1.228 V) +18 dBu
• 6.156 V) XLR-3-32 *3
• jack *4
• (Balanced)
• PHONES 33O 40O Phones 2.4mW + 2.4mW 24mW + 24mW Stereo phone jack

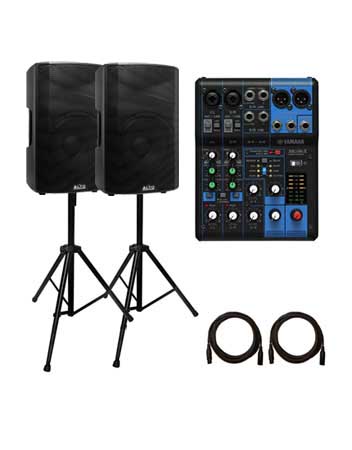

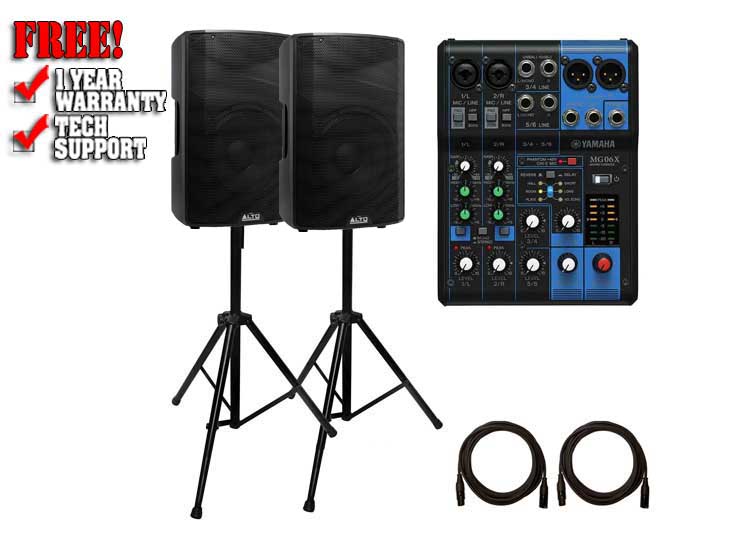

This Package Includes:

• (2) Alto TX312 750-watt 12-inch 2-way Powered Loudspeaker
• (2) Power Cables
• (1) Yamaha MG06X 6-Input Stereo Mixer with Effects
• (1) AC Power Adaptor
• (2) Tripod Speaker Stands
• (1) Tripod Speaker Stand Set Carry Bag
• (1) 20' Blue Sure-Fit XLR Female to XLR Male Microphone / Speaker Cables
• (5) 8" Reusable Hook and Loop Cable Ties
