(2) QSC KW122 2-Way Multipurpose Active Speakers & (2) QSC KS118 18" Powered Subwoofers Package

Building on the success of the K Series, the KW Series represents the next evolutionary step in wood enclosure loudspeakers. QSC's system engineers have created the KW Series to feature all the groundbreaking electronic attributes of the popular K Series while at the same time designing a product that is both smaller and significantly lighter than previous wood enclosure models. Like K Series, each of the four KW Series models features a QSC designed, 1000 watt (2 x 500 W continuous) Class D power module. And continuing in the K Series tradition, every model is fitted with the identical high-output 1.75" HF device (full-range models) and woofers of the same high quality design, regardless of speaker size. KW Series features a four-position mic / line gain switch that allows for connection of a wide variety of devices. Combo XLR and 1/4" TRS inputs accept both mic and line level input while a set of RCA phono inputs (except KW181) allow additional connectivity to portable MP3 players, CD players and line-level mixers. Up to three audio sources can be mixed internally and summed to a balanced output for "daisy-chaining" of multiple units. Separate direct outputs are also provided on each channel for additional output flexibility. On-board switches provide preset EQ settings.

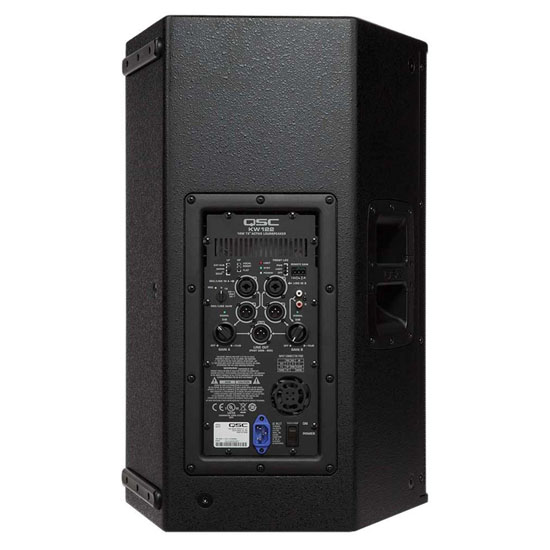

The HF setting (full-range models) can be set to VOCAL BOOST for additional presence in the critical mid-frequency area or FLAT for accurate reproduction of the incoming signal. The LF switch can be set to NORM, DEEP for additional bass extension, or EXT SUB (full-range models) for use with an external subwoofer. The rear panel LED switch can be set to POWER, illuminating the front-mounted LED when the unit is powered on, OFF for applications where it is not desirable to illuminate the front LED, or LIMIT which indicates to the system operator that the clip limiter circuit has been engaged during operation. The KW122 and KW152 feature a unique Tilt-Direct pole cup mounting system. A simple turn of the dial engages a 7.5 degree downward tilt of the speaker allowing acoustic energy to be kept on the audience and off reflective surfaces for applications where maximum coverage from a high-positioned speaker is desired. KW Series is designed to withstand the rigors of professional use. Advanced construction processes, premium-grade Baltic birch cabinetry, ergonomic, cast aluminum handles, low-noise casters (KW181) and a highly protective steel grille provide for ease of transport and long term durability. Integrated M10 suspension points allow for flown applications with a KW M10 KIT (sold separately) and a threaded pole receptacle (KW181) provides for a positive, wobble free connection to a threaded speaker pole. Combo XLR and 1/4" TRS inputs accept both Mic and Line Level input while a set of RCA phono inputs (except KSub) allow additional connectivity to portable MP3 players, CD players and line-level mixers. Up to three audio sources can be mixed internally and summed to a balanced output for "daisy-chaining" of multiple units. Separate direct outputs are also provided on each channel for additional output flexibility.

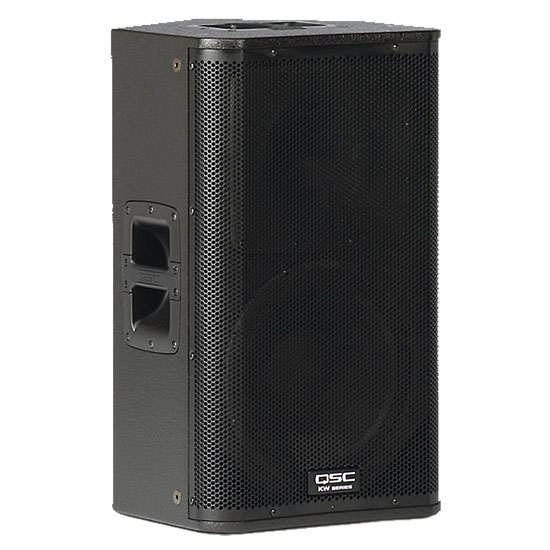

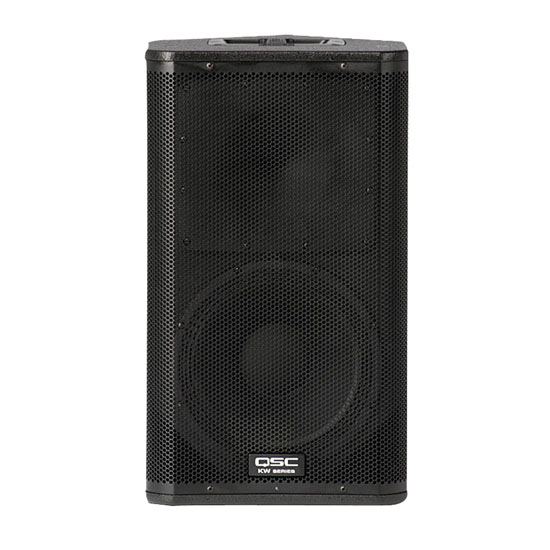

QSC KW122 12" Active Speaker Features:

• 12" Woofer; 1.75" diaphragm compression driver.
• 75° Nominal coverage angle.
• Maximum SPL 131 dB peak.
• Also functions as monitor floor wedge.
• 1000 watt Class D power modules in all models (2 x 500 W continuous).
• Onboard mixer with two combo XLR and ¼ inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output.
• Extensive DSP featuring DEEP and Intrinsic Correction enhances system performance.
• DMT (Directivity Matched Transition) ensures uniform coverage across the entire sound field.
• Rugged, texture-painted birch enclosures.
• Four-position Mic/Line gain (full-range models).
• Tour-grade 16 gauge steel grilles.
• Comfortable ergonomic handles.
• 35 mm pole sockets with Tilt-Direct.
• M10 rigging points for suspended installation.
• Defined Coverage Area: Directivity Matched Transition (DMT) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural "dead" or "hot" frequency zones.
• DSP: Extensive signal processing is employed throughout, providing levels of sonic clarity and total output that defy all expectations for a product in this category.
• Intrinsic Correction, first featured in QSC's high-end line array products maps 65-75 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat bandpass target. The result is a speaker that behaves equally well across the entire sound field.
• DEEP and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.
• GuardRail protection, first introduced on our GX Series amplifiers protects both the amplifier module and your performance from unnatural and destructive clipping.
• Remote Gain: Remote gain control capability is offered via a potentiometer (not included) connected to the on-board Phoenix-Style connector. In an installed application, multiple KW Series speakers can be "daisy-chained" for total gain control from a single remote pot. Auto-standby mode is engaged after 5 minutes of inactivity.
• DEEP: Sophisticated digital signal processing provides greater low-frequency extension while precisely protecting the woofer from over-excursion.
• DMT: Directivity Matched Transition matches the HF coverage angle to the natural coverage angle of the woofer for uniform frequency response over the entire coverage area.
• Conical Wave Guide: The conical wave guide eliminates the phase distortions of typical asymmetric horns for more natural reproduction.
• 1000 Watts: The same state of the art, light-weight Class D amplifier module powers all the K & KW Series models.
• EQ Modes: Optimize for a specific application with the simple flip of a switch.
• Energy Management: Automatic standby mode conserves energy and extends the life of the loudspeaker.
• LED Operation: Turn of the front panel power LED or switch it to show limiting operation.
• Remote Control: Easy to use remote gain control is ideal for installed applications.
• Pro Appearance: Sleek lines and a full grille for a more professional look than other molded loudspeakers.
• Locking IEC Power Cable: Help prevent unexpected interruptions.
• Connectivity: Mic/line and RCA inputs along with onboard mixing controls allow greater flexibility.
• Tilt-Direct Pole Mount: A simple turn of the dial is all it takes to alter the vertical directivity by 7.5 degrees.
• Suspension and Mounting: With integrated threaded inserts, KW Series is equally at home in mounted or flown applications.
• Threaded Pole: The KW181 subwoofer comes with a threaded pole for a snug, safe fit.
• Intrinsic Correction: An exclusive QSC process that applies extensive acoustic measurements to noticeably improve audio quality.
• Class D: Higher efficiency produces less heat and more sonic performance with lower overall current draw.
• Protections: QSC's Guardrail technology protect your loudspeakers from overexcursion. On-demand cooling fan and thermal limiting prevent overheated electronics.

QSC KW122 Specifications

• Powered : Yes
• Power Configuration : Bi-amped
• LF Driver Size : 12"
• LF Driver Power Amp : 500W Class D
• HF Driver Size : 1.75"
• HF Driver Power Amp : 500W Class D
• Frequency Range : 50Hz-20kHz (-10dB)
• Crossover Frequency : 2kHz
• Maximum Peak SPL : 131dB
• Horizontal Coverage Angle : 75 Degrees Axisymmetric
• Vertical Coverage Angle : 75 Degrees Axisymmetric
• Enclosure Material : 15mm Birch Plywood
• Mounting Options : Pole, Floor Wedge, Fly
• Inputs : 1 x Combo (XLR/TRS, Mic/Line), 1 x Combo (XLR/TRS, Line), 2 x RCA
• Outputs : 2 x XLR (Direct), 1 x XLR (Line)
• Height : 26"
• Width : 15"
• Depth : 15.4"
• Weight : 49 lbs

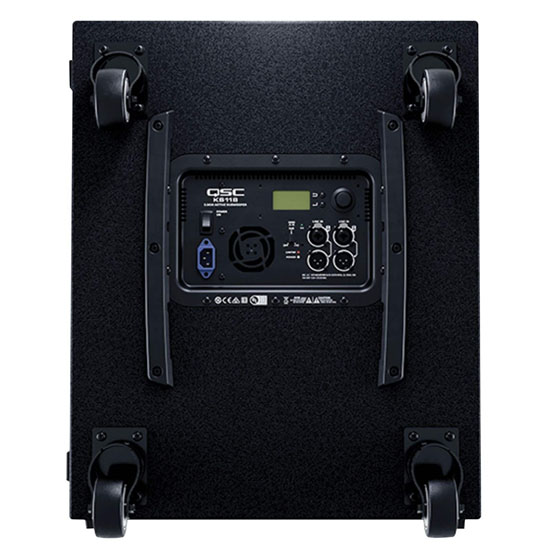

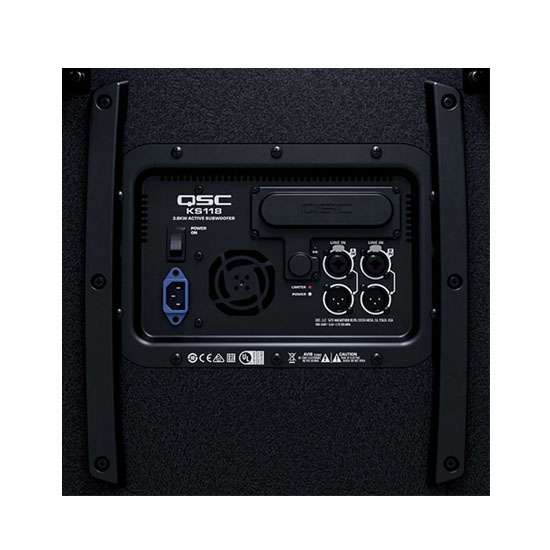

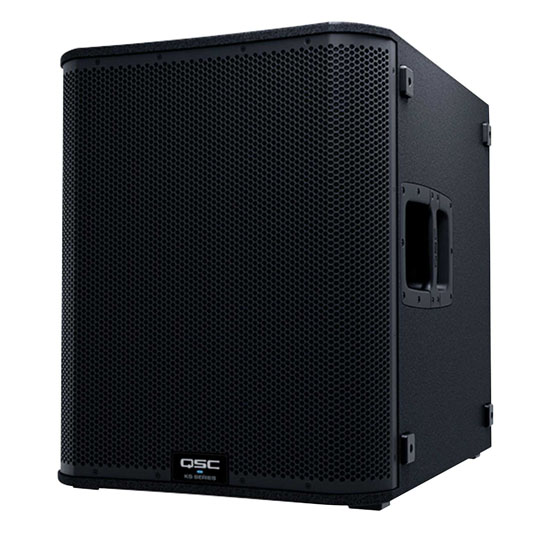

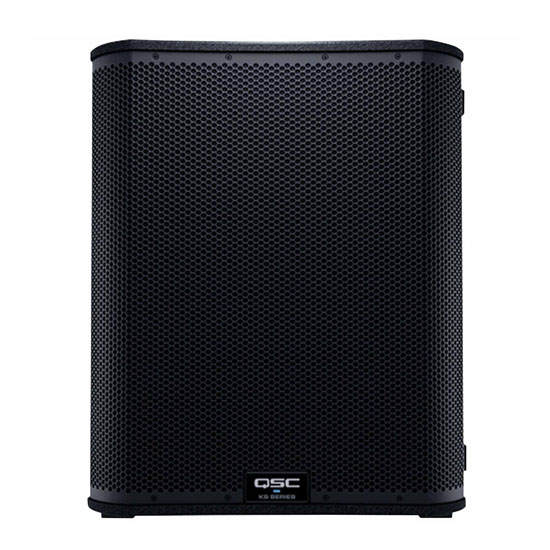

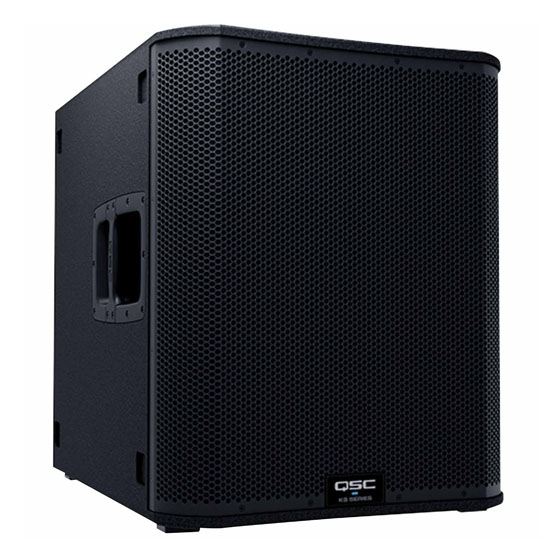

QSC KS118 3600W 18" Powered Subwoofer

The QSC KS118 powered subwoofer delivers potent bass for DJs, live bands and other performers. Its onboard 3,600W Class-D amplifier drives an 18? direct-radiating woofer for impressive low end. This powered sub is ideal for both mobile and installed applications. It's the perfect complement to QSC's K.2 and CP Series powered loudspeakers. The QSC KS118 active subwoofer will take your PA live sound system to new lows ? low frequencies, that is. Whether you're looking for the best powered subwoofer for a live band or you want to install a nightclub sound system, the KS118 delivers deep bass in spades. This rugged, reliable subwoofer is also perfect for AV rental houses and event production companies. Plug it in and prepare to change the way you think about portable PA systems.

Live bands, DJs and mobile performers all rely on clean, clear audio to sound their best and create an enjoyable experience for their audiences. In each case, the larger the audience, the harder the PA system has to work. This is especially true for subwoofers. The QSC KS118 active subwoofer has the power to make dance music fans feel the bass, not just hear the music.

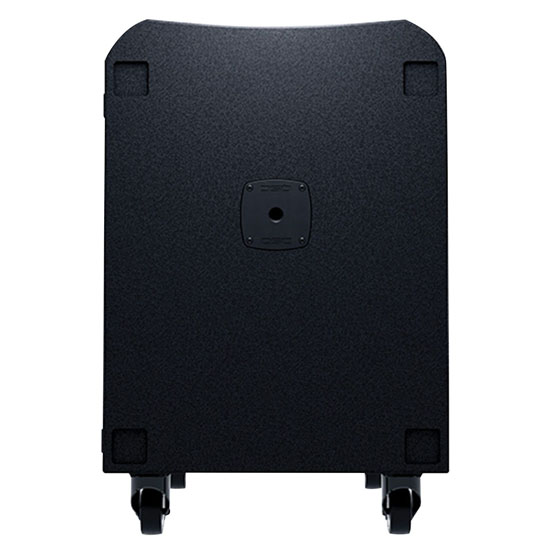

Since the QSC KS118 powered sub is easy to move around, wedding DJs, bands and venue owners can customize their sound with strategic subwoofer placement. No two performance venues are the same. Some night clubs or wedding venues require special subwoofer positioning. In most cases, mobile DJs will want to place a pair of QSC KS118 subwoofers on the floor on either side of their booth. Full-range speakers can then be mounted on poles above the subs using the KS118's built-in M20 threaded pole socket. In smaller venues, a performer may choose to corner-load a single KS118 subwoofer. This technique calls for facing the subwoofer facing into a corner of a room to take advantage of its acoustics and maximize efficiency.

The KS118 active subwoofer can also be set up to create a cardioid output pattern when used in pairs. This speaker arrangement avoids bass buildup on stage and directs the sound to the audience. One of the best subwoofer placement techniques for bands and DJs is known as coupling. By placing two or more KS118 powered subwoofers very close to one another, their effectiveness is amplified. Coupling can be done by either stacking a pair of KS118 subs, or placing them on the floor together closely. However you decide to deploy or install your QSC KS118 powered subwoofer, you can count on reliable performance and deep bass to keep the dance floor moving.

Rugged wooden cabinet packed with 3,600 watts

With an incredible 3,600W peak output at its disposal, the QSC KS118 cranks out 1,600W more than its predecessor, the KW181. QSC engineers managed to pack almost twice the power of the KW181 into the same footprint with the KS118 and keep the weight nearly the same. That makes the QSC KS118 surprisingly easy to move and transport. It's fitted with smooth-rolling, low-noise casters that let you roll it effortlessly. Despite its modern, professional look, this robust birch enclosure is designed for life on the road. A powder-coated steel grill protects the driver from damage. The wooden cabinet's textured exterior resists scratches, scrapes and dings. The tight fit and finish of the KS118 is exactly what you'd expect from QSC. The moment you touch this subwoofer, you know it's made to last. The moment you hear it, you'll know it's the last sub you'll ever need.

Advanced digital signal processing

The raw horsepower from its onboard amp is only part of the KS118 sub's arsenal. As with a race car, power is useless without control. It must be tamed, tuned and finessed to get impressive results. That's why the KS118 features advanced digital sound processing (DSP). The KS118's high-tech DSP optimizes system performance. It also enables advanced capabilities and protects the sub's components. This keeps the QSC KS118 18" subwoofer running at peak efficiency. The result is flawless, tight bass, even when you're pushing it to its limits. Pair two KS118 subs together to take advantage of Cardioid mode in the DSP settings. This helps you keep bass in its place, not overpowering performers on stage. Other settings include delay, crossover and scenes that can be saved and recalled for common applications. An ultra-quiet internal fan keeps things running cool under heavy use.

Deep bass and high SPL

There's no denying that a live sound PA system with tight, deep bass can really get the dance floor going. If you're a mobile DJ, this is especially important. Wedding DJs and nightclub DJs rely on dedicated subwoofers, particularly when the audience and venue is large. Modern powered speakers, such as the QSC K.2 Series, have impressive bass response on their own. But the only way to accurately reproduce the ultra-deep frequencies in modern dance, pop and rock music properly is to deploy a separate subwoofer. The QSC KS118 delivers low-end reproduction down to 35Hz, so your audience will get the bass they crave. With a maximum SPL of 136dB, dance music fans will feel the music, not just hear it. The selectable DEEP mode routes more of the amp's power to the lower end of the sub's frequency range. Think of it as a turbo boost for the ultra-low frequencies. Just make sure you're ready for it, because the difference is like night and day.

Ideal for mobile DJs, live bands and venue installations

AV rental houses and event production companies will love the KS118 for its ruggedness and rock-solid reliability. It upholds QSC's well-earned reputation for build quality and durability. Whether you install the KS118 in a dance club or other venue, you'll have the peace of mind that comes from owning a QSC product. Live bands, musicians and DJs will appreciate its versatility, raw power and clean, deep sound. Mobile performers will appreciate the casters, ergonomic handles and portability. Everyone will love that it's built to withstand intense professional use, gig after gig.

Features

• 3,600W Class-D peak amplification
• 18" direct-radiating driver
• Rugged birch plywood cabinet with smooth-rolling casters
• Onboard DSP with DEEP mode

Specifications

• Active/passive: Active
• Type: Direct-radiating subwoofer
• LF driver: 18"
• MF driver: Not applicable
• HF driver: Not applicable

• Amplifier class: Class-D
• Wattage: 3,600W peak
• Mixer/preamp: Not applicable

• Frequency response: 35Hz?111kHz
• Coverage pattern: Omnidirectional
• Max SPL: 136dB

• XLR: 2

• XLR: 2

• Cabinet material: 18 mm birch plywood
• Width: 20.5"
• Height: 25.2"
• Depth: 30.9"
• Weight: 104 lb.

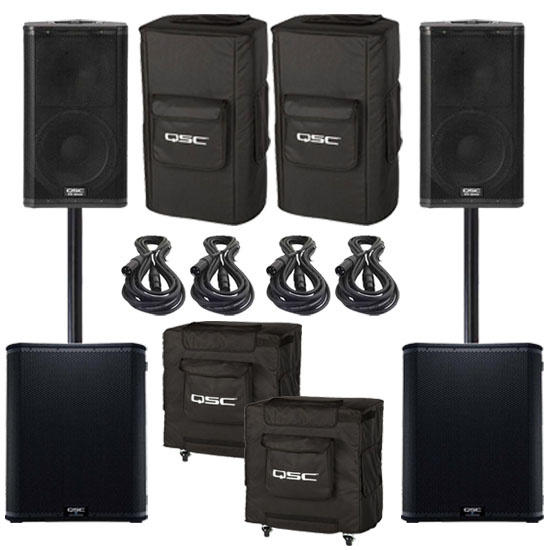

What's Included:

• (2) QSC KW122 1000 Watt 2-Way Multipurpose Active Speakers with 12" Woofers
• (2) Locking NEMA 5-15 power cables
• (2) Locking CEE 7/4 power cables
• (2) User Manual CDs
• (2) Wiring hookup diagrams
• (2) QSC KS118 18-inch 3600 Watt Active Subwoofers
• (2) Locking AC Power cords
• (2) Speaker mounting poles (35 mm diameter, 26.4 in / 67 cm long, M20 thread)

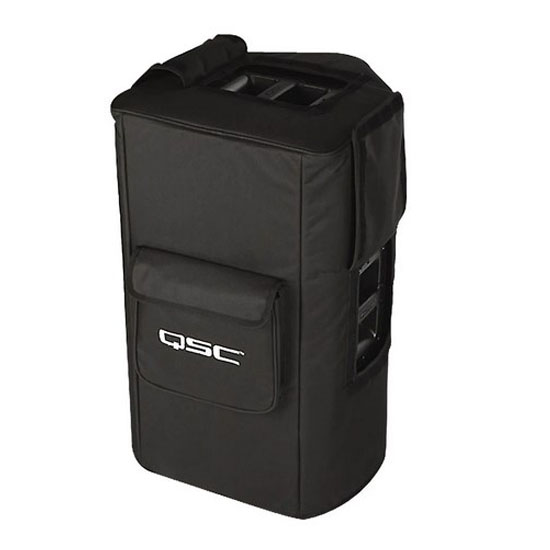

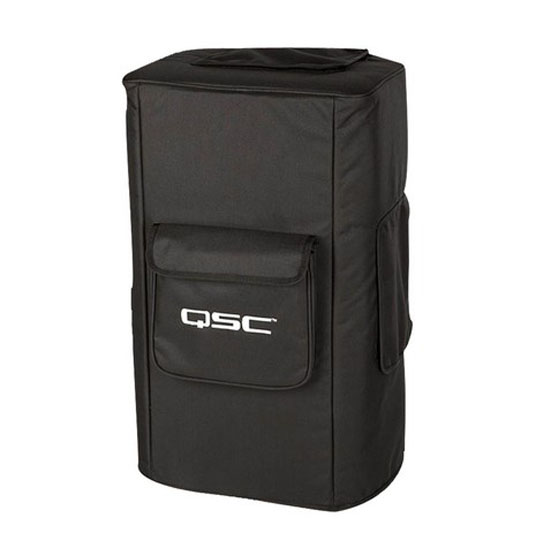

• (2) QSC KW122 Protective Speaker Covers

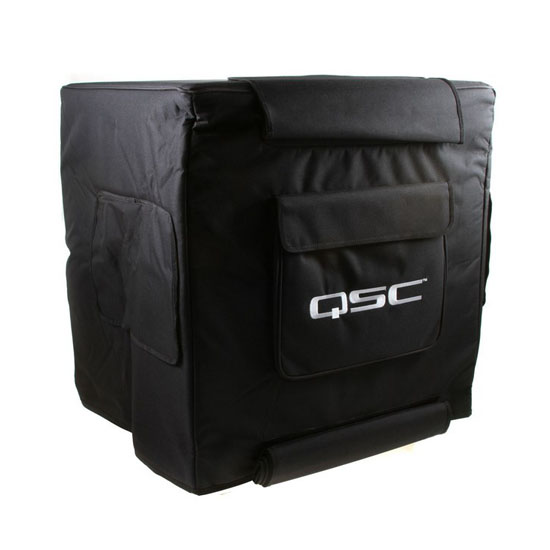

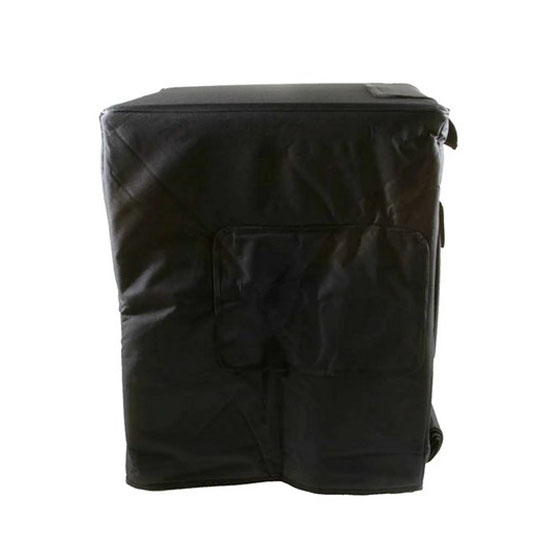

• (2) QSC KW181 Protective Subwoofer Covers
• (3) 20' XLR Connecting Cables
• (2) Subwoofer Poles with M20 Thread
