(2) JBL EON715 15-inch Powered PA Speaker with Yamaha MG10XU 10-Input Stereo Mixer Package

JBL EON715 15-inch Powered PA Speaker with Bluetooth

Launched in 1995, JBL's best-selling EON family of PAs set the benchmark for how great a powered loudspeaker system can be.

The JBL EON715 15-inch loudspeaker is part of JBL's new EON700 Series of powered PAs, which represents a major step forward in innovation and technology by delivering truly intelligible, clearly consistent coverage at any volume level.

The EON700 Series leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system.

With four models available, including the 10-inch EON710, the 12-inch EON712 and the 15-inch EON715 powered PA speakers and the 18-inch EON718S subwoofer, EON700 systems cover the needs of today's working musicians and sound providers.

Acoustics and Amplifier

JBL's advanced waveguide and transducer technologies, coupled with highly efficient amplification, ensure uniform coverage across the entire listening area, even when you push the system to the limit.

The EON715's woofer is redesigned for lower impedance and higher efficiency, an improved horn delivers a smooth off-axis beamwidth and JBL's powerful 2414H compression driver features a premium neodymium magnet for balanced response in a lightweight footprint. The speaker is powered by 1,300 watts of ultra-efficient discrete Class D amplification, for clean, clear sound. It all adds up to superior coverage, consistency and intelligibility at any volume.

Advanced DSP and Control

The EON715's advanced DSP package provides comprehensive control over EQ, limiters, delay, dbx Automatic Feedback Suppression, ducking and other speaker functions. Access settings on-speaker using an integrated backlit LCD screen, or from anywhere in the venue using the JBL Pro Connect App. Built-in Bluetooth 5.0 audio streaming and control take advantage of the newest protocol's security features, low latency, broad range and improved audio fidelity.

System Versatility

EON715 loudspeakers can be used as main PA speakers or floor monitors. Top and rear suspension points enable flying speakers; rear suspension points serve as connections for fixed installations, using an optional universal yoke mount.

Indexed feet molded into enclosures enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport. (Companion EON718S subwoofers feature a threaded pole mount for full-range speakers and are easily stacked for cardioid configurations.)

Rugged and Reliable

All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible—not only in terms of reliability, but in terms of how good the system sounds every time it's turned on.

The EON715 is housed in an FEA-optimized composite enclosure, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. Computer-optimized ergonomic handles make moving boxes a breeze.

Like every JBL Professional product, the EON715 undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.

Features:

• Custom-designed 15-inch woofer
• 2414H compression driver
• Re-designed high-frequency horn
• Power: 1,300W peak / 650W RMS
• Frequency response: 45 Hz–20 kHz (-10 dB); 55 Hz–20 kHz (-3 dB)
• Max SPL: 128 dB
• Dispersion: 90° H x 60° V
• Audio I/Os: 2 XLR Combo, 1 XLR passthrough
• Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
• Built-in 3-channel digital mixer
• Backlit color LCD screen provides easy access to functions
• Universal JBL Pro Connect app control
• Bluetooth 5.0 streaming and control
• Durable polypropylene cabinet and metal grille
• Two ergonomic handles simplify transport
• Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
• Stackable cabinets allow easy storage
• Dimensions: 27.6 x 17.2 x 13.8 in (702 x 438 x 351 mm) (HxWxD)
• Weight: 37.3 pounds (16.9 kg)
• Shipping dimensions: 29.92 x 21.73 x 18.38 in (760 x 552 x 467 mm) (HxWxD)
• Shipping weight: 49.6 pounds (22.5 kg)

Specifications:

• System Type : 15IN Powered Loudspeaker
• Woofer Model : 715G
• Woofer Size : 15"
• Woofer Magnet : Ferrite
• Woofer Voice Coil : 2"
• Tweeter Model : 2414H Compression Driver
• Tweeter Size : 1"
• Tweeter Magnet : Neodymium
• Transducer Impedence : LF 4ohm rated, HF 8ohm rated
• Max SPL : 128dB @1m/4Pi
• Freq Range -10 : 45Hz - 20kHz
• Freq Range -3 : 55Hz - 20kHz
• Hor Dispersion : 90°
• Vert Dispersion : 60°
• Power Rating : 1300W peak / 650 RMS
• AC power input : 100V-120V or 220V-240V
• Cooling : Passive
• LED indicators : 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs
• Input Impedance : 50k/100k un-balanced/balanced
• Input Gain : -8to +36db
• Crossover Frequency : 1.9 kHz
• I/O : 2 XLR Combo Jacks / BT, 1 XLR M Thru
• Cabinet : PP+10% Talc
• Grille : 16GA perforated steel with acoustically transparent black cloth backing
• Suspension / Mounting : 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes
• Handles : 2, cable channel on bottom
• Net Weight : 17kg (37.48 lbs.)
• Gross Weight : 21.5kg (47.40 lbs.)
• Product Dims : HxWxL 716x438x358mm (28.19x17.24x11.09 in.)
• Shipping Dims : HxWxL 738x543x458mm (29.06x21.38x18.03 in.)

EON715-CVR Deluxe Padded EON715 Protective Speaker Cover

Deluxe padded cover for EON715. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.

JBL Bags EON715-CVR Deluxe Padded EON715 Protective Speaker Cover Features:

• Durable 600-D Nylon outer fabric - keeps out dust, dirt, and helps prevent dents & dings.
• Interior padded with protective foam layer and soft tricot lining.
• Handle cut-outs provide access to built-in cabinet handles.
• Printed JBL logo on front panel to compliment your JBL EON715s.
• Black exterior.
• The official protective cover for JBL EON loudspeakers.

Yamaha MG10XU 10-Input Stereo Mixer with Effects and UBS

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of their products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or color to give it a "signature" sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.

The MG10XU features high-quality built-in signal processing effects that are in the same league as the famed SPX effect processor series. Applying effects allows you to simulate the acoustics of different performance environments.

Yamaha MG10XU 10-Input Stereo Mixer with Effects and UBS Features:

• 10-Channel Mixing Console.
• Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo.)
• 1 Stereo Bus.
• 1 AUX.
• "D-PRE" mic preamps with an inverted Darlington circuit.
• 1-Knob compressors.
• PAD switch on mono inputs.
• +48V phantom power.
• XLR balanced outputs.
• Metal chassis.
• Dimensions(WxHxD): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6".)
• Net Weight: 1.9 kg (4.19 lbs.)

D-PRE (Discrete Class-A Mic Preamps)

This is where it all starts. Everything you do as a sound engineer is dependent on the quality of your preamps, which determines the direction your mix will take, and ultimately how good it is going to sound. MG Series mixing consoles feature Yamaha's studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Delivering fat, natural sounding bass and smooth, soaring highs, with very low distortion, D-PRE preamps possess an impressively wide frequency range that allow them to handle signal from any audio source without overly amplifying any specific elements of the sound. Having such a pure sonic platform to build on will ultimately save you time and effort by eliminating the need for excessive EQing or additional effects processing in order to "fix" your mix.

High Quality Sound Op-amp

The head amp determines sound quality, and op-amp integrated circuits are one of the most important parts in the head amp circuit. MG Series mixers feature new, high-quality, custommade MG01 op-amps that we developed in cooperation with the semiconductor manufacturer. Although many other Op-amps prioritize electrical design and efficiency, we worked directly with the semiconductor manufacturer to focus on sound quality first. MG01 op-amps feature redesigned circuitry in which even the internal components and wiring have been optimized, and use materials such as high-quality silicon wafers and copper wire to achieve superb resolution.

Switchable Phantom Power & PAD Switch

With phantom power, MG Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones. The input channel with PAD switch accepts MIC to line level of inputs, PAD Switch attenuates high input signals that often accompany mic'ed instruments during performance, avoiding the clippingthat can seriously affect your mix.

When was the last time you heard guitar without EQ or a completely unprocessed vocal on one of your favorite songs? Probably never. Yamaha mixers are famous for their flat response and sonic purity, but it often takes more than a perfectly-captured instrumental performance or vocal to achieve a professional-sounding mix. Equipped with some of the same state-of-the-art functionality featured on Yamaha's high-end consoles, the MG Series gives you the tools you need to produce high quality sound that is uniquely your own.

1-knob Compressors

Compression plays an essential role in just about any recording or sound reinforcement environment by altering the level of dynamics of an audio signal when you need livelier guitars, punchier bass lines, a tighter snare, or a cleaner vocal sound. However, it can take countless hours to master the complexities of even the most basic outboard compression units and use them effectively. Originally a Yamaha innovation, 1-knob compressors are now an industry standard that gives you instant access to optimized compression settings via a single rotary control.

EQ and High-pass Filters

There's nothing more useful than reliable equalization when you need nuanced management of your tone. The MG Series benefits from Yamaha's unparalleled experience in designing pro audio gear, featuring 3-band equalizers on all mono channels for precise control of your sound. High-pass filter allows you to eliminate unwanted low-frequency noise, for a smoother, cleaner mix.

AUX / Effect Sends / Group

MG Series mixers feature up to AUX sends for expanding your sound reinforcement or recording setup, allowing you to incorporate additional effects, output to external recording devices, or feed to an monitoring system. (except for MG06 / 06X) Master send controls are also provided. The MG06 / 06X, MG10 / 10XU / 10XUF and MG12XUK have a single stereo bus. All other models additionally feature one or two stereo group buses and outputs that can be used for convenient channel grouping. Assign switches for the stereo and group buses are located next to each channel fader.

A variety of input / output connectors

All models feature high-quality Neutrik balanced XLR connectors on mono microphone/line channels and XLR equipped stereo channels. Each of the mono inputs is equipped with combo jack and accepts both MIC and LINE level signals. Two of the stereo inputs are equipped with XLR and two phone connectors with XLR accepting MIC level signals while two phone connectors accepting LINE level signals and can be used either mono or stereo. (except for MG10 / 10XU / 10XUF / 12XUK) The function of another two stereo channel vary depending on model: With MG20 / 20XU, XLR accepts MIC level signal and two RCA connectors accepts LINE level signals and can be used either mono or stereo. With MG12 / 12XU and MG16 / 16XU, two phone connectors accept LINE level signals as stereo. Additionally, each of the stereo channel features 2TR in (RCA connectors) and can be used as independent input from external audio sources such as CDs. MG10 / 10XU / 10XUF and MG12XUK are equipped with additional stereo channel with a pair of phone jack that accepts LINE levels. With XU models, any incoming source that are sent via USB can be assigned to one of the stereo channel. In addition to the main stereo outputs (XLR L/R, TRS phone L/R), MG Series mixing consoles are equipped with a comprehensive suite of output connectors, including GROUP OUT (TRS phone), AUX/FX OUT (TRS phone), MONITOR OUT (TRS phone L/R), and HEADPHONE OUT (stereo phone) connectors, allowing master outputs to be chosen to suit specific applications such as monitoring or mastering.

LED level metering

Easy-to-read LED level metering allows output levels to be monitored with precision.

For gigging, recording, and installed applications alike, your console can be subjected to a wide range of environmental conditions and hazards. Excessive humidity, unstable power supplies, and the rigors of road travel in general can take a serious toll on a mixing console, often causing expensive, time-consuming repairs, and reducing its lifespan. The MG Series has been redesigned with an emphasis on durability, incorporating practical features that offer greater flexibility while ensuring peak performance for many years to come.

Metal Chassis

Built to last, MG Series mixers feature a rugged, impact-resistant, powder-coated metal chassis, offering an unrivalled level of durability. With a sleek design contoured for optimal convection cooling, the internal layout separates the power supply from the analog circuitry for superior noise reduction, and further extends the life of the components inside. To further ensure reliable performance, knob control placement above the surface of the chassis diverts any impact or pressure on the knobs to the chassis itself and not the circuit board or components underneath.

Internal Universal Power Supply

Thanks to a highly-efficient internal universal power supply, MG Series consoles offer worry-free operation in any region around the globe—even in environments prone to potentially damaging power fluctuations. An internal power supply also simplifies rack mounting of the console for installed applications, eliminating the need for a bulky adapter or additional connections. (* MG12 / 16 / 20 / 12XU / 16XU / 20XU)

Optional Microphone stand Adapter "BMS10-A" available.

Heavy Duty Professional Tripod Speaker Stand Set with Carry Bag

Includes two deluxe adjustable height Speaker Stands and a travel/storage bag. The speaker stands are a made from thick wall heavy gauge aluminum and are designed to properly hold the weight of up to 120 lbs. The durable black powder coat finish will help extend the cosmetic life after the rigors of performance and transportation. Easily adjustable with oversized grip knobs to tighten the collars and includes a safety pin to lock in your desired height. The slam protecting spring in the shaft will help against fast drops of the pole.

Tripod Speaker Stand Set Features:

• Matching pair set of Heavy duty professional tripod speaker stands.
• Adjustable height can telescope from a minimum of 41 inches, to a maximum height of 72 inches (6 feet).
• Each stand has a 120 lb. holding capacity.
• 1-3/8" (35mm) diameter upper shaft.
• Rubber feet to prevent slips and dampen vibrations.
• Constructed with steel and aluminum.
• Sleek and stylish black powder coat finish.
• Oversized grip knobs for easy adjustments.
• perfect for DJ, bands, live performances, karaoke, or public addresses.
• High quality metal joints and connection junctions.
• Includes Properly fitting & durable protective double carry bag.

JBL Bags EON715-CVR Specifications

• Interior padded with protective foam layer and soft tricot lining
• Handle cut-outs provide access to built-in cabinet handles
• Printed JBL logo on front panel to compliment your JBL EON715s
• Black exterior
• The official protective cover for JBL EON loudspeakers
• Durable 600-D Nylon outer fabric - keeps out dust, dirt, and helps prevent dents & dings

Yamaha MG10XU Specifications:

• Outline MG10XU
• I/O Phantom power +48 V
• Input Channels Mono[MIC/LINE] 4
• Stereo[LINE] 3
• Output Channels STEREO OUT 2
• MONITOR OUT 1
• PHONES 1
• AUX SEND 1
• Bus Stereo: 1, AUX: 1
• Input Channel Function PAD 26 dB (Mono)
• HPF 80 Hz, 12 dB/oct (Mono)
• COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
• EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
• EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
• Level Meter 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
• General specifications MG10
• Total harmonic distortion 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
• Frequency response +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max)
• Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
• Crosstalk -83 dB
• Power requirements PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
• Power consumption 22.9 W
• Dimensions W 244 mm (9.6")
• H 71 mm (2.8")
• 294 mm (11.6")
• Net weight 1.9 kg (4.19 lbs.)
• Accessories Included Accessory: AC Adaptor, Owner's Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
• Others Operating Temperature: 0 to +40°C
• MG10XU Analog Input Characteristics
• Input terminal PAD
• 26 dB GAIN Trim
• Position Actual Load
• Impedance For Use With Nominal Input level Connector
• Sensitivity *1 Nominal Max. before clip
• MIC/LINE
• 1 – 4 OFF +64 dB 3kO 50-600O
• Mics/Lines -72 dBu
• (0.195 mV) -60 dBu
• (0.775 mV) -40 dBu
• (7.75 mV) Combo
• jack *2
• (Balanced)
• +20 dB -28 dBu
• (30.9 mV) -16 dBu
• (122.8 mV) +4 dBu
• (1.228V)
• ON +38 dB -46 dBu
• (3.884 mV) -34 dBu
• (15.46 mV) -14 dBu
• (154.6 mV)
• -6 dB -2 dBu
• (615.6 mV) +10 dBu
• (2.451 V) +30 dBu
• (24.51 V)
• LINE
• 5/6, 7/8 – – 10kO 600O
• Lines -22 dBu
• (61.56 mV) -10 dBu
• (245.1 mV) +10 dBu
• (2.451 V) Phone jack *5 RCA Pin
• (Unbalanced)
• LINE 9/10 Phone jack *5
• (Unbalanced)

MG10XU Analog Output Characteristics

• Output Terminals Actual source
• impedance For Use With
• Nominal Output level Connector
• Nominal Max. before clip
• STEREO OUT [L, R] 75O 600O Lines
• +20 dB +4 dBu
• (1.228 V) +24 dBu
• (12.28 V) XLR-3-32 *3
• Phone jack *5
• (Balanced)
• MONITOR OUT [L, R]
• AUX SEND 150O 10kO Lines +4 dBu
• (1.228 V) +20 dBu
• (7.750 V) Phone jack *4
• (Impedance Balanced)
• PHONES 110O 40O Phones 3mW + 3mW 100mW + 100mW Stereo phone jack

Tripod Speaker Stand Set Specifications

• Shipping Dimensions 5.50"L X 5.50"D X 40.00"H
• Weight: 14.00 lbs
• Height: 41" - 72"
• Load Capacity (each): 120 lbs
• Telescoping Tube: 1 3/8"
• Weight (per stand): 6 lbs.

Whats in the Box

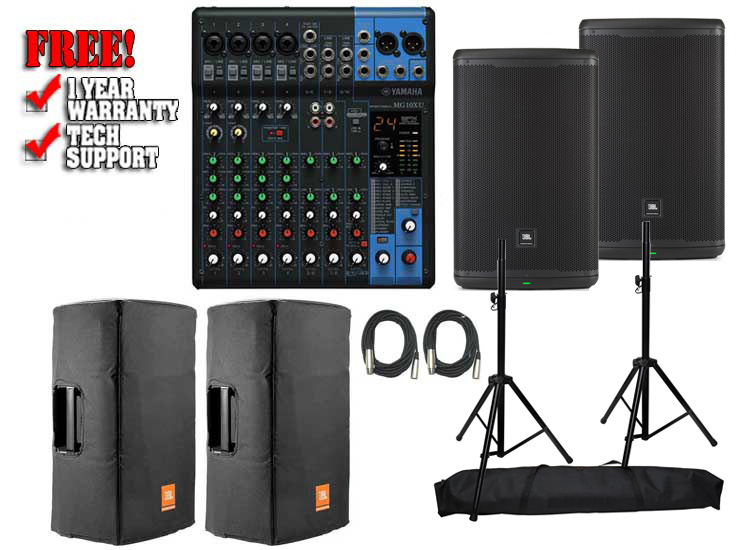

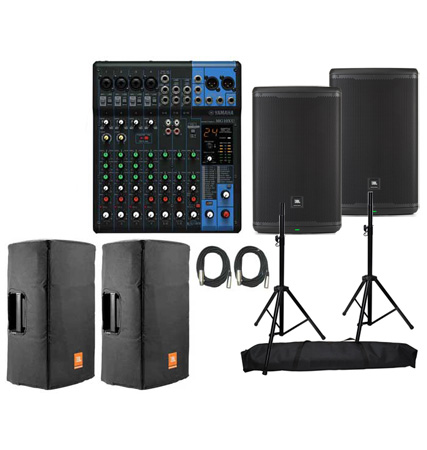

This Package Includes:

• (2) JBL EON715 15-inch Powered PA Speaker with Bluetooth connectivity
• (2) JBL Bags EON715-CVR Deluxe Padded EON715 Protective Speaker Covers
• (1) Yamaha MG10XU 10-Input Stereo Mixer with Effects and UBS
• (2) Clutch CL-STPACK Heavy Duty Professional Tripod Speaker Stands with Carry Bag
• (2) 20FT Sure-Fit XLR Connecting Cables
• (5) 8" Reusable Hook and Loop Cable Ties

Each EON715 Box Includes:

• (1) JBL Professional EON715 Speaker
• (1) IEC Power Cord
• (1) Set Up Guide

Each EON715-CVR Box Includes:

• (1) Speaker Cover for EON715 and Deluxe Padded EON715 Protective Speaker Cover

The MG10XU Retail Box Includes:

• (1) Yamaha MG10XU 10-Input Stereo Mixer with Effects and UBS
• (1) AC Power Adaptor
• (1) Technical Specifications
• (1) Set of Cubase AI Download Information
• (1) Owner's Manual
