Yorkville YXL10P

Specifications

• System Type Powered Loudspeaker
• Power Rating 1000 W Peak (500 W Program)
• Max SPL 126 dB Peak
• Frequency Response (Hz +/- 3dB) 55 Hz - 16 kHz
• Dispersion (H x V) 90° x 40°
• Crossover Frequency 1.6 kHz
• HF Program Power (Watts) 100 W Peak (50 W Program)
• HF Horn Integrated into Baffle
• LF Driver(s) 10" with 2" Voice Coil
• LF Program Power(Watts) 900 W Peak (450 W Program)
• HF Amplifier Type Class A/B
• LF Amplifier Type Class D
• Cooling Scheme Speed-Controlled Fan

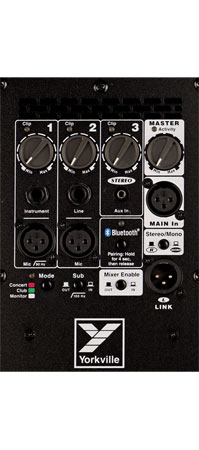

• In / Out Connections 1x Main In (XLR), 1x Link (XLR)
• Channel 1 Input 1x XLR, 1x 1/4" (Line)
• Channel 1 Controls Level Control
• Channel 2 Input 1x XLR, 1x 1/4" (Instrument)
• Channel 2 Controls Level Control
• Channel 3 Input 1/8", Bluetooth® Streaming
• Channel 3 Controls Level Control
• Level Controls 3x Channels, 1x Master
• EQ Controls Concert, Club, and Monitor Voicing Modes
• Limiter Multiband Excursion, RMS, Rail
• Other Controls / Features Sub Mode HP Filter, Mixer In / Out
• Stereo / Mono Out
• 3.5mm Aux In
• Bluetooth Streaming

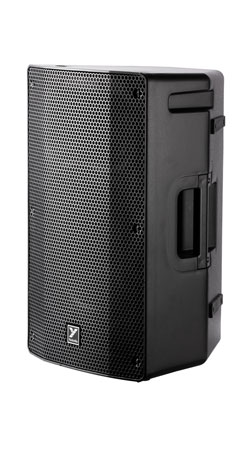

• Bar Handles 2 (1x Side, 1x Back)
• Flypoints 2 (2x Top, 1x Pullback)
• Flying Hardware M8 Metric Threading
• Pole Mount Adapter (1 3/8 Dual Angle (1x Bottom)
• Enclosure Materials Polypropylene
• Dimensions (DWH) 11" x 13.3" x 20.5" (28 cm x 33.5 cm x 52 cm)
• Weight 28 lbs / 14 kg
