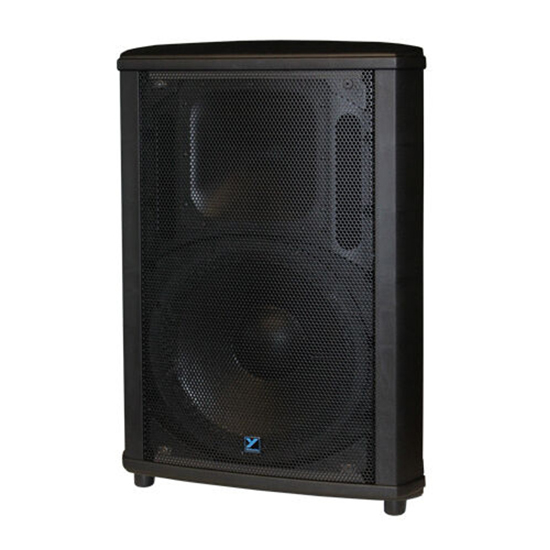

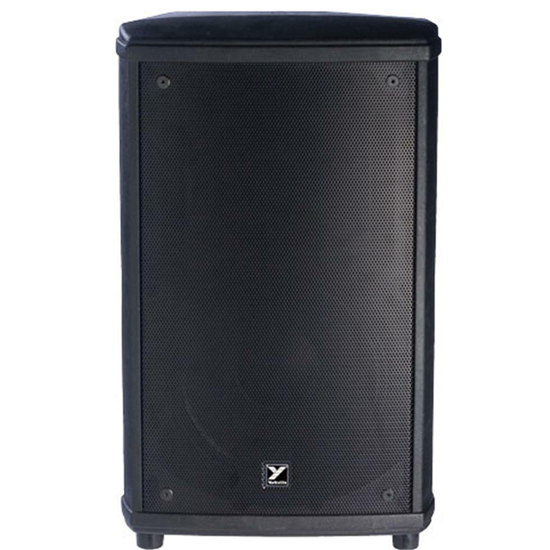

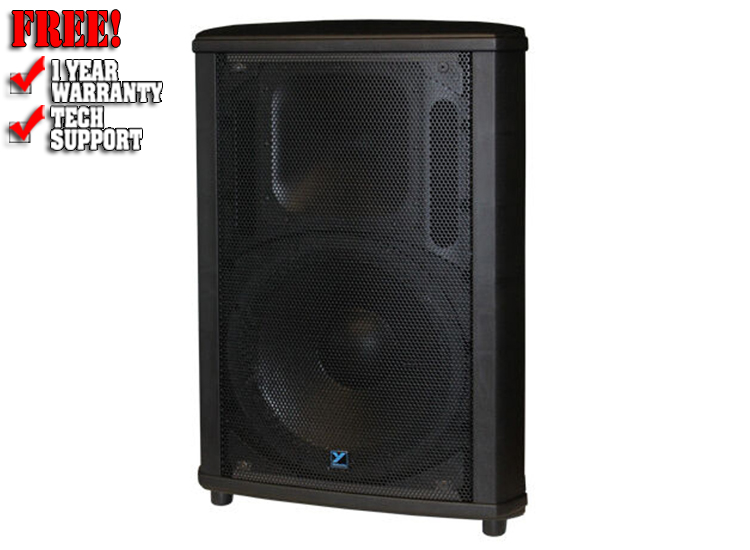

Yorkville NX750P-2 Active 2-Way Speaker 1500W Amplified pro DJ/Club Loudspeaker

Innovative biamplified power module uses a two-tier class H linear technology to produce loud clean transients to match the high output of the woofer. Its two-tier design technology is lower in weight and more efficient than conventional amplifiers while providing higher headroom and lower operating temperature - a perfect solution for powering the top end.
A newly designed switch-mode amplifier drives the woofer in the NX750P-2. The amplifier uses Class D switching technology, in part to reduce overall weight - it also runs cooler. Class D technology is similar to the power supply found in the trend-setting Elite EF500P's amplifier. Of particular significance is this technology's inherently low heat production which ensures reliability in a wide range of environments. Then the NX750P-2's combination of neodymium woofer magnetics and lightweight composite enclosure materials further ensure that all this remarkable performance comes in a lightweight, durable package.
Added to this is a great degree of versatility. For example the NX750P-2 can easily be used in any orientation - vertical or horizontal (eg stand-mounted or as a floor monitor) - close to walls in installations (flypoints are built-in) or in arrays with multiple NX750P-2s. There is also a versatile direct input system and built-in mixer. The mixer allows the NX750P-2 to be used directly with a microphone and/or a line source.
A "loop" output allows multiple NX750P-2s to be interconnected with mic or patch cables and controlled by one cabinet's mixer stage or direct line input. Here's another versatile trick - you can combine NX750P-2's using the mixer inputs on each cabinet and coupling the loop outputs to provide a complete, easy-to-use PA with its own microphone inputs and line inputs for background music or other audio. It's ideal for duos in small clubs, also presentations or teaching applications. Many NX750P-2's can be linked together but a maximum of three "mixers" can be active at any one time making three mic sources and six line sources available in any three-or-more-cabinet arrays. The trim control allows looped cabinets to be individually adjusted in level. Finally, the microphone input has bass and treble equalization and a 100Hz selectable high-pass filter appropriate for vocal-only applications or to let you add NX or Elite powered subwoofers, without a crossover.
Acoustic performance is ultimately the most important factor in any loudspeaker. The NX750P-2 offers 134dB (Peak) of maximum sound pressure potential and a wide, smooth audio range to ensure fidelity throughout the audience area.

Features:

Integrated 1600 Watt Amplifier Peak (750 Watts Program)
• Max SPL 133dB Peak (127dB Continuous)
• Ultra-light injection molded Polypropylene construction
• Dual purpose full range and wedge monitor format enclosure
• Ultra-clear reproduction throughout bandwidth
• Lightweight, high efficiency, high tech Bi-amped power module
• Proven TX style processing and component protection
• +6dB/-infinity input trim control for individual cabinet level adjustment
• XLR and TRS inputs / outputs for easy connection and looping
• Multi-input source mixer for direct inputs
• Direct microphone input with level control
• Two-way overall EQ controls
• High quality 1.5" High Frequency driver
• Rotatable 80° x 50° horn
• Next generation woofer / driver / horn technology
• Integrated flying hardware (1/4-20 threaded holes)
• Tough, full length metal grille
• Recessed Mixer panel

Specifications:

• System Type : 2-Way
• Active or Passive : Active
• Program Power (Watts) : 750 Watts (1600 Watts Peak)
• Biampable : Self Powered
• Max SPL (dB) : 133dB Peak (127dB Continuous)
• Frequency Response (Hz +/- 3dB) : 50 - 26k
• Crossover Frequency (Hz) : 1400
• Driver Configuration : 15-inch / 1.5-inch
• HF Driver(s) : 1.5-inch Polyester voicecoil (1-inch Throat)
• HF Dispersion (°H x °V) : 80 x 50 rotatable
• LF Driver(s) : 15-inch w/ 3-inch voicecoil
• HF Amplifier Type : Two Tier Class H
• LF Amplifier Type : Class D
• Power Cable : Yes
• Power Switch : Yes
• Inputs : 7
• Inputs - 1/4" Jacks : 2 (line input) 2 (link in/out)
• Inputs - XLR : 1 (mic) 2 (line in/out)
• Input Sensitivity (Vrms Sine) : +4dBv / 1.23V
• Mixer Controls : Mixer on/off switch, Mic Gain, Line/CD Gain, Treble/Bass Tweak
• Level Controls : +6dB/-infinity Main Volume
• EQ Controls : 100Hz HP Filter (LF Rolloff)
• Limiter : Yes
• LED Indicators : Power/Clip/Limit
• Other Controls / Features : Side recesses for ease of lifting
• Feet : Yes
• Bar Handles : 1 (Side)
• Flying Hardware : 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)
• Optional Flying Hardware : NX Flyware
• Pole Mount Adapter (1 3/8"-3.5cm) : Yes
• Enclosure Materials : Injection molded Polypropylene
• Grille : Perforated Metal
• Dimensions (DWH xbackW, inches) : 15 x 22 x 32 x 9.5
• Dimensions (DWH xbackW, cm) : 38 x 56 x 84 x 24
• Weight (lbs/kg) : 62 / 28
