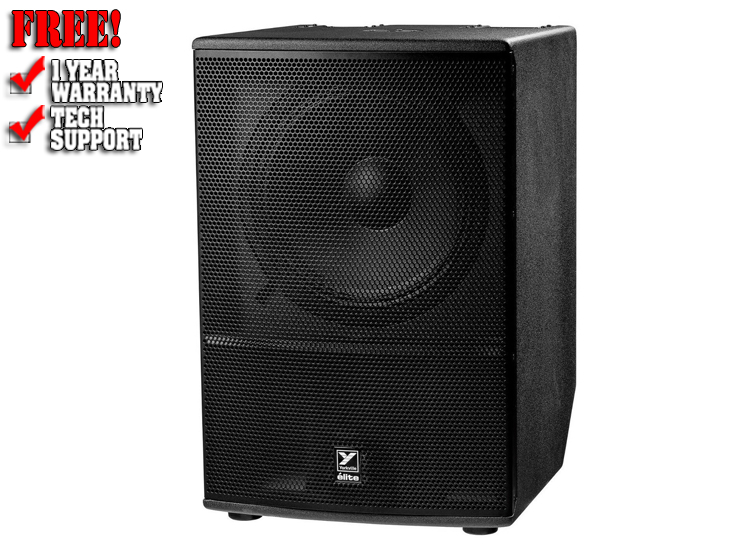

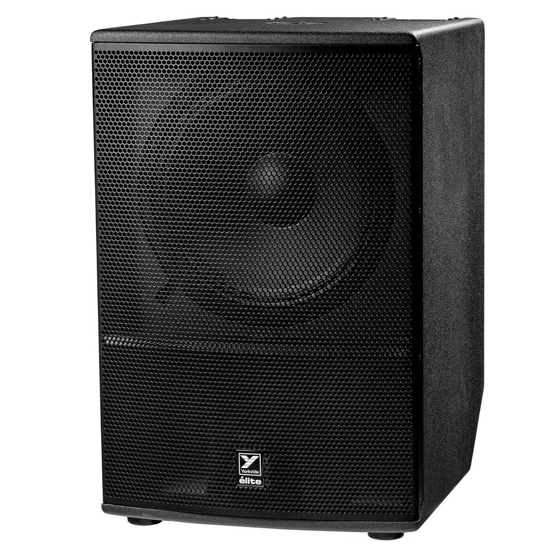

Yorkville ES18P Active Elite Series 18" Powered Subwoofer 3200W Amplified DJ Sub

The ES18P is a modern-day update of our flagship 'giant killer', the LS801P. The cabinet dimensions have been altered to offer better mobility, but the punch is still there. We've also added a little-brother to the family, by scaling down the 18" subwoofer design into a 15" platform. The ES15P design dials up the watts and incorporates a custom engineered 15" woofer to produce an astonishing amount of low end output in a 15" subwoofer.

Features:

• Next Generation Rear Horn Loaded Powered Subwoofer Design
• Class Leading Output and Bass Response
• Astonishing Output for a 'Car Friendly' 18-inch Subwoofer
• Custom Designed Long Excursion Cast Frame 18-inch Driver with 4-inch Voicecoil
• Proprietary DSP Based Limiters for Increased Output, Improved Sonic Quality and Greater Long Term Reliability
• Three DSP Based Preset Modes for Increased Flexibility in Any Live Sound or Club Application (Punchy, Smooth or Deep Response Curves)
• iOS and Android App for Added Subwoofer Control (Coming Soon)

Specifications:

• System Type : Rear Horn Loaded Subwoofer
• Active or Passive : Active
• Program Power (Watts) : 1600 Watts (3200 Watts Peak)
• Max SPL (dB) : 140dB Peak (134dB Continuous)
• Frequency Response (Hz +/- 3dB) : 43 - 150 (Hz +/- 3dB)
• LF Driver(s) : 18-inch Cast Frame Woofer w/4-inch Voicecoil
• Power Consumption (typ/max) : 120V (4A /4.5A), 230V (2A / 2.3A)

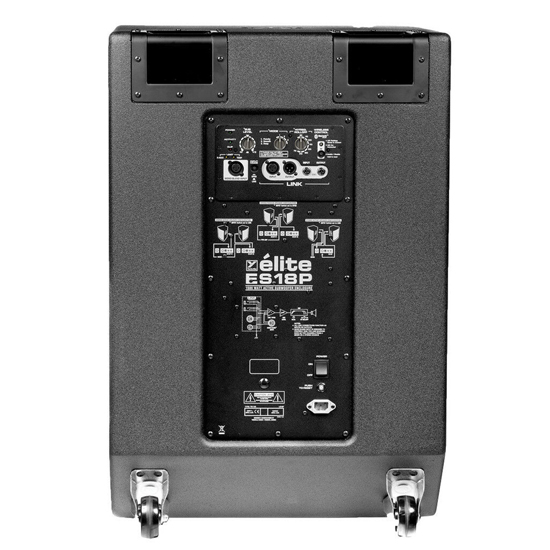

• In / Out Connections :
  • 1 x XLR Input
  • 1 x XLR Mono Blend Input
  • 1 x ¼-inch Link Input
  • 1 x ¼-inch Link Output
  • 1 x XLR Link Output
• Level Controls : Master
• LED Indicators : Power, Activity, Protection (Clip, X-Max, Temp)
• Other Controls / Features : Active Controls: Mode - 1 Punchy, 2 Smooth, 3 Deep High Frequency Roll-off - 80Hz to 150 Hz
• Bar Handles : 2 x top, 2 x bottom
• Pole Mount Adapter (1 3/8"-3.5cm) : 1 (Top) (1 3/8"-3.5cm)
• Enclosure Materials : 15mm (5/8inch) 11-ply Russian Birch
• Covering / Finish : Black Ultrathane Paint
• Dimensions (DWH xbackW, inches) : 24.1 x 22.84 x 34.65
• Dimensions (DWH xbackW, cm) : 61 x 58 x 88
• Weight (lbs/kg) : 137 / 62
